POWER WINDOW RELAY

Component Inspection

INFOID:0000000011278723

1.

 CHECK POWER WINDOW RELAY

Check power window relay.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Replace power window relay.

Terminal

Condition

Continuity

Power window relay

3

5

12V direct current supply between termi-
nals 1 and 2.

Yes

No current supply

No

JSIIA1551ZZ

DOOR SWITCH

PWC-51

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

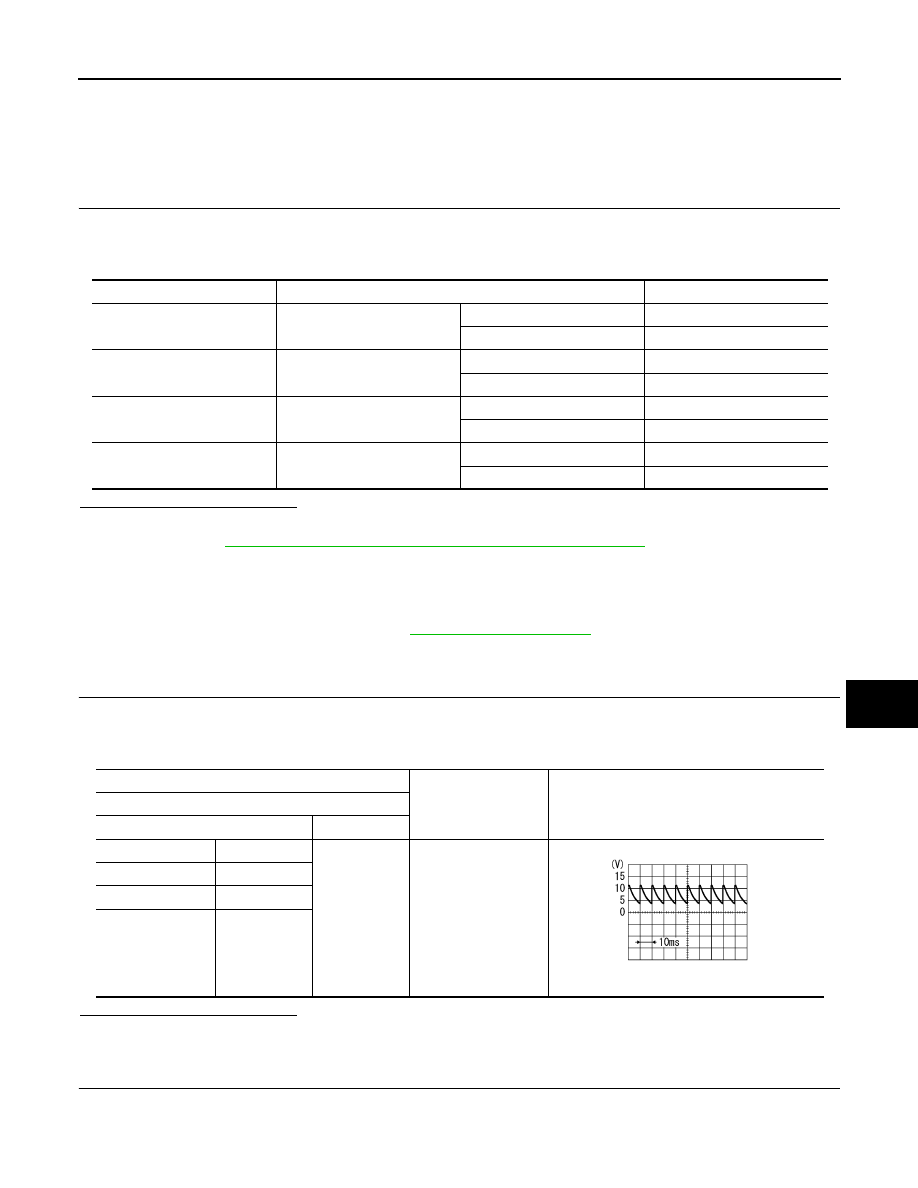

DOOR SWITCH

WITH INTELLIGENT KEY
WITH INTELLIGENT KEY : Component Function Check

INFOID:0000000011385883

1.

CHECK FUNCTION

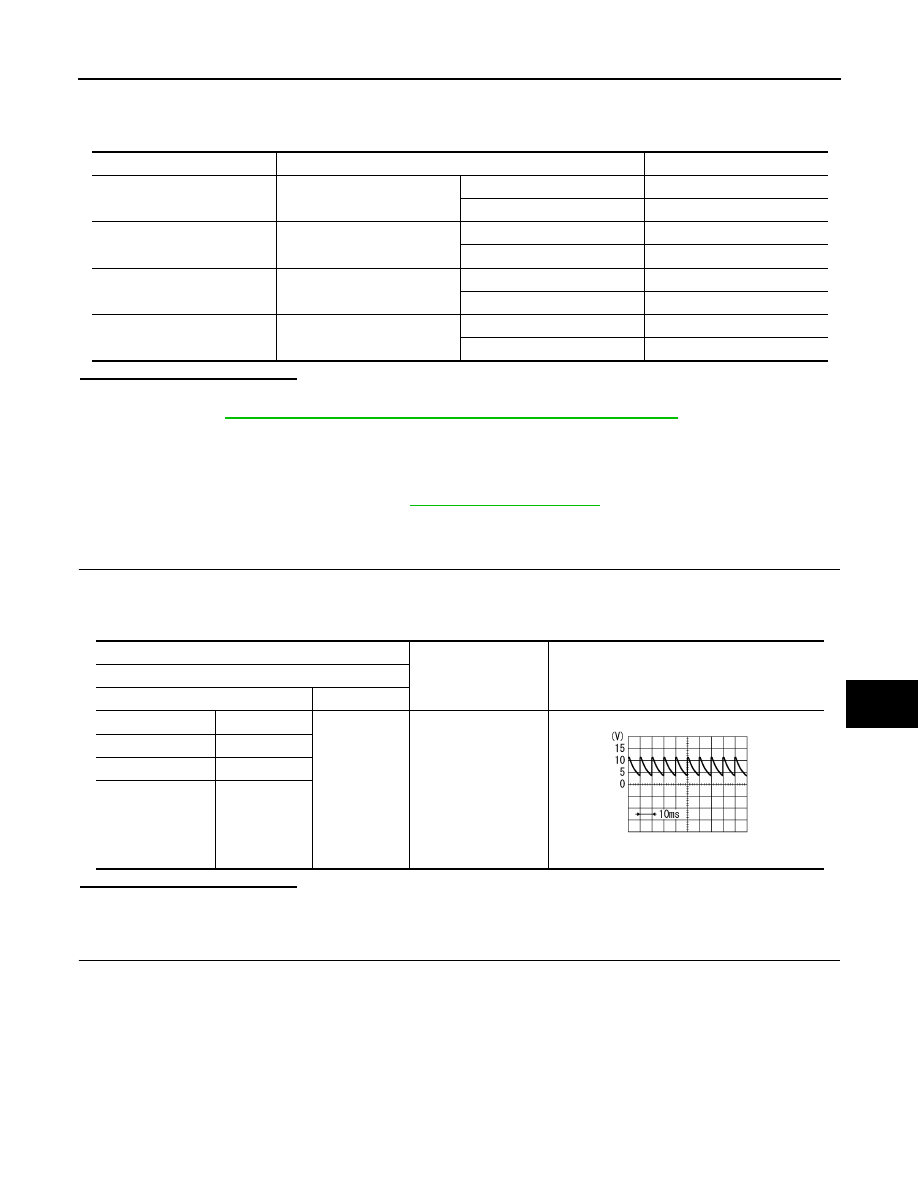

1. Select “DOOR LOCK” of “BCM” using CONSULT.

2. Select “DOOR SW-DR”, “DOOR SW-AS”, “DOOR SW-RL”, “DOOR SW-RR”, in “Data Monitor”.

3. Check that the function operates normally according to the following conditions:

Is the inspection result normal?

YES

>> Door switch is OK.

NO

>> Refer to

PWC-51, "WITH INTELLIGENT KEY : Diagnosis Procedure"

.

WITH INTELLIGENT KEY : Diagnosis Procedure

INFOID:0000000011385884

Regarding Wiring Diagram information, refer to

DLK-73, "Wiring Diagram"

.

1.

CHECK DOOR SWITCH INPUT SIGNAL

1. Turn ignition switch OFF.

2. Disconnect malfunctioning door switch connector.

3. Check signal between malfunctioning door switch harness connector and ground using oscilloscope.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

CHECK DOOR SWITCH CIRCUIT

1. Disconnect BCM connector.

2. Check continuity between door switch harness connector and BCM harness connector.

Monitor item

Condition

Status

DOOR SW-DR

Front door LH

Open

On

Closed

Off

DOOR SW-AS

Front door RH

Open

On

Closed

Off

DOOR SW-RL

Rear door LH

Open

On

Closed

Off

DOOR SW-RR

Rear door RH

Open

On

Closed

Off

(+)

(–)

Signal

(Reference value)

Door switch

Connector

Terminal

Front LH

B71

3

Ground

7.0 - 8.0 V

Front RH

B141

Rear LH

B70

Rear RH

B142

PKIB4960J

PWC-52

< DTC/CIRCUIT DIAGNOSIS >

DOOR SWITCH

3. Check continuity between door switch harness connector and ground.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-75, "Removal and Installation"

.

NO

>> Repair or replace harness.

3.

CHECK DOOR SWITCH

Refer to

PWC-52, "WITH INTELLIGENT KEY : Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Replace malfunctioning door switch. Refer to

DLK-276, "Removal and Installation"

.

4.

CHECK INTERMITTENT INCIDENT

Refer to

GI-44, "Intermittent Incident"

.

>> Inspection End.

WITH INTELLIGENT KEY : Component Inspection

INFOID:0000000011385885

1.

CHECK DOOR SWITCH

1. Turn ignition switch OFF.

2. Disconnect malfunctioning door switch connector.

3. Check continuity between door switch terminals.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Replace malfunctioning door switch. Refer to

DLK-276, "Removal and Installation"

.

WITHOUT INTELLIGENT KEY
WITHOUT INTELLIGENT KEY : Description

INFOID:0000000011385889

Detects door open/close condition.

WITHOUT INTELLIGENT KEY : Component Function Check

INFOID:0000000011385890

1.

CHECK FUNCTION

Door switch

BCM

Continuity

Connector

Terminal

Connector

Terminal

Front LH

B71

3

B16

57

Yes

Front RH

B141

53

Rear LH

B70

52

Rear RH

B142

50

Door switch

Ground

Continuity

Connector

Terminal

Front LH

B71

3

No

Front RH

B141

Rear LH

B70

Rear RH

B142

Door switch

Condition

Continuity

Terminal

3

Ground contact is part of the

switch.

Door switch

Pressed

No

Released

Yes

DOOR SWITCH

PWC-53

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

1. Select “DOOR LOCK” of “BCM” using CONSULT.

2. Select “DOOR SW-DR”, “DOOR SW-AS”, “DOOR SW-RL”, “DOOR SW-RR”, in “Data Monitor”.

3. Check that the function operates normally according to the following conditions:

Is the inspection result normal?

YES

>> Door switch is OK.

NO

>> Refer to

PWC-53, "WITHOUT INTELLIGENT KEY : Diagnosis Procedure"

.

WITHOUT INTELLIGENT KEY : Diagnosis Procedure

INFOID:0000000011385891

Regarding Wiring Diagram information, refer to

DLK-299, "Wiring Diagram"

.

1.

CHECK DOOR SWITCH INPUT SIGNAL

1. Turn ignition switch OFF.

2. Disconnect malfunctioning door switch connector.

3. Check signal between malfunctioning door switch harness connector and ground using oscilloscope.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

CHECK DOOR SWITCH CIRCUIT

1. Disconnect BCM connector.

2. Check continuity between door switch harness connector and BCM harness connector.

Monitor item

Condition

Status

DOOR SW-DR

Front door LH

Open

On

Closed

Off

DOOR SW-AS

Front door RH

Open

On

Closed

Off

DOOR SW-RL

Rear door LH

Open

On

Closed

Off

DOOR SW-RR

Rear door RH

Open

On

Closed

Off

(+)

(–)

Signal

(Reference value)

Door switch

Connector

Terminal

Front LH

B71

3

Ground

7.0 - 8.0 V

Front RH

B141

Rear LH

B70

Rear RH

B142

PKIB4960J
