CAUTION:

• Make sure battery tray liner is clean prior to installing new battery.

• To prevent damage to the parts, connect the battery positive terminal first.

• Make sure battery cables are tightly clamped to battery terminals for good contact.

• Check battery terminal for poor connection caused by corrosion.

Reset electronic systems as necessary. Refer to .

PG-72, "ADDITIONAL SERVICE WHEN REMOVING BAT-

TERY NEGATIVE TERMINAL : Special Repair Requirement"

Removal and Installation (Battery Tray)

INFOID:0000000011280962

REMOVAL

1. Remove battery. Refer to

PG-78, "Removal and Installation (Battery)"

.

2. Remove air duct. Refer to

EM-26, "Exploded View"

.

3. Disconnect harness connector from TCM.
4. Remove wiring harness retainers.
5. Disconnect harness connectors from ECM.
6. Remove battery tray. Refer to

PG-78, "Exploded View"

7. Remove TCM bracket from battery tray (if necessary).
8. Remove ECM bracket from battery tray (if necessary).

INSTALLATION

Installation is in the reverse order of removal.

• Reset electronic systems as necessary. Refer to

PG-72, "ADDITIONAL SERVICE WHEN REMOVING BAT-

TERY NEGATIVE TERMINAL : Special Repair Requirement"

.

• Perform the "Throttle Valve Closed Position Learning". Refer to

EC-135, "Work Procedure"

.

Battery terminal nut

: 5.39 N·m (0.55 kg-m, 48 in-lb)

PG-80

< REMOVAL AND INSTALLATION >

BATTERY TERMINAL WITH FUSIBLE LINK

BATTERY TERMINAL WITH FUSIBLE LINK

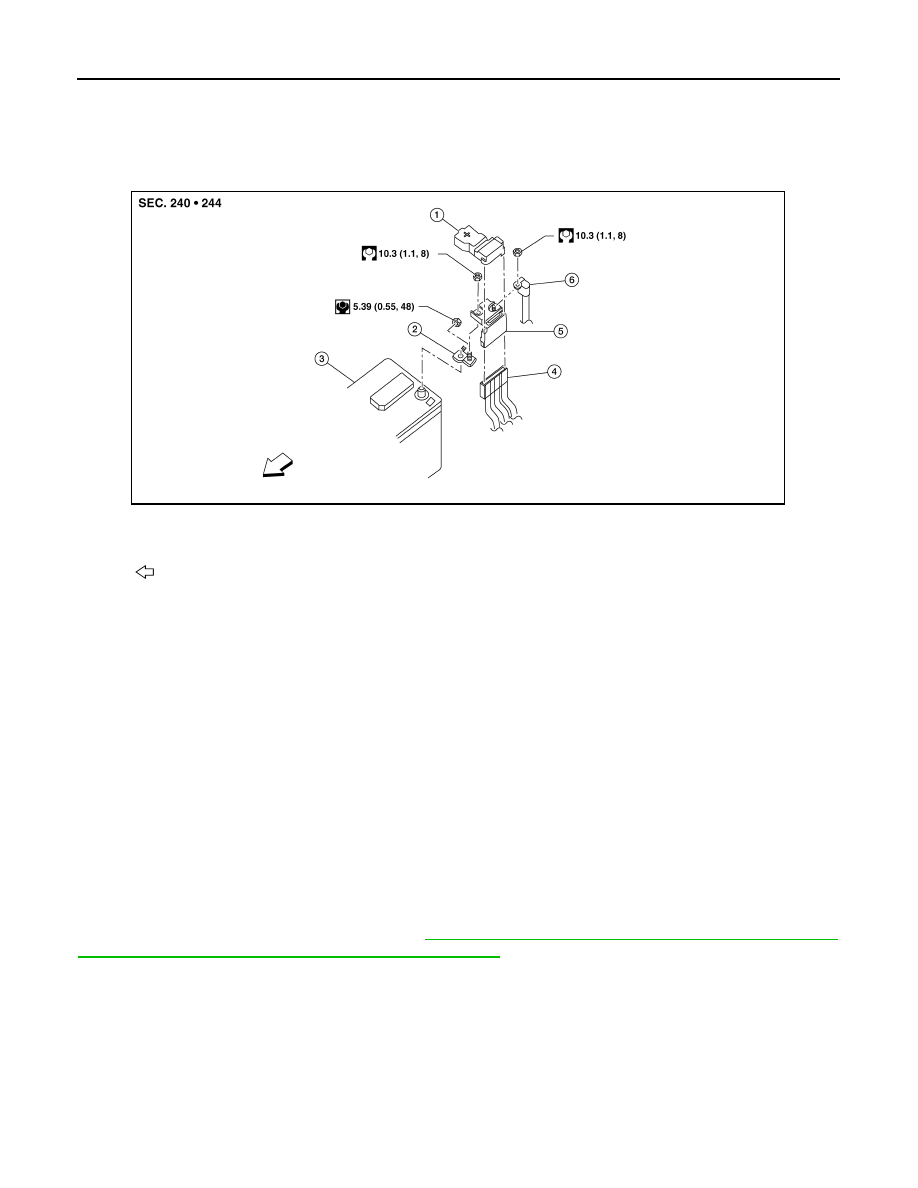

Exploded View

INFOID:0000000011280963

Removal and Installation

INFOID:0000000011280964

REMOVAL

1. Loosen battery terminal nuts and disconnect both negative and positive terminals from the battery.

CAUTION:

To prevent damage to the parts, disconnect the battery negative terminal first.

2. Disconnect positive cable from fusible link box (battery).
3. Disconnect harness connectors from fusible link box (battery) and remove fusible link box (battery).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Replace the fusible link box battery if it has been dropped or sustained and impact.

To install the battery, carefully read the following instructions:

• To prevent damage to the parts, connect the battery cable to the positive terminal first.

• After connecting battery cables, to securely supply battery voltage, ensure that they are tightly

clamped to battery terminals for good contact.

• To securely supply battery voltage, check battery terminal for poor connection caused by corrosion.

Reset electronic systems as necessary. Refer to

PG-72, "ADDITIONAL SERVICE WHEN REMOVING BAT-

TERY NEGATIVE TERMINAL : Special Repair Requirement"

.

1.

Cover

2.

Positive terminal

3.

Battery

4.

Harness connectors

5.

Fusible link box (battery)

6.

Positive cable

Front

AWMIA1595ZZ

PG

SERVICE DATA AND SPECIFICATIONS (SDS)

PG-81

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Battery

INFOID:0000000011280965

*: Always check with the Parts Department for the latest parts information.

Type*

GR35

GR35

Capacity (20HR) minimum V-AH

12-60

12-63

Cold cranking current A @ -18

°C (0°F)

550

550
