Nissan Rogue. Manual - part 975

PG

HARNESS

PG-63

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

D3 D504       B/6

: Rear view camera (Without driver
  assistance system)

D3

D516       BR/2

: License plate lamp LH

B2

D505       W/2

:  To  B54

E3

D517       BR/2

:  License  plate  lamp  RH

D3 D506       W/3

:  Rear  wiper  motor

C4

D518       W/3

:  Back-up  lamp  assembly  LH

C4 D507       W/4

:  Back  door  opener  switch

F3

D519       W/3

:  Back-up  lamp  assembly  RH

E4

D508       W/4

: Back door lock assembly (Without power
  back door system)

C2

D521         —

:  Body  ground

D1 D510       B/1

:  Rear  window  defogger

E2

D525       B/1

:  Rear  window  defogger

C4 D511       W/2

:  Touch  sensor  LH

PG-64

< WIRING DIAGRAM >

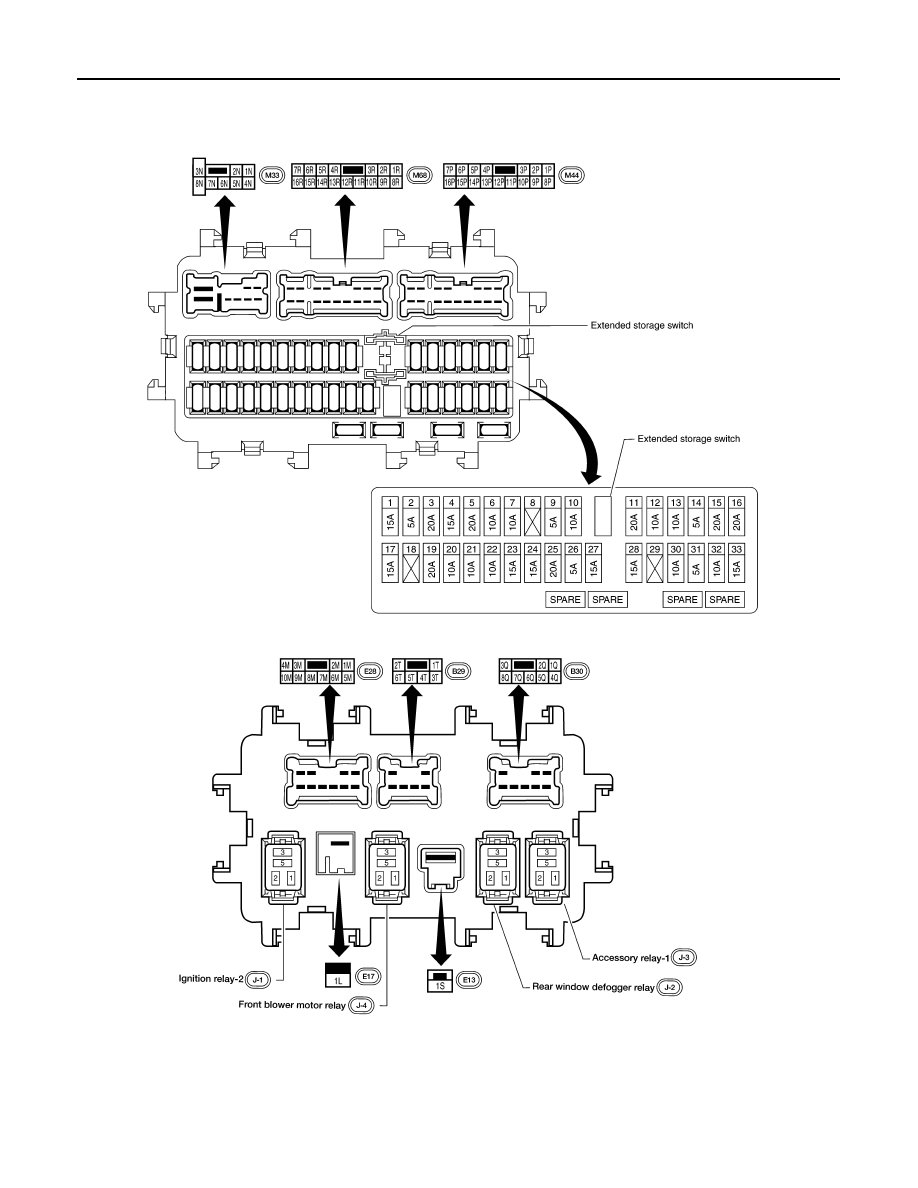

FUSE BLOCK - JUNCTION BOX (J/B)

FUSE BLOCK - JUNCTION BOX (J/B)

Terminal Arrangement

INFOID:0000000011280952

AAMIA2858GB

PG

FUSE, FUSIBLE LINK AND RELAY BOX

PG-65

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

FUSE, FUSIBLE LINK AND RELAY BOX

Terminal Arrangement

INFOID:0000000011280953

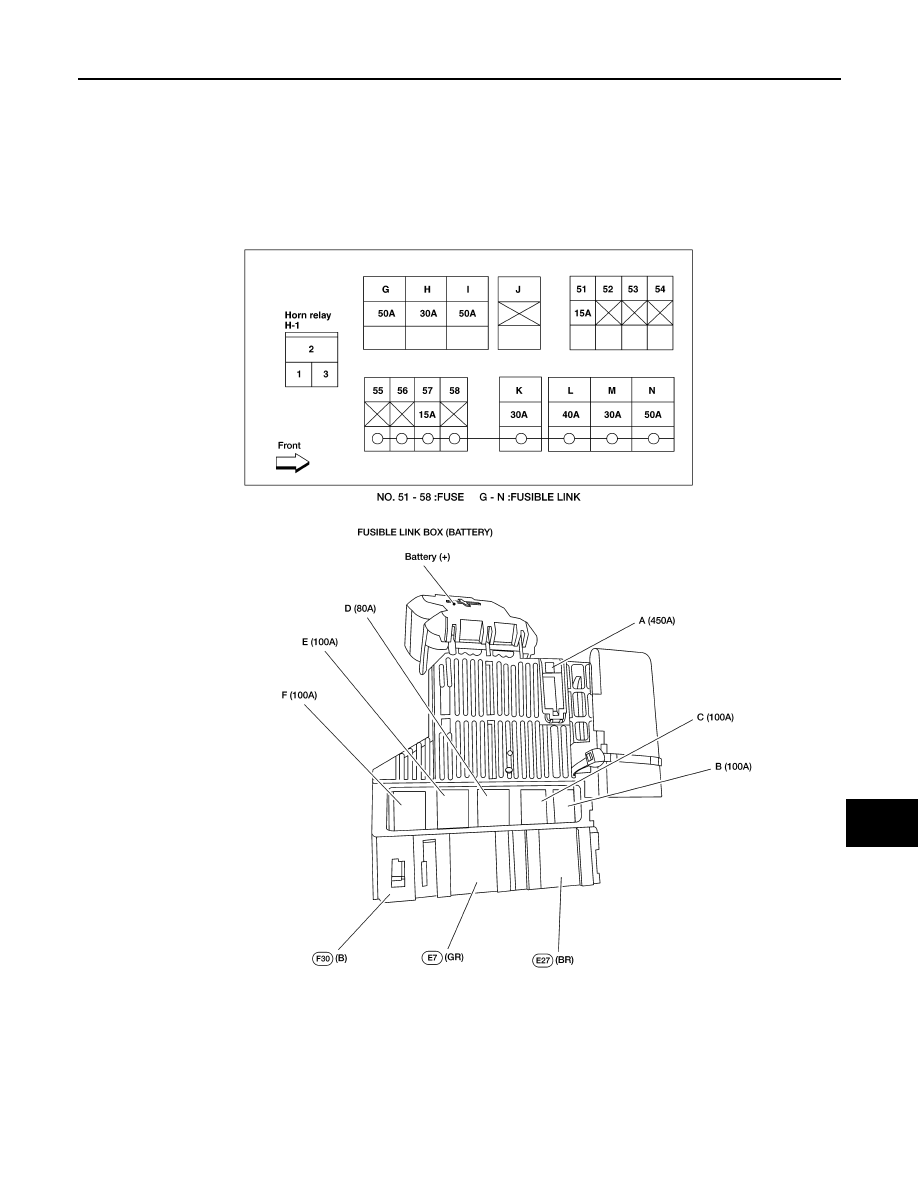

FUSE, FUSIBLE LINK AND RELAY BOX 1

AAMIA2859GB

PG-66

< WIRING DIAGRAM >

FUSE, FUSIBLE LINK AND RELAY BOX

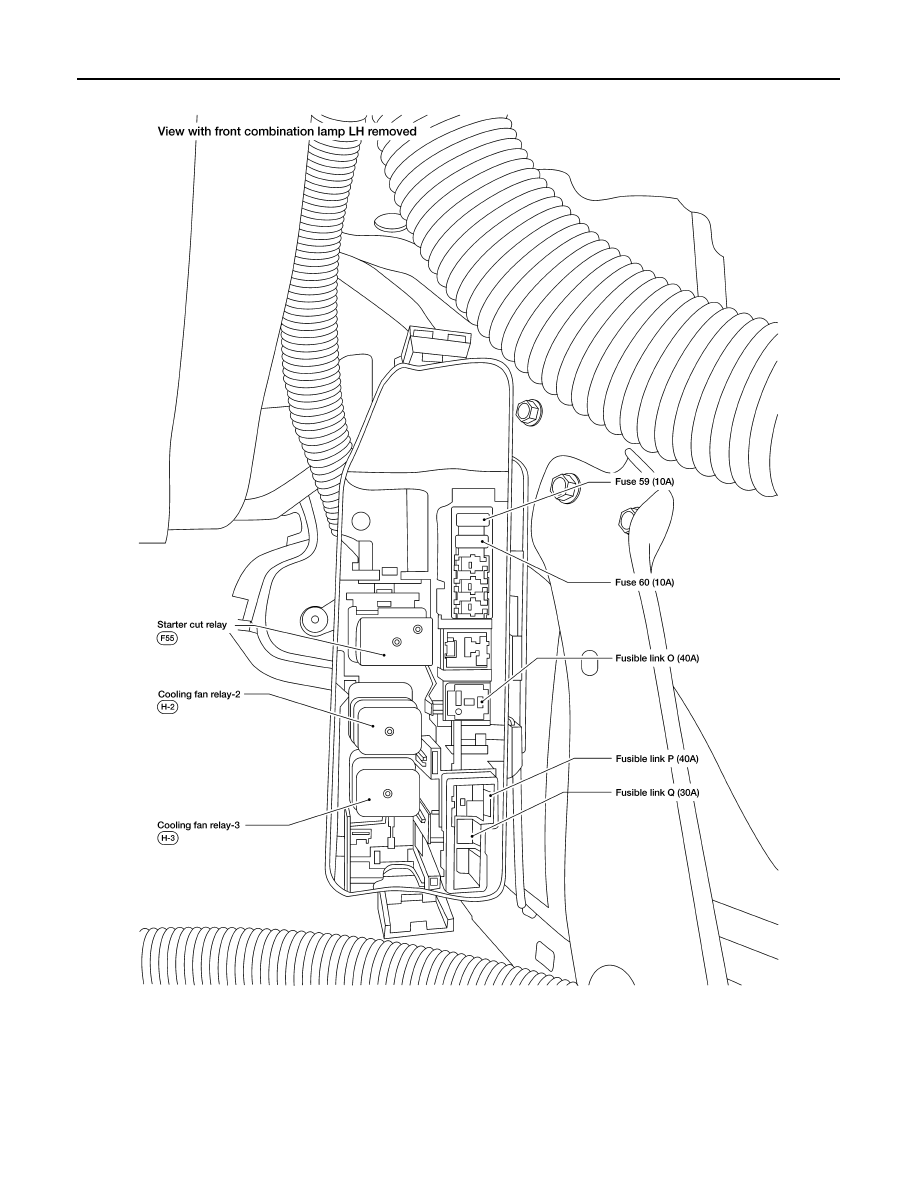

FUSE, FUSIBLE LINK AND RELAY BOX 2

AAMIA2860GB
