Nissan Rogue. Manual - part 971





PG

HARNESS

PG-47

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

E3

E16        B/32

: ECM

D3

E70        Y/2

: Crash zone sensor

E2

E18        GR/2

:  Front  wheel  sensor  LH

E4

E76        B/2

:  Ambient  sensor

F2

E19        BR/16

:  To  F33

C5

E82        W/2

:  Washer  fluid  level  switch

E1

E20        GR/5

:  Front  wiper  motor

B3

E101       W/3

:  Anti-theft  horn  relay

D4 E21        B/8

:  Distance  sensor

D3

E103       GR/3

:  Front  combination  lamp  RH

C4 E24        BR/3

: Intelligent Key warning buzzer

F2

E105       GR/3

: Front combination lamp LH

G2 E26        W/24

:  To  E209

E2

E118       B/2

: IPDM E/R (Intelligent power distribution
  module engine room)

E2

E27        BR/2

:  Fusible  link  box  (Battery)

F1

E119       GR/16

: IPDM E/R (Intelligent power distribution
  module engine room)

G2 E40        W/4

:  To  E40

F2

E120       GR/24

: IPDM E/R (Intelligent power distribution
  module engine room)

B4

E41        B/2

:  Front  and  rear  washer  motor

E2

E121       R/6

: IPDM E/R (Intelligent power distribution
  module engine room)

B3

E43        GR/2

:  Front  wheel  sensor  RH

C2

E125       B/38

: ABS actuator and electric unit (Control
  unit)

E3

E46        B/1

:  Horn

C2

E126         —

:  Body  ground

E4

E47        B/1

:  Horn

E3

E167       B/3

:  Vacuum  sensor

D3 E48        B/1

: Horn (Low)

PG-48

< WIRING DIAGRAM >

HARNESS

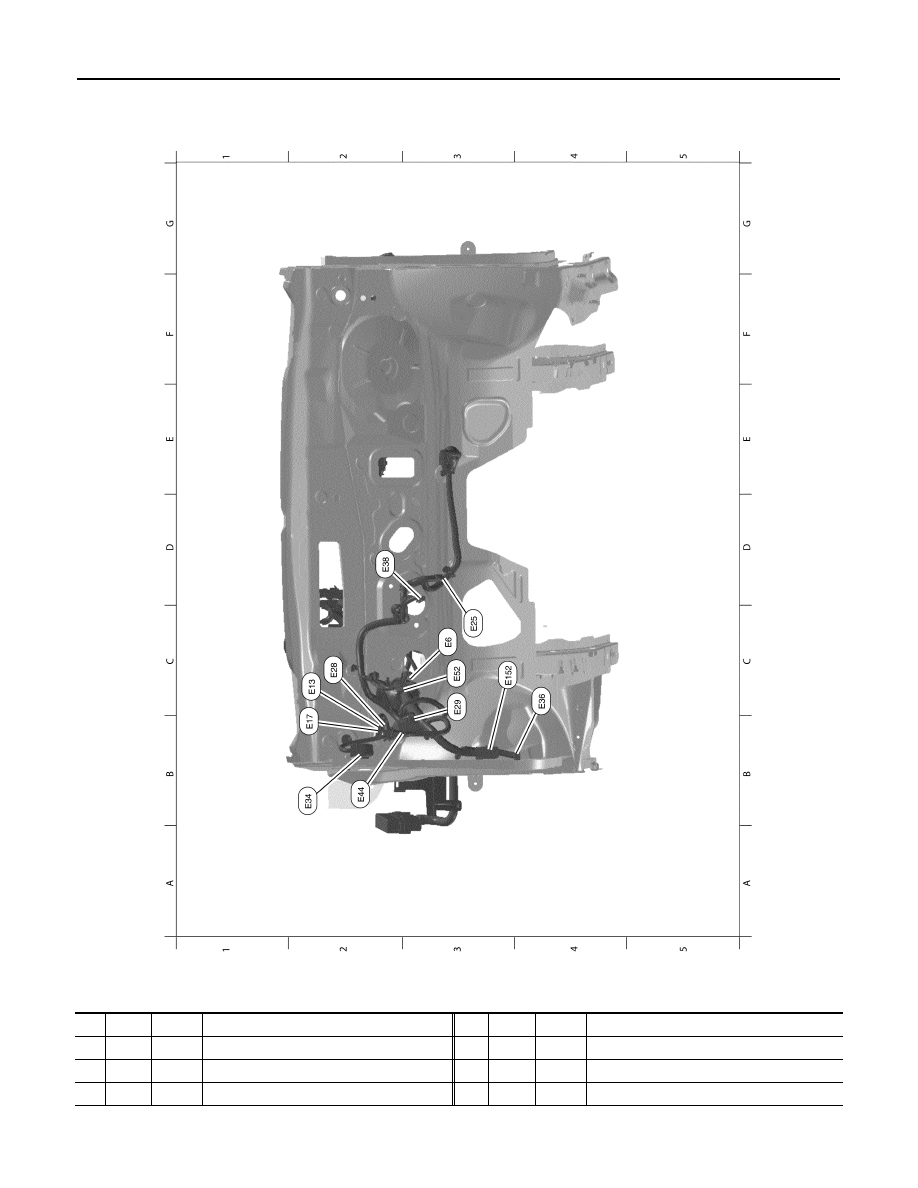

ENGINE ROOM HARNESS (PASSENGER COMPARTMENT)

AAMIA0417ZZ

C3 E6         BR/2

: Brake pedal position  switch

B2

E34       SMJ

:  To  B40

C2 E13        W/1

: Fuse block (J/B)

C4

E36        B/2

: To M75

B2

E17        W/1

: Fuse block (J/B)

D2

E38        W/4

: Stop lamp switch

C3 E25        B/6

:  Accelerator  pedal  position

B2

E44        W/28

:  Joint  connector-E01

PG

HARNESS

PG-49

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

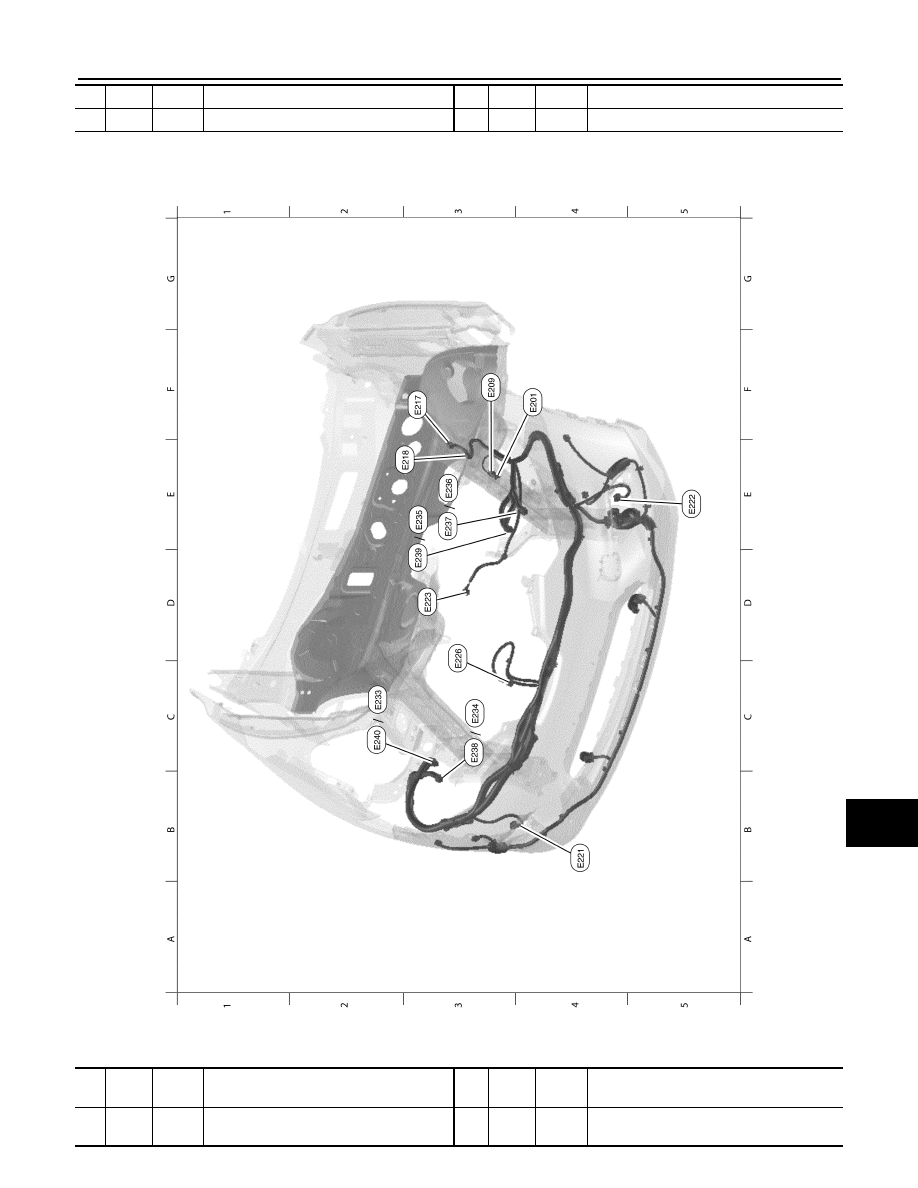

FRONT END MODULE HARNESS

C2 E28        W/10

:  Fuse  block  (J/B)

C3

E52        B/1

:  Parking  brake  switch

C3 E29        B/24

:  BCM  (Body  control  module)

C3

E152       SMJ

:  To  M31

AAMIA0416ZZ

F4

E201       W/4

:  To  E40

C2

E233       B/6

: Front  combination  lamp RH (With
  halogen headlamps

F3

E209       W/24

:  To  E26

C3

E234       GR/6

: Front  combination  lamp RH (With
  halogen headlamps)

PG-50

< WIRING DIAGRAM >

HARNESS

F3

E217       BR/8

: IPDM E/R (Intelligent power distribution
  module engine room)

E3

E235       B/6

: Front  combination  lamp LH (With
  halogen headlamps)

E3

E218       W/8

: IPDM E/R (Intelligent power distribution
  module engine room)

E3

E236       GR/6

: Front  combination  lamp LH (With
  halogen headlamps)

B4

E221       B/2

:  Front  fog  lamp  RH

E3

E237       B/3

: Front combination lamp LH(Head lamp
  aiming motor)

E5

E222       B/2

:  Front  fog  lamp  LH

C3

E238       B/3

: Front combination lamp RH(Head lamp
  aiming motor)

D3 E223       GR/2

:  Hood  switch

C3

E239       B/8

: Front combination lamp LH (With LED
  headlamps)

D3 E226       B/6

:  Front  camera

C2

E240       B/8

: Front combination lamp RH (With LED
  headlamps)
