Nissan Rogue. Manual - part 970





PG

HARNESS

PG-43

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

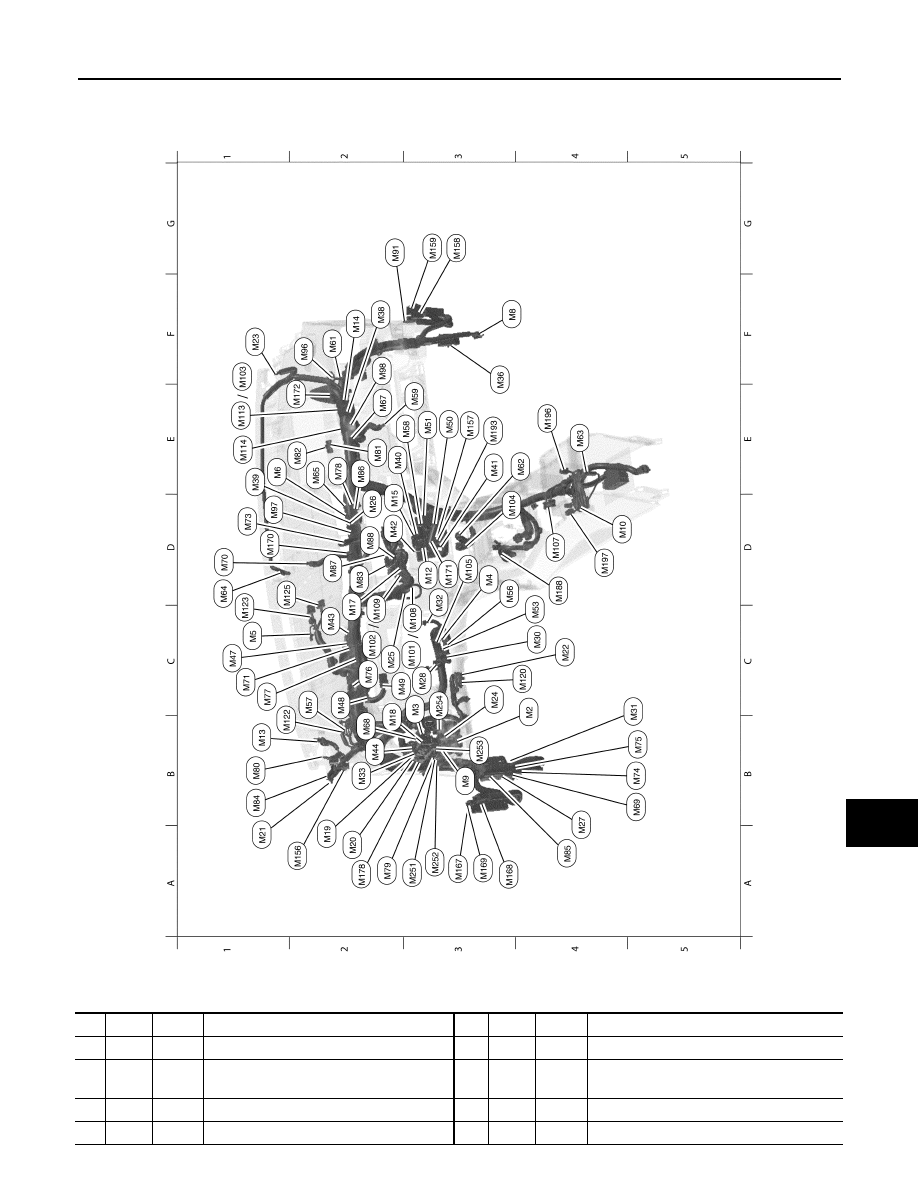

MAIN HARNESS

AAMIA0419ZZ

C4 M2         L/8

:  Sport  mode  switch

D1

M73        W/8

:  Joint  connector-M23

C3 M3         W/8

:  Meter  control  switch

B5

M74        W/16

:  To  B42

D3 M4         W/4

: NATS antenna amp. (With Intelligent Key
  system)

B5

M75        B/2

:  T0  E36

C1 M5         W/4

:  Dongle  unit

C2

M76        W/40

:  Combination  meter

E1

M6         GR/24 :  Joint  connector-M01

C1

M77        W/12

:  Combination  meter

PG-44

< WIRING DIAGRAM >

HARNESS

F3

M8         W/6

:  To  B106

E2

M78        W/8

:  Joint  connector-M28

B3

M9         W/16

: To M251

A2

M79        B/8

: VDC off switch

D4 M10        Y/28

:  Air  bag  diagnosis  sensor  unit

B1

M80        W/2

:  Front  tweeter  LH

D3 M12        L/4

:  Room  lamp  relay

E2

M81        O/2

:  Front  passenger  air  bag  module

B1

M13        W/3

:  Optical  sensor

E2

M82        B/2

:  Front  passenger  air  bag  module

F2

M14        W/4

:  Joint  connector-M30

D2

M83        W/20

:  Audio  unit

D2 M15        W/2

:  Inside  key  antenna  (Instrumen  center)

B1

M84        W/4

:  Joint  connector-M32

C2 M17        W/8

:  Push-button  ignition  switch

A4

M85        W/8

:  Joint  connector-M33

B2

M18        GR/40 :  BCM  (Body  control  module)

E2

M86        W/8

:  Joint  connector-M34

A2

M19        B/40

:  BCM  (Body  control  module)

D2

M87        W/32

:  Audio  unit

A2

M20        BR/16

:  BCM  (Body  control  module)

D2

M88        W/8

:  Audio  unit

A1

M21        W/8

: To R1

G2

M91        W/24

: To D101

C4 M22        W/16

:  Data  link  connector

F2

M96        W/24

:  Chassis  control  module

F1

M23        W/2

:  Front  tweeter  RH

D1

M97        W/8

:  Joint  connector-M24

C3 M24        G/8

:  Automatic  back  door  switch

F2

M98        W/8

:  Joint  connector-M22

C2 M25        W/3

: NATS antenna amp. (With Intelligent Key
  system)

C3

M101       W/20

: AV control unit (Without BOSE audio
  system)

D2 M26        W/4

:  Hazard  switch

D2

M102       W/24

: AV control unit (Without BOSE audio
  system)

A4

M27        W/8

:  Joint  connector-M13

F1

M103       W/40

: Around view monitor control unit
  (Without driver assistance system)

C3 M28        W/16

:  Combination  switch

D3

M104       W/4

:  Aux  in  jack

C4 M30        W/12

:  Combination  switch  (Spiral  cable)

D3

M105       W/2

:  Key  switch

C5 M31        SMJ

:  To  E152

D4

M107       W/16

:  CVT  shift  selector

D3 M32        W/4

:  Ignition  switch

C2

M108       W/20

: AV control unit (With BOSE audio system)

B2

M33        W/8

:  Fuse  block  (J/B)

C2

M109       W/24

: AV control unit (With BOSE audio system)

F3

M36        SMJ

:  To  B136

E1

M113       W/40

: Around view monitor control unit (With
  driver assistance system)

F2

M38        W/6

:  Joint  connector-M05

E1

M114       W/32

: Around view monitor control unit (With
  driver assistance system)

E1

M39        W/6

:  Joint  connector-M06

C3

M120       BR/4

:  Waring  system  buzzer

E2

M40        W/2

:  Circuit  breaker-1

B1

M122         —

: Body ground

E3

M41        W/2

:  In-vehicle  sensor

C1

M123       W/6

: To M132

D2 M42        W/2

:  Circuit  breaker-2

D1

M125       W/32

:  To  M127

C2 M43        L/20

:  Joint  connector-M02

A2

M156       W/24

: To R11

B2

M44        W/16

:  Fuse  block  (J/B)

E3

M157       B/4

: Front passenger air bag off indicator

C1 M47        B/20

:  Joint  connector-M04

G3

M158       W/16

: To D102

C2 M48        B/2

:  EPS  control  unit

G3

M159       Y/4

: To D103

C2 M49        W/8

:  EPS  control  unit

A3

M167       W/16

: To D2

E3

M50        W/32

:  Front  air  control

A3

M168       W/24

: To D3

E3

M51        B/10

:  A/C  switch

A3

M169       Y/4

: To D13

C4 M53        GR/4

:  Combination  switch  (Spiral  cable)

D1

M170       W/8

:  Joint  connector-M29

D3 M56        GR/8

:  Steering  angle  sensor

D3

M171       W/4

:  Joint  connector-M25

C2 M57          —

:  Body  ground

E2

M172       W/4

:  Joint  connector-M31

E3

M58        L/4

:  Power  window  relay

A2

M178       B/8

: Automatic back door main switch

F2

M61          —

:  Body  ground

D4

M188       BR/2

:  CVT  shift  selector

E4

M62        B/3

:  Front  power  socket

E3

M193       W/8

:  Joint  connector-M18

PG

HARNESS

PG-45

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

E4

M63        B/3

:  Console  power  socket

E4

M196       BR/6

: Front heated seat switch RH

D1 M64        B/2

:  Sunload  sensor

D4

M197       W/6

: Front heated seat switch LH

E2

M65        W/8

:  Joint  connector-M26

Main  sub  harness

E2

M67        W/8

:  Joint  connector-M27

A3

M251       W/16

: To M9

B2

M68        BR/16

:  Fuse  block  (J/B)

A3

M252       W/10

: AWD lock switch

B5

M69       W/32

:  To  B41

B3

M253       W/8

: Warning system switch

D1 M70        BR/2

:  Center  speaker

C3

M254       GR/10

: Hill descent control switch

C1 M71        L/20

:  Joint  connector-M03

PG-46

< WIRING DIAGRAM >

HARNESS

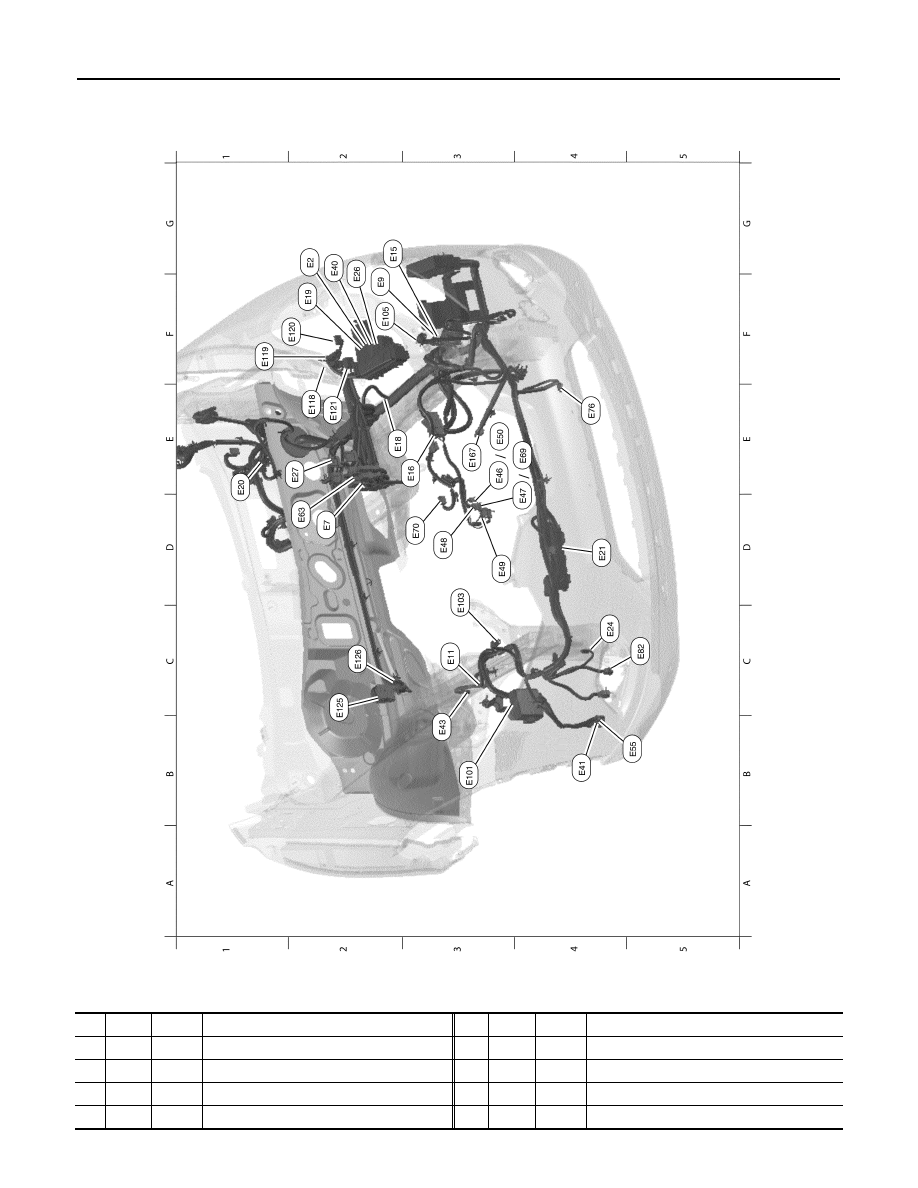

ENGINE ROOM HARNESS

AAMIA0418ZZ

G2 E2         W/2

: To F32

D3

E49        B/1

: Horn (Low)

D2 E7         GR/2

: Fusible link box (Battery)

E3

E50        B/1

:  Horn  (High)

F2

E9          —

: Body ground

B5

E55        B/2

: Rear view camera washer motor

C3 E11         —

: Body ground

D2

E63        B/2

: Brake fluid level switch

G2 E15

  —

:  Body  ground

E4

E69        BR/1

:  Horn  (High)
