Nissan Rogue. Manual - part 960





PG

PREPARATION

PG-3

< PREPARATION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000011280941

The actual shape of the tools may differ from those illustrated here.

Commercial Service Tool

INFOID:0000000011280942

Tool number
(TechMate No.)
Tool name

Description

 —

(165-GR8-1200KIT-NI)
Nissan battery and electronics tester

Testing batteries, starting and charging sys-
tems and charges batteries.
For operating instructions, refer to diagnostic
station instruction manual.

 —

(165-EXP-800 NI)
Midtronic hand-held battery tester

Testing batteries and charging systems.
For operating instructions, refer to diagnostic
analyzer instruction manual.

AWIIA1239ZZ

JSMIA0806ZZ

Tool name

Description

Power tool

Loosening nuts, screws and bolts

PIIB1407E

PG-4

< SYSTEM DESCRIPTION >

ELECTRICAL UNITS LOCATION

SYSTEM DESCRIPTION

ELECTRICAL UNITS LOCATION

Electrical Units Location

INFOID:0000000011280943

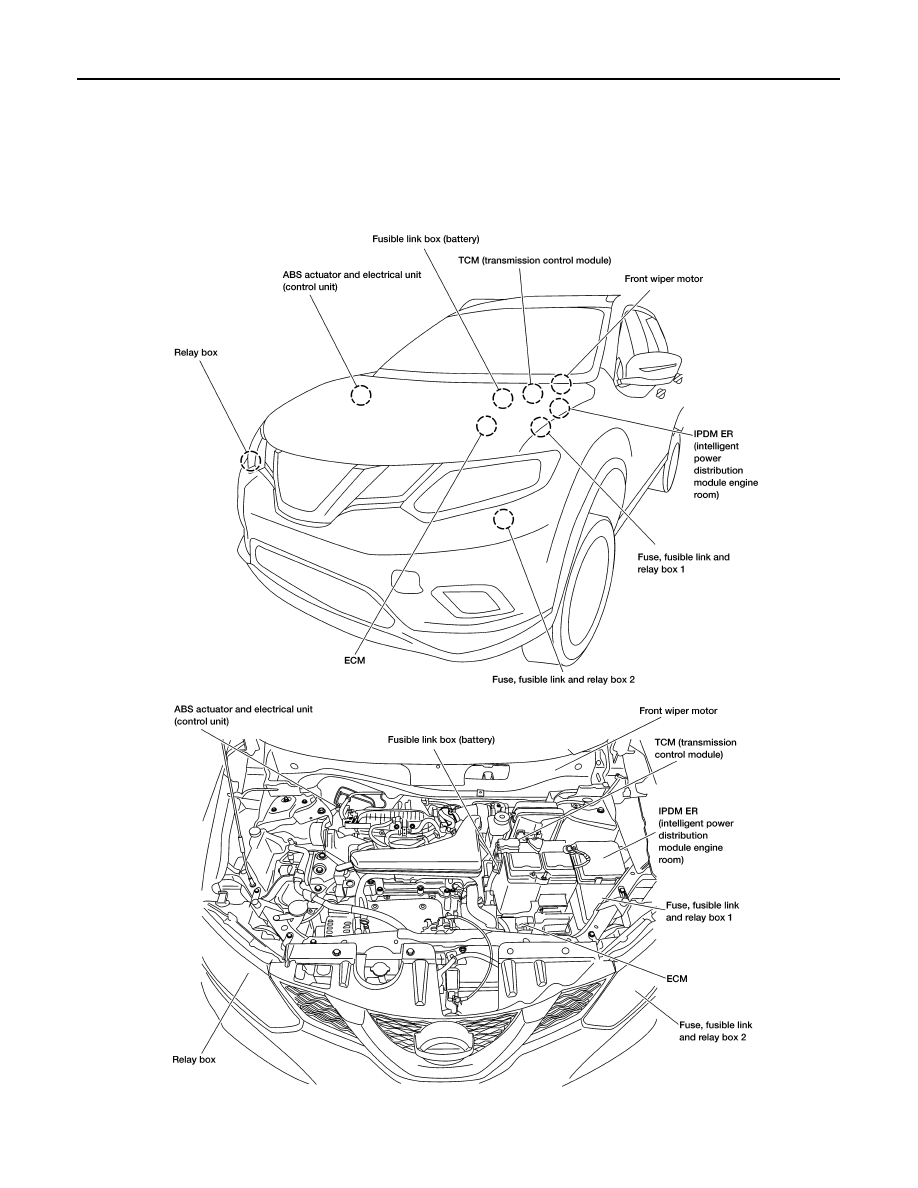

ENGINE COMPARTMENT

AAMIA2857GB

PG

ELECTRICAL UNITS LOCATION

PG-5

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

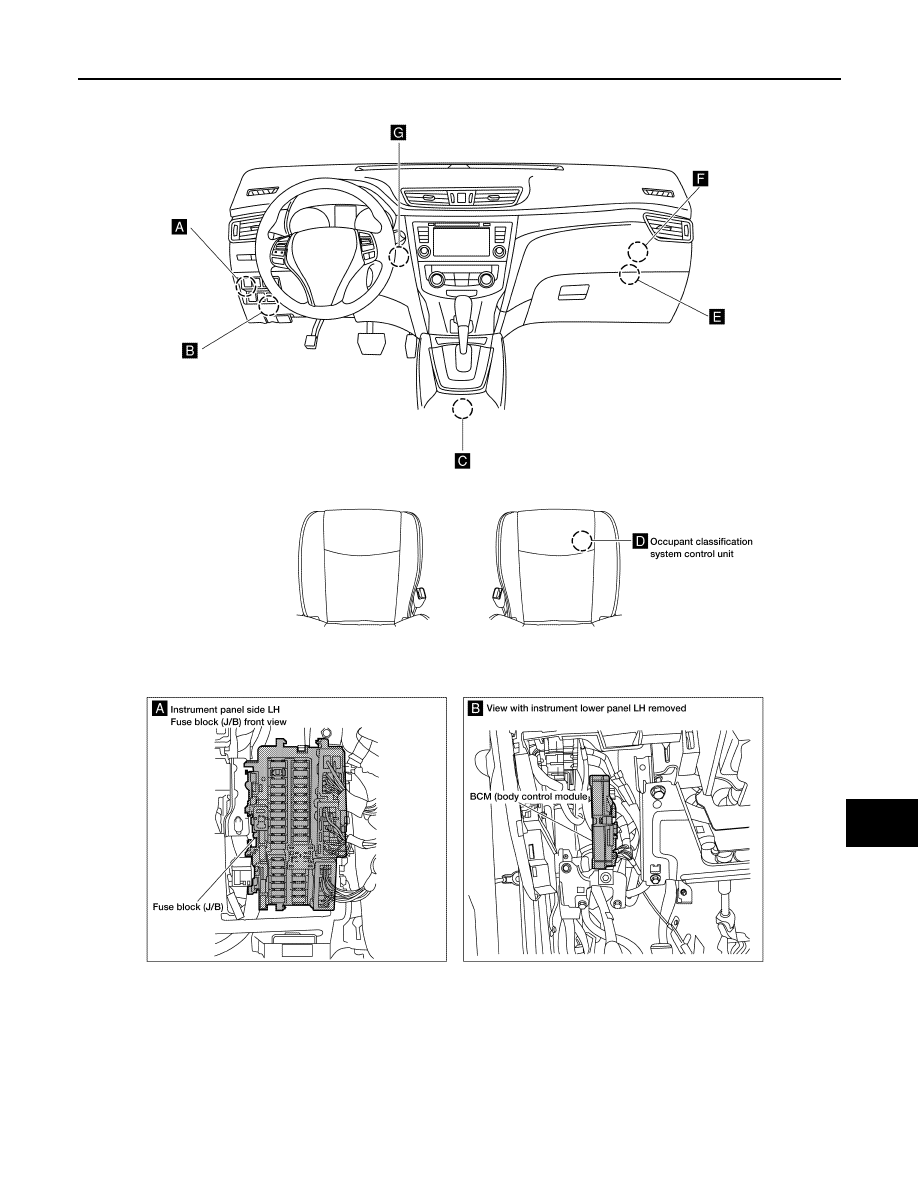

PASSENGER COMPARTMENT

AAMIA2340GB

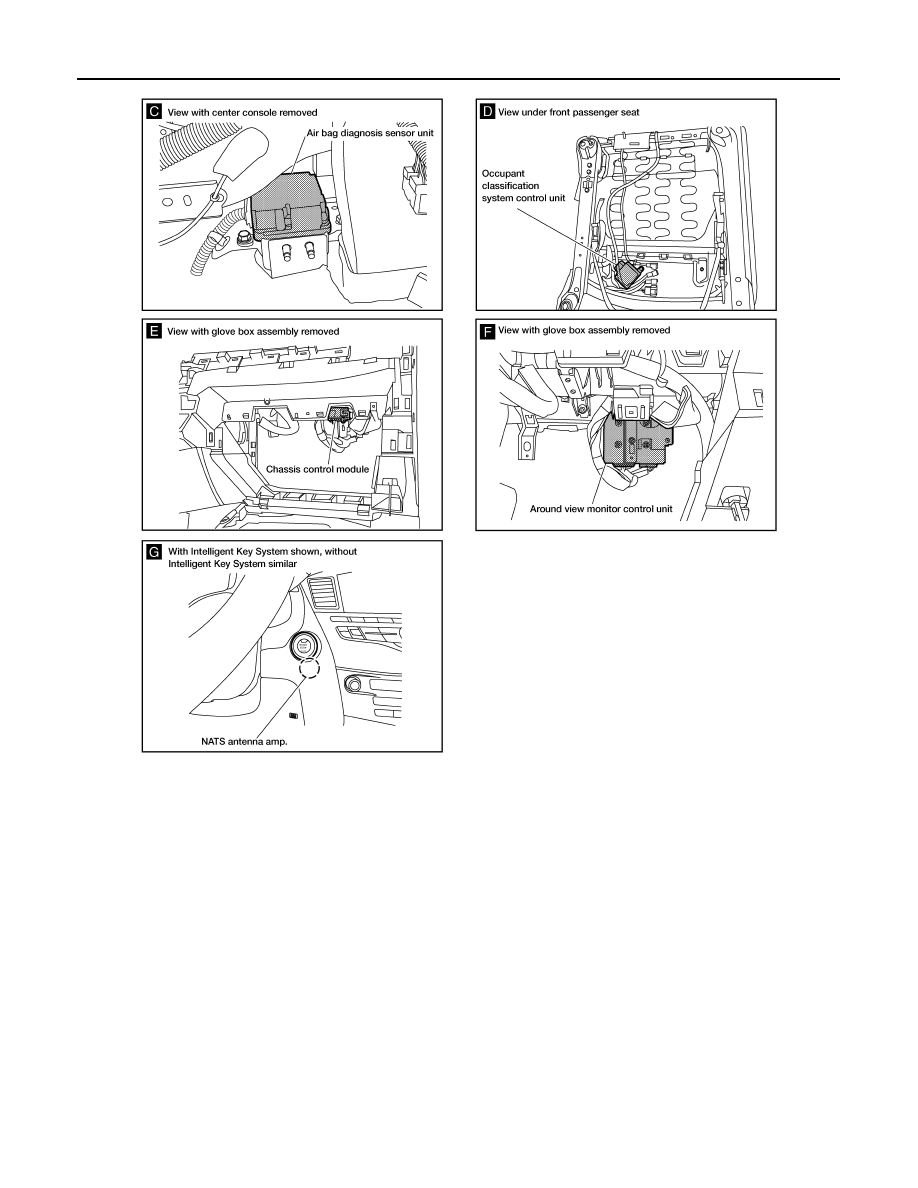

PG-6

< SYSTEM DESCRIPTION >

ELECTRICAL UNITS LOCATION

AAMIA2341GB
