Nissan Rogue. Manual - part 959





PCS-82

< REMOVAL AND INSTALLATION >

[POWER DISTRIBUTION SYSTEM]

BCM (BODY CONTROL MODULE)

REMOVAL AND INSTALLATION

BCM (BODY CONTROL MODULE)

Removal and Installation

INFOID:0000000011277134

For removal and installation of the BCM (Body Control Module), refer to

BCS-75, "Removal and Installation"

(WITH INTELLIGENT KEY SYSTEM) or

BCS-135, "Removal and Installation"

 (WITHOUT INTELLIGENT KEY

SYSTEM).

PCS

PUSH-BUTTON IGNITION SWITCH

PCS-83

< REMOVAL AND INSTALLATION >

[POWER DISTRIBUTION SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

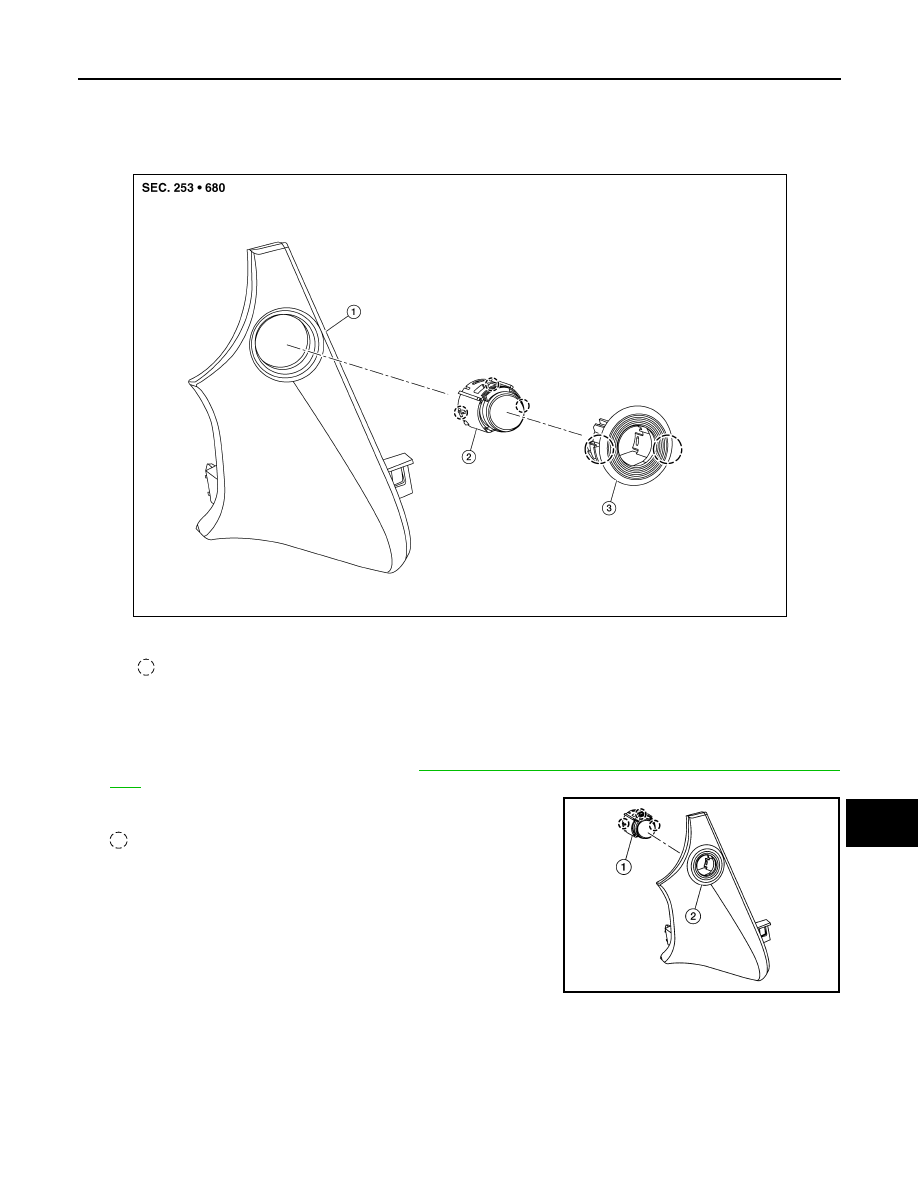

PUSH-BUTTON IGNITION SWITCH

Exploded View

INFOID:0000000011277135

Removal and Installation

INFOID:0000000011277136

REMOVAL

1. Remove the instrument finisher B. Refer to

IP-16, "INSTRUMENT FINISHER B : Removal and Installa-

tion"

.

2. Release pawls using suitable tool and remove push button igni-

tion switch (1) from NATS antenna amp (2).

: Pawl

INSTALLATION

Installation is in the reverse order of removal.

1.

Instrument finisher B

2.

Push button ignition switch

3.

NATS antenna amp.

Pawl

AWKIA2910ZZ

AWKIA3218ZZ

PG

PG-1

ELECTRICAL & POWER CONTROL

C

D

E

F

G

H

I

J

K

L

B

SECTION

PG

A

O

P

N

CONTENTS

POWER SUPPLY, GROUND & CIRCUIT ELEMENTS

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
..

2

PREPARATION ............................................

3

PREPARATION ...................................................

3

Special Service Tool  .................................................

3

Commercial Service Tool  ..........................................

3

SYSTEM DESCRIPTION  ..............................

4

ELECTRICAL UNITS LOCATION .......................

4

Electrical Units Location ............................................

4

COMPONENT PARTS  ........................................

7

Circuit Breaker (External to BCM) .............................

7

Harness Connector  ...................................................

7

Standardized Relay .................................................

10

WIRING DIAGRAM ......................................

13

POWER SUPPLY ROUTING CIRCUIT ..............

13

Wiring Diagram — Battery Power Supply — ...........

13

Wiring Diagram — Accessory Power Supply —  .....

21

Wiring Diagram — Ignition Power Supply —  ..........

24

GROUND ............................................................

34

Ground Distribution  .................................................

34

HARNESS ..........................................................

42

Harness Layout  .......................................................

42

FUSE BLOCK - JUNCTION BOX (J/B)  .............

64

Terminal Arrangement  ............................................

64

FUSE, FUSIBLE LINK AND RELAY BOX .........

65

Terminal Arrangement  ............................................

65

IPDM E/R (INTELLIGENT POWER DISTRI-
BUTION MODULE ENGINE ROOM)  ................

68

IPDM E/R Terminal Arrangement ............................

68

BASIC INSPECTION  ...................................

69

BATTERY ..........................................................

69

How to Handle Battery .............................................

69

Work Flow ................................................................

69

INSPECTION AND ADJUSTMENT  ..................

72

ADDITIONAL SERVICE WHEN REMOVING BAT-
TERY NEGATIVE TERMINAL  ...................................

72

ADDITIONAL SERVICE WHEN REMOVING
BATTERY NEGATIVE TERMINAL : Special Re-
pair Requirement  .....................................................

72

FUSE INSPECTION  ..........................................

73

How To Check  .........................................................

73

FUSIBLE LINK INSPECTION  ...........................

77

Fusible Link  .............................................................

77

REMOVAL AND INSTALLATION ...............

78

BATTERY ..........................................................

78

Exploded View .........................................................

78

Removal and Installation (Battery)  ..........................

78

Removal and Installation (Battery Tray)  ..................

79

BATTERY TERMINAL WITH FUSIBLE LINK ...

80

Exploded View .........................................................

80

Removal and Installation  .........................................

80

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

81

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

81

Battery .....................................................................

81

PG-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000011373288

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. Information necessary to service the system safely is included in the SR and SB section of

this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.
