Nissan Rogue. Manual - part 916

MWI

SYSTEM

MWI-11

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SPEEDOMETER

Information display

Current fuel consumption

The last result calculated during normal condition is indicated.

Average fuel consumption

Average vehicle speed

Range (Distance to empty)

Driving distance

Door open warning

The display turns OFF by suspending communication.

Lift gate open warning

Low tire pressure warning

Parking brake release warning

Fuel filler cap warning

Oil pressure warning

CVT warning

BSW/LDW warning

Odo/trip meter

An indicated value is maintained at communications blackout.

Shift position indicator

The indicator turns OFF by suspending communication.

Warning lamp/indicator lamp

ABS warning lamp

Turns ON by suspending communication.

Brake warning lamp

EPS warning lamp

VDC warning lamp

AWD warning lamp

Malfunction indicator lamp

Airbag warning lamp

Charge warning lamp

VDC OFF indicator lamp

Turns OFF by suspending communication.

SPORT mode indicator lamp

AWD LOCK indicator lamp

High beam indicator lamp

Turn signal indicator lamp

Position lamp indicator lamp

OD OFF indicator lamp

BSW indicator lamp

LDW indicator lamp

ECO mode indicator lamp

Front fog lamp indicator lamp

Hill descent control indicator lamp

Low tire pressure warning lamp

After blinking for 1 minute, the lamp remains ON.

Function

Specifications

MWI-12

< SYSTEM DESCRIPTION >

SYSTEM

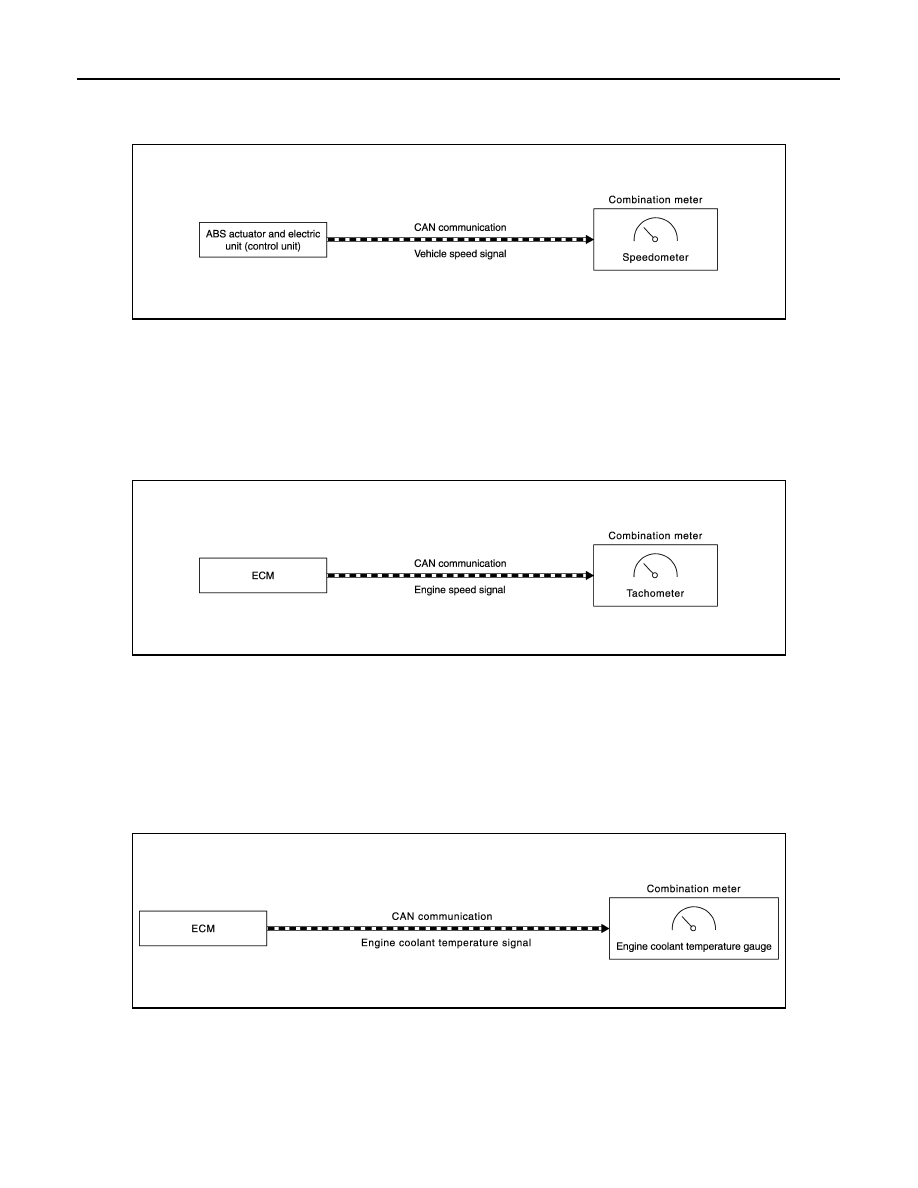

SPEEDOMETER : System Description

INFOID:0000000011279778

SYSTEM DIAGRAM

DESCRIPTION

The ABS actuator and electric unit (control unit) receives each wheel speed sensor signal and provides a vehi-

cle speed signal to the combination meter via CAN communication lines.

TACHOMETER
TACHOMETER : System Description

INFOID:0000000011279779

SYSTEM DIAGRAM

DESCRIPTION

The crank position sensor sends a crankshaft position signal to the ECM. The ECM provides an engine speed

signal to the combination meter via CAN communication lines. The tachometer indicates engine speed in rev-

olutions per minute (rpm).

ENGINE COOLANT TEMPERATURE GAUGE
ENGINE COOLANT TEMPERATURE GAUGE : System Description

INFOID:0000000011279780

SYSTEM DIAGRAM

DESCRIPTION

The engine coolant temperature sensor sends an engine coolant temperature signal to the ECM. The ECM-

provides an engine coolant temperature signal to the combination meter via CAN communication lines. The

engine coolant temperature gauge indicates the engine coolant temperature.

FUEL GAUGE

JSNIA2973GB

JSNIA2974GB

JSNIA3015GB

MWI

SYSTEM

MWI-13

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

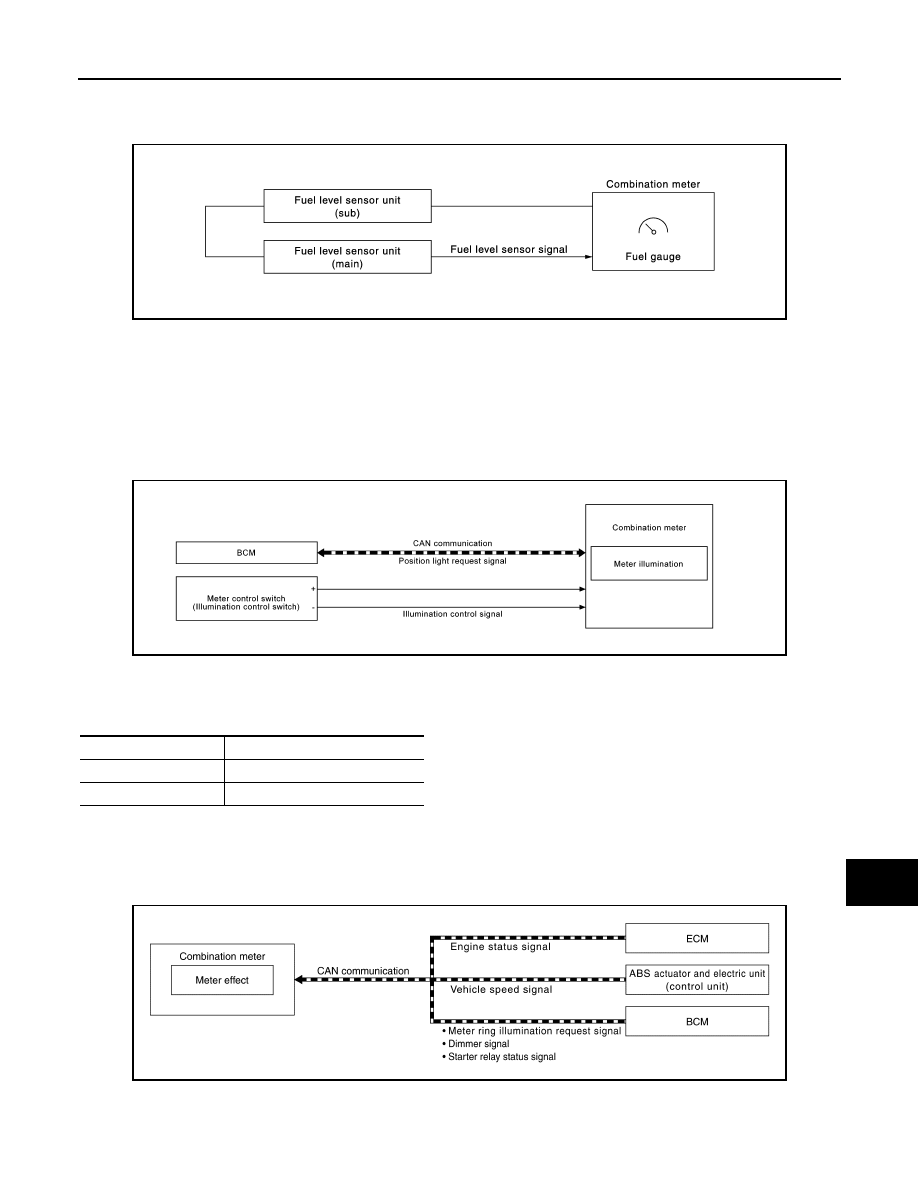

FUEL GAUGE : System Description

INFOID:0000000011279781

SYSTEM DIAGRAM

DESCRIPTION

The fuel level sensor unit sends a variable resistor signal to the combination meter. The fuel gauge indicates

the approximate fuel level in the fuel tank.

METER ILLUMINATION CONTROL
METER ILLUMINATION CONTROL : System Description

INFOID:0000000011279782

SYSTEM DIAGRAM

DESCRIPTION

Meter Illumination Control Function

The operation of the illumination control switch changes brightness of the meter illumination.

METER EFFECT FUNCTION
METER EFFECT FUNCTION : System Description

INFOID:0000000011279783

SYSTEM DIAGRAM

ENGINE-START EFFECT FUNCTION

When recognizing an engine start, the combination meter controls the following items for producing the effect:

• Speedometer

JSNIA3055GB

AWNIA2548GB

Meter illumination

The number of adjustable steps

Daytime

21 step

Nighttime

21 step

JSNIA6076GB

MWI-14

< SYSTEM DESCRIPTION >

SYSTEM

• Tachometer

• Engine coolant temperature gauge

• Fuel gauge

• Meter illumination

Meter and Illumination Operations During Engine-start Effect

The combination meter controls the following items during the engine-start effect.

NOTE:

The pointers are stopped and illumination is turned off while cranking the engine.

Engine Start Judgement

The combination meter judges “engine-start” and activates the engine-start effect only once when the follow-

ing operational conditions are all satisfied.

NOTE:

Engine-start effect exits when any of the above operational conditions is cancelled during the engine-start

effect.

INFORMATION DISPLAY

Control item

Operation

Speedometer

Sweeps the pointer.

Tachometer

Sweeps the pointer.

Engine coolant temperature gauge

Stops the pointer.

Fuel gauge

Stops the pointer.

Meter illumination

Pointers

Turns on the illumination at the effect level.

Information display

Turns on the illumination at the normal brightness level.

Other than those above

Increases the brightness to the effect level in stages.

Condition

Ignition switch

ON position.

Vehicle speed

Less than 0.6 MPH (1 km/h).

Engine state

Other than the time of cranking the engine.

500 rpm or more.

Information display
(SETTING)

The setting of “EFFECT” is “ON.”
