Nissan Rogue. Manual - part 914





MWI-4

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000011279772

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. Information necessary to service the system safely is included in the SR and SB section of

this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

MWI

PREPARATION

MWI-5

< PREPARATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

PREPARATION

PREPARATION

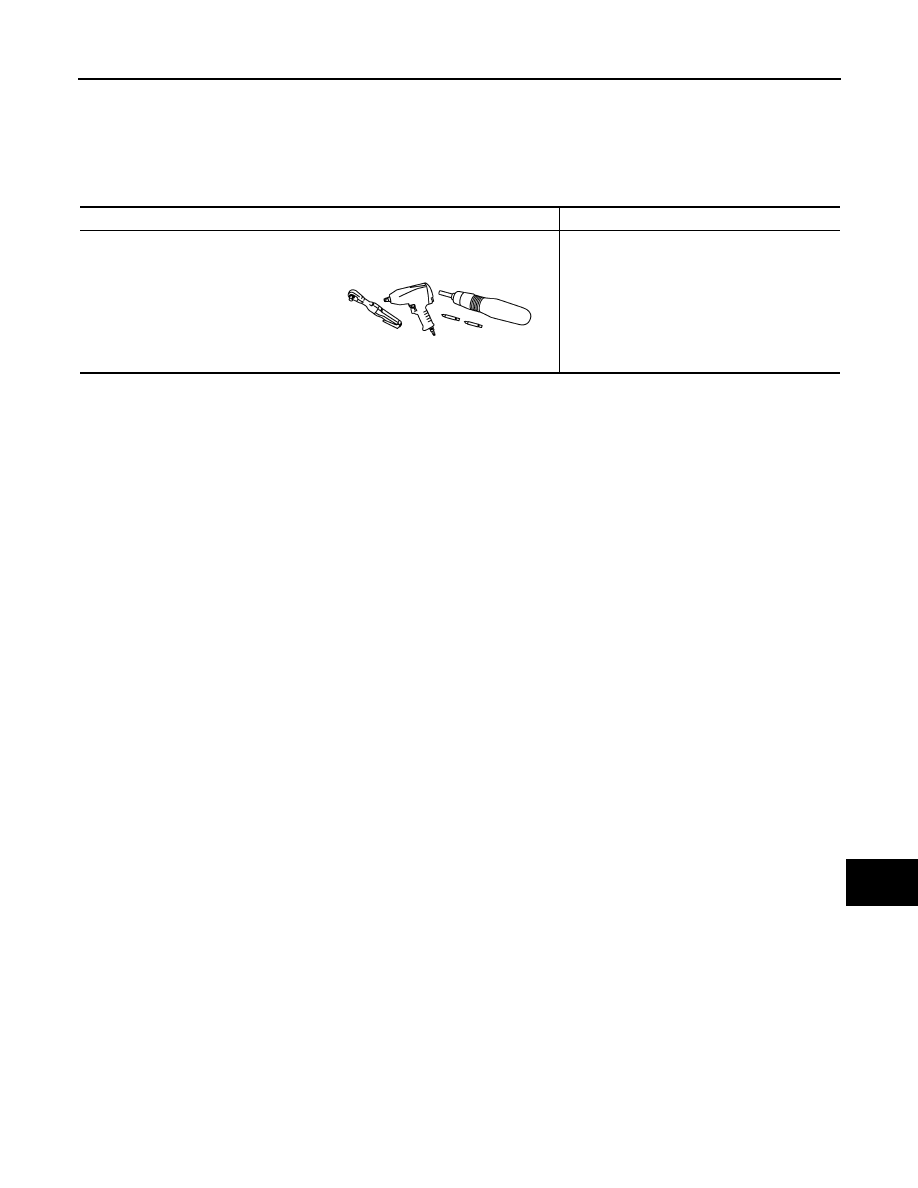

Commercial Service Tools

INFOID:0000000011279773

Tool name

Description

Power tool

Loosening nuts, screws and bolts

PIIB1407E

MWI-6

< SYSTEM DESCRIPTION >

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

METER SYSTEM

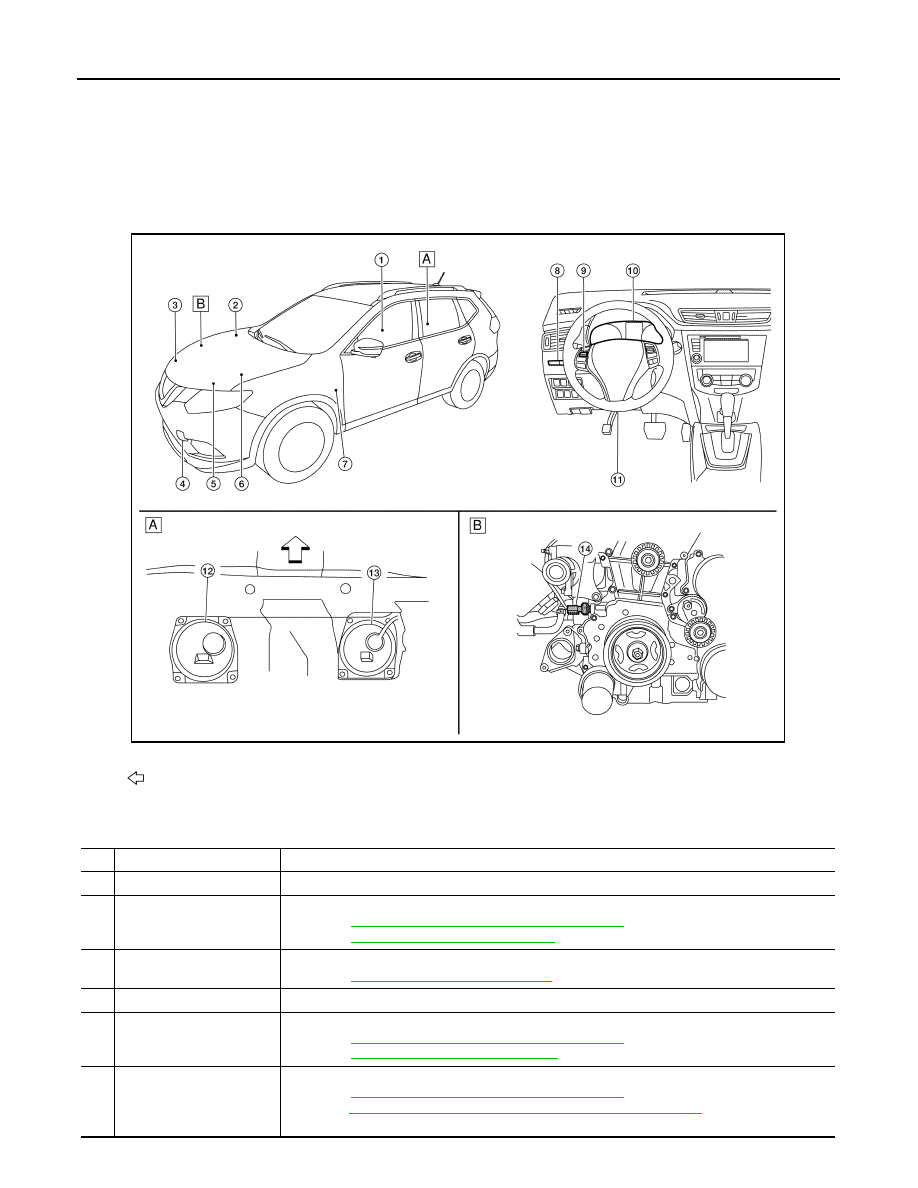

METER SYSTEM : Component Parts Location

INFOID:0000000011279774

Vehicle front

A.

View of the fuel pump and fuel level sensor inspec-
tion hole covers with the rear seat removed.

B.

View of front engine assembly

No.

Component

Function

1.

Seat belt buckle switch LH

Transmits the seat belt buckle switch signal LH to the combination meter.

2.

ABS actuator and electric
unit (control unit)

• Transmits each signal to the combination meter via CAN communication.

Refer to

MWI-8, "METER SYSTEM : System Description"

.

• Refer  to

BRC-7, "Component Parts Location"

 for detailed installation location.

3.

Washer fluid level switch

• Transmits the washer fluid level switch signal to the combination meter.
• Refer  to

WW-6, "Component Parts Location"

 for detailed installation location.

4.

Ambient sensor

• Transmits the ambient sensor signal to the combination meter.

5.

ECM

• Transmits each signal to the combination meter via CAN communication.

Refer to

MWI-8, "METER SYSTEM : System Description"

.

• Refer  to

EC-14, "Component Parts Location"

 for detailed installation location.

6.

TCM

• Transmits each signal to the combination meter via CAN communication.

Refer to

MWI-8, "METER SYSTEM : System Description"

.

• Refer  to

TM-12, "CVT CONTROL SYSTEM : Component Parts Location"

 for detailed installation

location.

ALNIA1644ZZ
