Nissan Rogue. Manual - part 912





DOOR MIRROR

MIR-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

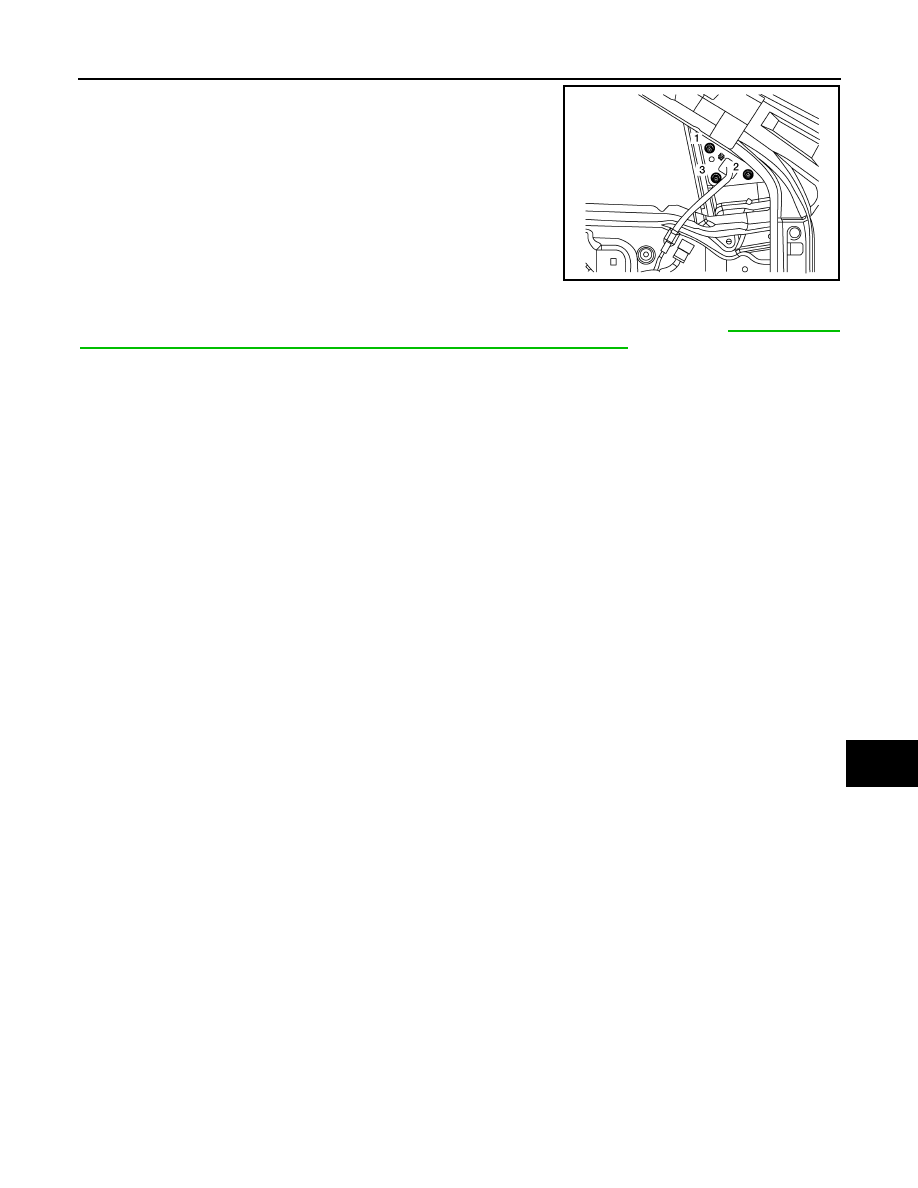

• For installation, tighten door mirror nuts to specification in the

sequence shown.

CAUTION:

Perform camera image calibration (if equipped with around view camera). Refer to

AV-135, "CALI-

BRATING CAMERA IMAGE (AROUND VIEW MONITOR) : Work Procedure"

.

Door mirror nuts

:5.74 N·m (0.59 kg-m, 51 in-lb)

ALLIA1605ZZ

MIR-24

< REMOVAL AND INSTALLATION >

DOOR MIRROR GLASS

DOOR MIRROR GLASS

Removal and Installation

INFOID:0000000011280696

REMOVAL

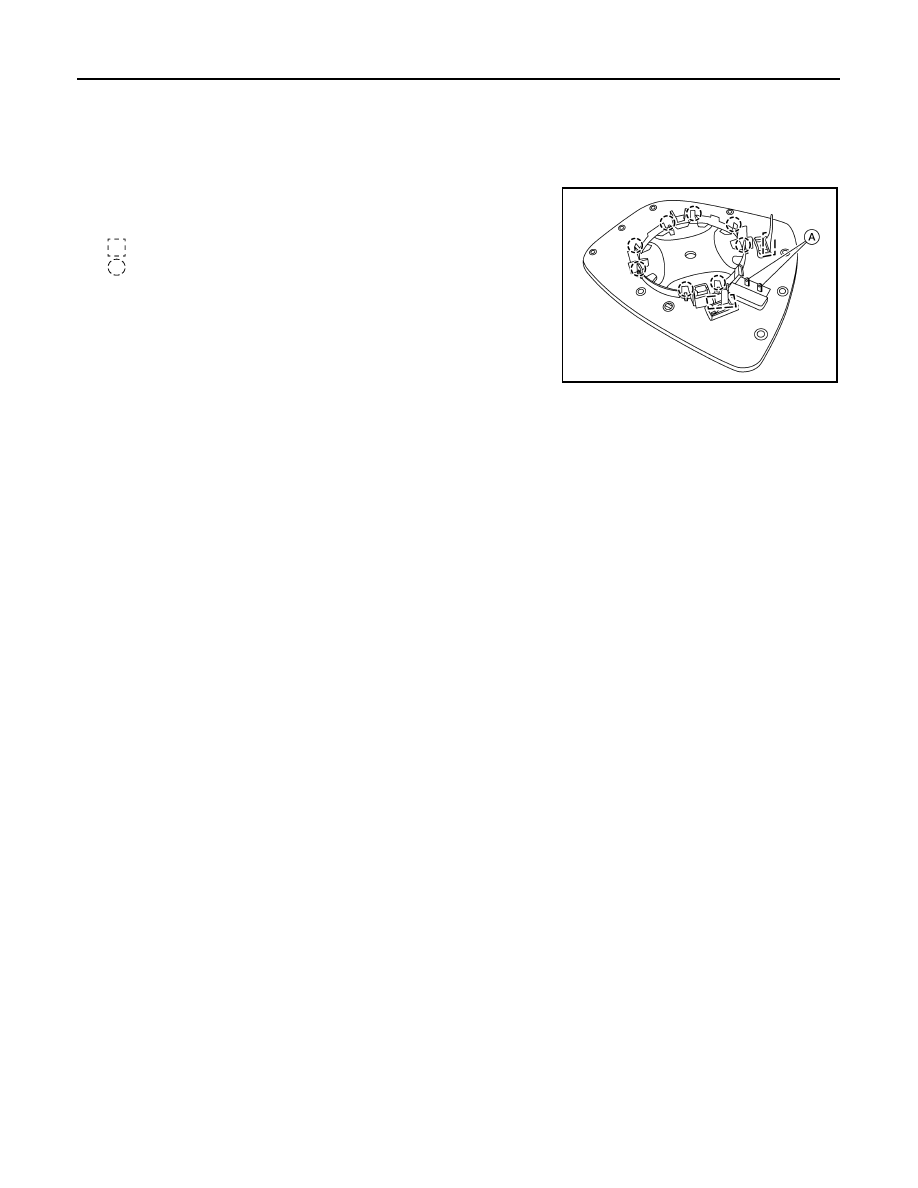

1. Release the metal clips and pawls that retain the door mirror

glass using a suitable tool, disconnect the harness connectors

(A) (if equipped) from the door mirror glass and remove.

: Metal clip
: Pawl

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

After installation, visually inspect that metal clips and pawls are securely engaged.

ALLIA1411ZZ

DOOR MIRROR ACTUATOR

MIR-25

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

DOOR MIRROR ACTUATOR

Removal and Installation

INFOID:0000000011384896

REMOVAL

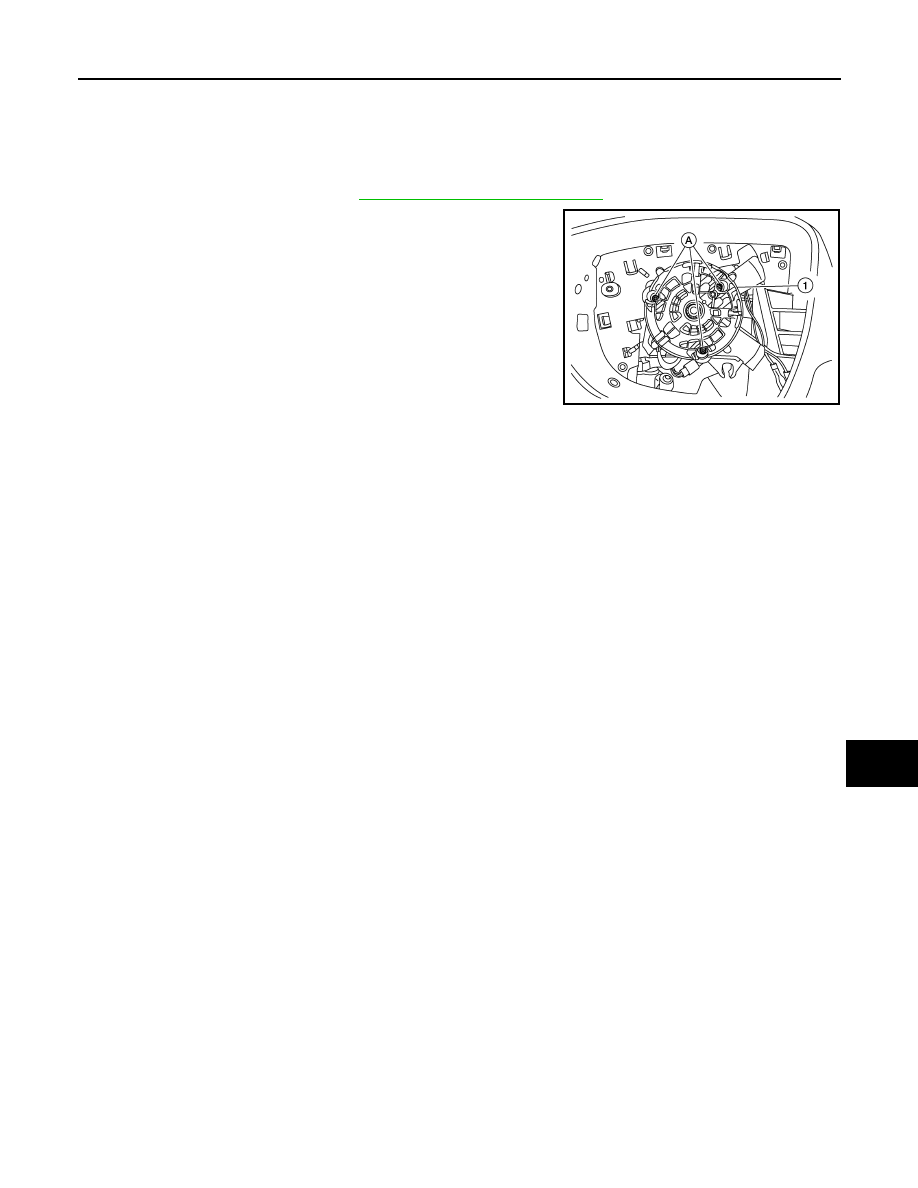

1. Remove door mirror glass. Refer to

MIR-24, "Removal and Installation"

.

2. Remove screws (A) from door mirror actuator (1).

3. Disconnect the harness connector from the door mirror actuator and remove.

INSTALLATION

Installation is in the reverse order of removal.

ALLIA1615ZZ

MIR-26

< REMOVAL AND INSTALLATION >

DOOR MIRROR REAR FINISHER

DOOR MIRROR REAR FINISHER

Removal and Installation

INFOID:0000000011280697

REMOVAL

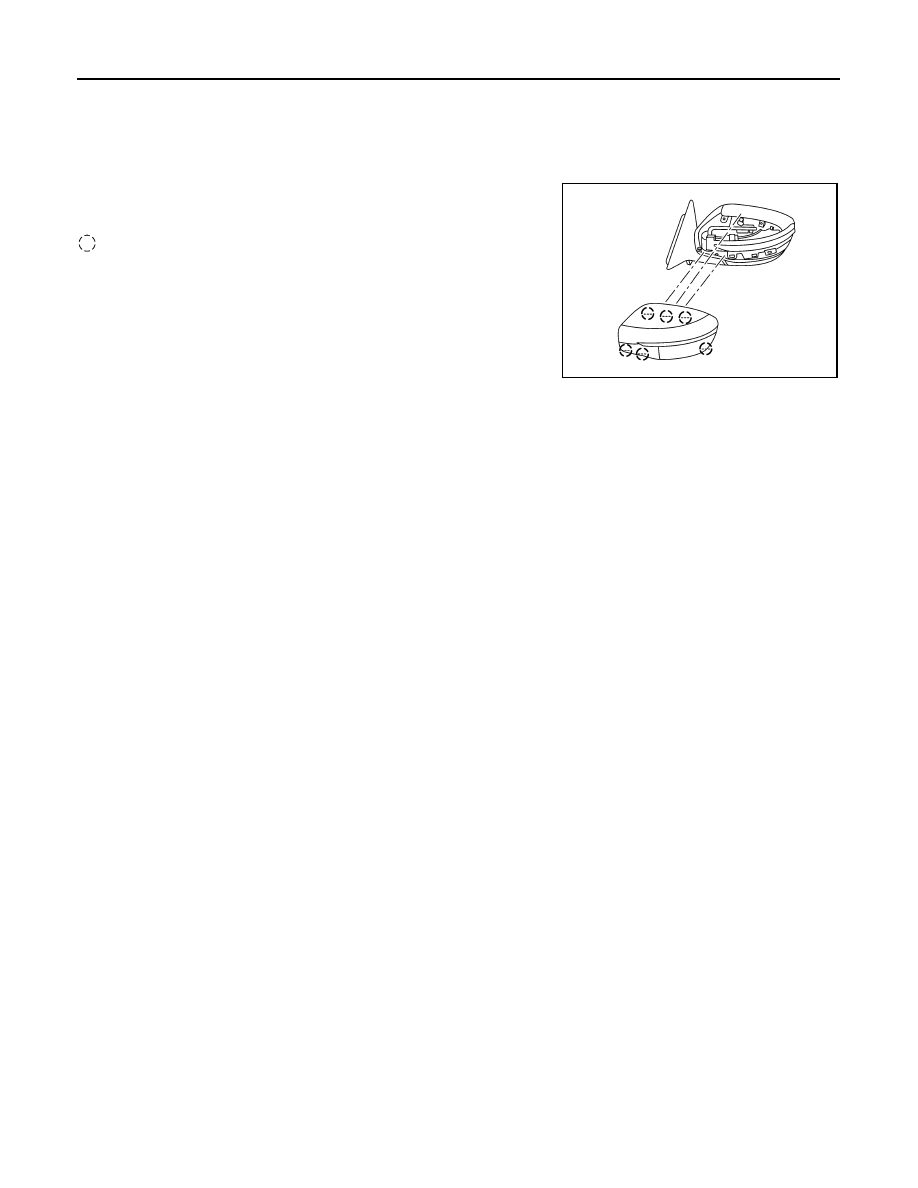

Beginning at the top of door mirror rear finisher and working around,

use a suitable tool to release the pawls and remove door mirror rear

finisher.

: Pawl

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

After installation, visually check that all the pawls are securely engaged.

ALLIA1412ZZ
