DIAGNOSIS AND REPAIR WORKFLOW

LAN-19

< BASIC INSPECTION >

[CAN FUNDAMENTAL]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

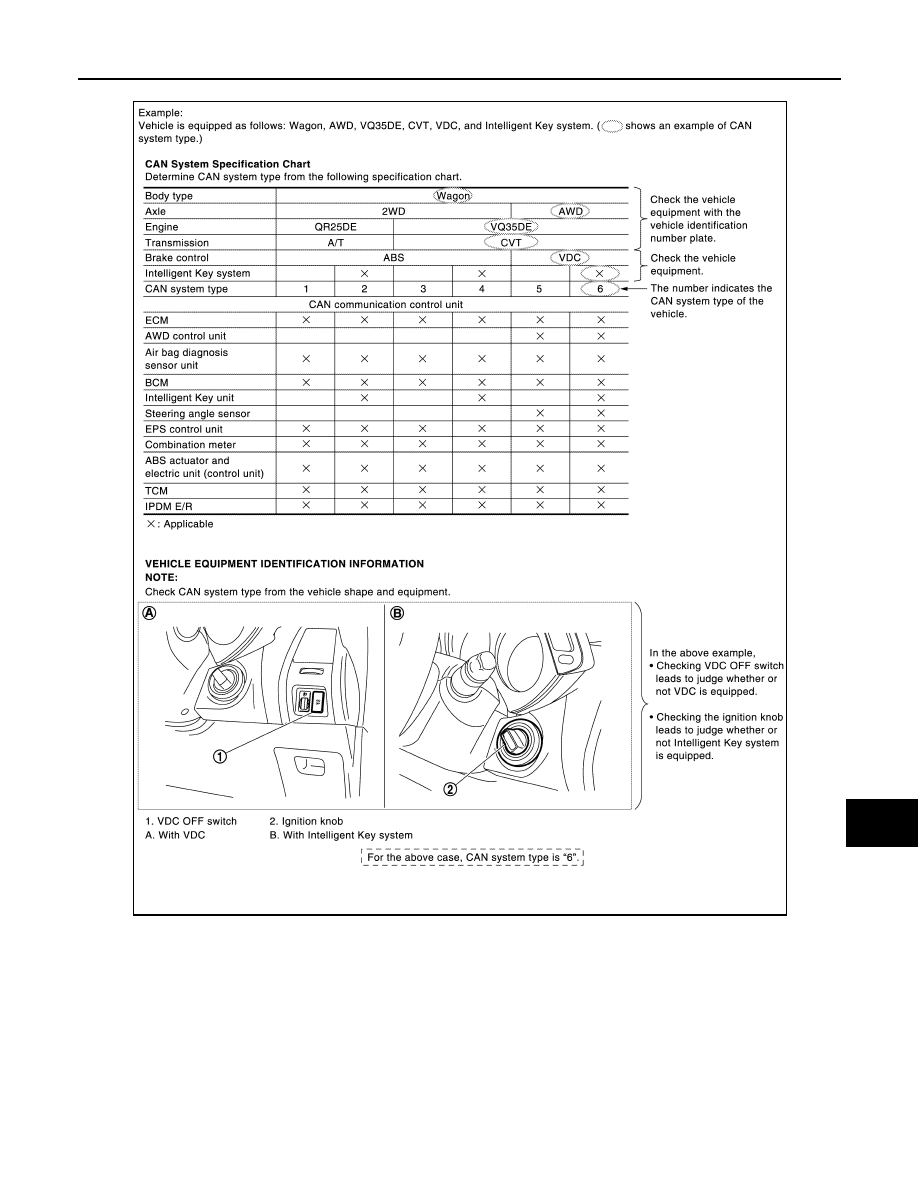

CAN system type is easily checked with the vehicle equipment identification information shown in the chart.

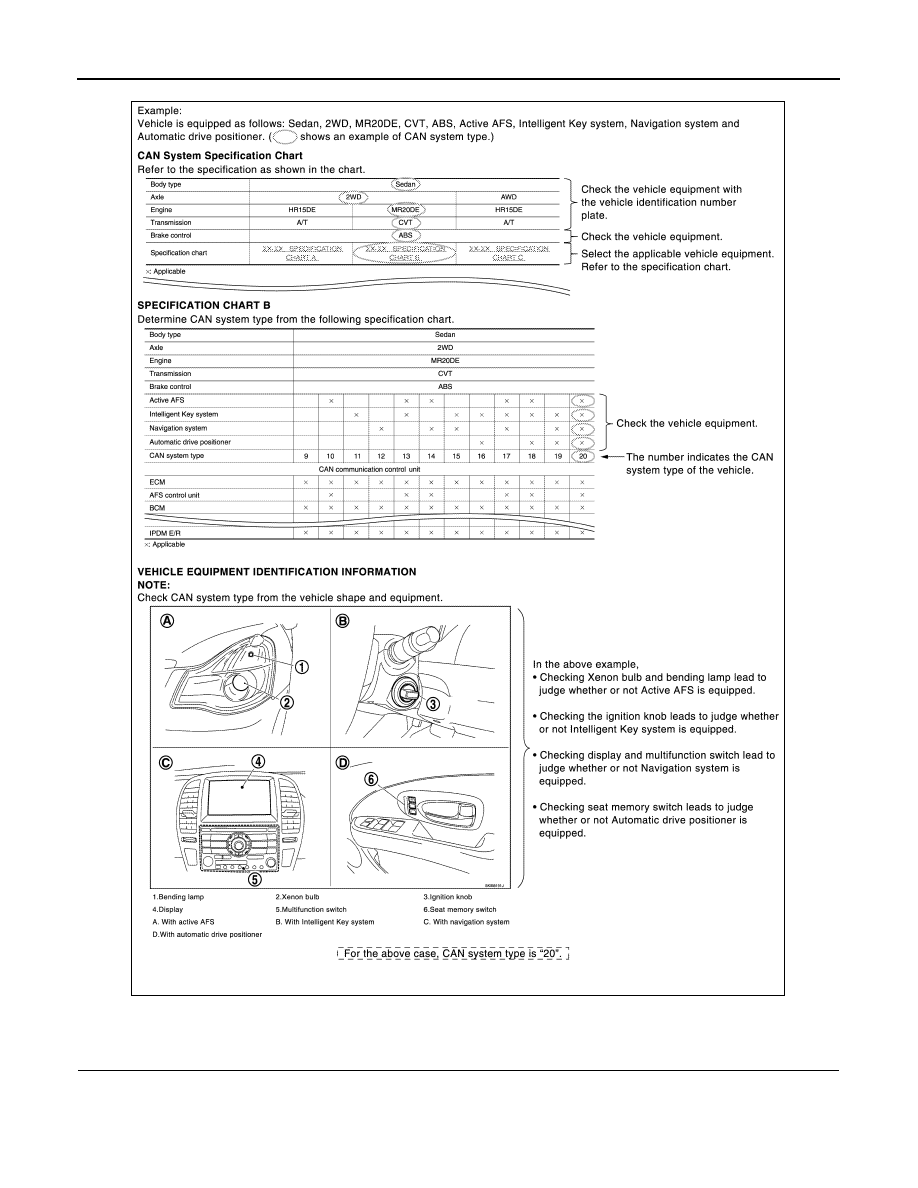

• CAN System Type Specification Chart (Style B)

NOTE:

JSMIA0529GB

LAN-20

< BASIC INSPECTION >

[CAN FUNDAMENTAL]

DIAGNOSIS AND REPAIR WORKFLOW

CAN system type is easily checked with the vehicle equipment identification information shown in the chart.

>> GO TO 4.

4.

CREATE INTERVIEW SHEET

Fill out the symptom described by the customer, vehicle condition, and CAN system type on the interview

sheet.

NOTE:

JSMIA0530GB

LAN

DIAGNOSIS AND REPAIR WORKFLOW

LAN-21

< BASIC INSPECTION >

[CAN FUNDAMENTAL]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

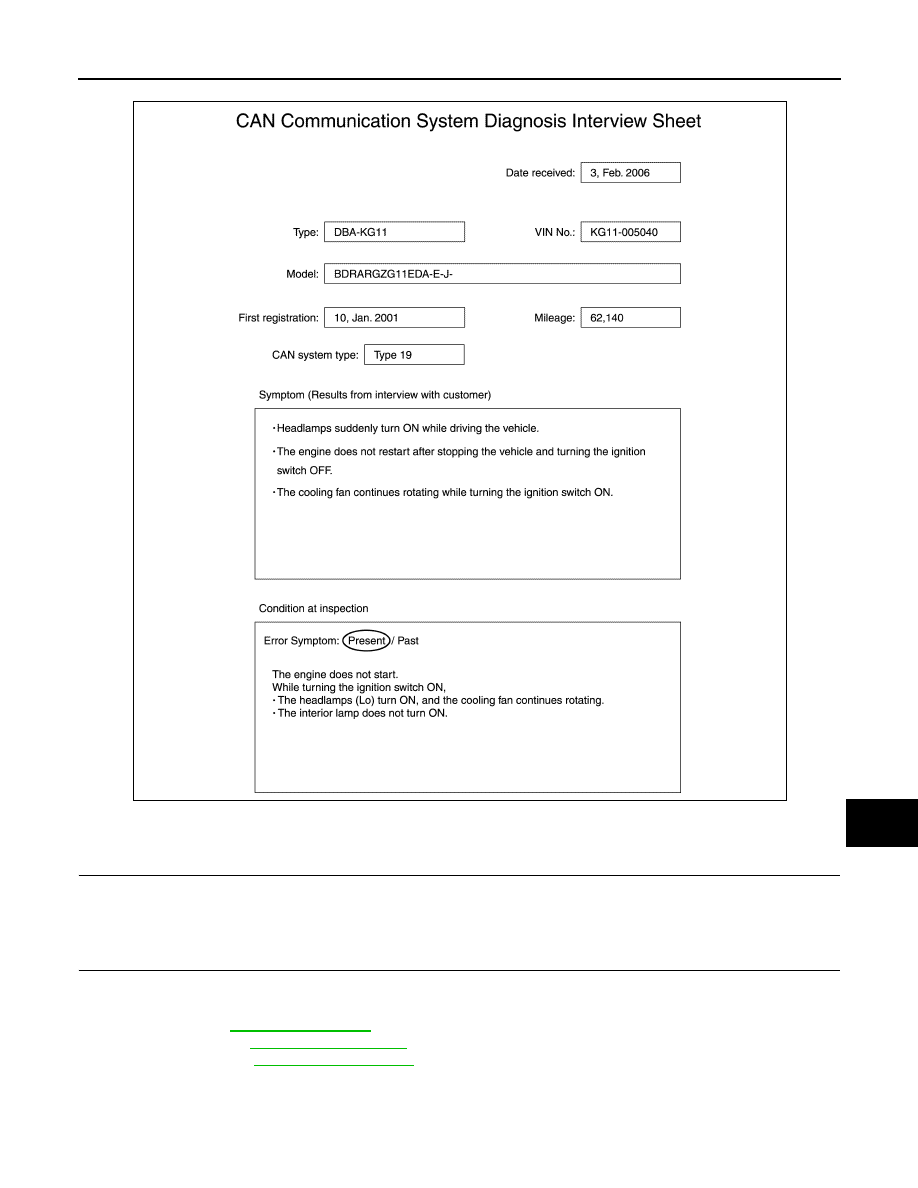

Interview Sheet (Example)

>> GO TO 5.

5.

DETECT THE ROOT CAUSE

CAN diagnosis function of CONSULT detects a root cause.

>> GO TO 6.

6.

REPAIR OR REPLACE MALFUNCTIONING PART

Repair or replace malfunctioning parts identified by CAN diagnosis function of CONSULT.

Main line>>Refer to

LAN-45, "Main Line"

.

Branch line>> Refer to

LAN-45, "Branch Line"

.

Short circuit>> Refer to

LAN-45, "Short Circuit"

.

JSMIA0531GB
