PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000011279192

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. Information necessary to service the system safely is included in the SR and SB section of

this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

Precaution for Work

INFOID:0000000011279193

• When removing or disassembling each component, be careful not to damage or deform it. If a component

may be subject to interference, be sure to protect it with a shop cloth.

• When removing (disengaging) components with a screwdriver or similar tool, be sure to wrap the component

with a shop cloth or vinyl tape to protect it.

• Protect the removed parts with a shop cloth and prevent them from being dropped.

• Replace a deformed or damaged clip.

• If a part is specified as a non-reusable part, always replace it with a new one.

• Be sure to tighten bolts and nuts securely to the specified torque.

• After installation is complete, be sure to check that each part works properly.

• Follow the steps below to clean components:

- Water soluble dirt:

• Dip a soft cloth into lukewarm water, wring the water out of the cloth and wipe the dirty area.

• Then rub with a soft, dry cloth.

- Oily  dirt:

• Dip a soft cloth into lukewarm water with mild detergent (concentration: within 2 to 3%) and wipe the dirty

area.

• Then dip a cloth into fresh water, wring the water out of the cloth and wipe the detergent off.

• Then rub with a soft, dry cloth.

- Do not use organic solvent such as thinner, benzene, alcohol or gasoline.

- For genuine leather seats, use a genuine leather seat cleaner.

INL-4

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000011279194

The actual shape of the tools may differ from those illustrated here.

Tool number
(TechMate No.)
Tool name

Description

(J-46534)
Trim Tool Set

Removing trim components

AWJIA0483ZZ

COMPONENT PARTS

INL-5

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

SYSTEM DESCRIPTION

COMPONENT PARTS

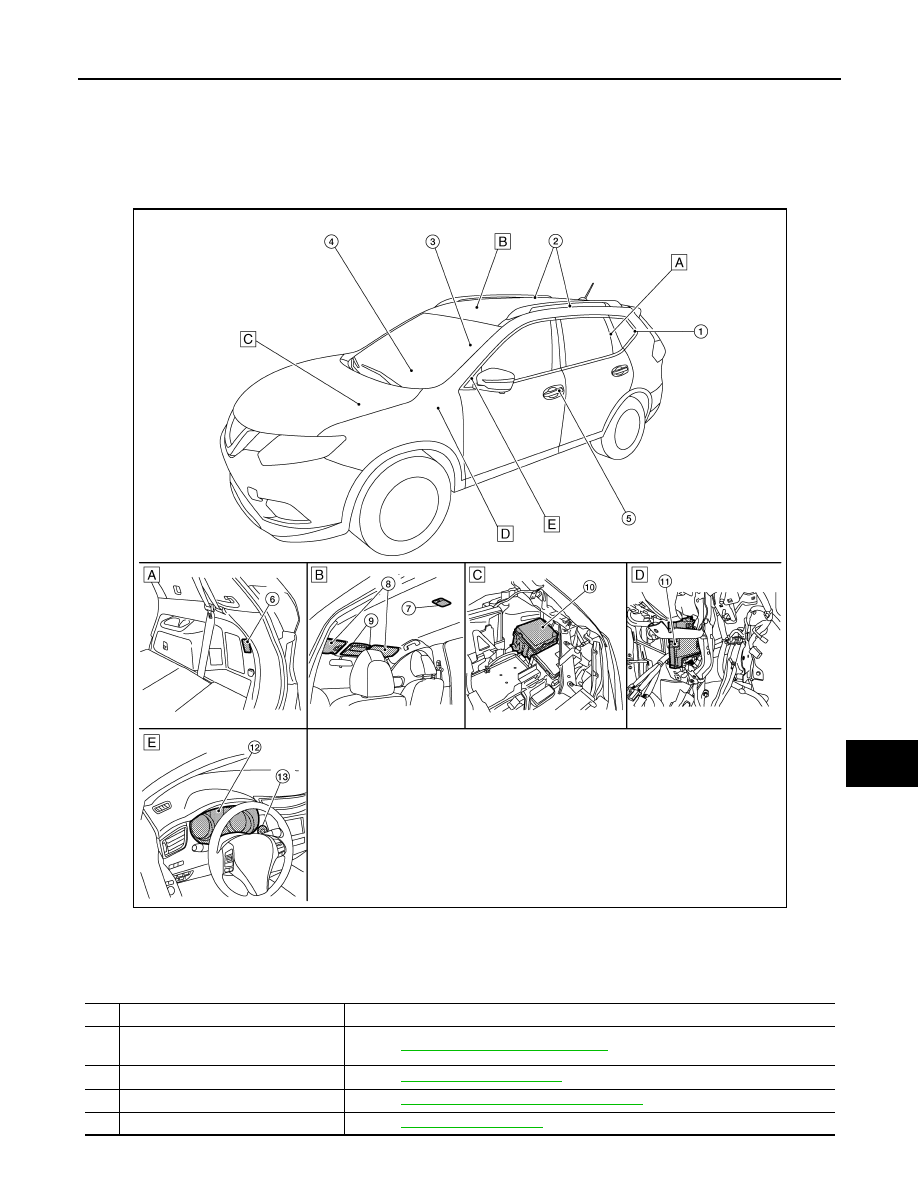

Component Parts Location

INFOID:0000000011279195

A. Rear luggage area (RH)

B. Front headliner area

C. Engine compartment (LH)

D. Left side of instrument panel (view

with finish panel removed)

E. Instrument panel (LH)

No.

Part

Description

1.

Back door lock assembly (back door
switch)

Refer to

DLK-20, "Back Door Lock Assembly"

.

2.

Personal lamps 2nd row

Refer to

INL-62, "Bulb Specifications"

.

3.

Front door switch (RH)

Refer to

DLK-23, "Front Door Request Switch (RH)"

.

4.

Optical sensor

Refer to

EXL-10, "Optical Sensor"

.

ALLIA1539ZZ

INL-6

< SYSTEM DESCRIPTION >

COMPONENT PARTS

5.

Front door switch (LH)

Refer to

DLK-23, "Front Door Request Switch (LH)"

.

6.

Luggage room lamp

Refer to

INL-62, "Bulb Specifications"

.

7.

Room lamp

Refer to

INL-62, "Bulb Specifications"

.

8.

Vanity mirror lamps

Refer to

INL-62, "Bulb Specifications"

.

9.

Map lamp assembly

Refer to

INL-62, "Bulb Specifications"

.

10.

IPDM E/R

Controls audio unit and AV control unit illumination supply voltage according to the re-
quest signal from BCM (via CAN communication). Refer to

PCS-6, "Component Parts

Location"

 for detailed installation location.

11.

BCM

• Activates the interior room lamp timer depending on the vehicle condition to turn the

interior room lamps ON/OFF.

• Operates the interior room lamp battery saver depending on the vehicle condition to

cut the interior room lamp power supply.

• Detects each switch condition by the combination switch reading function.
• Judges the illumination lamp ON/OFF status depending on the vehicle condition.

And then it transmits position light request signal to IPDM E/R and combination
meter (with CAN communication).

• Controls the room lamp relay according to the request signal from BCM (via CAN

communication).

Refer to

BCS-7, "BODY CONTROL SYSTEM : Component Parts Location"

 (with Intel-

ligent Key system) or

BCS-79, "BODY CONTROL SYSTEM : Component Parts Loca-

tion"

 (without Intelligent Key system) for detailed installation location.

No.

Part

Description
