HRN-6
< REMOVAL AND INSTALLATION >
HORN
REMOVAL AND INSTALLATION
HORN

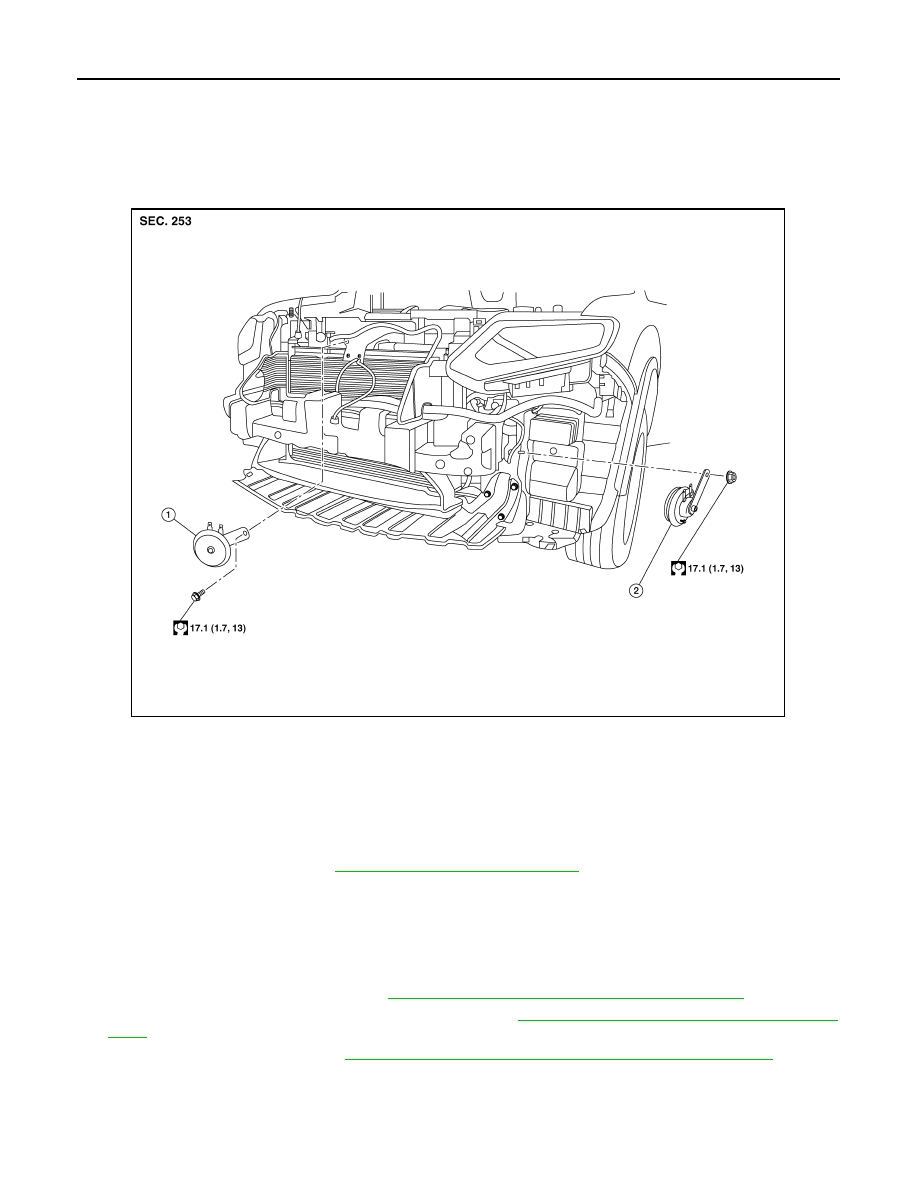

Exploded View
INFOID:0000000011280337
Removal and Installation
INFOID:0000000011280338
REMOVAL
Horn (LOW)
1. Remove the front grille. Refer to
EXT-23, "Removal and Installation"
2. Disconnect the harness connectors from the horn (LOW).
NOTE:
Before disconnecting the harness connectors, mark each for proper connection during installation.
3. Remove bolt and the horn (LOW).
Horn (HIGH)
1. Remove the engine side cover. Refer to
EXT-28, "FENDER PROTECTOR : Exploded View"
.
2. Partially remove the fender protector LH (front). Refer to
EXT-28, "FENDER PROTECTOR : Exploded
.
3. Remove the over fender. Refer to
EXT-30, "FRONT OVER FENDER : Removal and Installation"
.
4. Disconnect the harness connectors from horn (HIGH).
NOTE:
Before disconnecting the harness connectors, mark each for proper connection during installation.
5. Remove nut and the horn (HIGH).
1.
Horn (LOW)
2.
Horn (HIGH)
ALLIA1365ZZ
