HA-8

< PRECAUTION >

PRECAUTIONS

Do not attempt to connect HFC-134a (R-134a) service couplers to a

CFC-12 (R-12) A/C system. The HFC-134a (R-134a) couplers do

not properly connect to a CFC-12 (R-12) system. However, if an

improper connection is attempted, refrigerant discharging and con-

tamination may occur.

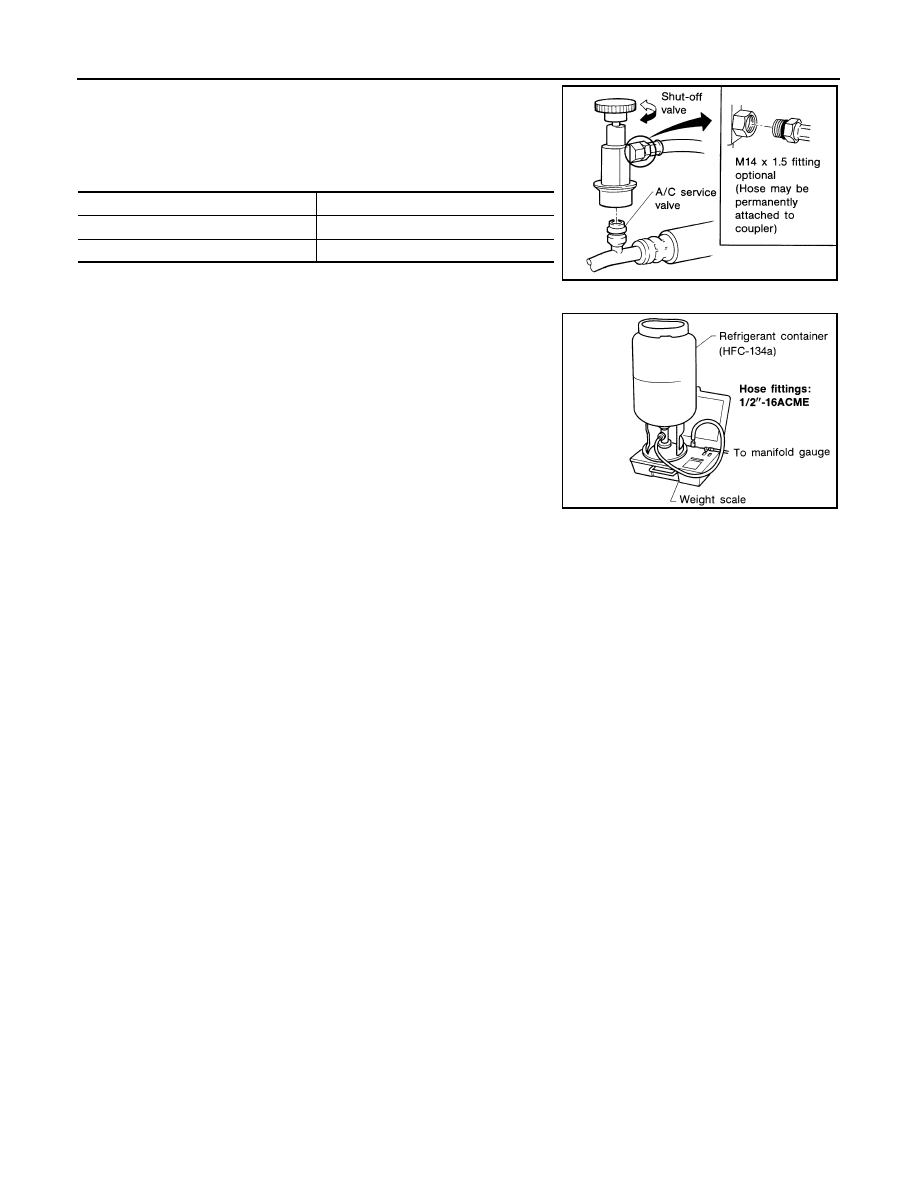

REFRIGERANT WEIGHT SCALE

Verify that no refrigerant other than HFC-134a (R-134a) and speci-

fied oils have been used with the scale. The hose fitting must be 1/

2

″-16 ACME if the scale controls refrigerant flow electronically.

CHARGING CYLINDER

Using a charging cylinder is not recommended. Refrigerant may be vented into the air from cylinder’s top

valve when filling the cylinder with refrigerant. Also, the accuracy of the cylinder is generally less than that of

an electronic scale or of quality recycle/recharge equipment.

Shut-off valve rotation

A/C service valve

Clockwise

Open

Counterclockwise

Close

RHA273D

RHA274D

PREPARATION

HA-9

< PREPARATION >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

PREPARATION

PREPARATION

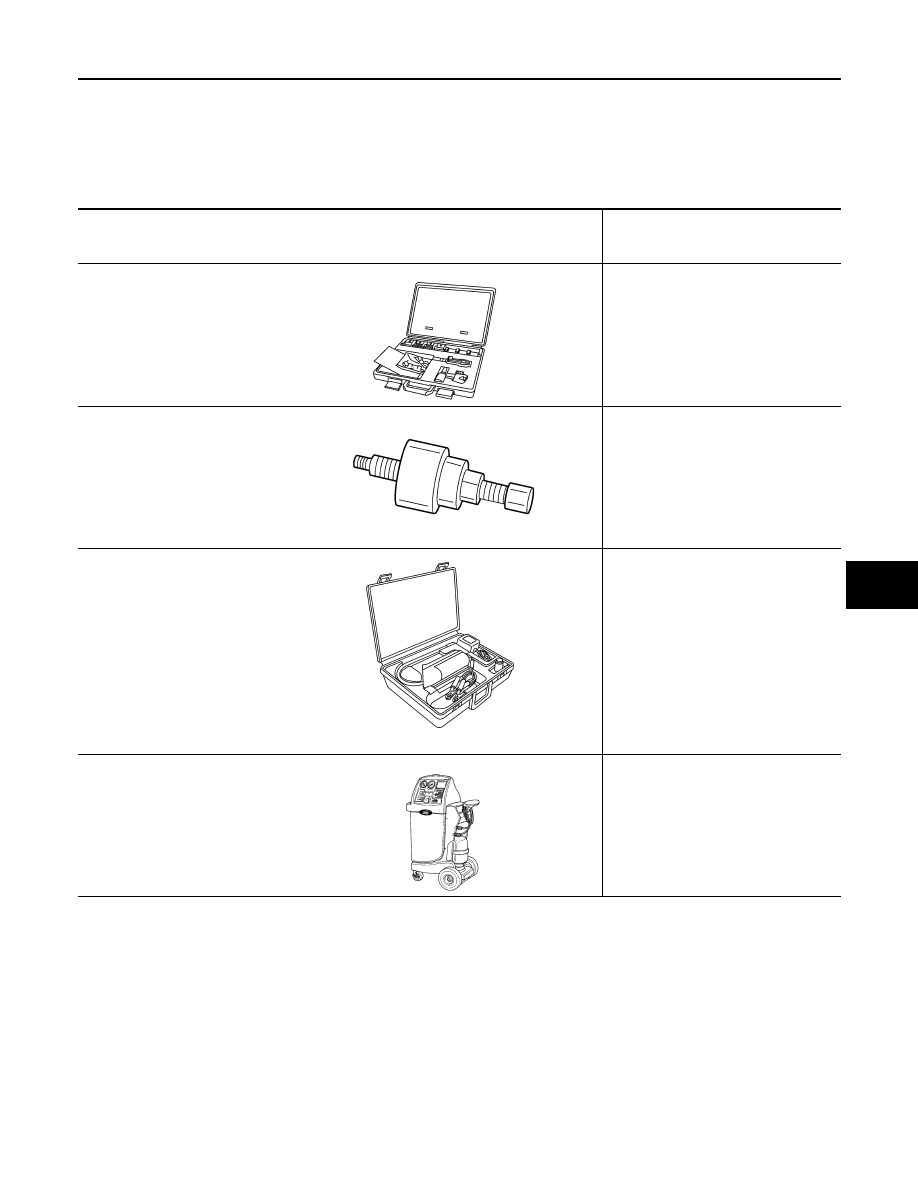

Special Service Tool

INFOID:0000000011279470

The actual shape of the tools may differ from those illustrated here.

Tool number
(TechMate No.)
Tool name

Description

(J-41425-NIS)
Aluminum tube repair kit

Repairing leaks in A/C tubes

(J-38873-A)
Drive plate installer

Installing pulley

(J-41995)
Electronic refrigerant leak detec-
tor

Power supply:
• DC 12V (battery terminal)

(J-48710)
NISSAN ACR2009 RRR Unit

Refrigerant recovery, recycling and re-
charging

ALIIA0390ZZ

WJIA0367E

AHA281A

WJIA0293E

HA-10

< PREPARATION >

PREPARATION

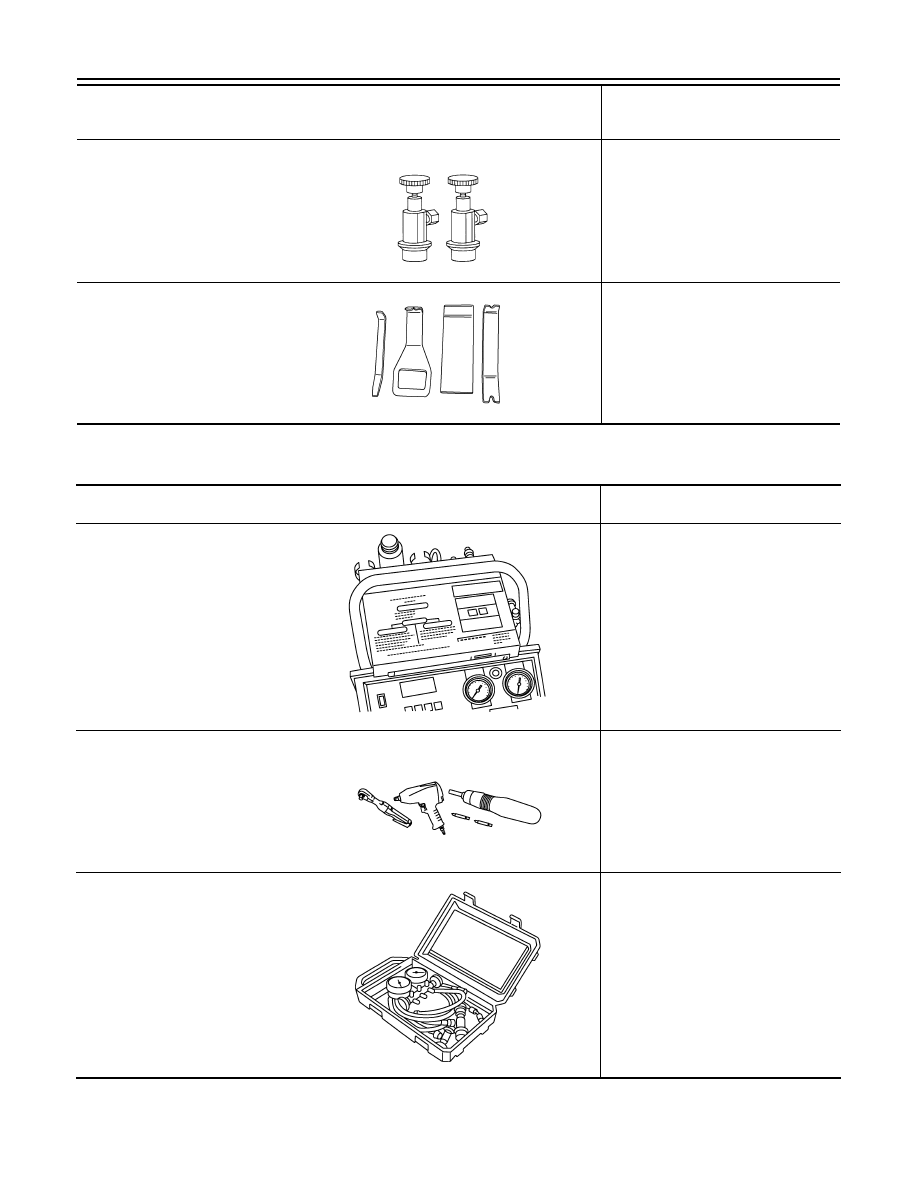

Commercial Service Tool

INFOID:0000000011279471

Service couplers
• High side coupler

(J-39500-20A)

• Low side coupler

(J-39500-24A)

Hose fitting to service hose:
• M14 x 1.5 fitting is optional or per-

manently attached.

(J-46534)
Trim Tool Set

Removing trim components

Tool number
(TechMate No.)
Tool name

Description

S-NT202

AWJIA0483ZZ

(TechMate No.)
Tool name

Description

(J-41810-NI)
Refrigerant identifier equipment (R-
134a)

For checking refrigerant purity and
system contamination

( — )
Power Tool

Loosening nuts, screws and bolts

(J-39183-C)
Manifold Gauge Set (with hoses
and couplers)

Identification:
• The gauge face indicates R-134a.

Fitting size-Thread size

• 1/2”-16 ACME

RJIA0197E

PIIB1407E

RJIA0196E

PREPARATION

HA-11

< PREPARATION >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

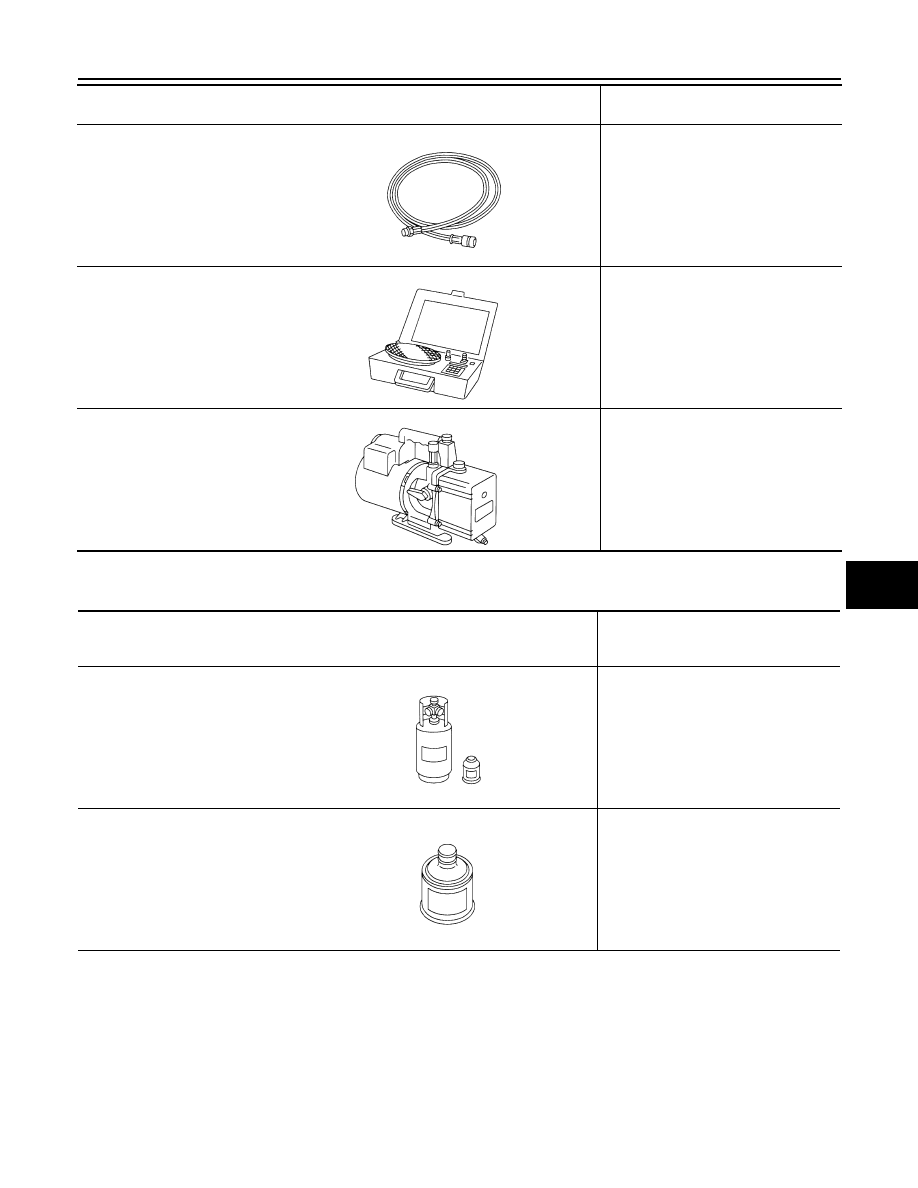

Sealant and/or Oil

INFOID:0000000011279472

Service Hoses:
• High side hose

(J-39500-72B)

• Low side hose

(J-39500-72R)

• Utility hose

(J-39500-72Y)

Hose color:
• Low side hose: Blue with black stripe
• High side hose: Red with black

stripe

• Utility hose: Yellow with black stripe

or green with black stripe
Hose fitting to gauge:

• 1/2”-16 ACME

(J-39699)
Refrigerant Weight Scale

For measuring of refrigerant
Fitting size-Thread size
• 1/2”-16 ACME

(J-39649)
Vacuum Pump
(Including the isolator valve)

Capacity:
• Air displacement: 4 CFM
• Micron rating: 20 microns
• Oil capacity: 482 g (17 oz)

Fitting size-Thread size

• 1/2”-16 ACME

(TechMate No.)
Tool name

Description

S-NT201

S-NT200

S-NT203

Tool number
(TechMate No.)
Tool name

Description

( — )
HFC-134a (R-134a) Refrigerant

Container color: Light blue
Container marking: HFC-134a (R-
134a)
Fitting size: Thread size
• large container 1/2”-16 ACME

( — )
ND-OIL8

Type: Poly alkylene glycol oil
(PAG), type ND-OIL8
Application: HFC-134a (R-134a)
swash plate compressors

S-NT196

JMIIA1759ZZ
