HA-12

< SYSTEM DESCRIPTION >

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

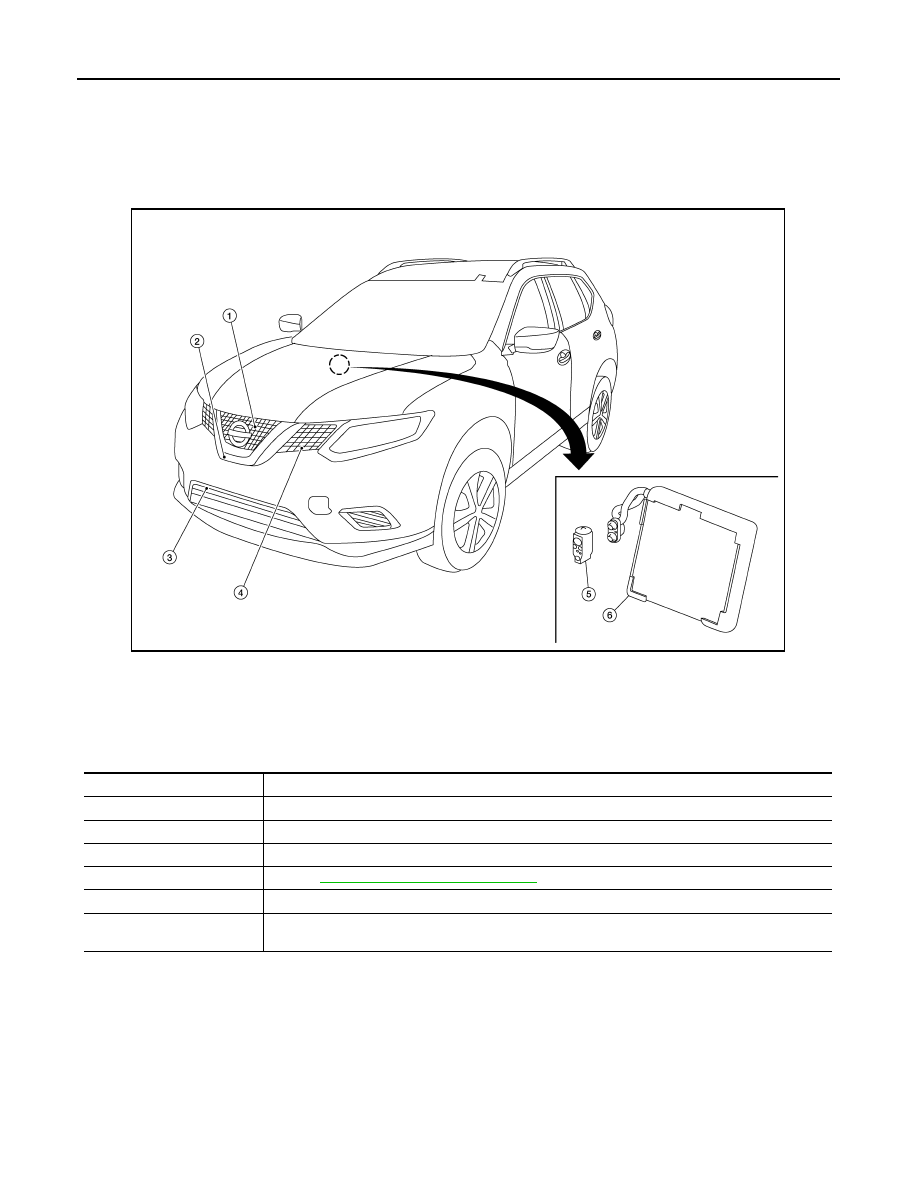

Component Parts Location

INFOID:0000000011279473

Component Description

INFOID:0000000011279474

1.

Condenser

2.

Compressor

3.

Refrigerant pressure sensor

4.

Liquid tank

5.

Expansion valve

6.

Evaporator

ALIIA0902ZZ

Component

Description

Compressor

Intakes, compresses and discharges refrigerant to circulate refrigerant inside the refrigerant system.

Condenser

Cools refrigerant discharged from compressor and transforms it to liquid refrigerant.

Liquid tank

Eliminates foreign matter in refrigerant and stores temporarily liquid refrigerant.

Refrigerant pressure sensor

Refer to

EC-485, "Component Function Check"

.

Expansion valve

Transforms high-pressure liquid refrigerant to mist from low-pressure liquid refrigerant.

Evaporator

The mist from liquid refrigerant transforms to gas by evaporation by the air conveyed from blower
motor. The air is cooled by the heat by evaporation.

SYSTEM

HA-13

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

SYSTEM

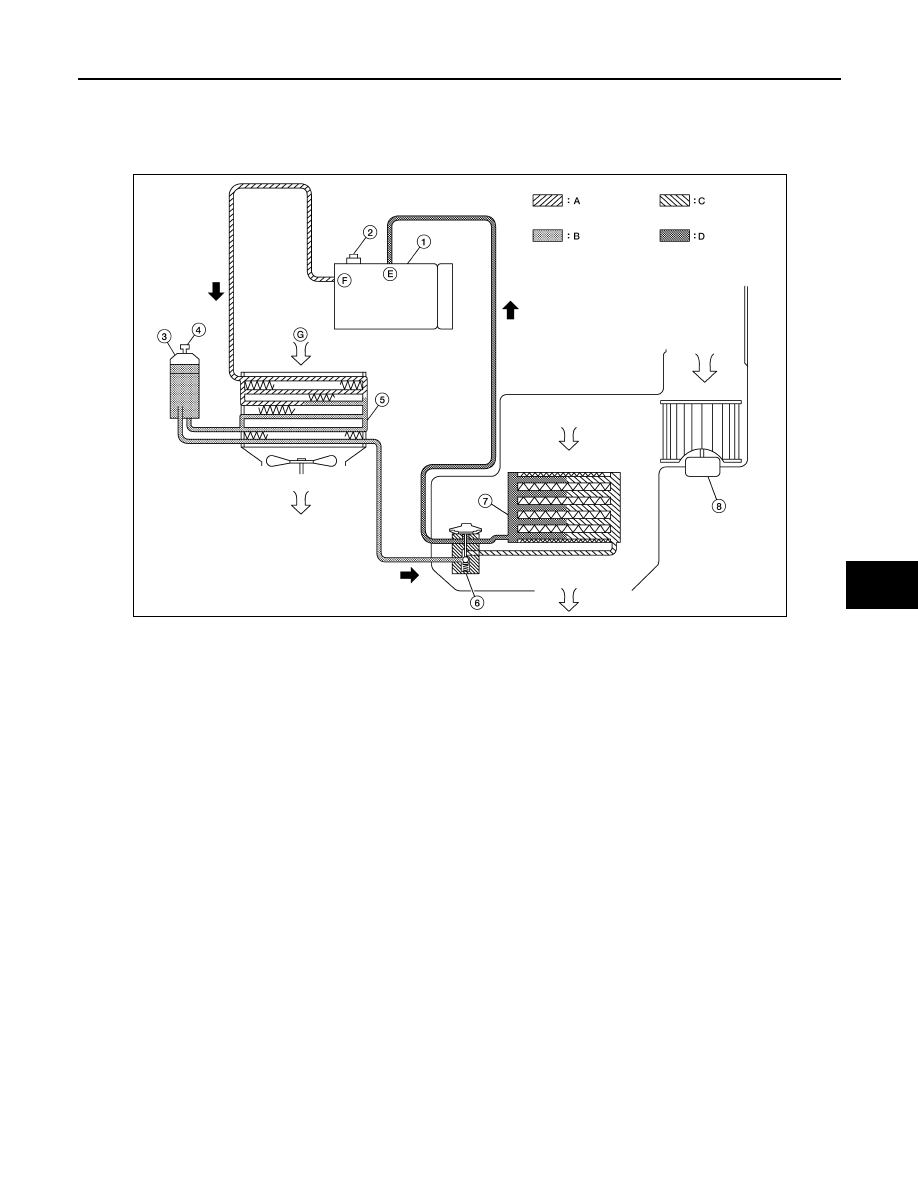

System Diagram

INFOID:0000000011279475

System Description

INFOID:0000000011279476

REFRIGERANT CYCLE

Refrigerant Flow

The refrigerant from the compressor flows through the condenser and liquid tank, evaporator, and returns to

the compressor. The refrigerant evaporation in the evaporator is controlled by an expansion valve.

Freeze Protection

To prevent evaporator from freezing up, the evaporator air temperature is monitored and the voltage signal to

the A/C auto amp. makes the A/C relay go OFF and stop the compressor.

REFRIGERANT SYSTEM PROTECTION

Refrigerant Pressure Sensor

• The refrigerant system is protected against excessively high or low pressures by the refrigerant pressure

sensor, located on the liquid tank. The refrigerant pressure sensor detects the pressure inside the refrigerant

line and sends the voltage signal to the ECM if the system pressure rises above or falls below the specifica-

tions.

• ECM turns the A/C relay to OFF and stops the compressor when the high-pressure side detected by refriger-

ant pressure sensor to have the following conditions:

- Approximately 3,120 kPa (31.8 kg/cm

2

, 452 psi) or more (Engine speed is 1,500 rpm or more.)

- Approximately 2,740 kPa (27.9 kg/cm

2

, 397 psi) or more (Engine speed is less than 1,500 rpm.)

1.

Compressor

2.

Pressure relief valve

3.

Liquid tank

4.

Refrigerant pressure sensor

5.

Condenser

6.

Expansion valve

7.

Evaporator

8.

Blower motor

A.

High-pressure gas

B.

High-pressure liquid

C.

Low-pressure liquid

D.

Low-pressure gas

E.

Suction port

F.

Discharge port

G

Outside air

AWIIA0054ZZ

HA-14

< SYSTEM DESCRIPTION >

SYSTEM

- Approximately 120 kPa (1.2 kg/cm

2

, 17 psi) or less

Pressure Relief Valve

The refrigerant system is also protected by a pressure relief valve, located in the rear head of the compressor.

The release port on the pressure relief valve automatically opens and releases refrigerant into the atmosphere

when the pressure of refrigerant in the system increases to an unusual level [more than 3,800 kPa (38.8 kg/
cm

2

, 551 psi)].

DIAGNOSIS AND REPAIR WORKFLOW

HA-15

< BASIC INSPECTION >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

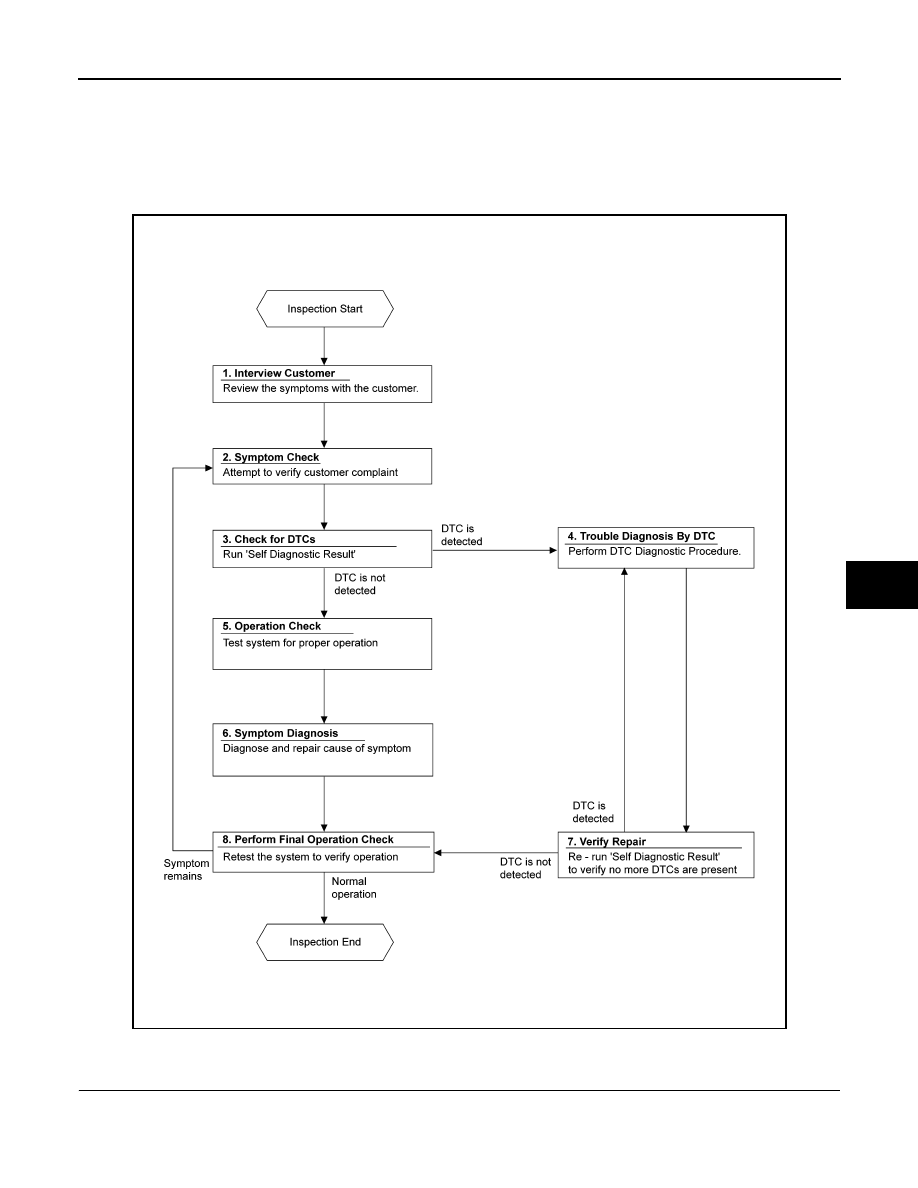

Workflow

INFOID:0000000011279477

OVERALL SEQUENCE

DETAILED FLOW

1.

INTERVIEW CUSTOMER

Interview the customer to obtain as much information as possible about the conditions and environment under

which the malfunction occurred.
