REAR DOOR GLASS

GW-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

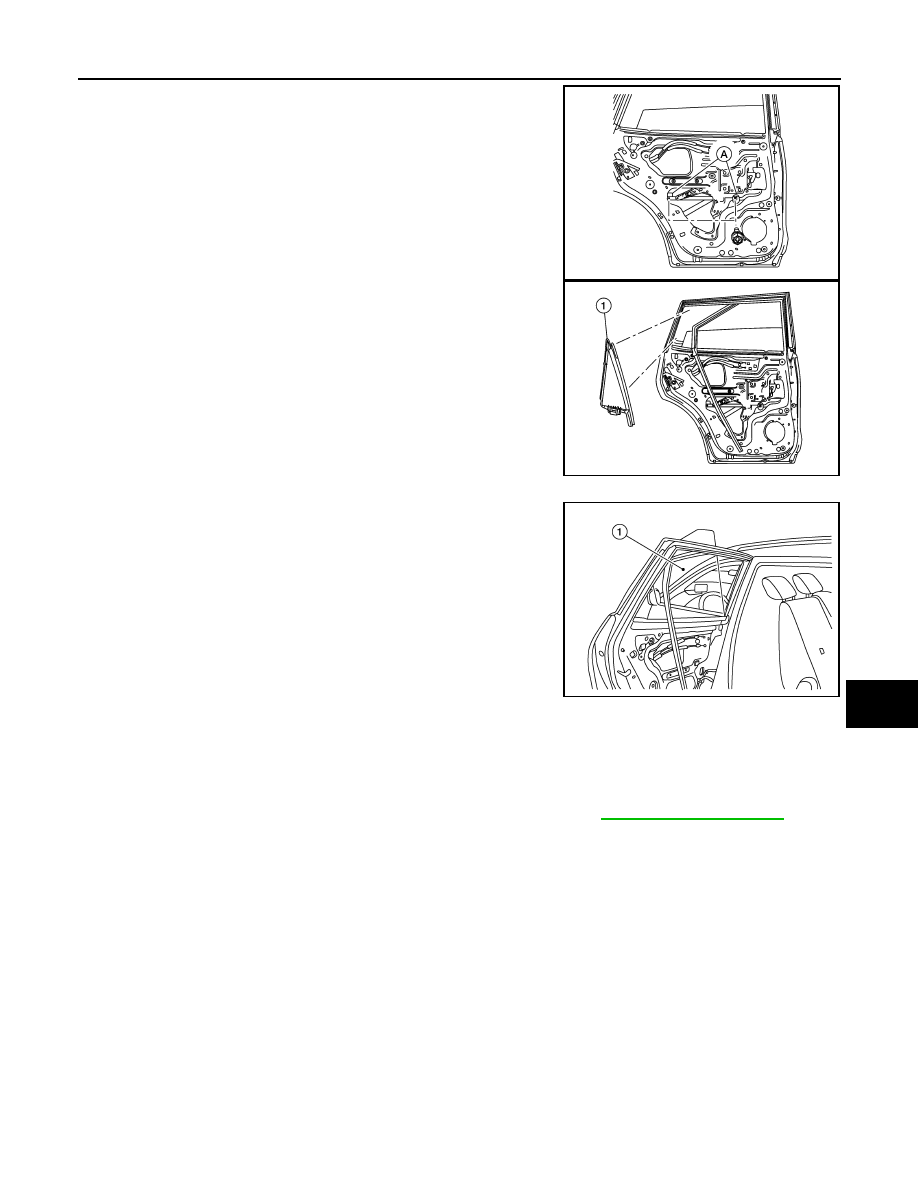

4. Operate the rear power window switch to raise/lower the rear

door glass until the rear door glass regulator to rear door glass

bolts (A) can be seen and remove.

5. Partially remove rear door glass rubber run channel.

6. Remove screws and rear door corner finisher (1).

7. Remove the rear door glass (1).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Tighten the rear door regulator bolts to glass specification. Refer to

GW-22, "Exploded View"

FITTING INSPECTION

• Check that the rear door glass is securely fit into the rear door glass run channel.

• Lower the rear door glass slightly [approximately 10 to 20 mm (0.39 to 0.79 in)], and check that the clear-

ance to the sash is parallel. If the clearance between the rear door glass and sash is not parallel, loosen the

rear door regulator to glass bolts, rear door run channel bolts, and rear door glass bolts to correct the rear

door glass position.

ALKIA3482ZZ

ALKIA3483ZZ

ALKIA3484ZZ

GW-22

< REMOVAL AND INSTALLATION >

REAR REGULATOR

REAR REGULATOR

Exploded View

INFOID:0000000011276518

Removal and Installation

INFOID:0000000011276519

REMOVAL

1. Remove the rear door finisher. Refer to

INT-18, "Removal and Installation"

.

2. Remove rear door vapor barrier (1).

3. Temporarily reconnect the rear power window switch.

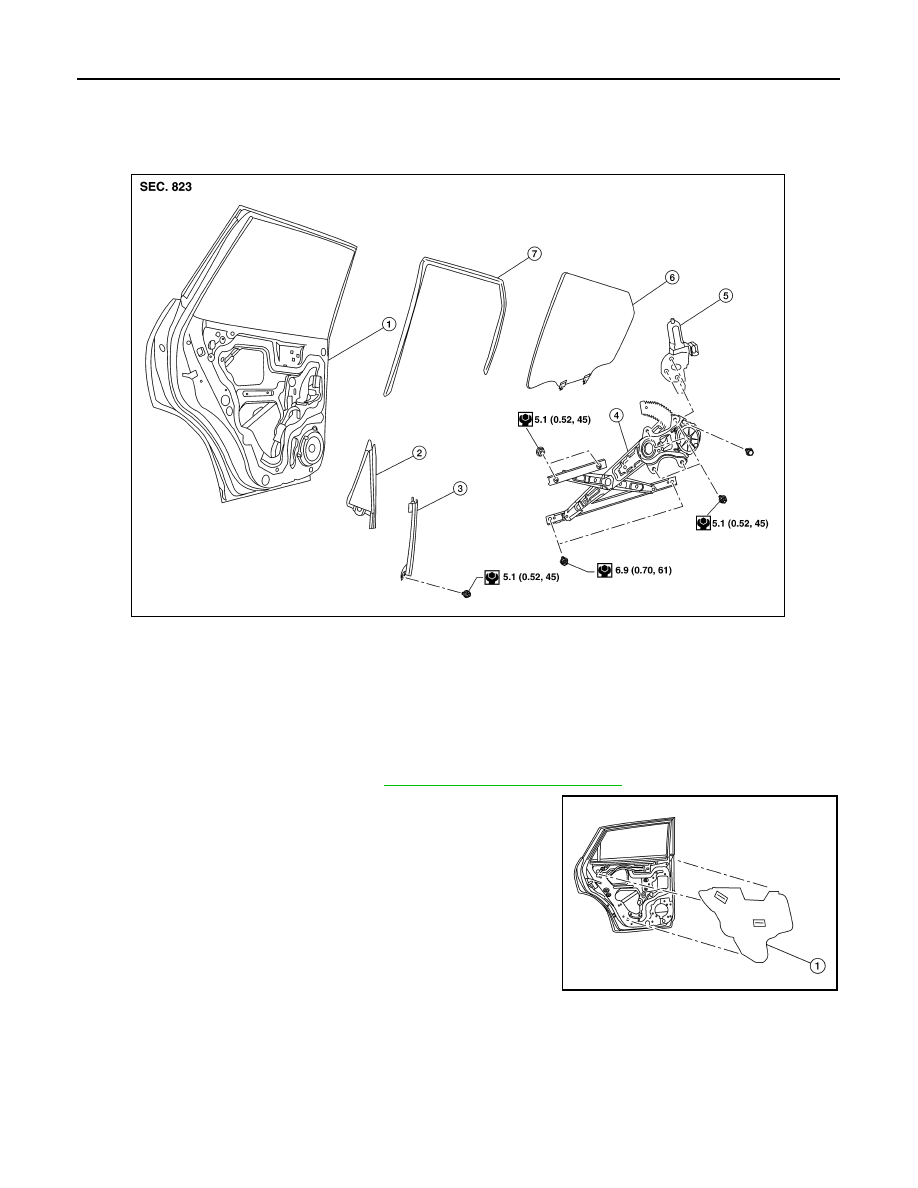

1. Rear door panel

2.

Rear door glass corner finisher

3. Rear door glass rear run channel

4. Rear door regulator assembly

5.

Rear door glass power window motor 6. Rear door glass

7. Rear door glass rubber run channel

AWKIA3206ZZ

ALKIA3481ZZ

REAR REGULATOR

GW-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

4. Operate the rear power window switch to raise/lower the rear

door glass until the rear door glass regulator to rear door glass

bolts (A) can be seen and remove.

5. Raise the rear door glass and hold in place with suitable tool (A).

6. Remove the bolts (B) and nuts (A) from the rear door glass reg-

ulator (1).

7. Disconnect the harness connector from the rear door power win-

dow motor (1).

8. Remove rear door regulator (2).

INSPECTION AFTER REMOVAL

Check the rear door glass regulator for the following items:

• Gear wear

• Rear door glass regulator deformation

• Spring damage

• Grease condition for each sliding part

If a malfunction is detected, replace or grease it.

INSTALLATION

Installation is in reverse order of removal.

CAUTION:

ALKIA3482ZZ

PIIB3511J

ALKIA3486ZZ

ALKIA3487ZZ

GW-24

< REMOVAL AND INSTALLATION >

REAR REGULATOR

• Tighten the rear door regulator to specification Refer to

GW-22, "Exploded View"
