PRIMER

Unit:mm (in.)

INSPECTION

Repairing Water Leaks for Windshield

• Leaks can be repaired without removing and reinstalling glass.

• If water is leaking between the urethane adhesive material and body or glass, determine the extent of leak.

• This can be done by applying water to the windshield area while pushing glass outward.

• To stop the leak, apply primer (if necessary) and then urethane adhesive to the leak point.

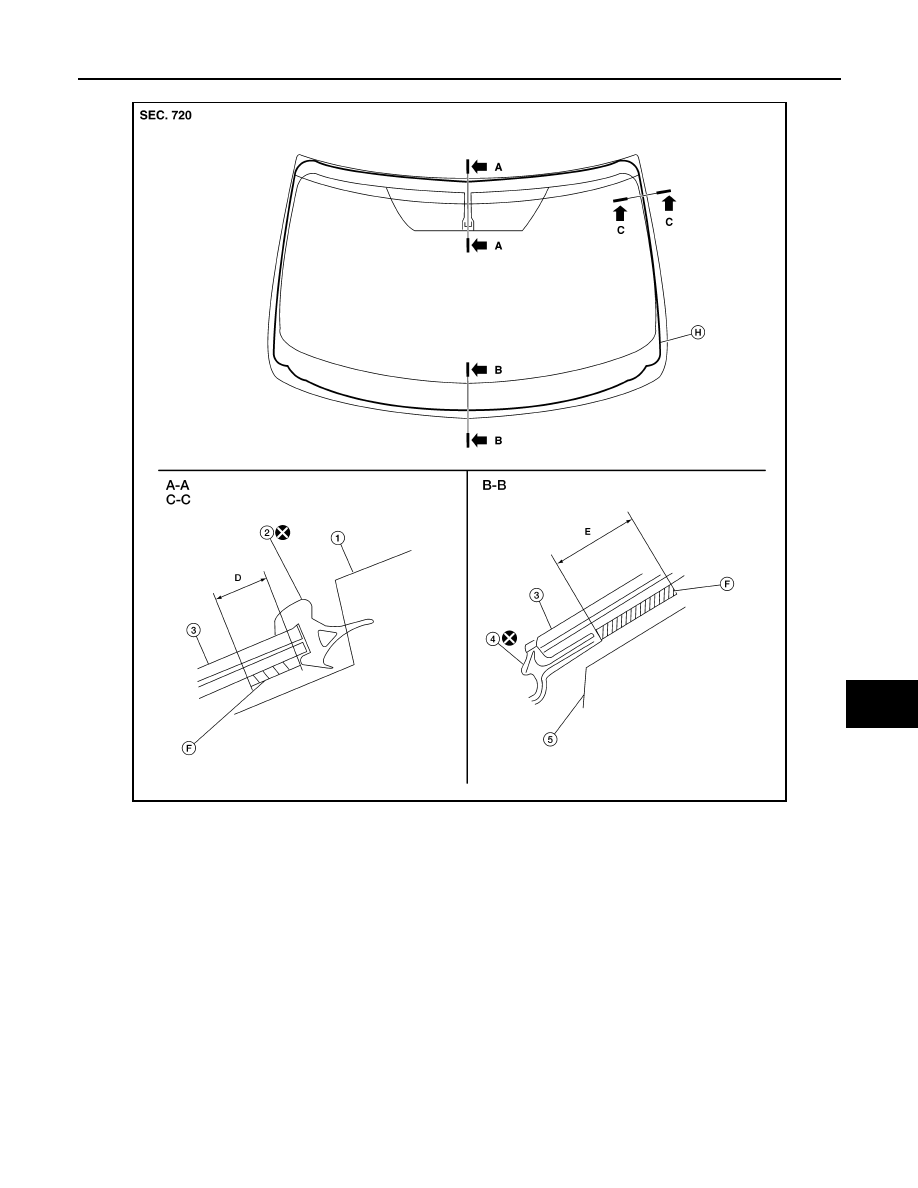

AWKIA3177ZZ

1.

Body

2.

Windshield glass molding

3.

Windshield glass

4.

Windshield glass lower molding

5.

Cowl top cover

D.

16 mm (0.63 in)

E.

14 mm (0.55 in)

F.

Primer

GW-14

< REMOVAL AND INSTALLATION >

FRONT DOOR GLASS

FRONT DOOR GLASS

Exploded View

INFOID:0000000011276510

Removal and Installation

INFOID:0000000011276511

REMOVAL

1. Remove the front door finisher. Refer to

INT-15, "Removal and Installation"

 .

2. Remove the front door vapor barrier (1).

3. Temporarily reconnect the main power window and door lock/unlock switch (LH door) or power window

and door lock/unlock switch RH (RH door).

4. Operate the main power window and door lock/unlock switch (LH door) or front door power window motor

and door lock/unlock switch RH (RH door) to raise/lower the front door glass until the front door regulator

to front door glass bolts can be seen.

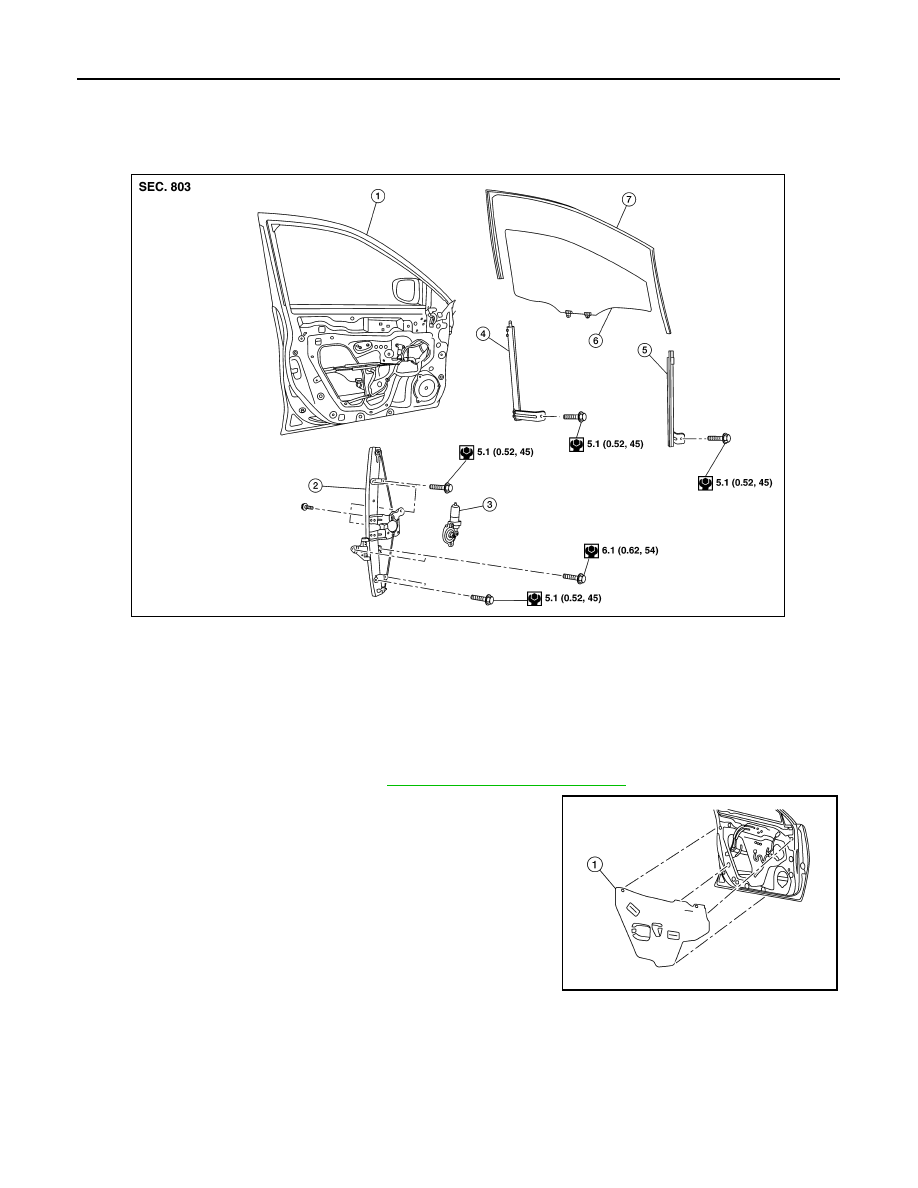

1.    Front door

2.

Front regulator

3.

Front power window motor

4.

Front door glass rear run

5.

Front door glass front run

6.

Front door glass

7.

Front door glass rubber run

AWKIA2912ZZ

ALKIA3488ZZ

FRONT DOOR GLASS

GW-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

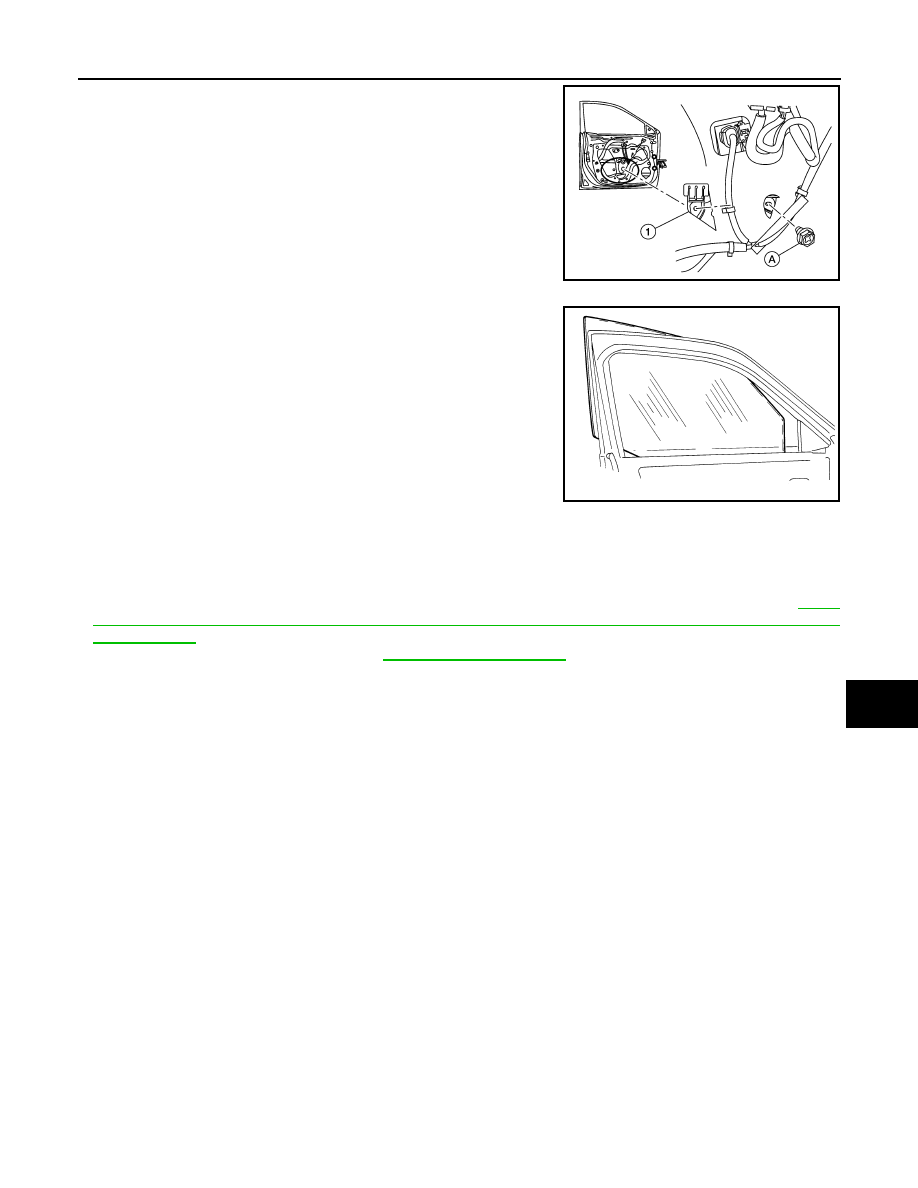

5. Remove the front door glass regulator (1) to front door glass

bolts (A).

6. While holding the front door glass, raise it at the rear end and

pull the front door glass out of the sash toward the outside of the

door.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• When the main power window and door lock/unlock switch or front power window and door lock/

unlock switch RH is removed it is necessary to perform the initialization procedure. Refer to

PWC-

28, "ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL : Special Repair

Requirement"

.

• Tighten bolts to specification. Refer to

GW-14, "Exploded View"

.

FITTING INSPECTION

• Check that the front door glass is fit securely into the glass run groove.

• Lower the front door glass slightly [approximately 10 to 20 mm (0.39 to 0.79) and check that the clearance to

the sash is parallel.If the clearance between the glass and sash is not parallel, loosen the front door glass

regulator bolts, front door glass run channel bolts, and glass and run rail bolts to correct the glass position.

ALKIA3490ZZ

LIIA1687E

GW-16

< REMOVAL AND INSTALLATION >

FRONT REGULATOR

FRONT REGULATOR

Exploded View

INFOID:0000000011276512

Removal and Installation

INFOID:0000000011276513

REMOVAL

1. Remove the front door finisher. Refer to

INT-15, "Removal and Installation"

.

2. Partially remove the front door vapor barrier (1).

3. Temporarily reconnect the main power window and door lock/unlock switch (LH door) or power window

door lock/unlock switch RH (RH door).

4. Operate the power window and door lock/unlock switch (LH door) or front door power window motor and

door lock/unlock switch RH (RH door) to raise/lower the front door glass until the front door regulator to

front door glass bolts can be seen.

1.    Front door panel

2.

Front door regulator

3.

Front door power window motor

4.

Front door glass run rear

5.

Front door glass run front

6.

Front door glass

7.

Front door glass rubber run

AWKIA2912ZZ

ALKIA3488ZZ
