FRONT FOG LAMP

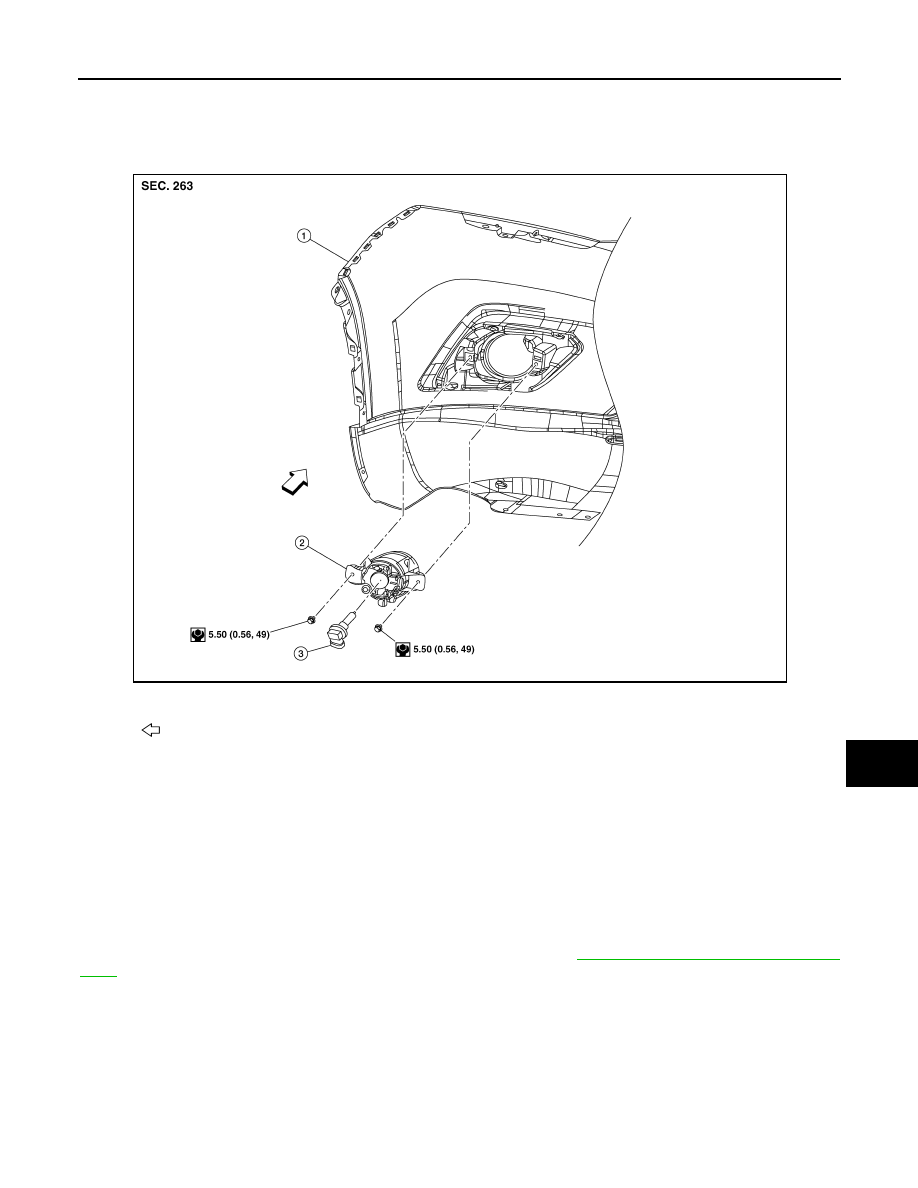

Exploded View

INFOID:0000000011280913

Removal and Installation

INFOID:0000000011280914

REMOVAL

1. Partially remove front fender protector.
2. Disconnect the harness connector from the front fog lamp.
3. Remove front fog lamp bolts and front fog lamp.

INSTALLATION

Installation in the reverse order of removal.

NOTE:

After installation, perform front fog lamp aiming adjustment. Refer to

EXL-117, "Aiming Adjustment Proce-

dure"

.

Bulb Replacement

INFOID:0000000011280915

WARNING:

Do not touch bulb by hand while it is lit or right after being turned off. Burning may result.

CAUTION:

• Do not touch the glass surface of the bulb with bare hands or allow oil or grease to get on it to pre-

vent damage to the bulb.

1.

Front bumper fascia

2.

Front fog lamp

3.

Front fog lamp bulb

Front

AWLIA2317ZZ

EXL-270

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

FRONT FOG LAMP

• Do not leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

REMOVAL

1. Partially remove front fender protector. Refer to

EXT-28, "FENDER PROTECTOR : Exploded View"

.

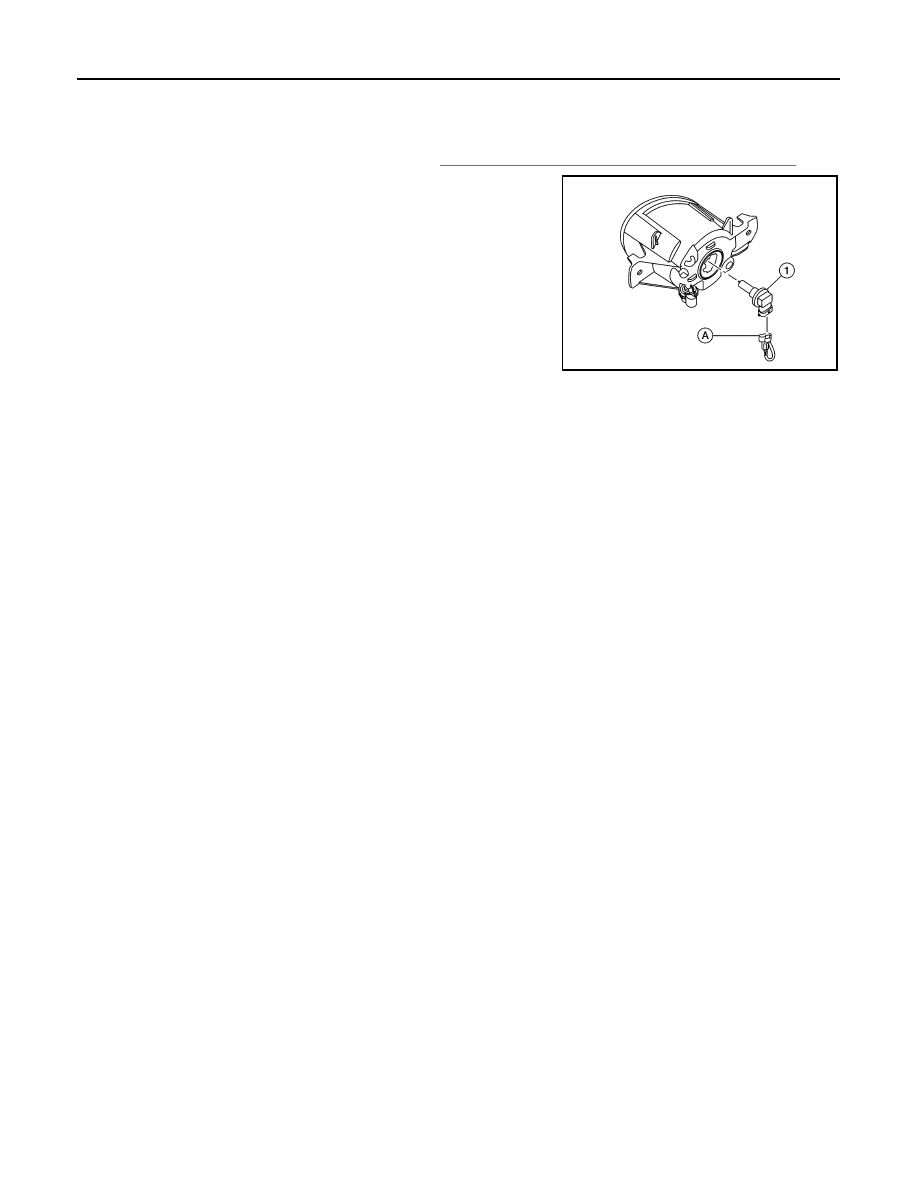

2. Disconnect the harness connector from the front fog lamp (A).
3. Rotate bulb (1) counterclockwise and remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

After installing the bulb, install the bulb socket securely for watertightness.

AWLIA2050ZZ

OPTICAL SENSOR

EXL-271

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

OPTICAL SENSOR

Exploded View

INFOID:0000000011372324

Removal and Installation

INFOID:0000000011280916

REMOVAL

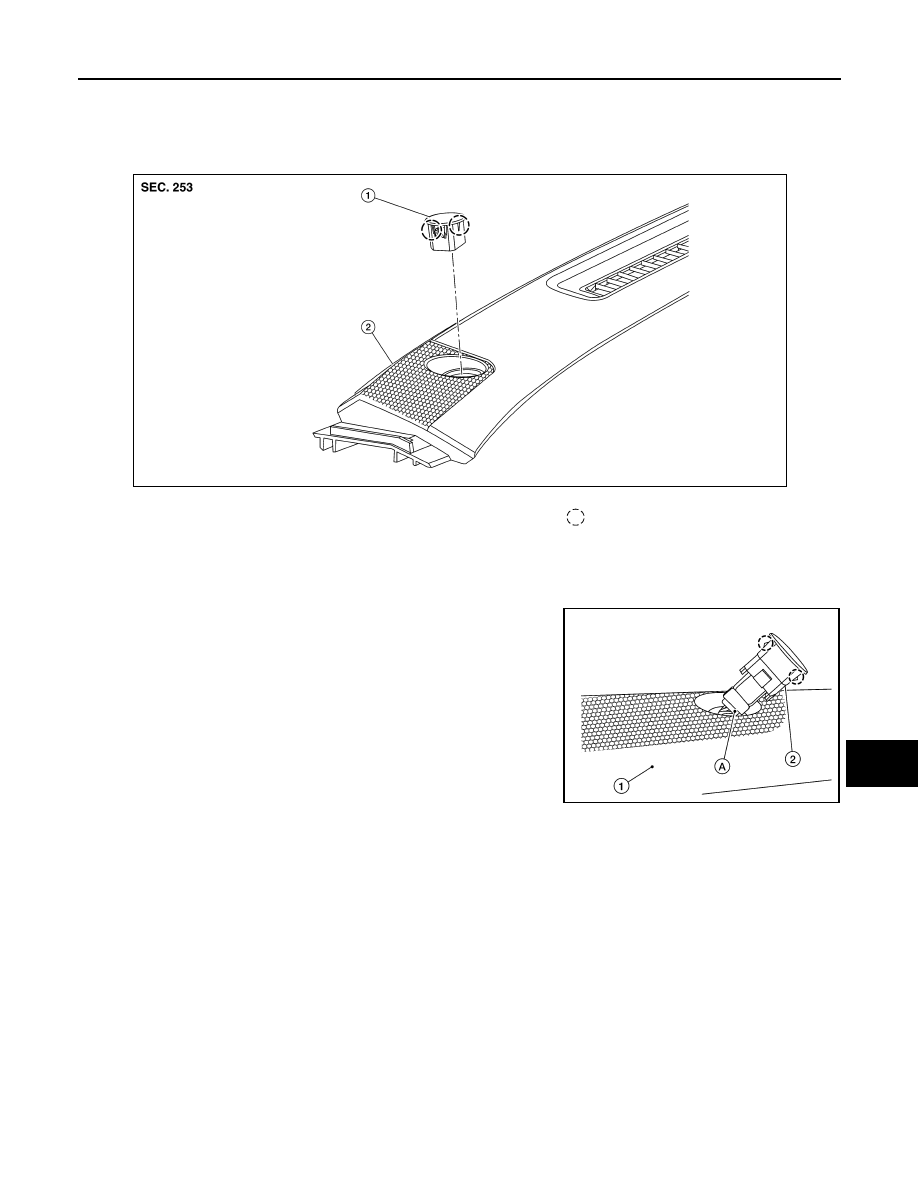

1. Release the optical sensor (2) from defroster grille (1) using a

suitable tool.

2. Disconnect the harness connector (A) from the optical sensor

(2) and remove.

INSTALLATION

Installation is in the reverse order of removal.

1.

Optical sensor

2.

Defroster grille

Pawl

ALLIA1590ZZ

AWLIA2487ZZ

EXL-272

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

COMBINATION SWITCH

COMBINATION SWITCH

Exploded View

INFOID:0000000011280917

Removal and Installation

INFOID:0000000011280918

REMOVAL

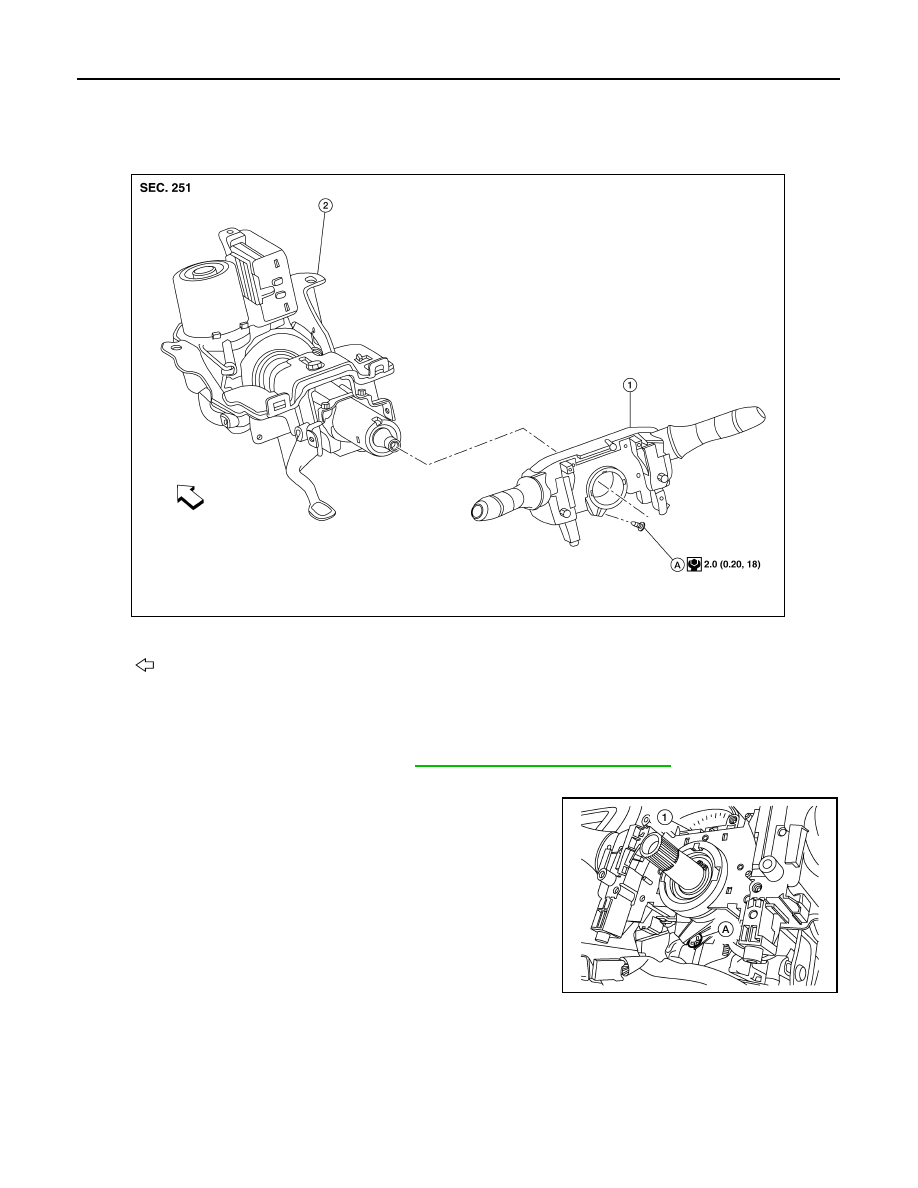

1. Remove the steering angle sensor. Refer to

BRC-137, "Removal and Installation"

.

2. Disconnect harness connector from combination switch.
3. Remove screw (A) and combination switch (1).

INSTALLATION

Installation is in the reverse order of removal.

1.

Combination switch

2. Steering column

A. Screw

Front

AWMIA1520ZZ

AWMIA0709ZZ
