FRONT FOG LAMP AIMING ADJUSTMENT

EXL-265

< PERIODIC MAINTENANCE >

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

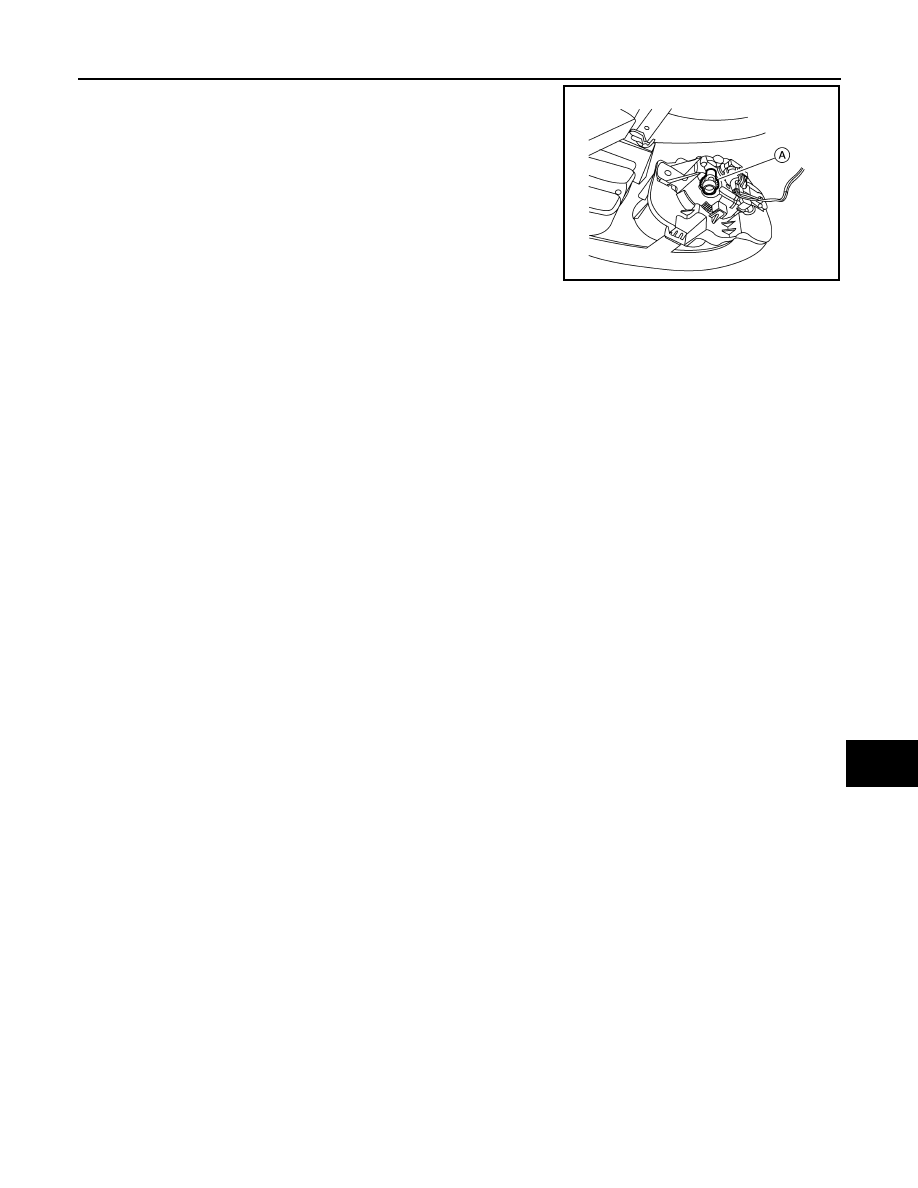

3. Access adjusting screw (A) from underneath front bumper fas-

cia. Adjust front fog lamps using adjusting screw so that the top

edge of the high intensity zone is at the front fog lamp centers

above ground.

ALLIA0035ZZ

EXL-266

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

FRONT COMBINATION LAMP

REMOVAL AND INSTALLATION

FRONT COMBINATION LAMP

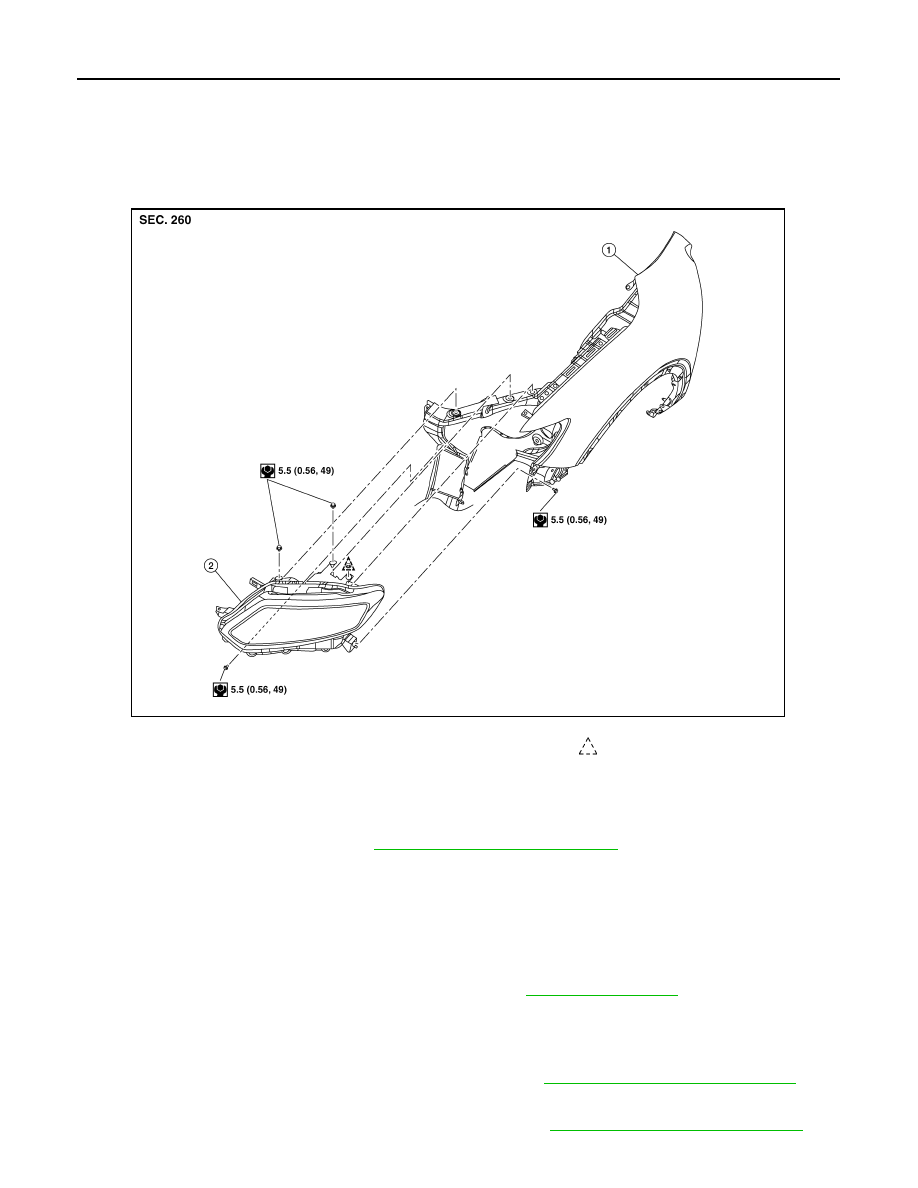

Exploded View

INFOID:0000000011280908

Removal and Installation

INFOID:0000000011280909

REMOVAL

1. Remove front bumper fascia. Refer to

EXT-17, "Removal and Installation"

.

2. Remove front combination lamp bolts and clip.
3. Pull front combination lamp forward.
4. Disconnect the harness connectors from the front combination lamp and remove.

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

After installation, perform headlamp aiming adjustment. Refer to

EXL-114, "Inspection"

.

Bulb Replacement

INFOID:0000000011280910

HEADLAMP (LOW BEAM) BULB

The headlamp (low beam) bulb is not serviced separately. Refer to

EXL-266, "Removal and Installation"

.

HEADLAMP (HIGH BEAM) BULB

The headlamp (high beam) bulb is not serviced separately. Refer to

EXL-266, "Removal and Installation"

.

1.

Front fender

2.

Front combination lamp

Clip

ALLIA1401ZZ

FRONT COMBINATION LAMP

EXL-267

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

SIDE MARKER LAMP BULB

The side marker lamp bulb is not serviced separately. Refer to

EXL-266, "Removal and Installation"

.

TURN SIGNAL LAMP BULB

Removal

1. Rotate bulb socket counterclockwise and remove from the front combination lamp.
2. Remove the bulb from bulb socket.

Installation

Installation is in the reverse order of removal.

CAUTION:

After installing the bulb, install the bulb socket securely for watertightness.

EXL-268

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

HEIGHT SENSOR

HEIGHT SENSOR

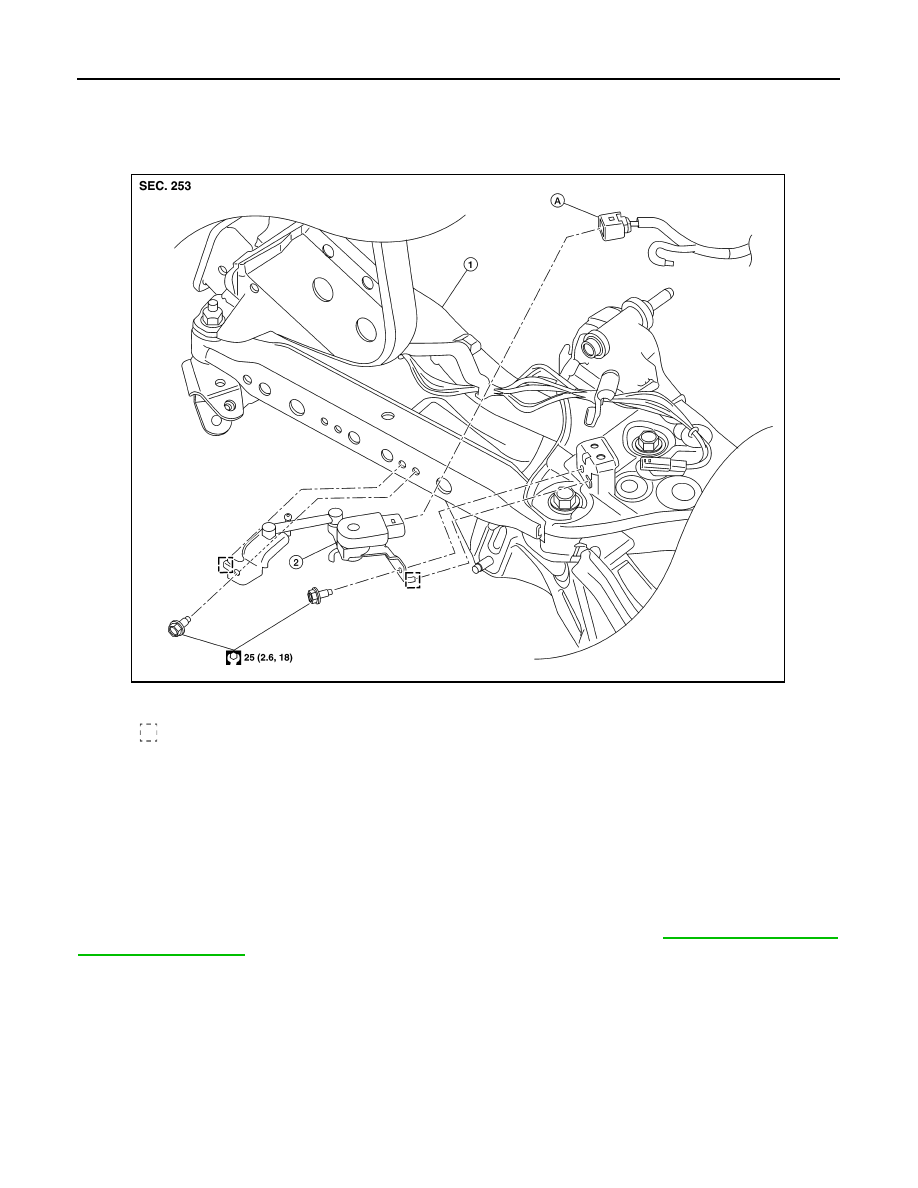

Exploded View

INFOID:0000000011280911

Removal and Installation - Rear Height Sensor

INFOID:0000000011280912

REMOVAL

1. Disconnect the harness connector from the rear height sensor.
2. Remove the bolts and rear height sensor.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Perform the sensor initialize of the headlamp aiming control system. Refer to

EXL-221, "SENSOR INI-

TIALIZE : Description"

.

1.

Rear suspension member

2.

Rear height sensor

A.

Harness connector

Locator
