HEADLAMP AIMING ADJUSTMENT

EXL-261

< PERIODIC MAINTENANCE >

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

PERIODIC MAINTENANCE

HEADLAMP AIMING ADJUSTMENT

Inspection

INFOID:0000000011280905

PREPARATION BEFORE ADJUSTING

Before performing aiming adjustment, check the following:

• Make sure all tires are inflated to correct pressure.

• Place vehicle and screen on level surface.

• Make sure there is no load in vehicle other than the driver (or equivalent weight placed in driver's position).

• Coolant and engine oil filled to correct level, and fuel tank full.

• Remove cargo and/or luggage to maintain an unloaded vehicle condition.

• Confirm spare tire, jack and tools are properly stowed.

• Carefully wipe off any dirt from headlamp lens.

CAUTION:

Do not use organic solvent (thinner, gasoline etc.)

• Place a driver or equivalent weight of 68.5 kg (150 lb) on the driver seat.

• By hand, bounce the front and rear of the vehicle to settle the suspension and eliminate any static load.

• Place the front tires in the straight ahead position.

• Aim each headlamp individually and ensure other headlamp beam pattern is blocked from screen.

NOTE:

• For headlamp aiming details, refer to regulations in your area.

• By regulation, no means for horizontal aim adjustment is provided from the factory; only vertical aim is

adjustable.

• Use adjusting screw to perform aiming adjustment.

• Perform headlamp aiming if:

- The vehicle front body has been repaired;

- The front combination lamp has been removed or replaced;

- Any outfitting has been installed;

- The vehicle’s standard load condition has been substantially increased.

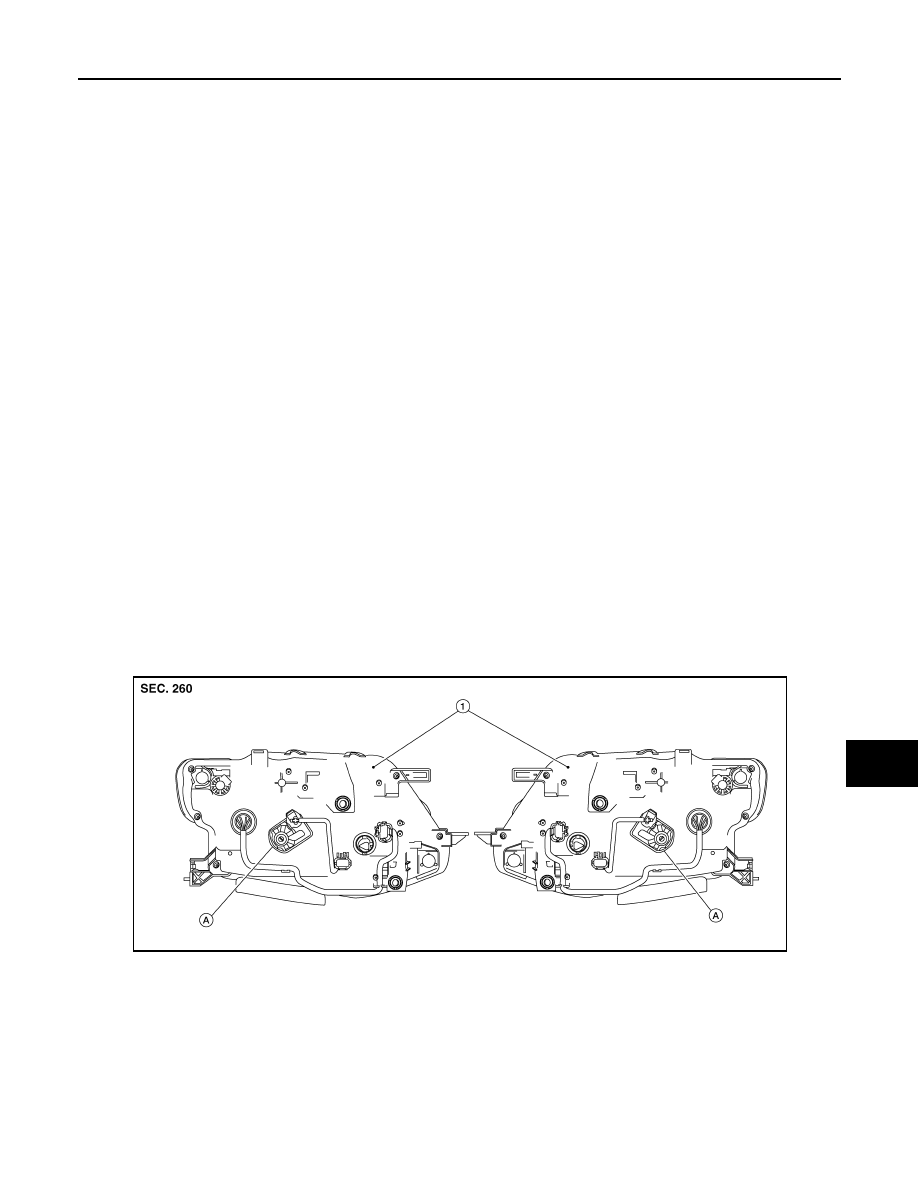

AIMING ADJUSTMENT SCREW

1.

Front combination lamp
(view from rear)

A. Headlamp HI/LO (UP/DOWN)

adjustment screw

ALLIA1430ZZ

EXL-262

< PERIODIC MAINTENANCE >

[LED HEADLAMP]

HEADLAMP AIMING ADJUSTMENT

Aiming Adjustment Procedure

INFOID:0000000011280906

Aiming Chart

LOW BEAM AND HIGH BEAM

NOTE:

• Basic illuminating area for evaluation and/or adjustment should be within range shown on aiming chart.
1. Use adjustment screw to perform aiming adjustment.

• Ensure fog lamps are turned off.

2. Block the opposite headlamp from projecting a beam pattern onto the adjustment screen, using a suitable

object. Aim each headlamp individually.

CAUTION:

Do not cover the lens surface with a tape etc. The lens is made of resin.

3. Place the screen on the same level and flat surface as the vehicle.

NOTE:

Surface should be free of any debris that would cause a difference between the headlamp center and the

adjustment screen.

4. Face the front of the vehicle to the screen and measure distance between the headlamp center and the

screen surface.

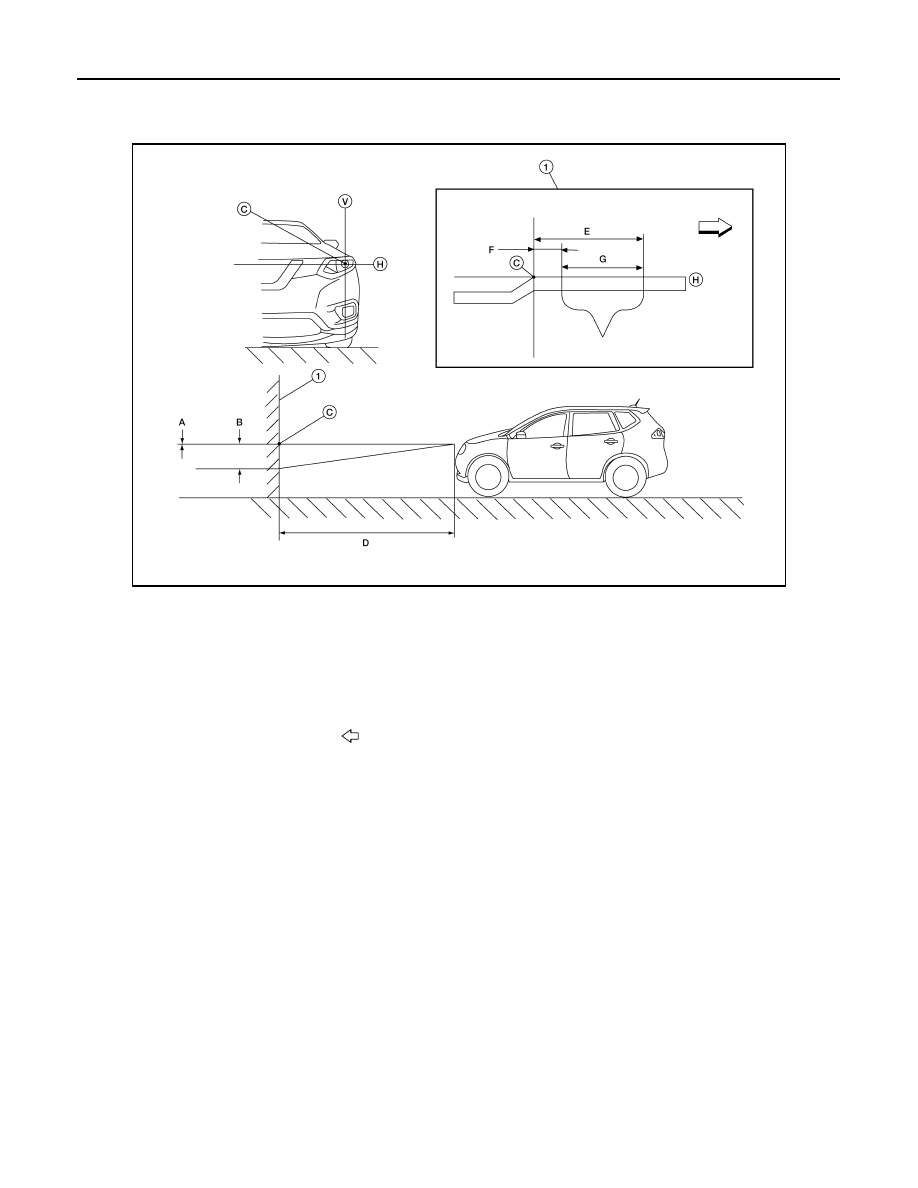

AWLIA2498ZZ

1.

Adjustment screen

A.

Highest cutoff line height

B.

Lowest cutoff line height

C.

Headlamp bulb center (H-V point)

D.

Distance of headlamp aiming
screen from vehicle 7.62 m (25 ft)

E.

Maximum aim evaluation distance
from vertical center on aiming
screen 399 mm (3

°R)

F.

Minimum aim evaluation distance
from vertical center on aiming
screen 133 mm (1

°R)

G.

Aim evaluation area

H.

Horizontal aiming evaluation line

V.

Vertical aiming evaluation line

Right

A (Highest cutoff line height)

-13.3 mm (0.5 in)

0.1

° up

B (Lowest cutoff line height)

 53.2 mm (2.1 in)

0.4

° down

HEADLAMP AIMING ADJUSTMENT

EXL-263

< PERIODIC MAINTENANCE >

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

5. Start the engine. Turn the headlamp on.
6. Determine the preferred vertical aim range dimensions, using the aiming chart.
7. Measure the projected beam within the aim evaluation segment on the screen.
8. Adjust the beam pattern of each headlamp until the aim evaluation segment (the area relative to both the

highest and lowest cutoff line height) is positioned within the vertical aim range dimensions shown on the

aiming chart.

Distance between the headlamp center and the screen (D)

: 7.62 m (25 ft)

EXL-264

< PERIODIC MAINTENANCE >

[LED HEADLAMP]

FRONT FOG LAMP AIMING ADJUSTMENT

FRONT FOG LAMP AIMING ADJUSTMENT

Aiming Adjustment Procedure

INFOID:0000000011280907

Aiming Chart

NOTE:

• (LH) Front fog lamp aiming specifications shown, (RH) similar.

• Check the following conditions before performing the aiming adjustment.

- Keep all tires inflated to correct pressure.

- Place vehicle on level ground.

- See that vehicle is unloaded (except for full levels of coolant, engine oil and fuel, and spare tire, jack, and

tools). Have the driver or equivalent weight placed in driver seat.

- When performing adjustment, if necessary, cover the headlamps and opposite front fog lamp.

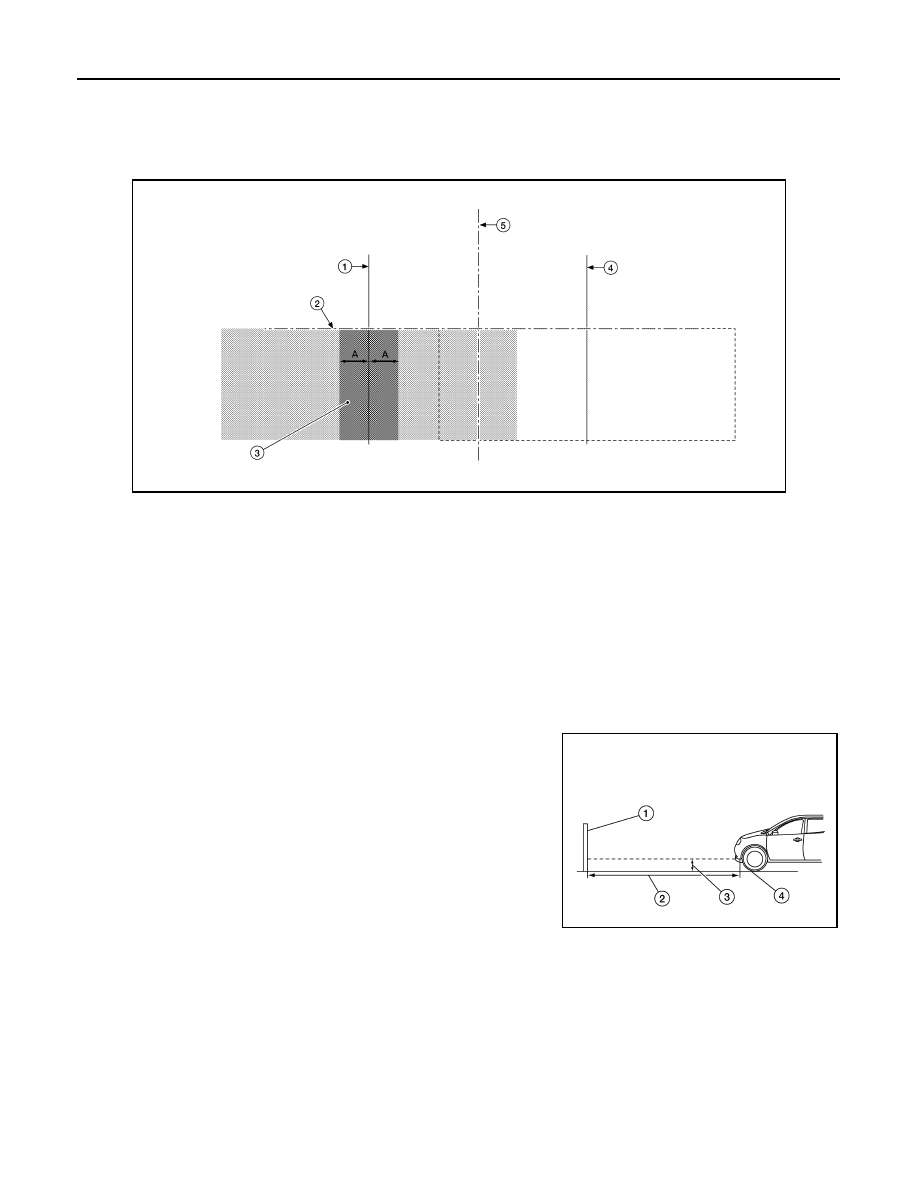

1. Set the distance between the screen and the center of the front

fog lamp lens as shown.

(1) Aiming screen or a matte white surface

(2) 7.62 m (25 ft)

(3) Floor to center of front fog lamp lens

(4) Floor

2. Turn front fog lamps ON.

AWLIA2219ZZ

1.

Vertical center line of front fog
lamp (LH)

2.

Lamp center above ground

3.

Front fog lamp high intensity
area (LH)

4.

Vertical center line of front fog
lamp (RH)

5.

Vertical center axis

A.

100mm (4in)

AWLIA2318ZZ
