CAMSHAFT

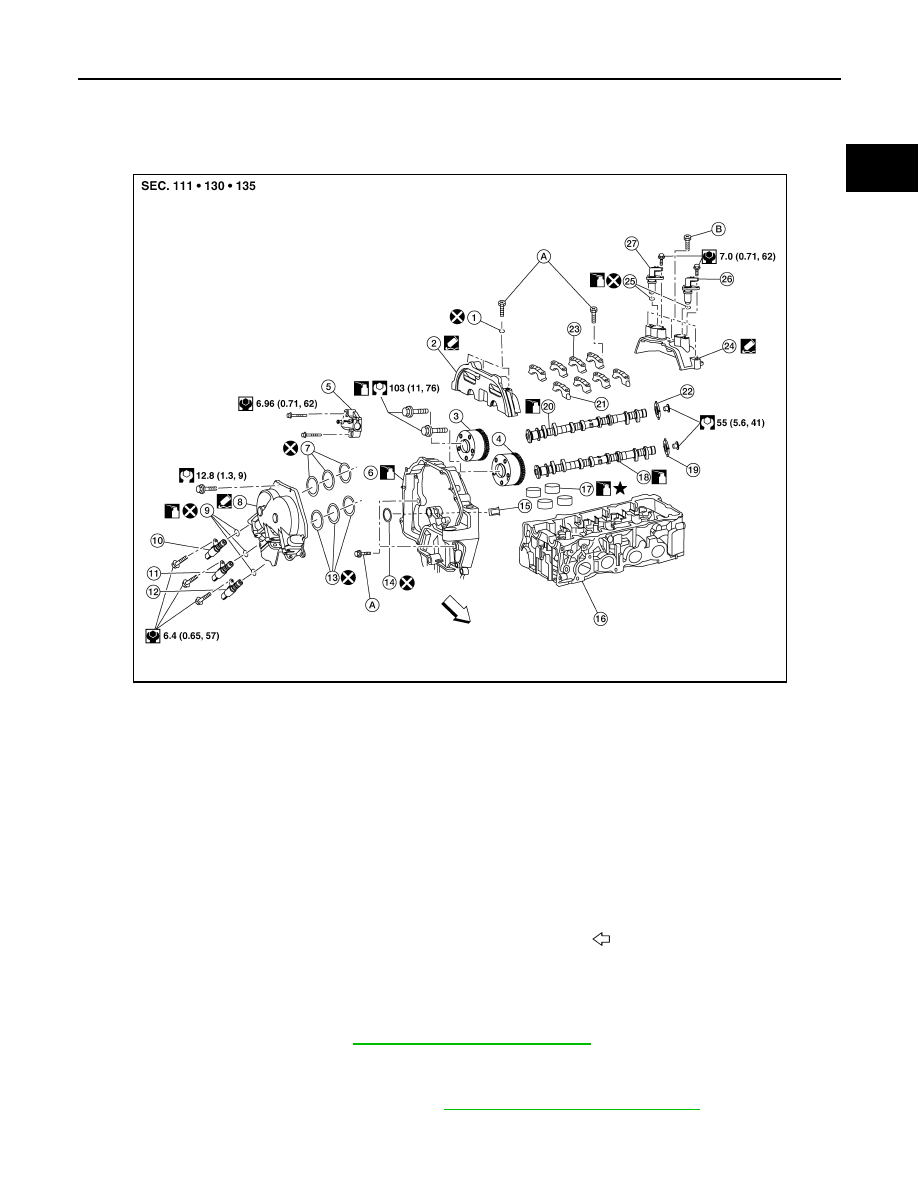

Exploded View

INFOID:0000000011366284

Removal and Installation

INFOID:0000000011279967

REMOVAL

1. Remove the rocker cover. Refer to

EM-42, "Removal and Installation"

.

2. Remove camshaft position sensors.
3. Remove camshaft position sensor bracket.
4. Remove the valve timing control cover. Refer to

EM-80, "Valve Timing Control Cover"

.

1.

Washer

2.

Camshaft bracket (No.1)

3.

Camshaft sprocket (INT)

4.

Camshaft sprocket (EXH)

5.

Chain tensioner

6.

Front cover (partial view)

7.

Valve timing control cover O-rings
(INT)

8.

Valve timing control cover

9.

Valve timing control solenoid valve
O-rings

10. Intake valve timing intermediate lock

control solenoid valve

11. Intake valve timing control solenoid

valve

12. Exhaust valve timing control sole-

noid valve

13. Valve timing control cover O-rings

(EXH)

14. O-ring

15. Oil filter

16. Cylinder head

17. Valve lifters

18. Camshaft (EXH)

19. Signal plate (EXH)

20. Camshaft (INT)

21. Camshaft brackets (EXH)

22. Signal plate (INT)

23. Camshaft brackets (INT)

24. Camshaft position sensor bracket

25. Camshaft position sensor O-ring

26. Camshaft position sensor (EXH)

27. Camshaft position sensor (INT)

A.

Refer to INSTALLATION

B.

Refer to INSTALLATION

Front

AWBIA2323ZZ

EM-70

< REMOVAL AND INSTALLATION >

CAMSHAFT

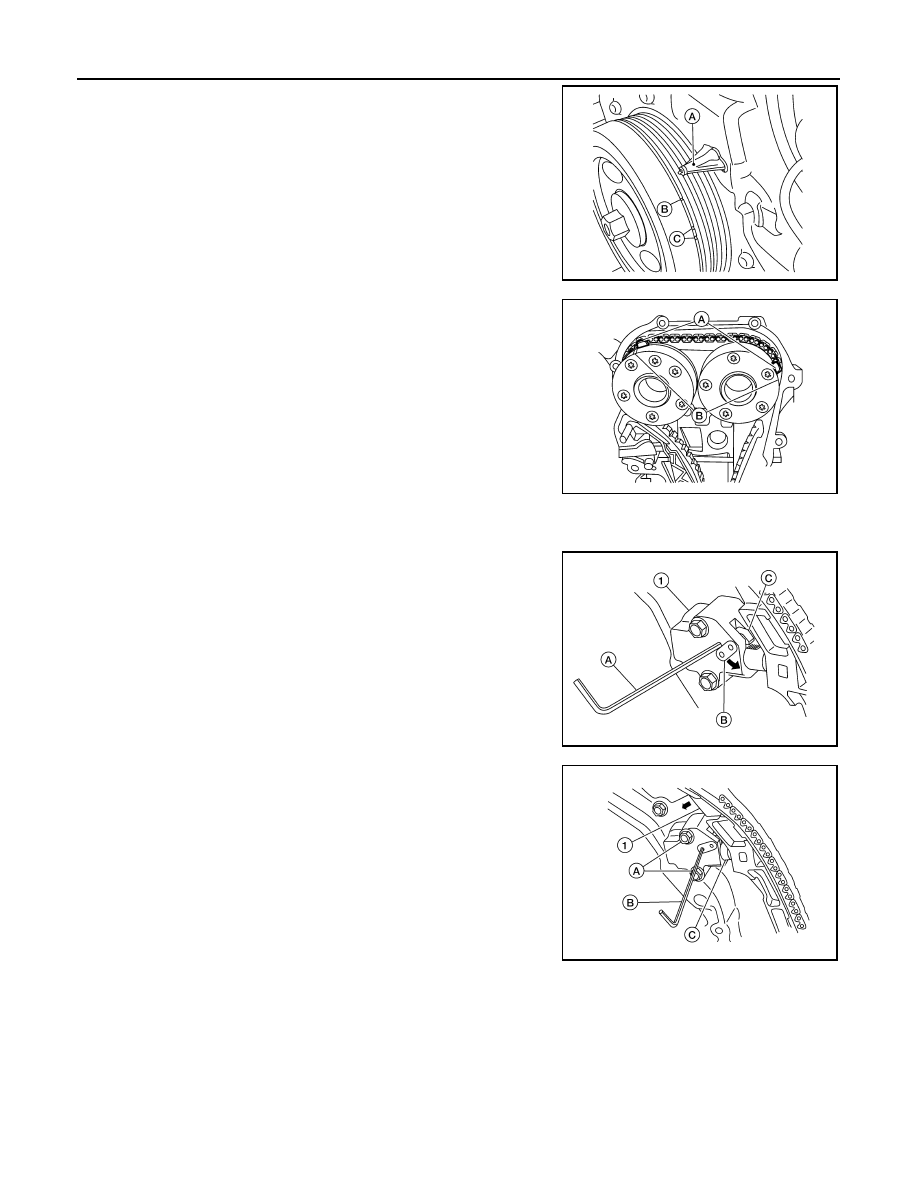

5. Set the No.1 cylinder at TDC on its compression stroke using

the following procedure:

a. Rotate crankshaft pulley clockwise, and align mating mark for

TDC (B) with timing indicator (A) on front cover, as shown.

NOTE:

Do not use the white paint mark (C).

b. At the same time, make sure that the mating marks (outer

groove) (B) on camshaft sprockets are lined up with the pink

links (A) in the timing chain, as shown.

• If not, rotate crankshaft pulley one more turn to line up the

mating marks (outer groove) (B) to the pink links (A), as

shown.

NOTE:

Shown with front cover removed for illustration purposes only.

6. Remove chain tensioner (1)  and timing chain using the following procedure:
a. Pull the lever (B) down and release the plunger stopper tab (C).

• Plunger stopper tab (C) can be pushed up to release (coaxial

structure with lever (B)).

b. Insert the stopper pin (A) into the tensioner body hole to hold the

lever (B) and keep tab released.

NOTE:

Allen wrench [2.5 mm (0.098)] is used for a stopper pin as an

example.

c.

Insert plunger (C) into tensioner body by pressing timing chain

slack guide (1).

d. Keep timing chain slack (1) guide pressed and hold it by pushing

the stopper pin (B) through the lever hole and body hole.

e. Remove the chain tensioner bolts (A) and chain tensioner.

f.

Remove the timing chain from camshaft sprocket (INT) and camshaft sprocket (EXH).

CAUTION:

• Use suitable tool to prevent timing chain from falling into front cover after it has been removed

from camshaft sprocket (INT) and camshaft sprocket (EXH).

• Do not rotate the crankshaft or camshafts while the timing chain is removed. It can cause dam-

age to the valves and pistons.

ALBIA0840GB

ALBIA0841GB

AWBIA1926ZZ

AWBIA1927ZZ

CAMSHAFT

EM-71

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

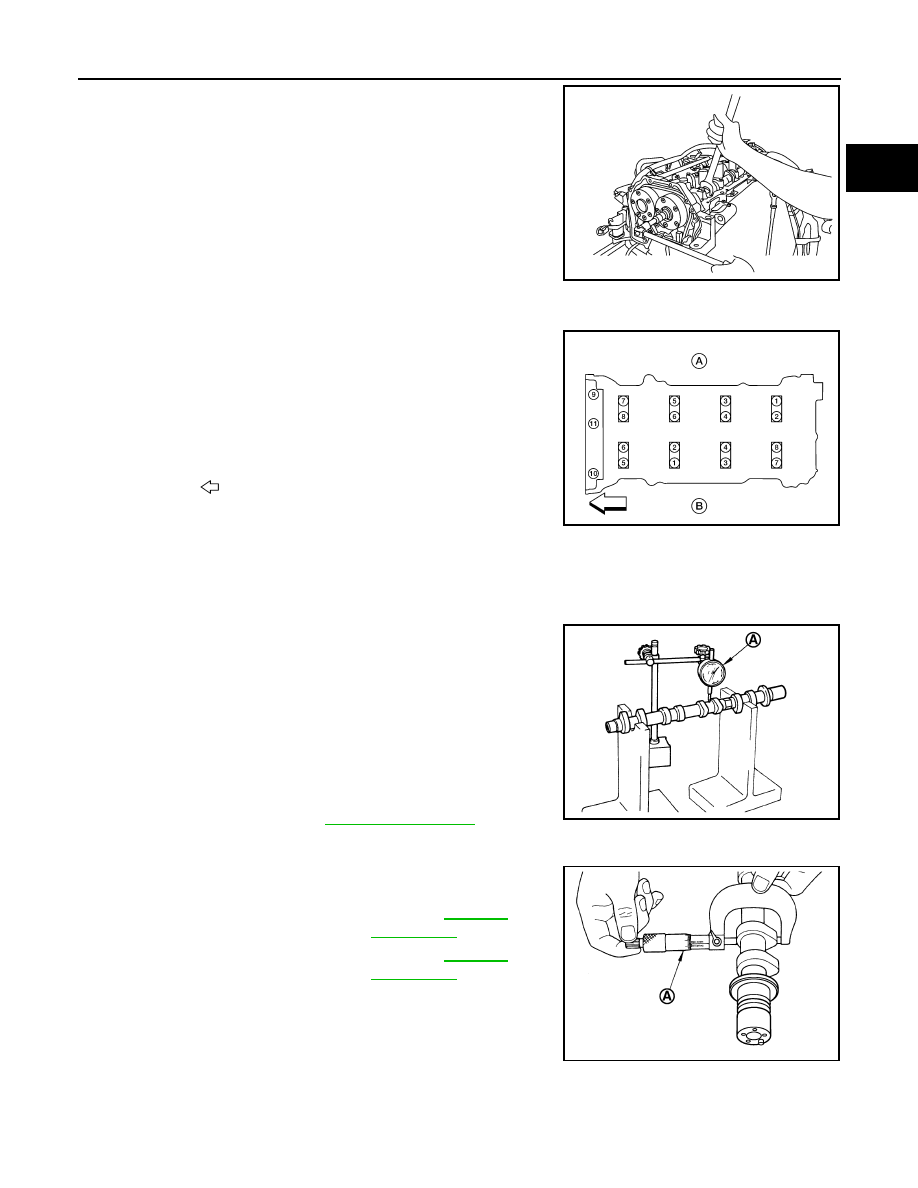

7. Remove the camshaft sprockets using the following procedure:
a. Secure hexagonal part of the camshaft with a suitable tool and

loosen the camshaft sprocket bolt.

b. Remove the camshaft sprocket bolt and camshaft sprockets for

both camshafts.

8. Loosen the camshaft bracket bolts in the order as shown, and

remove the camshaft brackets and camshafts.

NOTE:

Remove camshaft bracket (No. 1) by slightly tapping it with a

rubber mallet.

9. Remove the valve lifters.

NOTE:

Check installation positions, and set them aside in the order removed.

INSPECTION AFTER REMOVAL

Camshaft Runout

1. Put the camshaft on a V-block supporting the No.2 and No.5

journals.

CAUTION:

Do not support the No. 1 journal (on the side of the cam-

shaft sprocket) because it has different diameter from the

other four locations.

2. Set suitable tool (A) vertically on the No.3 journal.
3. Turn camshaft in one direction by hand, and measure the cam-

shaft runout on the dial gauge total indicator reading.

Camshaft Cam Height

1. Measure the camshaft cam height using suitable tool (A).

2. If wear is beyond the limit, replace the camshaft.

Camshaft Journal Clearance

Outer Diameter of Camshaft Journal

ALBIA0844GB

(A) : Intake side
(B) : Exhaust side

: Engine front

ALBIA0846GB

Standard

: Refer to

EM-121, "Camshaft"

PBIC3177J

Standard intake cam height

: Refer to

EM-121,

"Camshaft"

Standard exhaust cam height

: Refer to

EM-121,

"Camshaft"

PBIC3178J

EM-72

< REMOVAL AND INSTALLATION >

CAMSHAFT

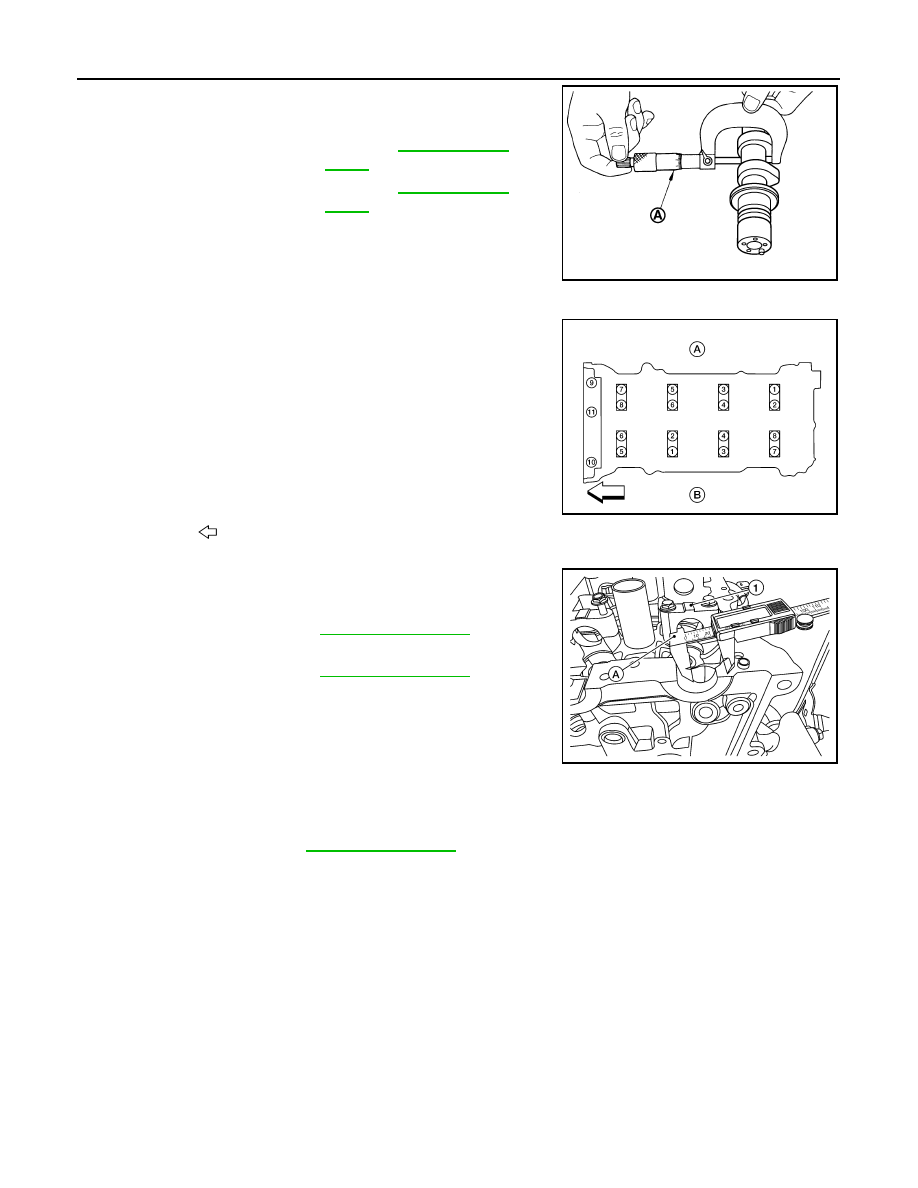

• Measure the outer diameter of the camshaft journal using suitable

tool (A).

Inner Diameter of Camshaft Bracket

• Tighten the camshaft bracket bolts to the specified torque following

the tightening pattern as shown.

• Using suitable tool (A), measure inner diameter of camshaft

bracket (1).

Calculation of Camshaft Journal Clearance

• (Journal clearance) = (inner diameter of camshaft bracket) – (outer diameter of camshaft journal)

• When out of the specified range above, replace either or both the camshaft and the cylinder head assembly.

NOTE:

Inner diameter of the camshaft bracket is manufactured together with the cylinder head. If the camshaft

bracket is out of specification, replace the whole cylinder head assembly.

Camshaft End Play

Standard No.1 outer di-
ameter

: Refer to

EM-121, "Cam-

shaft"

Standard No.2, 3, 4, 5,
outer diameter

: Refer to

EM-121, "Cam-

shaft"

PBIC3179J

Step 1 (bolts 9 - 11) : 1.96 N·m (0.20 kg-m, 17 in-lb)
Step 2 (bolts 1 - 8)

: 1.96 N·m (0.20 kg-m, 17 in-lb)

Step 3 (bolts 1 - 11) : 5.88 N·m (0.60 kg-m, 52 in-lb)
Step 4 (bolts 1 - 11) : 10.41 N·m (1.1 kg-m, 8 ft-lb)

(A) : Intake side
(B) : Exhaust side

: Engine front

ALBIA0846GB

Standard
No.1

: Refer to

EM-121, "Camshaft"

Standard
No.2, 3, 4, 5

: Refer to

EM-121, "Camshaft"

ALBIA0903GB

Standard

: Refer to

EM-121, "Camshaft"
