3. Remove fender protector (RH). Refer to

EXT-28, "FENDER PROTECTOR : Removal and Installation"

.

4. Remove the front driveshaft (RH). Refer to

FAX-23, "Removal and Installation (RH)"

.

5. Remove the front exhaust tube and gaskets. Refer to

EX-5, "Exploded View"

.

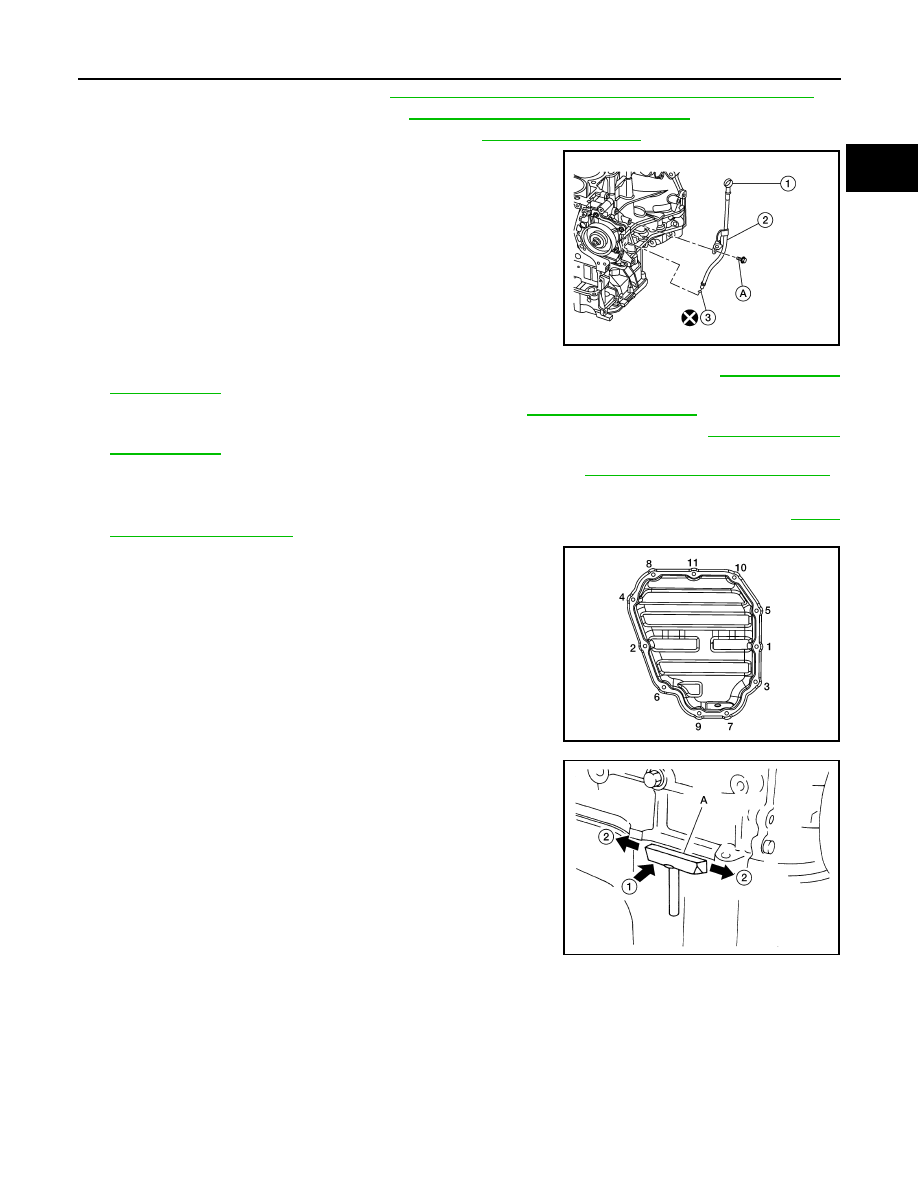

6. Remove bolt (A) securing oil level gauge (2).
7. Remove oil level gauge (1), oil level gauge guide (2), and O-ring

(3).

8. Remove the power steering gear bolts and support the power steering gear. Refer to

ST-14, "Removal

and Installation"

.

9. Remove the rear engine mount torque rod bracket. Refer to

EM-86, "Exploded View"

.

10. Remove the front suspension member for clearance to remove the oil pan. Refer to

FSU-22, "Removal

and Installation"

.

11. On models equipped with AWD, remove transfer assembly. Refer to

DLN-71, "Removal and Installation"

.

12. Disconnect the A/C compressor harness connector.
13. Remove the A/C compressor bolts, position the A/C compressor aside and support. Refer to

HA-29,

"Removal and Installation"

.

14. Remove the lower oil pan bolts in the reverse order as shown.

15. Remove the lower oil pan using Tool (A).

CAUTION:

Be careful not to damage the mating surfaces.

NOTE:

In areas where the cutter is difficult to use, use a plastic hammer

to lightly tap (1) the cutter where the liquid gasket is applied. Use

a plastic hammer to slide (2) the cutter by tapping on the side.

AWBIA1986ZZ

ALBIA0830GB

Tool number

: KV10111100 (J-37228)

AWBIA1249GB

EM-38

< REMOVAL AND INSTALLATION >

OIL PAN AND OIL STRAINER

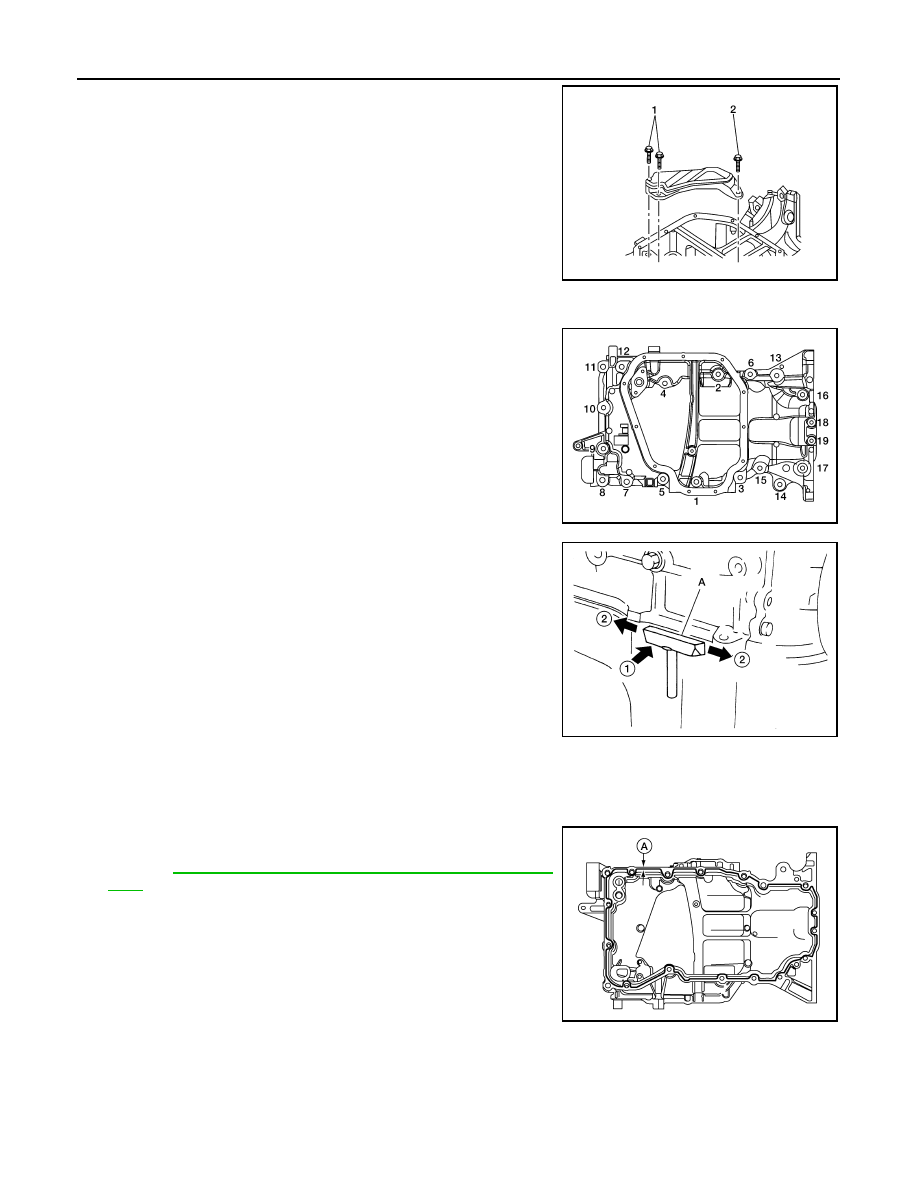

16. Remove the oil strainer bolts in the reverse order as shown then

remove the oil strainer.

17. Remove rear cover plate and engine-to transaxle bolts.
18. Loosen the upper oil pan bolts in the order shown.

19. Remove upper oil pan using Tool (A).

• Remove the three O-rings from the upper oil pan and front

cover.

CAUTION:

Be careful not to damage the mating surfaces.

NOTE:

In areas where the cutter is difficult to use, use a plastic hammer

to lightly tap (1) the cutter where the liquid gasket is applied. Use

a plastic hammer to slide (2) the cutter by tapping on the side.

INSPECTION AFTER REMOVAL

Clean the oil strainer screen to remove any foreign material.

INSTALLATION

1. Apply Genuine Silicone RTV Sealant or equivalent to the upper

oil pan at the specified sealant bead diameter (A) as shown.

Refer to

GI-22, "Recommended Chemical Products and Seal-

ants"

.

CAUTION:

• Be sure liquid gasket application surface is free from dust, grease, and water.

• Install two new O-rings in the upper oil pan and a new O-ring in the front cover.

• Do not reuse O-rings.

AWBIA1382ZZ

ALBIA0832GB

Tool number

: KV10111100 (J-37228)

AWBIA1249GB

Sealant bead
diameter (A)

: 4.0 - 5.0 mm (0.157 - 0.197 in)

AWBIA1987ZZ

OIL PAN AND OIL STRAINER

EM-39

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

• Be sure to apply liquid gasket to the outside of bolt holes

1, 2, and 4.

• Be sure to apply liquid gasket without breaks or overlap.

• Installation should be done within 5 minutes after applying liquid gasket.

• Do not fill the engine with engine oil for at least 30 minutes after the components are installed to

allow the liquid gasket to cure.

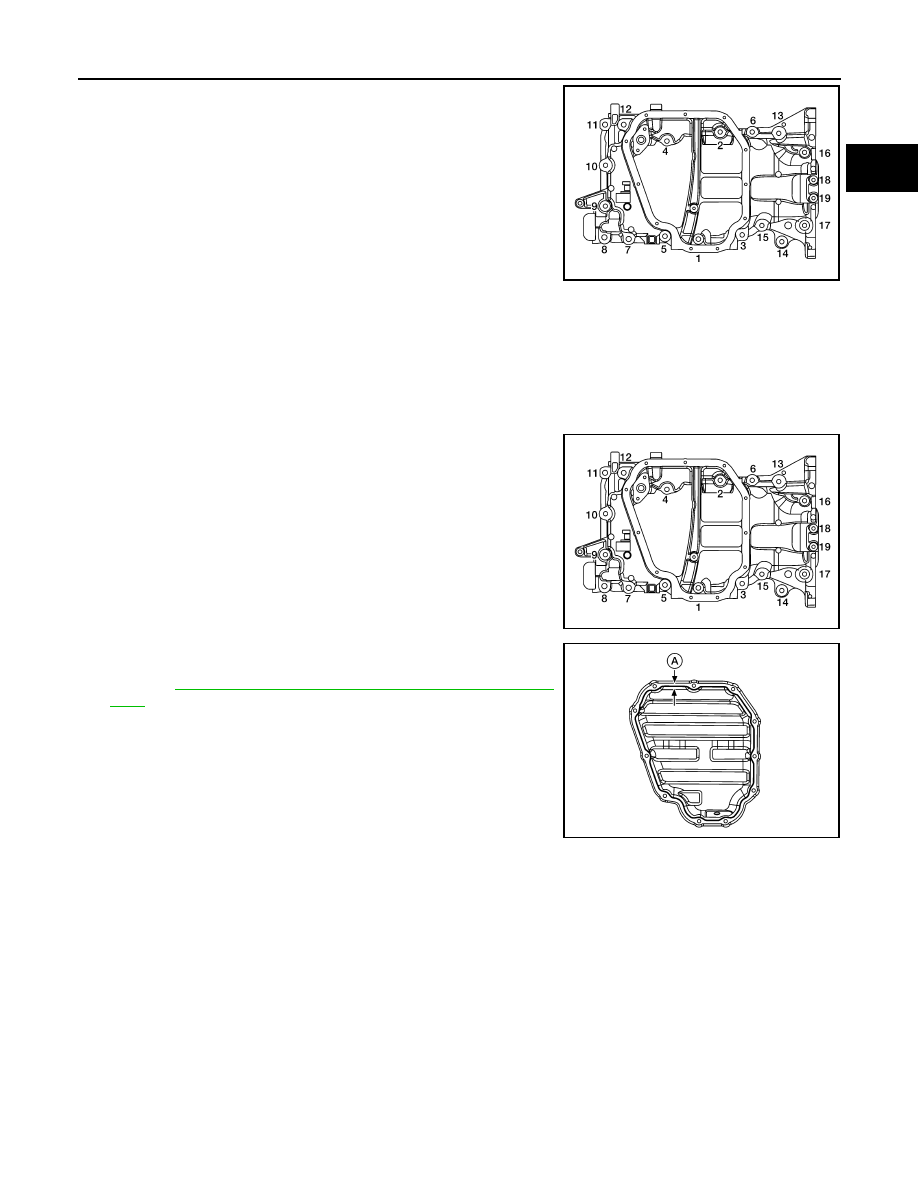

2. Install the upper oil pan to the block and tighten the upper oil pan bolts to specification in the order shown.

CAUTION:

Install upper oil pan bolts in the same position from which

they were removed.

3. Apply Genuine Silicone RTV Sealant or equivalent to the lower

oil pan at the specified sealant bead diameter (A) as shown.

Refer to

GI-22, "Recommended Chemical Products and Seal-

ants"

.

CAUTION:

• Be sure liquid gasket application surface is free from

dust, grease, and water.

• Be sure to apply liquid gasket to the inside of all bolt

holes.

• Be sure to apply liquid gasket without breaks or overlap.

• Installation should be done within 5 minutes after apply-

ing liquid gasket.

• Do not fill the engine with engine oil for at least 30 minutes after the components are installed to

allow the liquid gasket to cure.

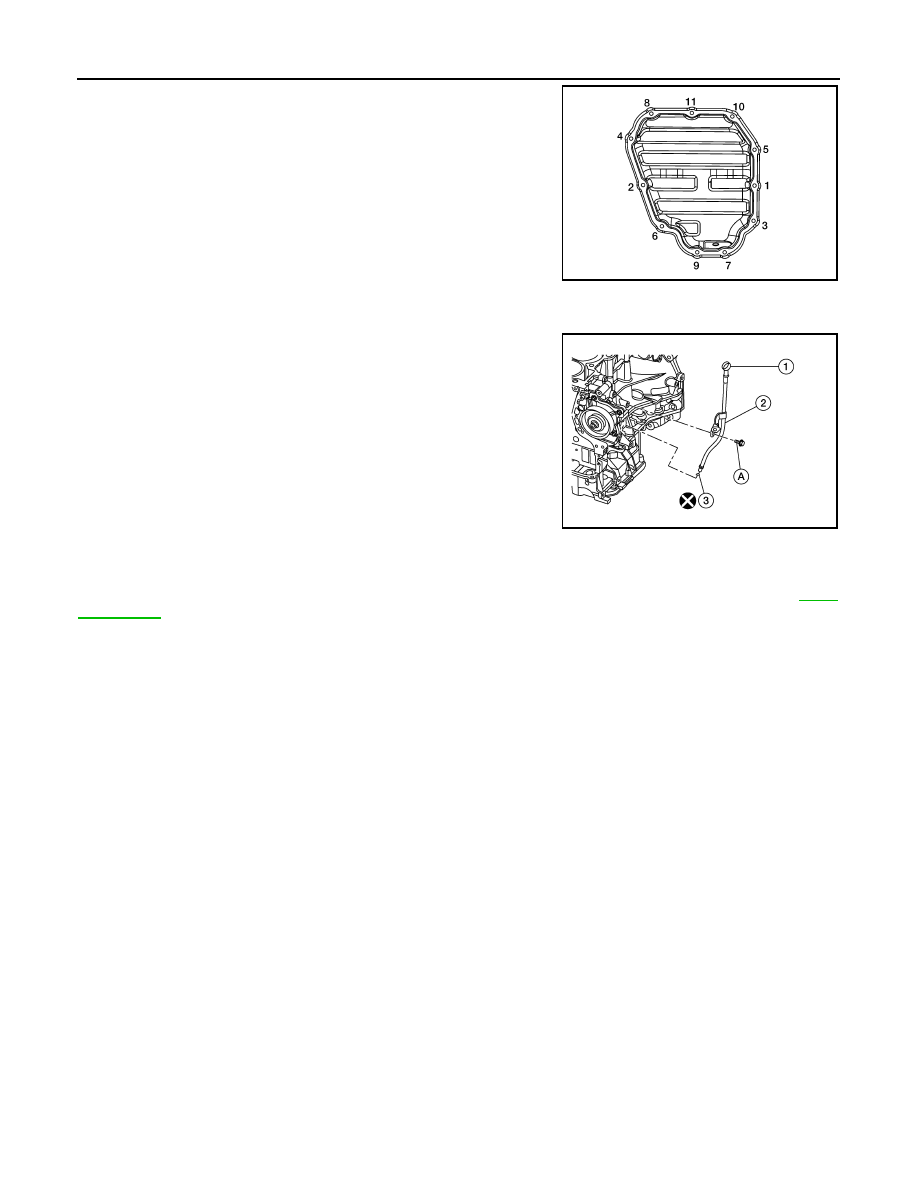

4. Install the lower oil pan to the upper oil pan and tighten the lower oil pan bolts to specification in the

numerical order shown.

CAUTION:

ALBIA0832GB

All bolts except 18 and 19 : 21.6 N·m (2.2 kg-m, 16 ft-lb)
Bolts 18 and 19

: 8.8 N·m (0.90 kg-m, 78 in-lb)

ALBIA0832GB

Sealant bead
diameter (A)

: 4.0 - 5.0 mm (0.157 - 0.197 in)

ALBIA0834GB

EM-40

< REMOVAL AND INSTALLATION >

OIL PAN AND OIL STRAINER

Install new drain plug washer.

5. Install oil level gauge (1), oil level gauge guide (2), and O-ring (3).

CAUTION:

Do not reuse oil level gauge guide O-ring.

6. Installation of the remaining components is in the reverse order of removal.

INSPECTION AFTER INSTALLATION

Check for engine oil leaks with the engine at operating temperature and running at idle. Refer to

LU-7,

"Inspection"

.

ALBIA0830GB

Bolt (A)

: 21.6 N·m (2.2 kg-m, 16 ft-lb)

AWBIA1986ZZ
