IGNITION COIL

Exploded View

INFOID:0000000011279954

Removal and Installation

INFOID:0000000011279955

REMOVAL

1. Remove air cleaner and air duct. Refer to

EM-26, "Exploded View"

 .

2. Disconnect the harness connector from the ignition coil.
3. Remove the ignition coil.

CAUTION:

Discard any ignition coil which has been dropped or shocked.

INSTALLATION

Installation is in the reverse order of removal.

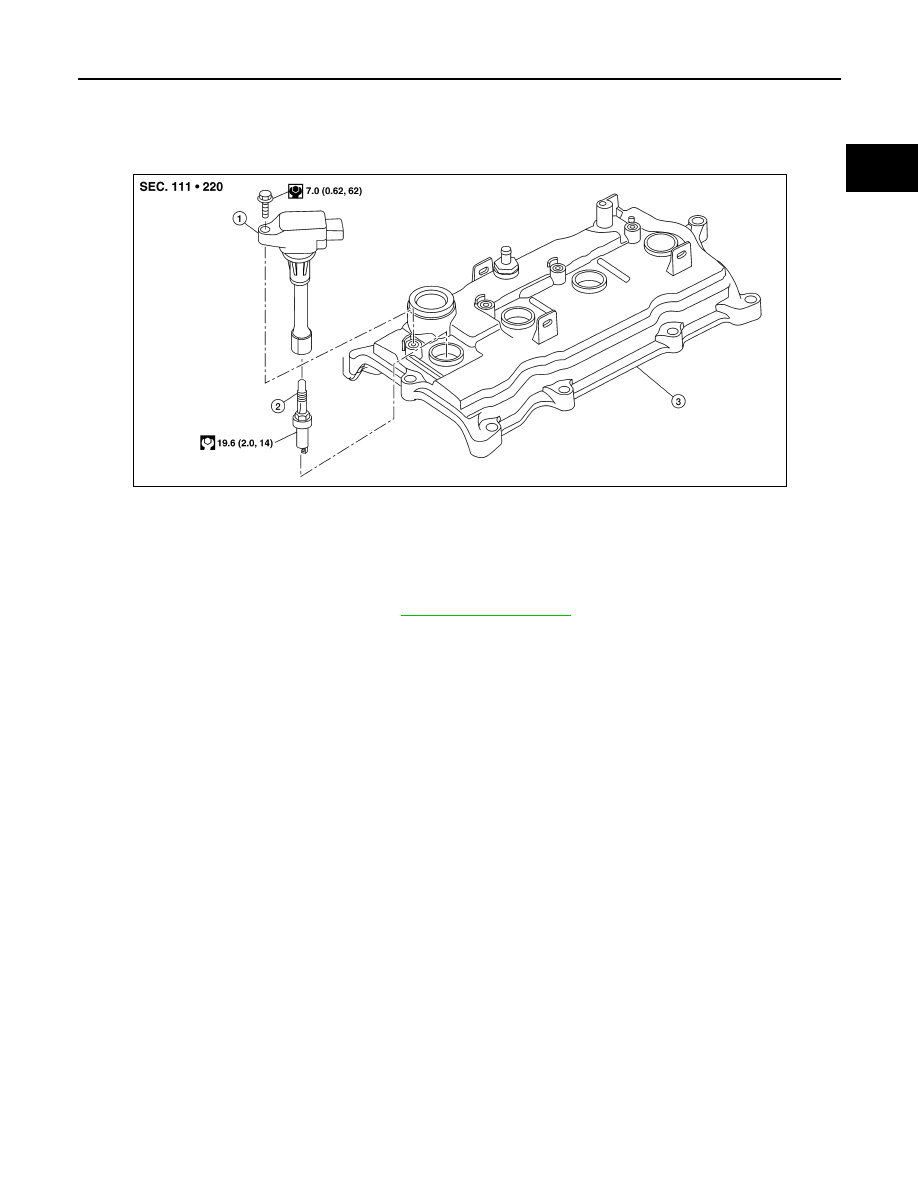

1. Ignition coil

2. Spark plug

3. Rocker cover

AWBIA2265ZZ

EM-42

< REMOVAL AND INSTALLATION >

ROCKER COVER

ROCKER COVER

Exploded View

INFOID:0000000011279956

Removal and Installation

INFOID:0000000011279957

REMOVAL

1. Remove intake manifold. Refer to

EM-29, "Removal and Installation"

.

2. Remove wheel and tire (RH) using a power tool.
3. Remove engine under cover. Refer to

EXT-37, "ENGINE UNDER COVER : Removal and Installation"

.

4. Remove fender protector side cover. Refer to

EXT-28, "FENDER PROTECTOR : Exploded View"

.

5. Remove drive belt. Refer to

EM-15, "Removal and Installation"

.

6. Use a suitable jack (A) to securely support the bottom of the

engine (1) and the transaxle assembly (2).

CAUTION:

Put a piece of wood or an equivalent as the supporting sur-

face and secure in a stable condition.

7. Remove the RH engine mount torque rod. Refer to

EM-86, "Exploded View"

.

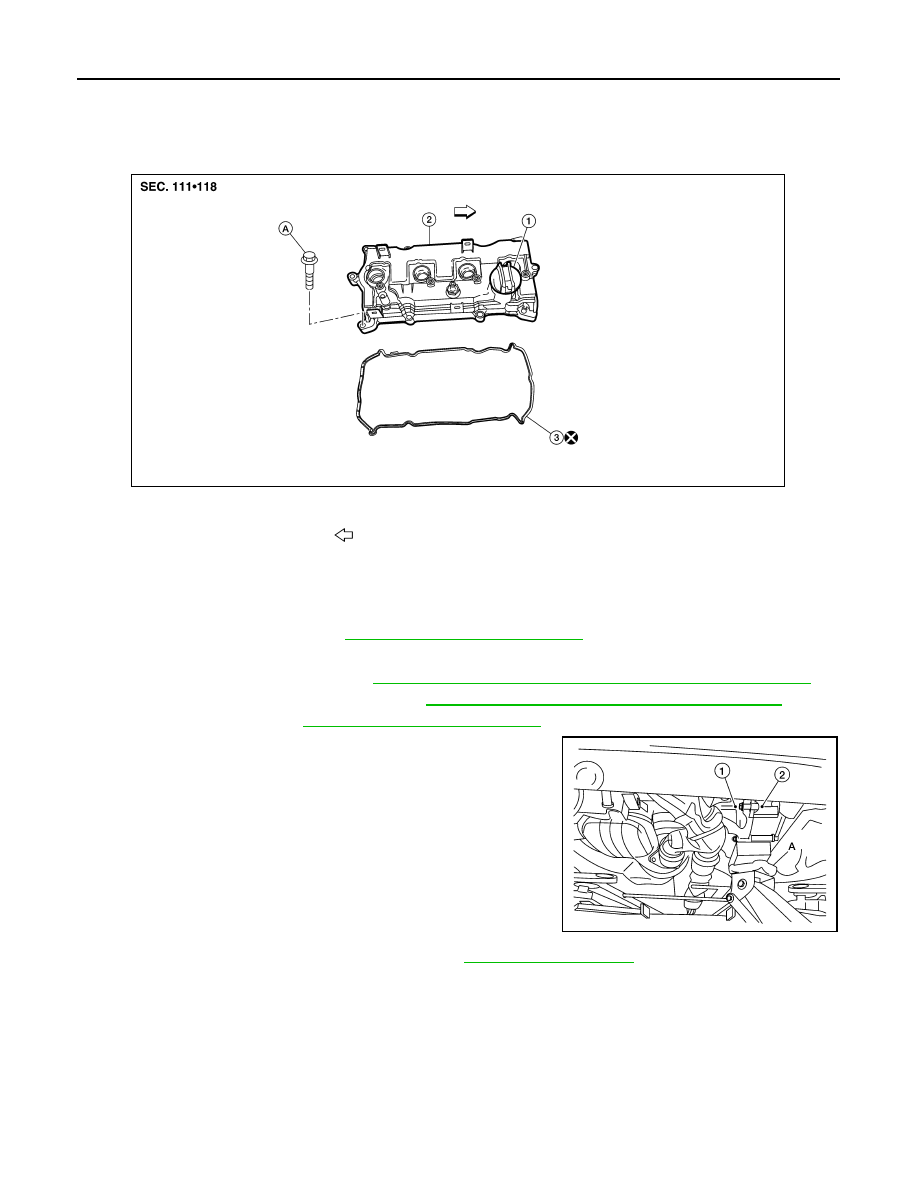

1. Oil filler cap

2. Rocker cover

3. Rocker cover gasket

A. Refer to INSTALLATION

Engine front

AWBIA1317GB

ALBIA0894GB

ROCKER COVER

EM-43

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

8. Remove A/C line bracket bolt.

9. Remove harness grounds from engine mounting bracket (RH).
10. Remove harness retainers from engine mounting bracket (RH).
11. Remove the engine mounting bracket (RH). Refer to

EM-86, "Exploded View"

12. Remove the engine mounting bracket (LH). Refer to

EM-86, "Exploded View"

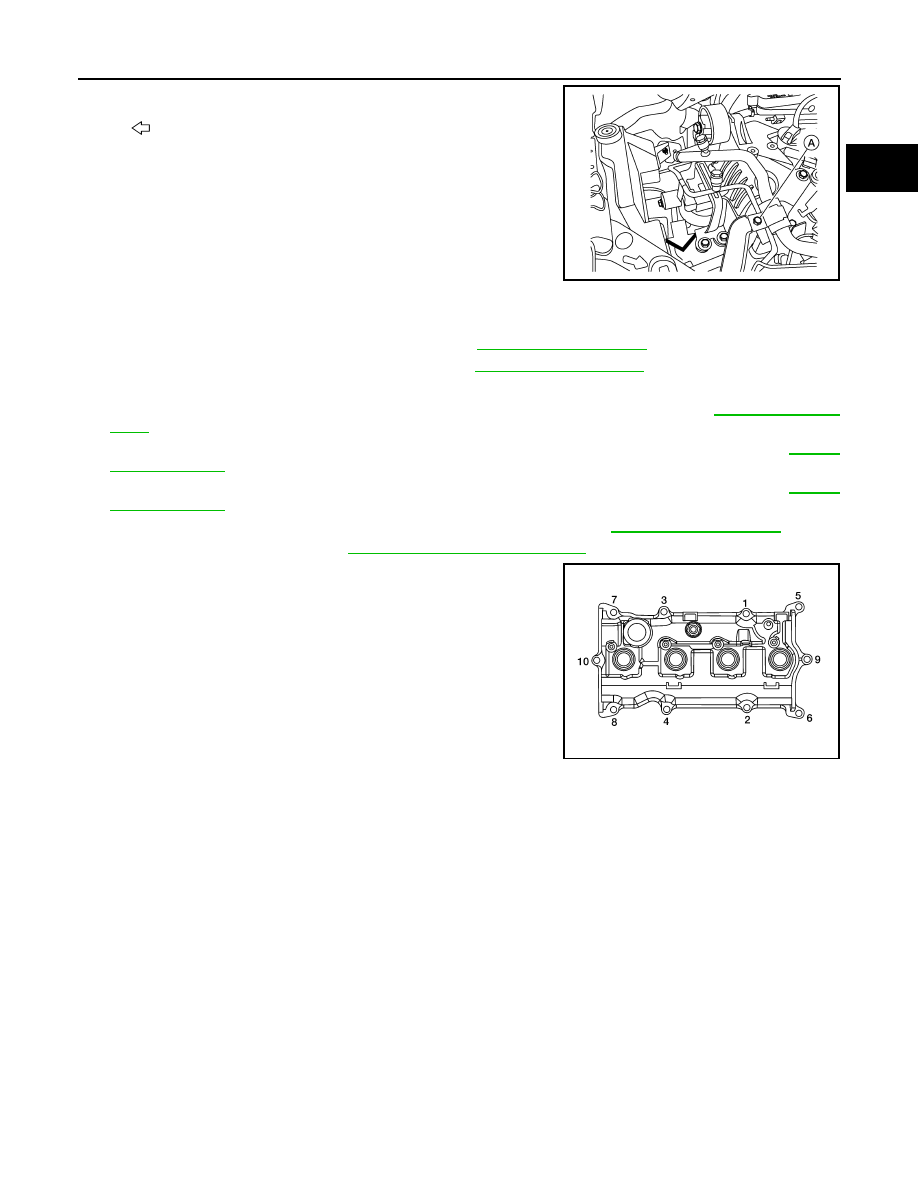

13. Disconnect the PCV hose.
14. Disconnect harness connector from intake valve timing control solenoid valve. Refer to

EM-49, "Exploded

View"

15. Disconnect harness connector from intermediate valve timing control solenoid valve. Refer to

EM-49,

"Exploded View"

16. Disconnect harness connector from exhaust valve timing control solenoid valve. Refer to

EM-49,

"Exploded View"

17. Disconnect harness connector from camshaft position sensors. Refer to

EM-69, "Exploded View"

.

18. Remove the spark plugs. Refer to

EM-19, "Removal and Installation"

.

19. Loosen the bolts in the numerical order as shown using power

tool.

20. Remove the rocker cover and the rocker cover gasket. Discard

the rocker cover gasket.

CAUTION:

Do not reuse the rocker cover gasket.

21. Remove the oil filler cap, (if necessary).

INSTALLATION

: Engine front

AWBIA1985ZZ

ALBIA0836GB

EM-44

< REMOVAL AND INSTALLATION >

ROCKER COVER

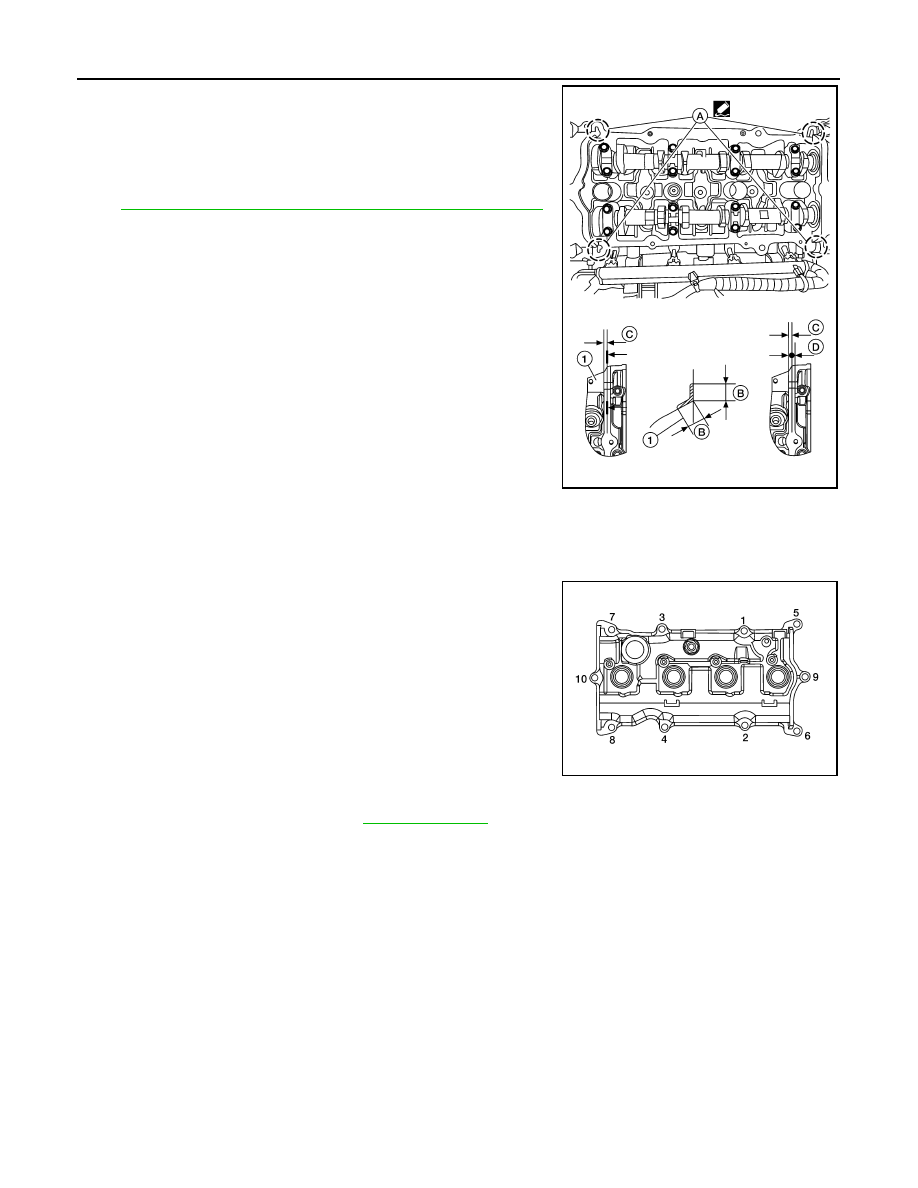

1. Apply liquid gasket to the position shown (A) with the following

procedure:

a. Apply liquid gasket to joint part of No.1 camshaft bracket (1) and

cylinder head.

b. Apply liquid gasket in a 90

° degree angle (B).

• Use Genuine Silicone RTV Sealant, or equivalent. Refer to

GI-22, "Recommended Chemical Products and Sealants"

.

2. Install rocker cover gasket to rocker cover.

NOTE:

The rocker cover gasket must be securely installed in the groove in the rocker cover.

3. Install the rocker cover and rocker cover gasket onto the cylinder head.
4. Tighten the rocker cover bolts to specification in two steps in the

order shown.

5. Installation of the remaining components is in the reverse order of removal.
6. Inspect for engine oil leaks. Refer to

LU-7, "Inspection"

.

(B)

: 10 mm (0.39 in)

(C)

: 4 mm (0.16 in)

(D)

: 5 mm (0.20 in)

ALBIA0837GB

 Step 1

: 1.96 N·m (0.20 kg-m, 17 in-lb)

 Step 2

: 8.33 N·m (0.85 kg-m, 74 in-lb)

ALBIA0836GB
