NOISE, VIBRATION, AND HARSHNESS (NVH) TROUBLESHOOTING

EM-9

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

A: Closely related B: Related C: Sometimes related —: Not related

Front of
engine

Squeak-
ing or fizz-
ing

A

B

—

B

—

B

Drive belts
(Sticking
or slip-
ping)

Drive belts deflection

EM-15

Creaking

A

B

A

B

A

B

Drive belts
(Slipping)

Idler pulley bearing op-
eration

Squall
Creak

A

B

—

B

A

B

Water
pump
noise

Water pump operation

CO-19

Rattle

—

—

A

—

—

—

VTC

VTC  sprockets

EM-79

Location

of noise

Type of

noise

Operating condition of engine

Source of

noise

Check item

Refer-

ence page

Before

warm-

up

After

warm-

up

When

start-

ing

When

idling

When

racing

While

driving

EM-10

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

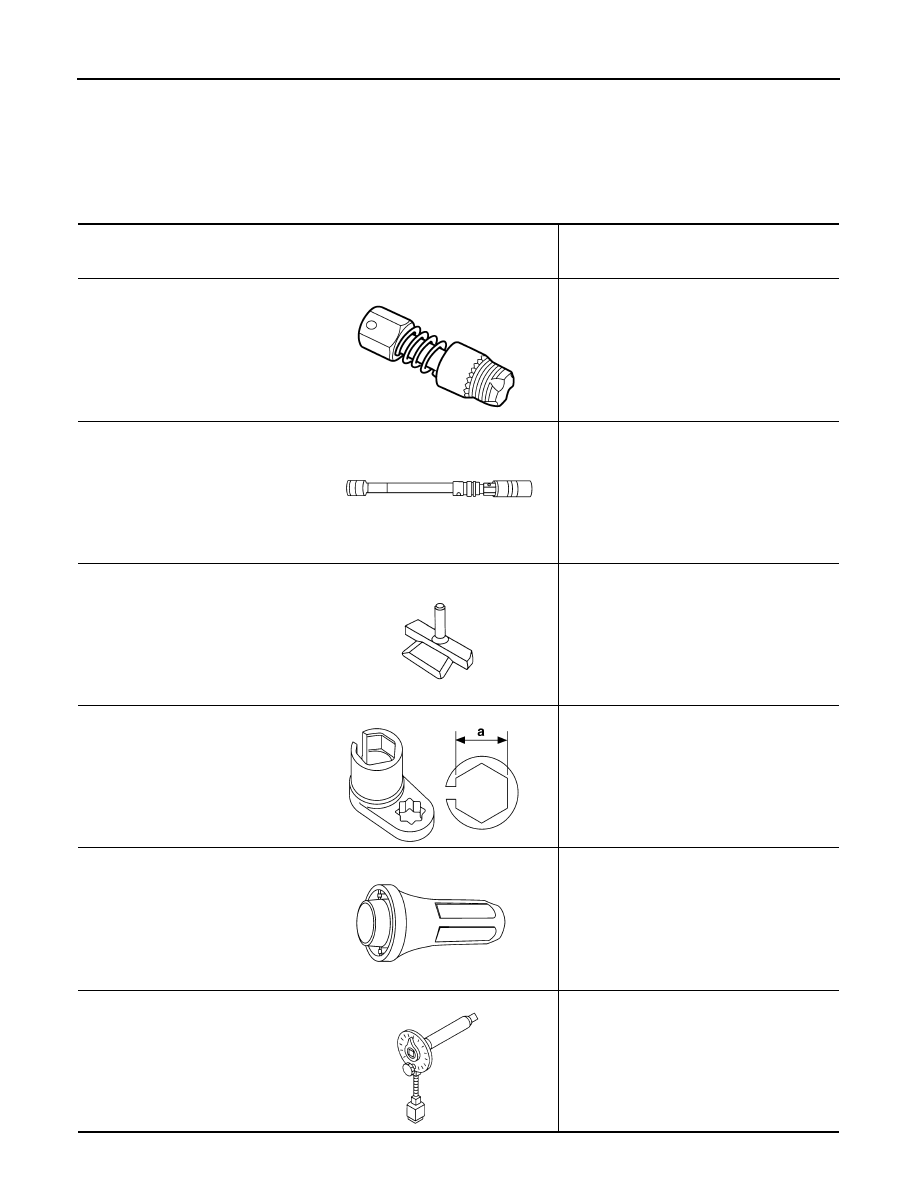

Special Service Tools

INFOID:0000000011340782

The actual shape of the tools may differ from those illustrated here.

Tool number
(TechMate No.)
Tool name

Description

(J-43897-18)
Oxygen sensor thread cleaner

Reconditioning the exhaust system threads
before installing a new oxygen sensor (Use
with anti-seize lubricant shown below.)
J-43897-18 (18 mm dia.) for zirconia oxy-
gen sensor

—

 (J-48891)
Spark plug socket

Removing and installing spark plug

KV10111100
(J-37228)
Seal cutter

Removing oil pan and timing chain case

KV991J0050
(J-44626)
Air fuel sensor Socket

Loosening or tightening air fuel ratio A/F sen-
sor
a: 22 mm (0.87 in)

—

(J-37067)
Seal installer

Installing rear main seal

KV10112100
(BT-8653-A)
Torque angle meter

Tightening bolts for bearing cap, cylinder
head, etc.

AWBIA2076ZZ

AWBIA1785ZZ

S-NT046

LBIA0444E

AWBIA2081ZZ

S-NT014

PREPARATION

EM-11

< PREPARATION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

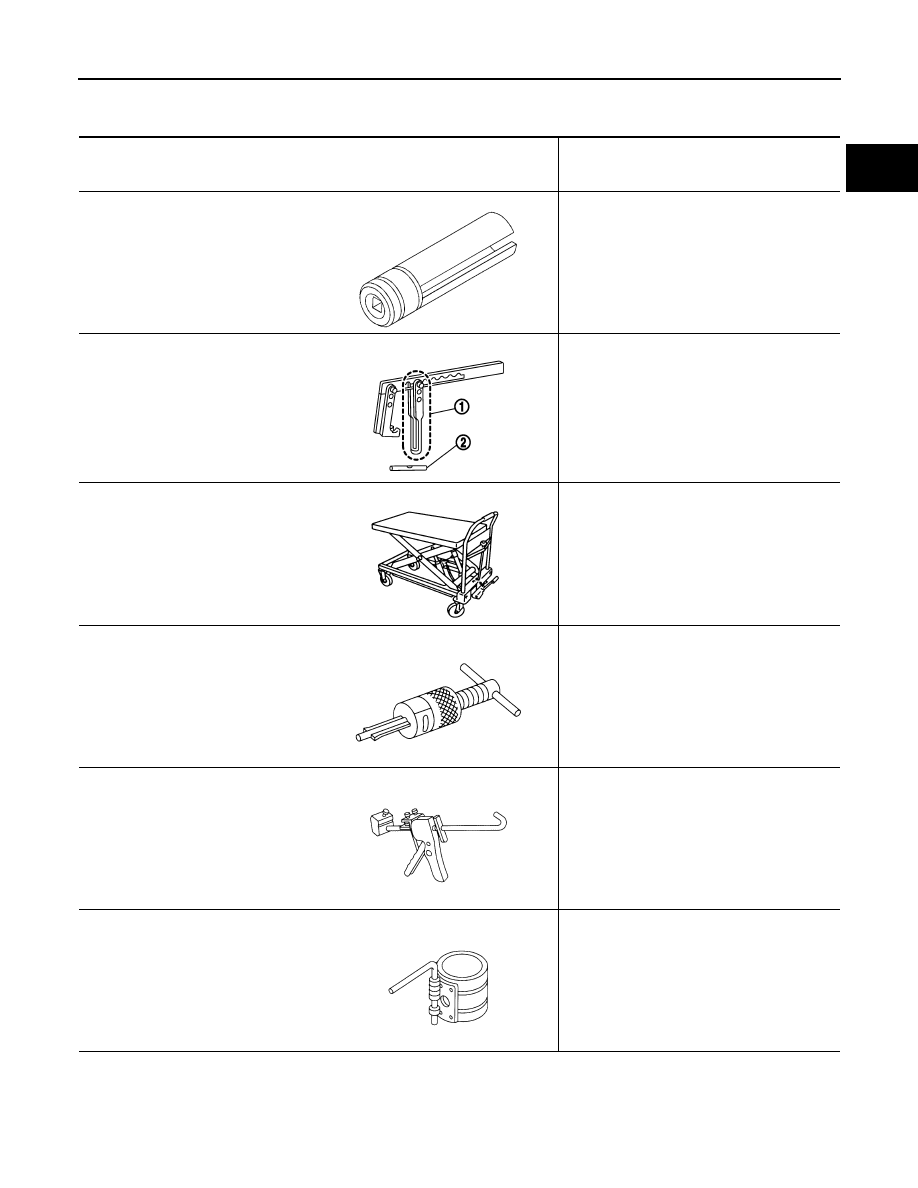

Commercial Service Tool

INFOID:0000000011340783

Tool number
(TechMate No.)
Tool name

Description

KV10117100
(J-36471-A)
Heated oxygen sensor wrench

Loosening or tightening heated oxygen sen-
sor
For 22 mm (0.87 in) hexagon nut

KV10116200
(J-26336-A)
Valve spring compressor
1. KV10115900
(J-26336-20)
Attachment
2. KV10109220
(  —  )
Adapter

Disassembling valve mechanism
Part (1) is a component of KV10116200 (J-
26336-A), but part (2) is not.

Manual lift table caddy

Removing and installing engine

ST16610001
(J-23907)
Pilot converter puller

Removing crankshaft pilot converter

Tube presser

Pressing the tube of liquid gasket

Piston ring compressor

Installing piston assembly into cylinder bore

NT379

PBIC1650E

ZZA1210D

S-NT045

S-NT052

S-NT044

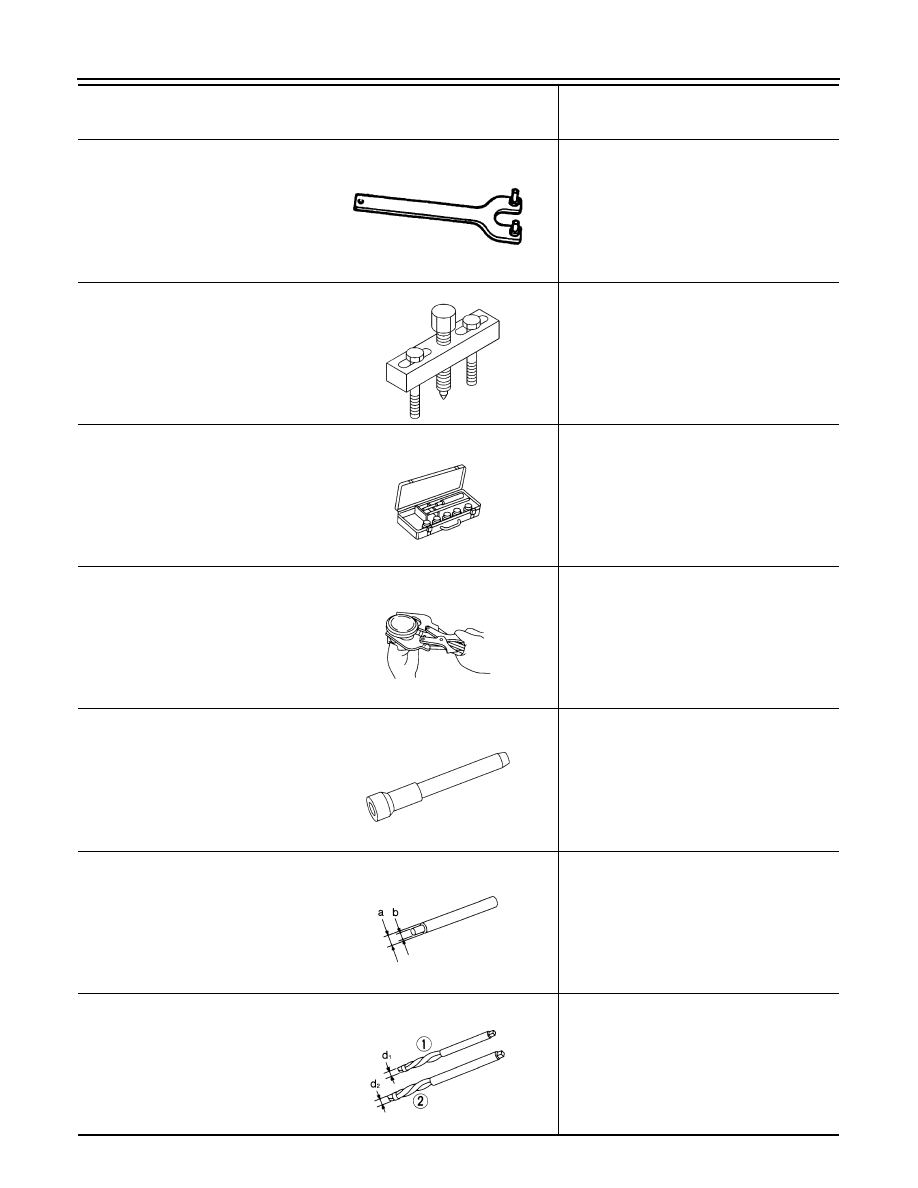

EM-12

< PREPARATION >

PREPARATION

Pulley holder

Crankshaft pulley removing and installing

Pulley puller

Removing crankshaft pulley

Valve seat cutter set

Finishing valve seat dimensions

Piston ring expander

Removing and installing piston ring

 —
(J-39386)
Valve oil seal drift

Installing valve oil seal

Valve guide drift

Removing and installing valve guide
Intake & Exhaust:
a: 9.5 mm (0.374 in) dia.
b: 5.5 mm (0.217 in) dia.

Valve guide reamer

1: Reaming valve guide inner hole
2: Reaming hole for oversize valve guide
Intake & Exhaust:
d

1

: 6.0 mm (0.236 in) dia.

d

2

: 10.2 mm (0.402 in) dia.

Tool number
(TechMate No.)
Tool name

Description

ZZA1010D

NT676

S-NT048

S-NT030

NT024

S-NT015

S-NT016
