EM-1

ENGINE

C

D

E

F

G

H

I

J

K

L

M

SECTION

EM

A

EM

N

O

P

CONTENTS

ENGINE MECHANICAL

PRECAUTION ...............................................

3

PRECAUTIONS ...................................................

3

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

3

Precaution for Draining Coolant and Engine Oil  .......

3

Precaution for Procedure without Cowl Top Cover

......

3

Parts Requiring Angle Tightening  .............................

3

Precautions For Engine Service ................................

4

Special Cautions to Ensure the Safe Disposal of
Sodium-filled Exhaust Valves ....................................

4

Precaution for Liquid Gasket .....................................

6

SYMPTOM DIAGNOSIS  ...............................

7

NOISE, VIBRATION, AND HARSHNESS
(NVH) TROUBLESHOOTING  .............................

7

NVH Troubleshooting - Engine Noise  .......................

7

Use the Chart Below to Help You Find the Cause
of the Symptom  .........................................................

8

PREPARATION ...........................................

10

PREPARATION ..................................................

10

Special Service Tools ............................................

10

Commercial Service Tool  ........................................

11

PERIODIC MAINTENANCE .........................

15

DRIVE BELTS  ....................................................

15

Exploded View  ........................................................

15

Checking .................................................................

15

Tension Adjustment ................................................

15

Removal and Installation .........................................

15

Removal and Installation of Drive Belt Auto-ten-
sioner ......................................................................

16

AIR CLEANER FILTER ......................................

18

Exploded View  ........................................................

18

Removal and Installation .........................................

18

SPARK PLUG  ...................................................

19

Exploded View .........................................................

19

Removal and Installation  .........................................

19

CAMSHAFT VALVE CLEARANCE  ..................

21

Camshaft valve clearance  .......................................

21

COMPRESSION PRESSURE  ...........................

24

Compression pressure  ............................................

24

REMOVAL AND INSTALLATION ...............

26

AIR CLEANER AND AIR DUCT  .......................

26

Exploded View .........................................................

26

Removal and Installation  .........................................

26

Inspection ................................................................

28

INTAKE MANIFOLD  .........................................

29

Exploded View .........................................................

29

Removal and Installation  .........................................

29

EXHAUST MANIFOLD AND THREE WAY
CATALYST ........................................................

32

Exploded View .........................................................

32

Removal and Installation  .........................................

32

OIL PAN AND OIL STRAINER  .........................

36

Exploded View .........................................................

36

Removal and Installation  .........................................

36

IGNITION COIL  .................................................

41

Exploded View .........................................................

41

Removal and Installation  .........................................

41

ROCKER COVER  .............................................

42

Exploded View .........................................................

42

Removal and Installation  .........................................

42

FUEL INJECTOR AND FUEL TUBE  ................

45

Exploded View .........................................................

45

Removal and Installation  .........................................

45

TIMING CHAIN ..................................................

49

EM-2

Exploded View ........................................................

49

Removal and Installation  ........................................

50

CYLINDER HEAD ..............................................

59

Exploded View ........................................................

59

Removal and Installation  ........................................

59

Disassembly and Assembly ....................................

61

Inspection After Disassembly .................................

66

CAMSHAFT .......................................................

69

Exploded View ........................................................

69

Removal and Installation  ........................................

69

Inspection After Installation ....................................

77

VALVE TIMING CONTROL  ...............................

79

Exploded View ........................................................

79

Intake Valve Timing Intermediate Lock Control
Solenoid Valve, Intake Valve Timing Control Sole-
noid Valve, and Exhaust Valve Timing Control So-
lenoid Valve  ............................................................

79

Valve Timing Control Cover ....................................

80

OIL SEAL ...........................................................

82

VALVE OIL SEAL  .....................................................

82

VALVE OIL SEAL : Removal and Installation .........

82

FRONT OIL SEAL .....................................................

83

FRONT OIL SEAL : Removal and Installation  ........

83

REAR OIL SEAL  .......................................................

84

REAR OIL SEAL : Removal and Installation  ..........

84

UNIT REMOVAL AND INSTALLATION .....

86

ENGINE ASSEMBLY ........................................

86

Exploded View  ........................................................

86

Removal and Installation (FWD) .............................

86

Removal and Installation (AWD) .............................

90

Inspection ................................................................

94

UNIT DISASSEMBLY AND ASSEMBLY ...

96

ENGINE STAND SETTING  ...............................

96

Setting .....................................................................

96

CYLINDER BLOCK  ...........................................

97

Exploded View  ........................................................

97

Disassembly and Assembly  ....................................

98

Inspection ..............................................................

105

HOW TO SELECT PISTON AND BEARING  ...

114

How to Select Piston and Bearing  ........................

114

SERVICE DATA AND SPECIFICATIONS
(SDS) .........................................................

120

SERVICE DATA AND SPECIFICATIONS
(SDS) ................................................................

120

General Specification ...........................................

120

Drive belt ...............................................................

120

Spark Plug ............................................................

120

Exhaust Manifold ..................................................

121

Camshaft ...............................................................

121

Cylinder Head ......................................................

122

Cylinder Block ......................................................

125

Main Bearing ........................................................

128

Connecting Rod Bearing .....................................

130

PRECAUTIONS

EM-3

< PRECAUTION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000011279924

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. Information necessary to service the system safely is included in the SR and SB section of

this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

Precaution for Draining Coolant and Engine Oil

INFOID:0000000011340778

Drain engine coolant and engine oil after the engine has cooled completely.

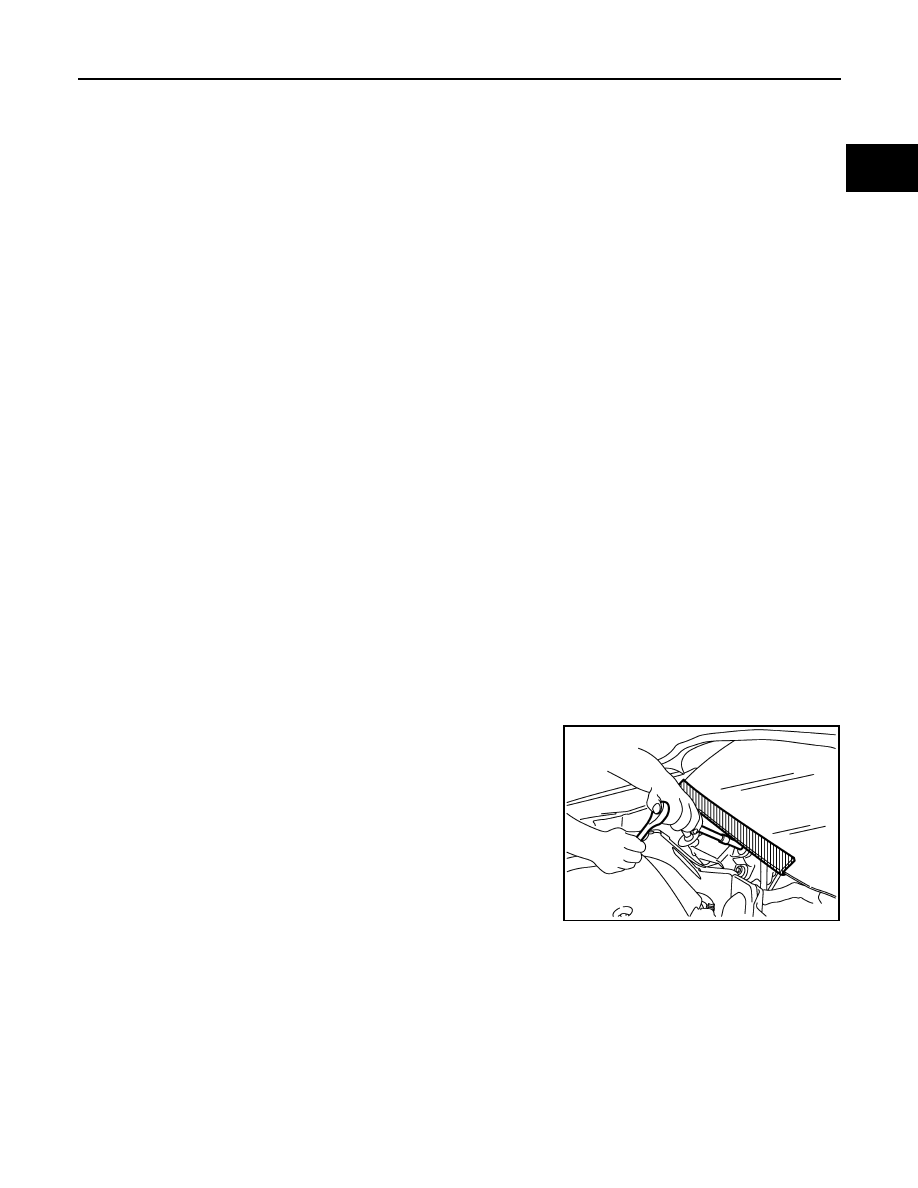

Precaution for Procedure without Cowl Top Cover

INFOID:0000000011279925

When performing the procedure after removing cowl top cover, cover

the lower end of windshield with urethane, etc to prevent damage to

windshield.

Parts Requiring Angle Tightening

INFOID:0000000011279926

• Use the Tool for the final tightening of the following engine parts:

- Camshaft sprocket (INT) bolt

- Cylinder head bolts

- Main bearing cap bolts

- Connecting rod cap bolts

- Crankshaft pulley bolt (The angle wrench is not required as bolt flange is provided with notches for angle

tightening)

PIIB3706J

Tool number

: KV10112100 (BT-8653-A)

EM-4

< PRECAUTION >

PRECAUTIONS

• Do not use a torque value for final tightening.

• Ensure thread and seat surfaces are clean and coated with engine oil.

Precautions For Engine Service

INFOID:0000000011279927

DISCONNECTING FUEL PIPING

• Before starting work, check no fire or spark producing items are in the work area.

• Release fuel pressure before disconnecting and disassembly.

• After disconnecting pipes, plug openings to stop fuel leaks.

DRAINING ENGINE COOLANT

Drain engine coolant and engine oil when the engine is cooled.

INSPECTION, REPAIR AND REPLACEMENT

Before repairing or replacing, thoroughly inspect parts. Inspect new replacement parts in the same way, and

replace if necessary.

REMOVAL AND DISASSEMBLY

• When instructed to use SST, use specified tools. Always be careful to work safely, avoid forceful or unin-

structed operations.

• Exercise maximum care to avoid damage to mating or sliding surfaces.

• Dowel pins are used for several parts alignment. When replacing and reassembling parts with dowel pins,

check that dowel pins are installed in the original position.

• Cover openings of engine system with a tape or equivalent, if necessary, to seal out foreign materials.

• Mark and arrange disassembly parts in an organized way for easy troubleshooting and reassembly.

• When loosening nuts and bolts, as a basic rule, start with the one furthest outside, then the one diagonally

opposite, and so on. If the order of loosening is specified, do exactly as specified. Power tools may be used

in the step.

ASSEMBLY AND INSTALLATION

• Use torque wrench to tighten bolts or nuts to specification.

• When tightening nuts and bolts, as a basic rule, equally tighten in several different steps starting with the

ones in center, then ones on inside and outside diagonally in this order. If the order of tightening is specified,

do exactly as specified.

• Replace with new gasket, packing, oil seal or O-ring.

• Thoroughly wash, clean, and air-blow each part. Carefully check engine oil or engine coolant passages for

any restriction and blockage.

• Avoid damaging sliding or mating surfaces. Completely remove foreign materials such as cloth lint or dust.

Before assembly, oil sliding surfaces well.

• Release air within route when refilling after draining engine coolant.

• After repairing, start the engine and increase engine speed to check engine coolant, fuel, engine oil, and

exhaust gases for leaks.

Special Cautions to Ensure the Safe Disposal of Sodium-filled Exhaust Valves

INFOID:0000000011279928

Handling and disposal of sodium-filled exhaust valves requires spe-

cial care and consideration. Under conditions such as breakage with

subsequent contact with water, metal sodium which lines the inner

portion of exhaust valve will react violently, forming sodium hydrox-

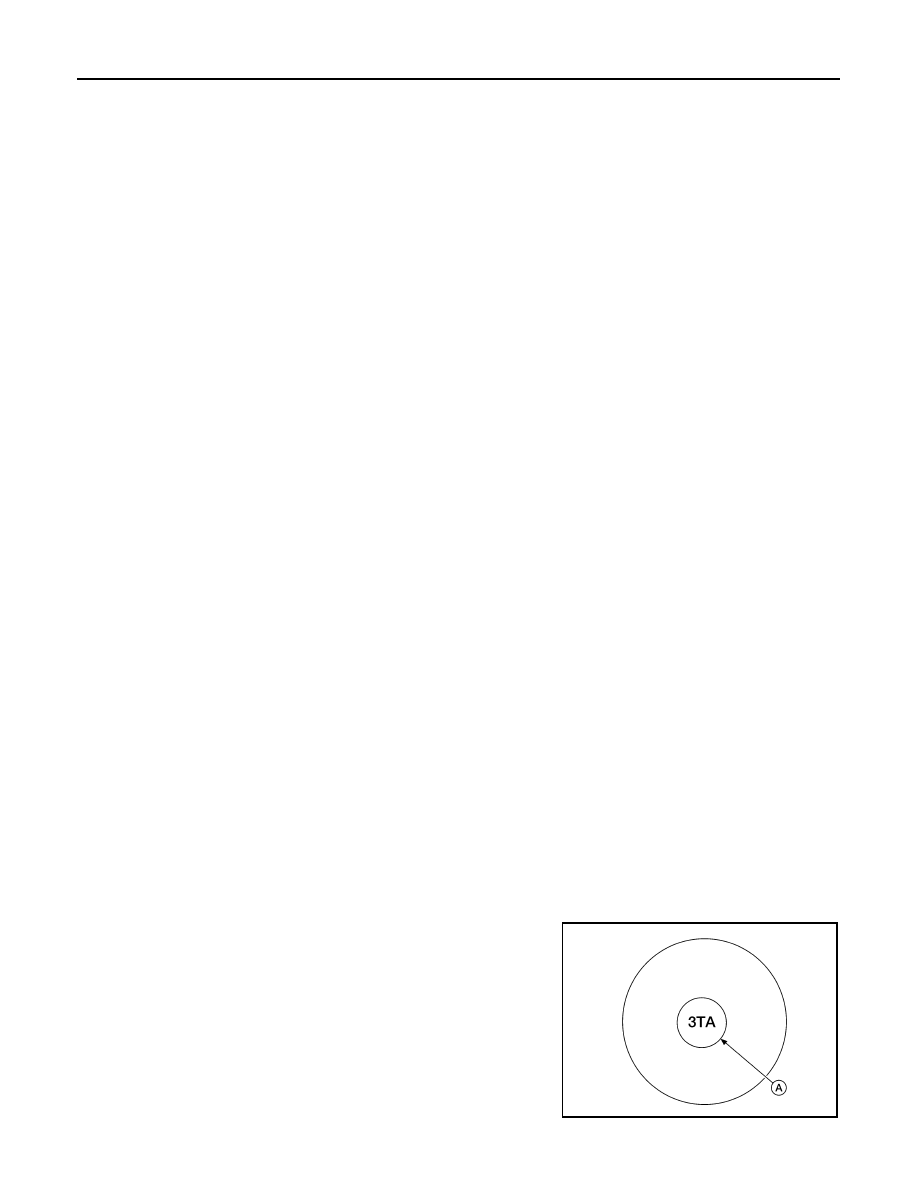

ide and hydrogen which may result in an explosion. Sodium-filled

exhaust valve is identified on the top of its stem as shown in illustra-

tion.

DEALER DISPOSAL INSTRUCTIONS

(A)

: Identification mark of sodium-filled exhaust valve

AWBIA1366ZZ
