EC-496

< PERIODIC MAINTENANCE >

[QR25DE]

IDLE SPEED

PERIODIC MAINTENANCE

IDLE SPEED

Inspection

INFOID:0000000011278207

1.

CHECK IDLE SPEED

With CONSULT

Check idle speed in “DATA MONITOR” mode of “ENGINE” using CONSULT.

With GST

Check idle speed with Service $01 of GST.

>> INSPECTION END

IGNITION TIMING

EC-497

< PERIODIC MAINTENANCE >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

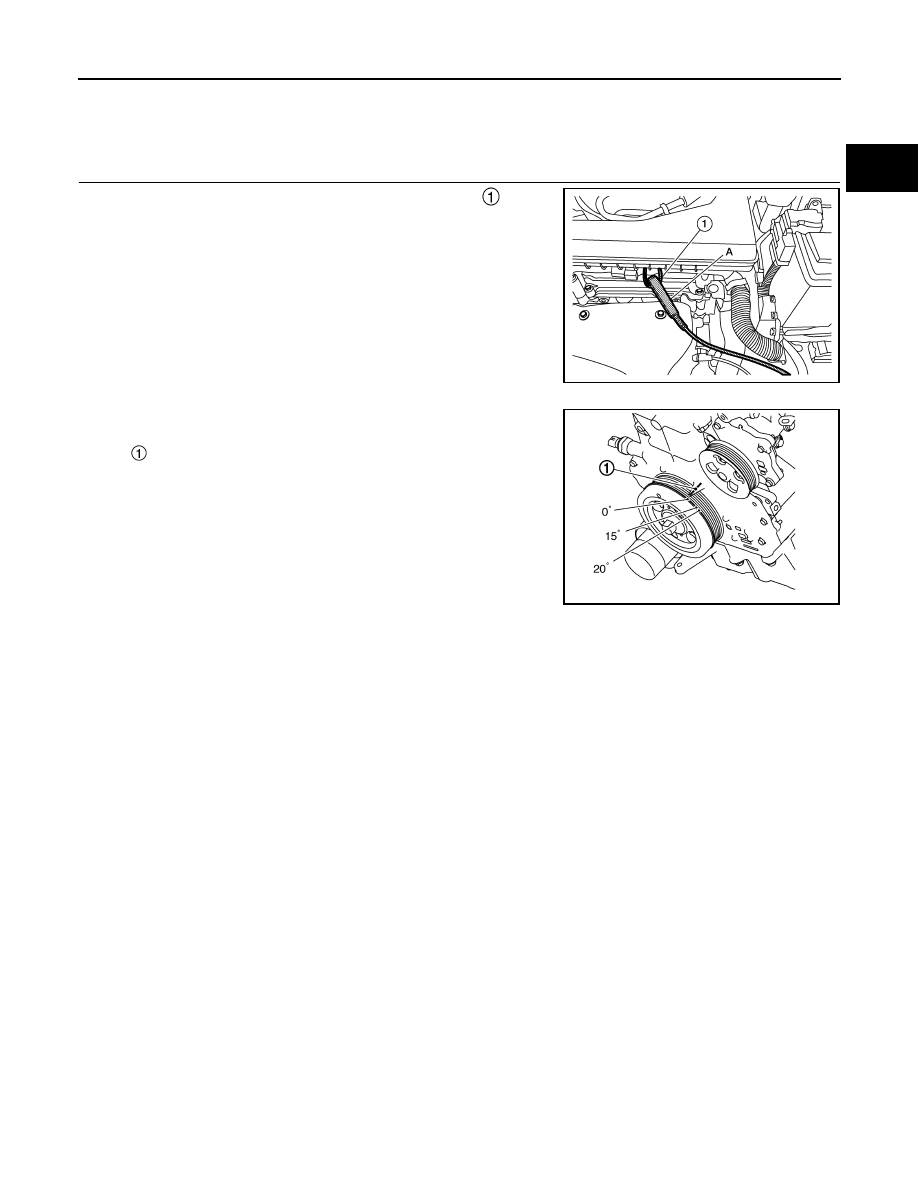

IGNITION TIMING

Inspection

INFOID:0000000011278208

1.

CHECK IGNITION TIMING

1. Attach timing light (A) to the ignition coil No.1 harness .

2. Check ignition timing.

>> INSPECTION END

ALBIA1182ZZ

: Timing indicator

JPBIA5854ZZ

EC-498

< PERIODIC MAINTENANCE >

[QR25DE]

EVAPORATIVE EMISSION SYSTEM

EVAPORATIVE EMISSION SYSTEM

Inspection

INFOID:0000000011278209

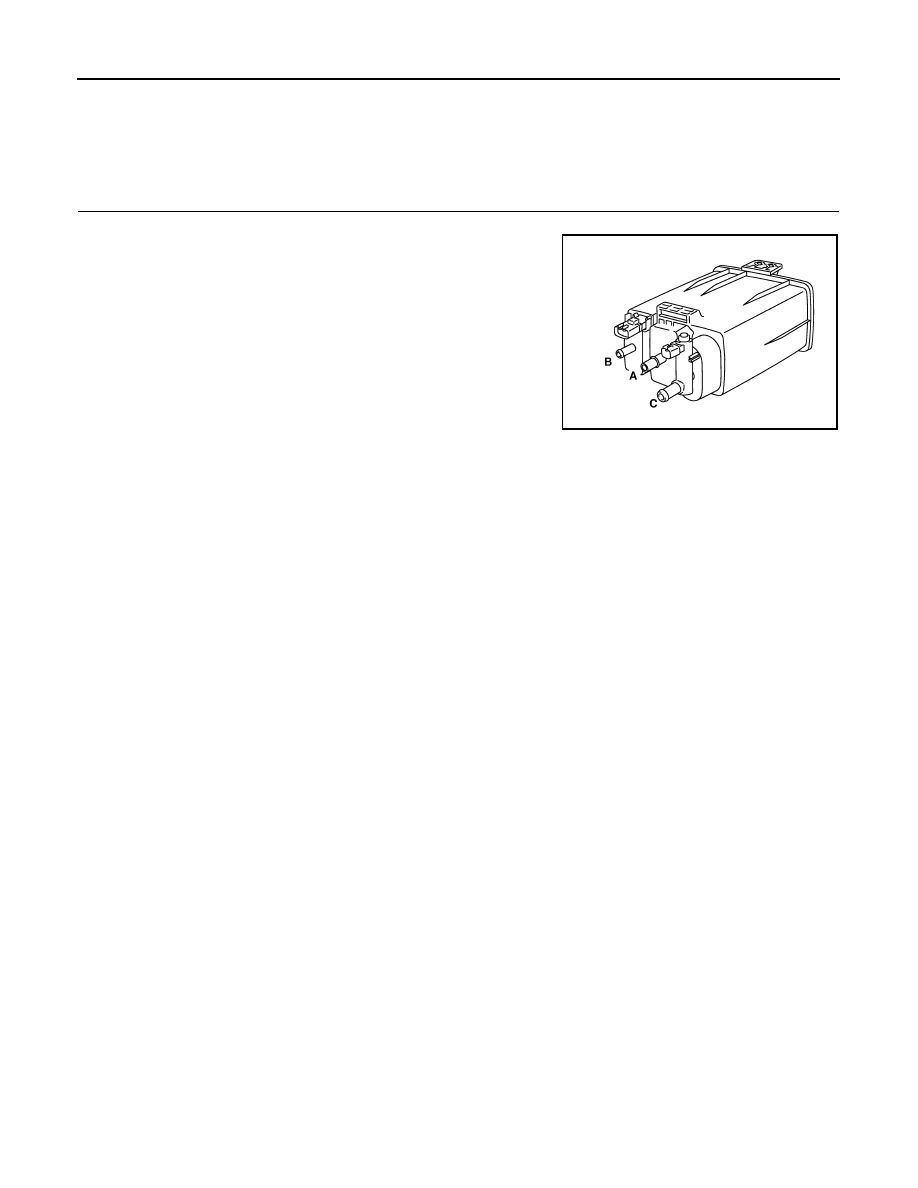

EVAP CANISTER

1.

CHECK EVAP CANISTER

1. Block port (B).

2. Blow air into port (A) and check that it flows freely out of port (C).

3. Release blocked port (B).

4. Apply vacuum pressure to port (B) and check that vacuum pres-

sure exists at the ports (A) and (C).

5. Block port (A) and (B).

6. Apply pressure to port (C) and check that there is no leakage.

>> INSPECTION END

PBIB1212E

EVAP LEAK CHECK

EC-499

< PERIODIC MAINTENANCE >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

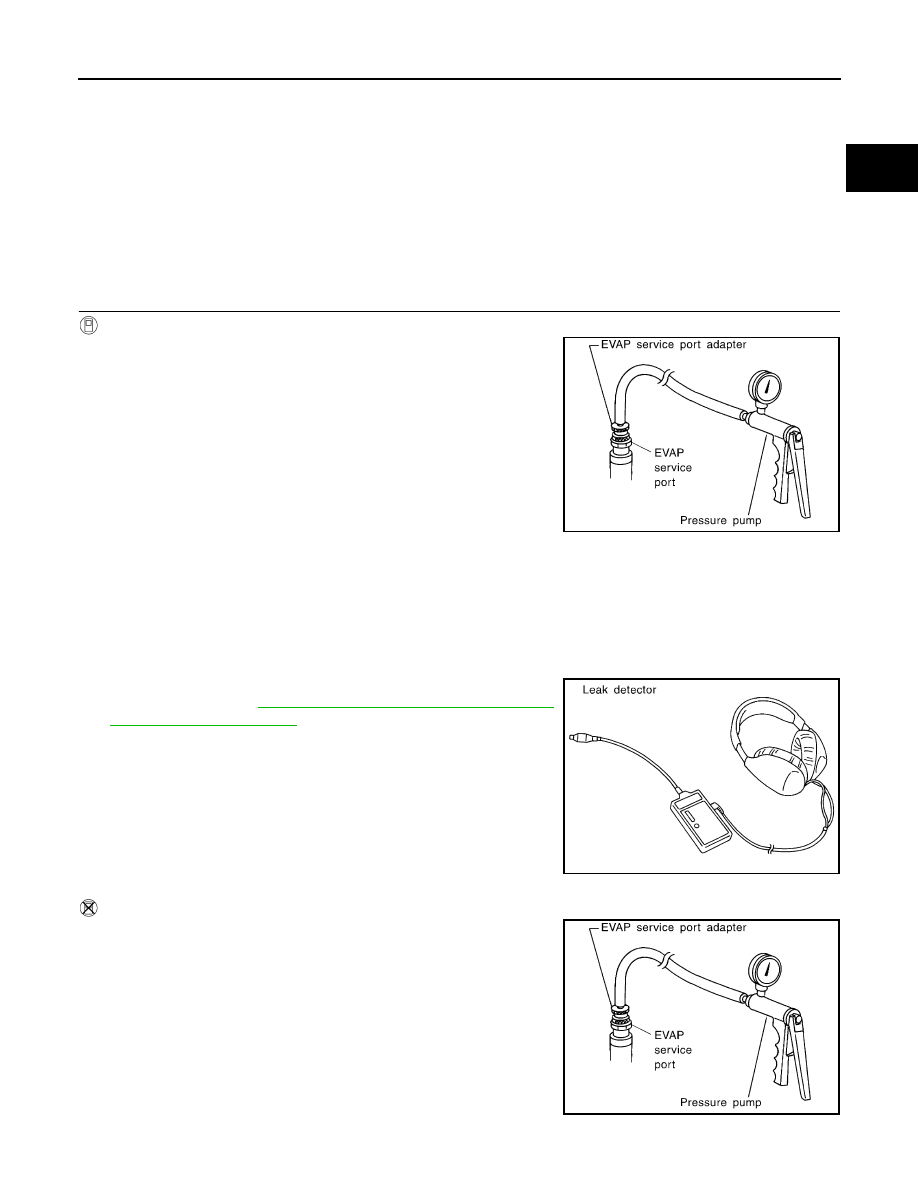

EVAP LEAK CHECK

Inspection

INFOID:0000000011278210

CAUTION:

• Do not use compressed air or a high pressure pump.
• Do not exceed 4.12 kPa (0.042 kg/cm

2

, 0.6 psi) of pressure in EVAP system.

NOTE:

• Do not start engine.

• Improper installation of EVAP service port adapter [commercial service tool: (J-41413-OBD)] to the EVAP

service port may cause a leak.

1.

EVAP LEAK CHECK

With CONSULT

1. Install EVAP service port adapter [commercial service tool: (J-

41413-OBD)] and pressure pump to EVAP service port.

2. Turn ignition switch ON.

3. Select the “EVAP SYSTEM CLOSE” in “WORK SUPPORT” mode of “ENGINE” using CONSULT.

4. Touch “START”. A bar graph (Pressure indicating display) will appear on the screen.

5. Apply positive pressure to the EVAP system until the pressure indicator reaches the middle of the bar

graph.

6. Remove EVAP service port adapter [commercial service tool: (J-41413-OBD)] and hose with pressure

pump.

7. Locate the leak using a leak detector [commercial service tool:

(J-41416)]. Refer to

EC-55, "EVAPORATIVE EMISSION SYS-

TEM : System Description"

.

Without CONSULT

1. Install EVAP service port adapter [commercial service tool: (J-

41413-OBD)] and pressure pump to EVAP service port.

SEF462UA

SEF200U

SEF462UA
