EC-212

< DTC/CIRCUIT DIAGNOSIS >

[QR25DE]

P0112, P0113 IAT SENSOR

2.

CHECK INTAKE AIR TEMPERATURE SENSOR POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect ECM harness connector.

3. Check the continuity between mass air flow sensor harness connector and ECM harness connector.

4. Also check harness for short to ground.
Is the inspection result normal?

YES

>> Perform the trouble diagnosis for power supply circuit.

NO

>> Repair or replace error-detected parts.

3.

CHECK INTAKE AIR TEMPERATURE SENSOR GROUND CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect ECM harness connector.

3. Check the continuity between mass air flow sensor harness connector and ECM harness connector.

4. Also check harness for short to power.
Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace error-detected parts.

4.

CHECK INTAKE AIR TEMPERATURE SENSOR

Check the intake air temperature sensor. Refer to

EC-210, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Replace mass air flow sensor (with intake air temperature sensor). Refer to

EM-26, "Exploded

View"

.

5.

CHECK INTERMITTENT INCIDENT

Refer to

GI-44, "Intermittent Incident"

.

>> INSPECTION END

Component Inspection

INFOID:0000000011277960

1.

CHECK INTAKE AIR TEMPERATURE SENSOR

1. Turn ignition switch OFF.

2. Disconnect mass air flow sensor harness connector and reconnect it again.

3. Turn ignition switch ON.

4. Select “DATA MONITOR” mode with CONSULT.

5. Check that “INT/A TEMP SEN” indicates as per following condition.

Is the inspection result normal?

+

Continuity

MAF sensor

ECM

Connector

Terminal

Connector

Terminal

F22

4

F51

33

Existed

+

Continuity

MAF sensor

ECM

Connector

Terminal

Connector

Terminal

F22

2

F51

34

Existed

Monitor item

Condition

Value

(Approx.)

INT/A TEMP SEN

Temperature [

°C (°F)]

25 (77)

1.9 - 2.1 (V)

P0112, P0113 IAT SENSOR

EC-213

< DTC/CIRCUIT DIAGNOSIS >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

YES

>> INSPECTION END

NO

>> Replace mass air flow sensor (with intake air temperature sensor). Refer to

EM-26, "Exploded

View"

.

EC-214

< DTC/CIRCUIT DIAGNOSIS >

[QR25DE]

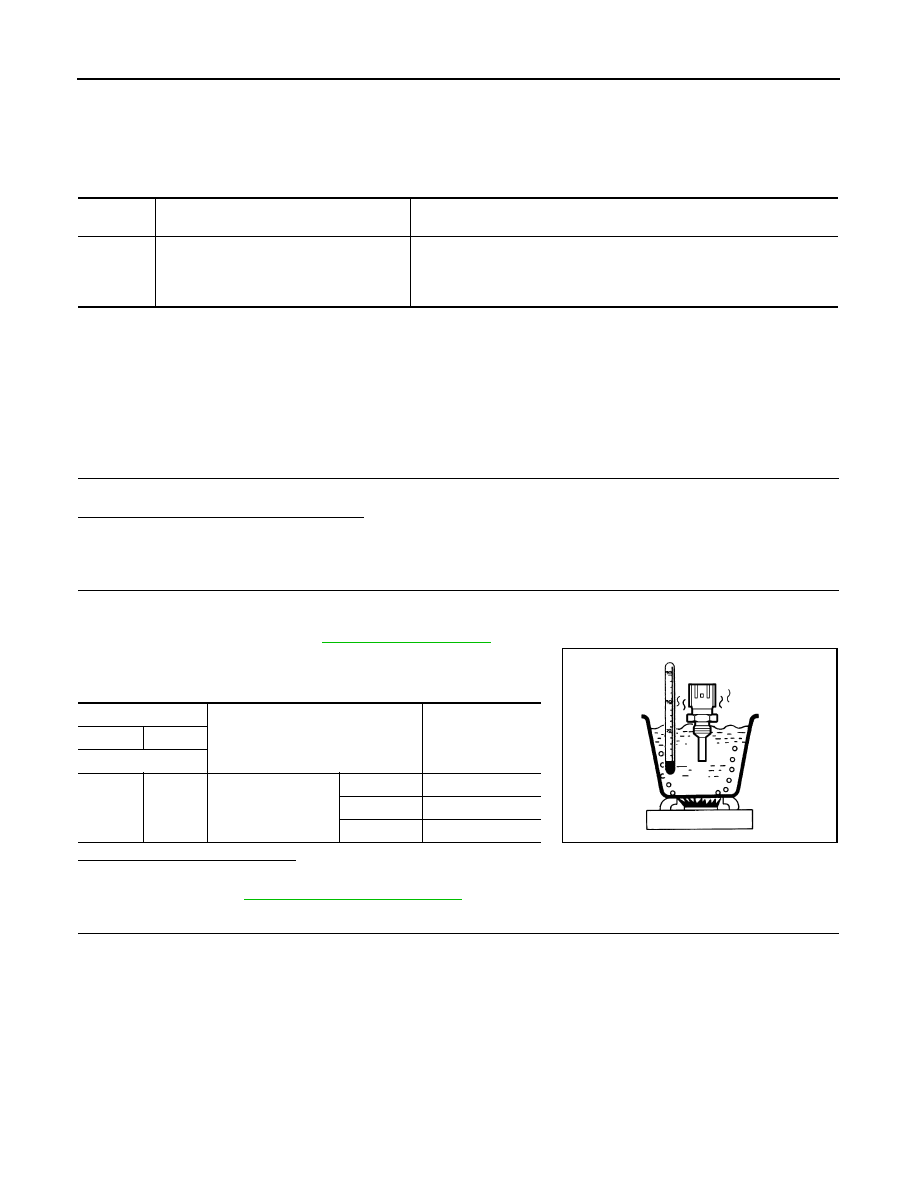

P0116 ECT SENSOR

P0116 ECT SENSOR

DTC Description

INFOID:0000000011277961

DTC DETECTION LOGIC

POSSIBLE CAUSE

• Harness or connectors (High or low resistance in the ECT sensor circuit)

• ECT sensor

FAIL-SAFE

Not applicable

DTC CONFIRMATION PROCEDURE

1.

INSPECTION START

Is it necessary to erase permanent DTC?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

CHECK ENGINE COOLANT TEMPERATURE (ECT) SENSOR

1. Turn ignition switch OFF.

2. Disconnect ECT sensor harness connector.

3. Remove ECT sensor. Refer to

CO-23, "Exploded View"

.

4. Check resistance between ECT sensor terminals by heating

with hot water as shown in the figure.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Proceed to

EC-215, "Diagnosis Procedure"

.

3.

PRECONDITIONING

If DTC CONFIRMATION PROCEDURE has been previously conducted, always perform the following proce-

dure before conducting the next test.

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

TESTING CONDITION:

• Before performing the following procedure, do not add fuel.

• Before performing the following procedure, check that fuel level is between 1/4 and 4/4.

• Before performing the following procedure, confirm that battery voltage is 11 V or more at idle.

>> GO TO 4.

DTC No.

CONSULT screen terms

(Trouble diagnosis content)

DTC detecting condition

P0116

ECT SENSOR
(Engine coolant temperature sensor 1 cir-
cuit range/performance)

The comparison result of signals transmitted to ECM from each tempera-
ture sensor (IAT sensor, ECT sensor, FTT sensor, and EOT sensor) shows
that the voltage signal of the ECT sensor is higher/lower than that of other
temperature sensors when the engine is started with its cold state.

ECT sensor

Condition

Resistance (k

Ω)

+

Terminal

1

2

Temperature [

°C

(

°F)]

20 (68)

2.37 – 2.63

50 (122)

0.68 – 1.00

90 (194)

0.236 – 0.260

JMBIA0080ZZ

P0116 ECT SENSOR

EC-215

< DTC/CIRCUIT DIAGNOSIS >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

4.

PERFORM DTC CONFIRMATION PROCEDURE

1. Move the vehicle to a cool place.

NOTE:

Cool the vehicle in an environment of ambient air temperature between

−10°C (14°F) and 35°C (95°F).

2. Turn ignition switch OFF and leave the vehicle for 12 hours.

CAUTION:

Never turn ignition switch ON during this procedure.

NOTE:

The vehicle must be cooled with the hood open.

3. Start engine and let it idle for 5 minutes or more.

CAUTION:

Never turn ignition switch OFF during idling.

4. Check 1st trip DTC.
Is 1st trip DTC detected?

YES

>> Proceed to

EC-215, "Diagnosis Procedure"

.

NO

>> INSPECTION END

5.

CHECK INTERMITTENT INCIDENT

Refer to

GI-44, "Intermittent Incident"

.

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000011277962

1.

CHECK ENGINE COOLANT TEMPERATURE (ECT) SENSOR

Check ECT sensor. Refer to

EC-215, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Replace ECT sensor. Refer to

CO-23, "Exploded View"

.

2.

CHECK INTERMITTENT INCIDENT

Refer to

GI-44, "Intermittent Incident"

.

>> INSPECTION END

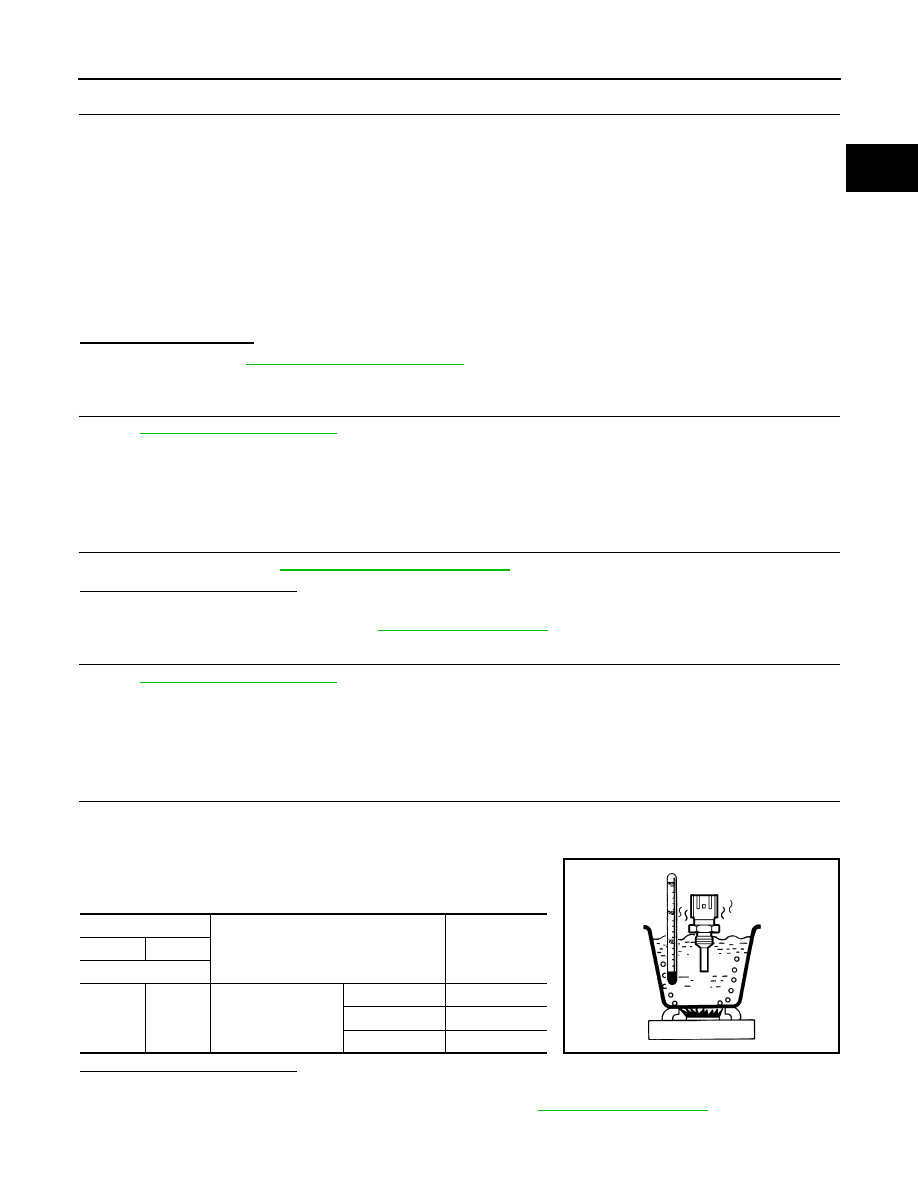

Component Inspection

INFOID:0000000011277963

1.

CHECK ENGINE COOLANT TEMPERATURE (ECT) SENSOR

1. Turn ignition switch OFF.

2. Disconnect ECT sensor harness connector.

3. Remove ECT sensor.

4. Check resistance between ECT sensor terminals by heating

with hot water as shown in the figure.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace engine coolant temperature sensor. Refer to

CO-23, "Exploded View"

.

ECT sensor

Condition

Resistance

(k

Ω)

+

Terminal

1

2

Temperature [

°C (°F)]

20 (68)

2.37 - 2.63

50 (122)

0.68 - 1.00

90 (194)

0.236 - 0.260

JMBIA0080ZZ
