EC-16

< SYSTEM DESCRIPTION >

[QR25DE]

COMPONENT PARTS

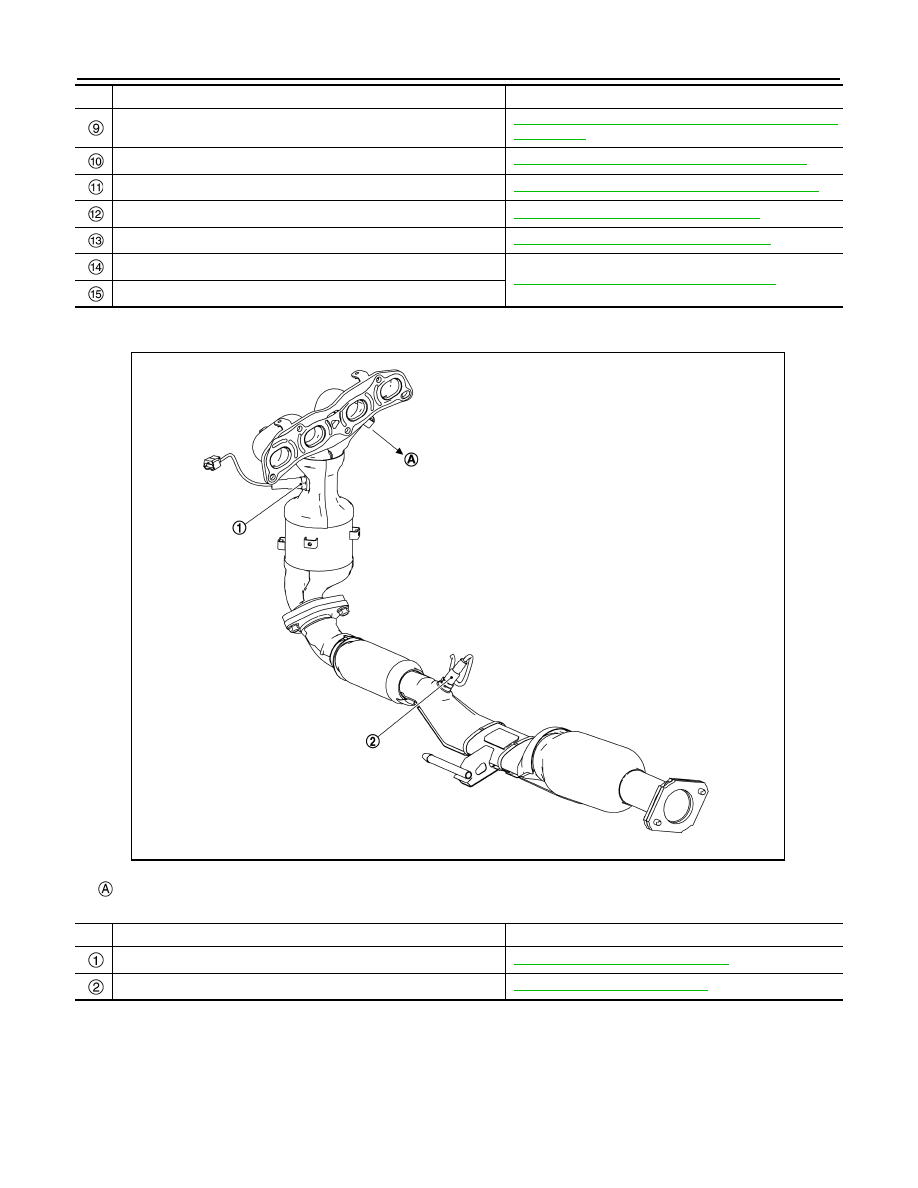

EXHAUST COMPARTMENT

BODY COMPARTMENT

Intake valve timing intermediate lock control solenoid valve

EC-23, "Intake Valve Timing Intermediate Lock Control So-
lenoid Valve"

Intake valve timing control solenoid valve

EC-23, "Intake Valve Timing Control Solenoid Valve"

Exhaust valve timing control solenoid valve

EC-24, "Exhaust Valve Timing Control Solenoid Valve"

Ignition coil (with power transistor)

EC-19, "Ignition Coil With Power Transistor"

Engine coolant temperature sensor

EC-21, "Engine Coolant Temperature Sensor"

Intake manifold runner control valve position sensor

EC-24, "Intake Manifold Runner Control Valve"

Intake manifold runner control valve actuator

No.

Component

Function

To engine assembly

JPBIA5841ZZ

No.

Component

Function

Air fuel ratio (A/F) sensor 1

EC-24, "Air Fuel Ratio (A/F) Sensor 1"

Heated oxygen sensor 2

EC-25, "Heated Oxygen Sensor 2"

COMPONENT PARTS

EC-17

< SYSTEM DESCRIPTION >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

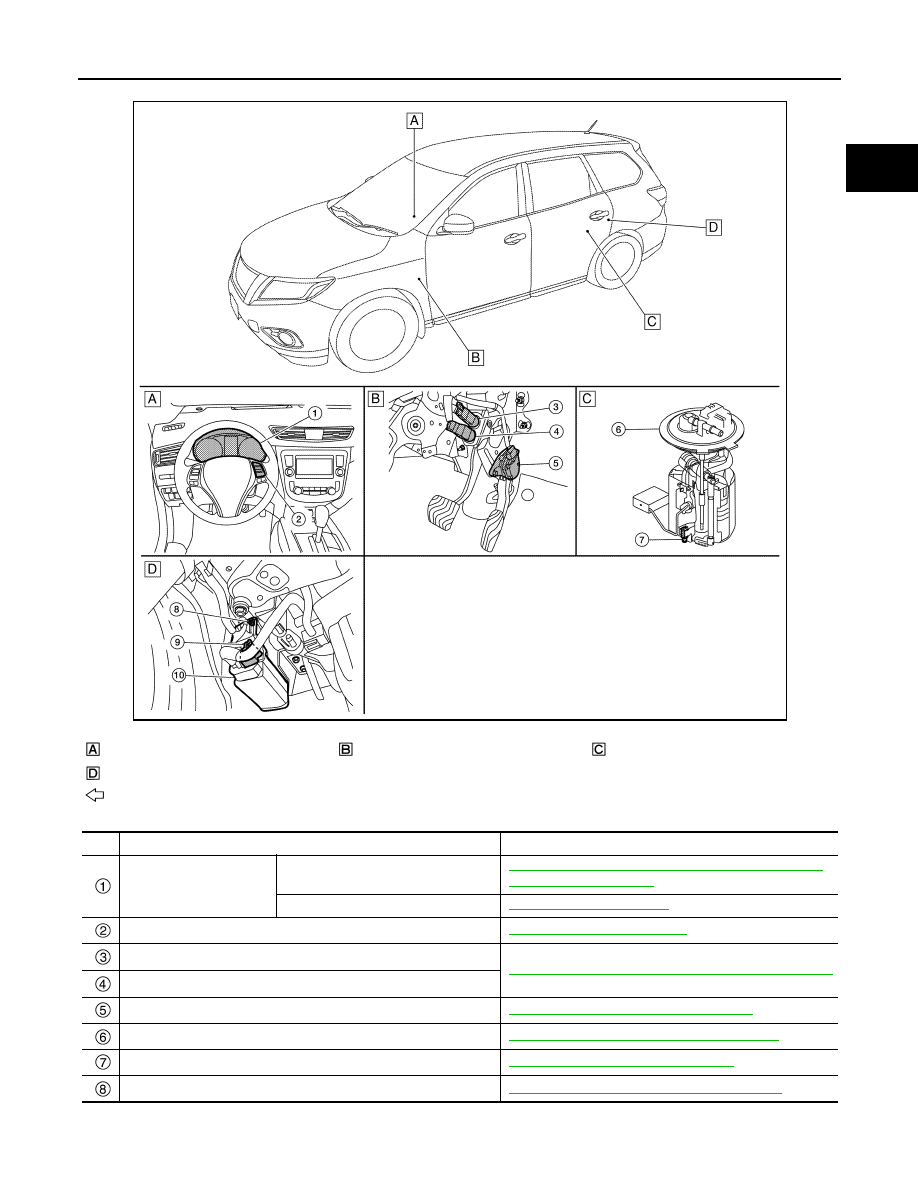

Instrument panel area

Periphery of pedals

Inside fuel tank area

Behind fuel tank

: Vehicle front

No.

Component

Function

Combination meter

Malfunction indicator lamp (MIL)

EC-51, "WARNING/INDICATOR/CHIME LIST : Malfunc-
tion Indicator Lamp (MIL)"

Information display

EC-28, "Information Display"

ASCD steering switch

EC-28, "ASCD Steering Switch"

Stop lamp switch

EC-28, "Stop Lamp Switch & Brake Pedal Position Switch"

Brake pedal position switch

Accelerator pedal position sensor

EC-18, "Accelerator Pedal Position Sensor"

Fuel level sensor unit and fuel pump

EC-20, "Fuel Level Sensor Unit and Fuel Pump"

Fuel tank temperature sensor

EC-20, "Fuel Tank Temperature Sensor"

EVAP control system pressure sensor

EC-27, "EVAP Control System Pressure Sensor"

ALBIA1181ZZ

EC-18

< SYSTEM DESCRIPTION >

[QR25DE]

COMPONENT PARTS

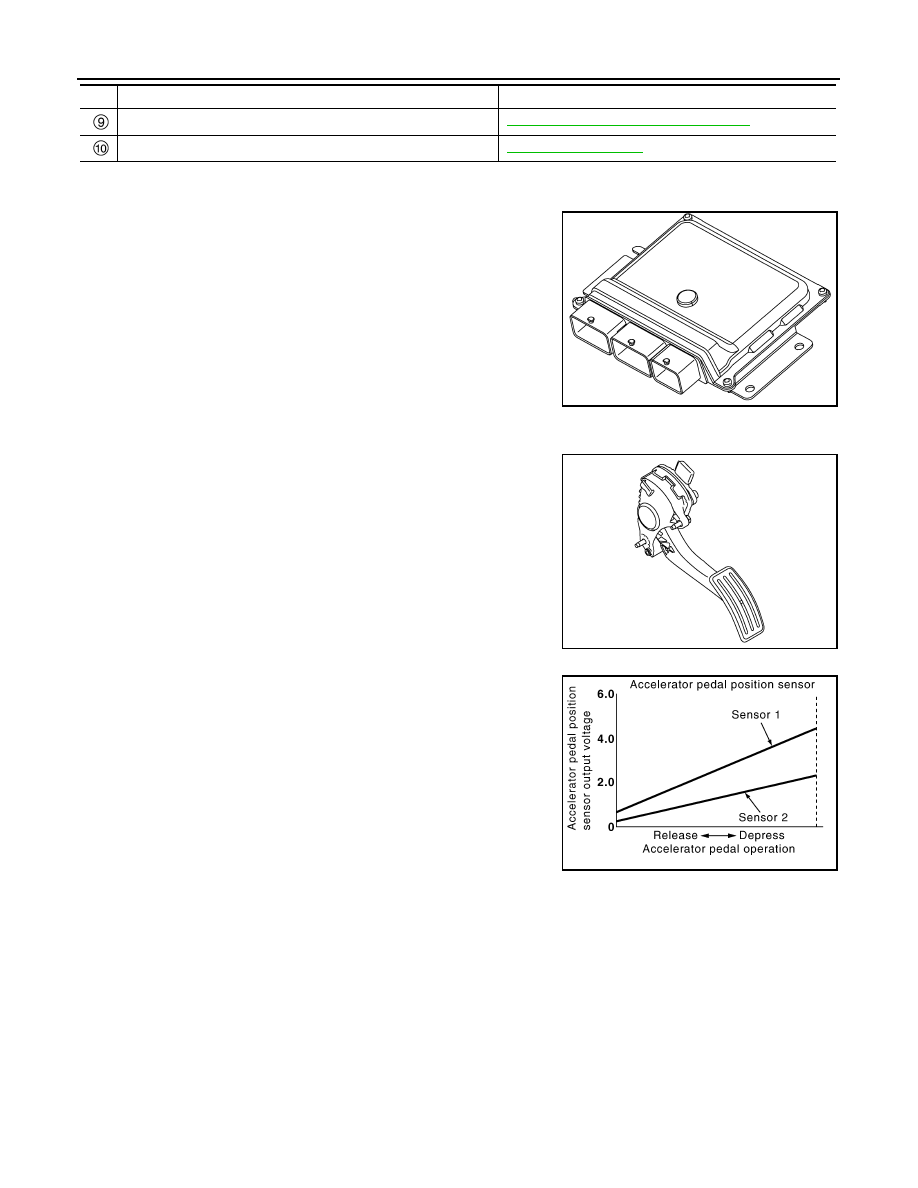

ECM

INFOID:0000000011277820

The ECM consists of a microcomputer and connectors for signal

input and output and for power supply. The ECM controls the engine.

Accelerator Pedal Position Sensor

INFOID:0000000011277821

The accelerator pedal position sensor is installed on the upper end

of the accelerator pedal assembly. The sensor detects the accelera-

tor position and sends a signal to the ECM.

Accelerator pedal position sensor has two sensors. These sensors

are a kind of potentiometers which transform the accelerator pedal

position into output voltage, and emit the voltage signal to the ECM.

In addition, these sensors detect the opening and closing speed of

the accelerator pedal and feed the voltage signals to the ECM. The

ECM judges the current opening angle of the accelerator pedal from

these signals and controls the throttle control motor based on these

signals.

Idle position of the accelerator pedal is determined by the ECM

receiving the signal from the accelerator pedal position sensor. The

ECM uses this signal for the engine operation such as fuel cut.

EVAP canister vent control valve

EC-27, "EVAP Canister Vent Control Valve"

EVAP canister

EC-27, "EVAP Canister"

No.

Component

Function

JPBIA5843ZZ

JPBIA5844ZZ

PBIB1741E

COMPONENT PARTS

EC-19

< SYSTEM DESCRIPTION >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

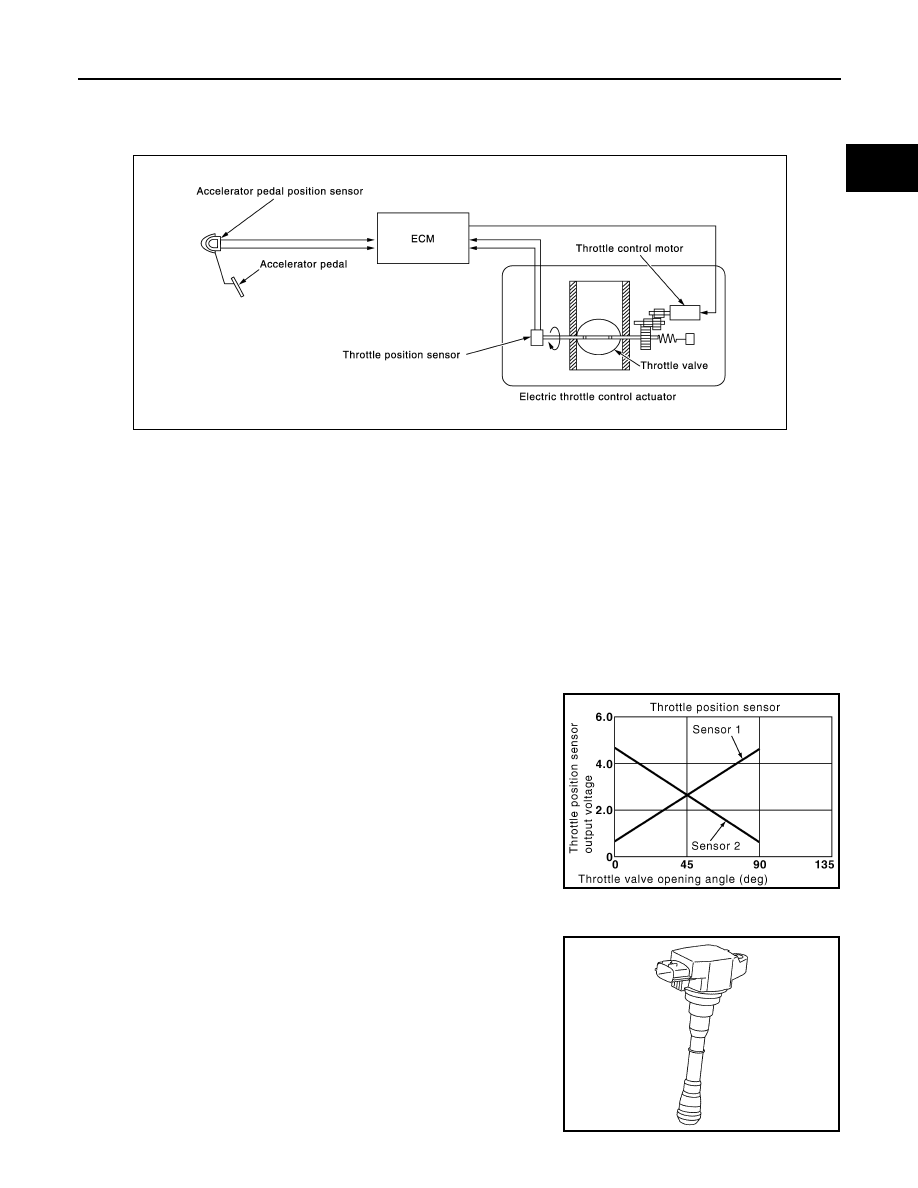

Electric Throttle Control Actuator

INFOID:0000000011277822

Electric throttle control actuator consists of throttle body, throttle valve, throttle control motor and throttle posi-

tion sensor.

THROTTLE CONTROL MOTOR RELAY

Power supply for the throttle control motor is provided to the ECM via throttle control motor relay. The throttle

control motor relay is ON/OFF controlled by the ECM. When the ignition switch is turned ON, the ECM sends

an ON signal to throttle control motor relay and battery voltage is provided to the ECM. When the ignition

switch is turned OFF, the ECM sends an OFF signal to throttle control motor relay and battery voltage is not

provided to the ECM.

THROTTLE CONTROL MOTOR

The throttle control motor is operated by the ECM and it opens and closes the throttle valve.

The current opening angle of the throttle valve is detected by the throttle position sensor and it provides feed-

back to the ECM to control the throttle control motor to make the throttle valve opening angle properly in

response to driving condition.

THROTTLE POSITION SENSOR

The throttle position sensor responds to the throttle valve movement.

The throttle position sensor has two sensors. These sensors are a

kind of potentiometers which transform the throttle valve position into

output voltage, and emit the voltage signal to the ECM. In addition,

these sensors detect the opening and closing speed of the throttle

valve and feed the voltage signals to the ECM. The ECM judges the

current opening angle of the throttle valve from these signals and the

ECM controls the throttle control motor to make the throttle valve

opening angle properly in response to driving condition.

Ignition Coil With Power Transistor

INFOID:0000000011277823

The ignition signal from the ECM is sent to and amplified by the

power transistor. The power transistor turns ON and OFF the ignition

coil primary circuit. This ON/OFF operation induces the proper high

voltage in the coil secondary circuit.

JSBIA0270GB

PBIB0145E

JPBIA4613ZZ
