EC-12

< PREPARATION >

[QR25DE]

PREPARATION

PREPARATION

PREPARATION

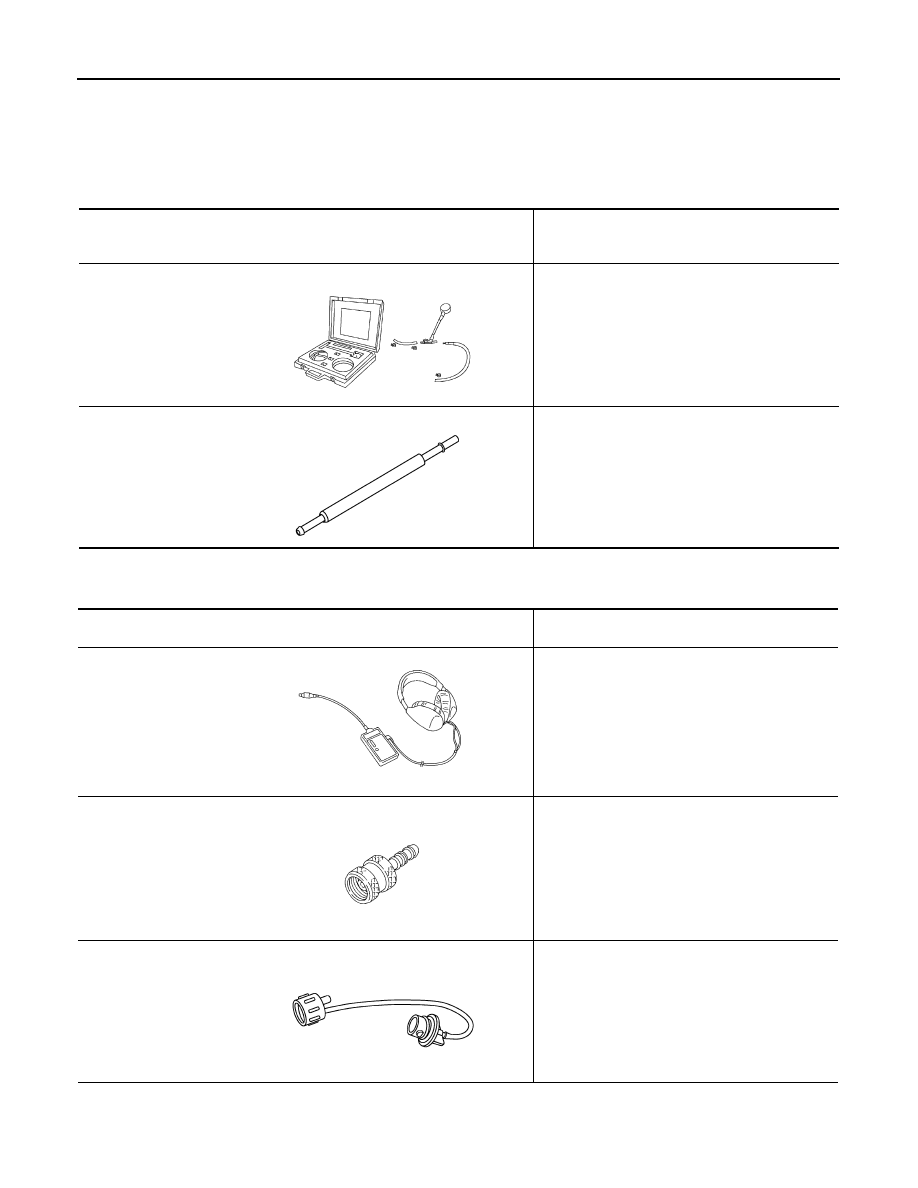

Special Service Tools

INFOID:0000000011277817

The actual shape of the tools may differ from those illustrated here.

Commercial Service Tools

INFOID:0000000011277818

Tool number
(TechMate No.)
Tool name

Description

 —
(J-44321)
Fuel pressure gauge
kit

Checks fuel pressure

KV10120000
( — )
Fuel tube adapter

Measures fuel pressure

LEC642

JSBIA0410ZZ

Tool name
(TechMate No.)

Description

Leak detector
i.e.: (J-41416)

Locates the EVAP leak

EVAP service port
adapter
i.e.: (J-41413-OBD)

Applies positive pressure through EVAP service
port

Fuel filler cap adapter
i.e.: (MLR-8382)

Checks fuel tank vacuum relief valve opening
pressure

S-NT703

S-NT704

S-NT815

PREPARATION

EC-13

< PREPARATION >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

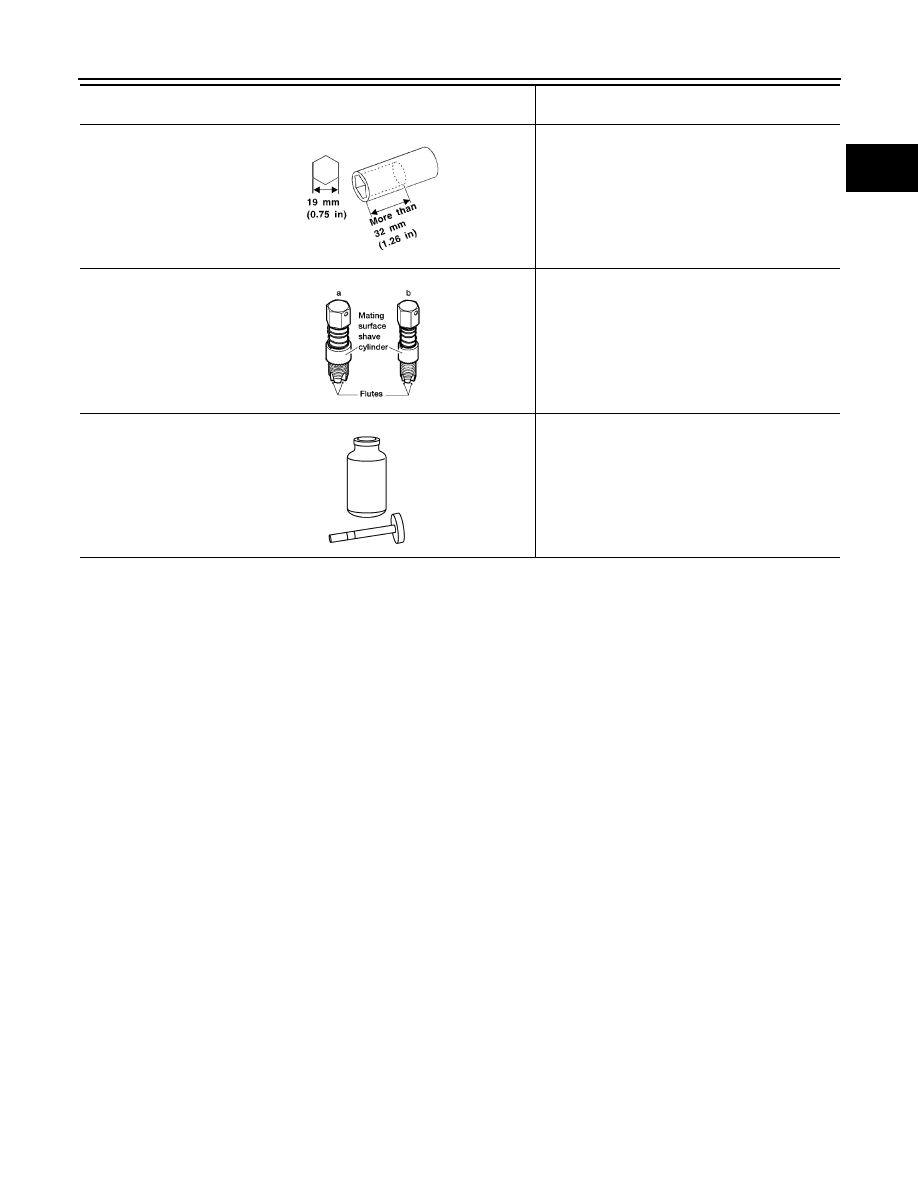

Socket wrench
i.e.: ( — )

Removes and installs engine coolant temperature
sensor

Oxygen sensor thread
cleaner
i.e.: (J-43897-18)
(J-43897-12)

Reconditions the exhaust system threads before
installing a new oxygen sensor. Use with anti-
seize lubricant shown below.
a: 18 mm diameter with pitch 1.5 mm for Zirco-
nia Oxygen Sensor
b: 12 mm diameter with pitch 1.25 mm for Tita-
nia Oxygen Sensor

Anti-seize lubricant
i.e.: (Permatex

TM



133AR or equivalent
meeting MIL specifica-
tion MIL-A-907)

Lubricates oxygen sensor thread cleaning tool
when reconditioning exhaust system threads.

Tool name
(TechMate No.)

Description

S-NT705

AEM488

S-NT779

EC-14

< SYSTEM DESCRIPTION >

[QR25DE]

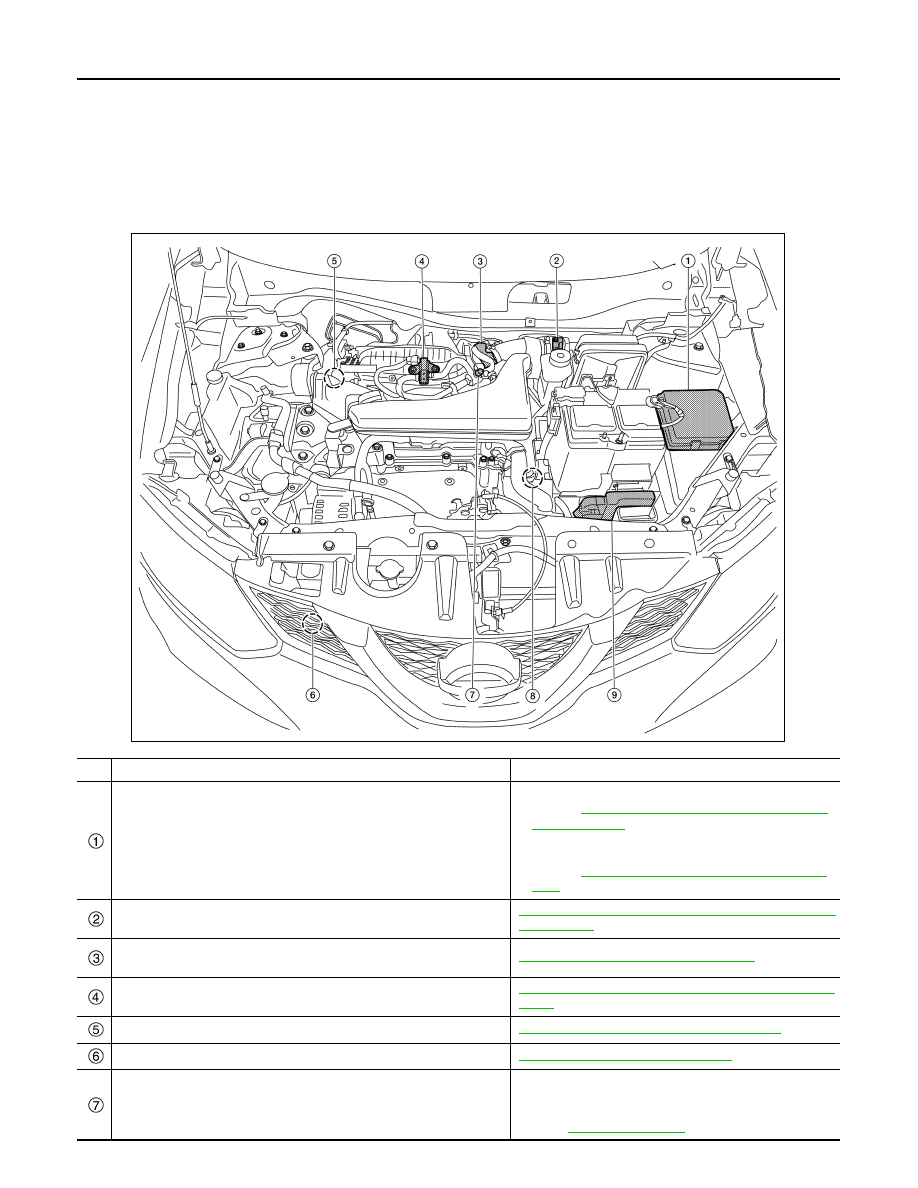

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

Component Parts Location

INFOID:0000000011277819

ENGINE ROOM COMPARTMENT

ALBIA1180ZZ

No.

Component

Function

IPDM E/R

• IPDM E/R control the internal relays and the actuators.
- Refer to

PCS-7, "RELAY CONTROL SYSTEM : Sys-

tem Description"

.

• When CAN communication with ECM is impossible,

IPDM E/R performs fail-safe control.

- Refer to

PCS-8, "RELAY CONTROL SYSTEM : Fail-

safe"

.

Mass air flow sensor
(with intake air temperature sensor)

EC-21, "Mass Air Flow Sensor (With Intake Air Tempera-
ture Sensor)"

Electric throttle control actuator
(with built in throttle position sensor and throttle control motor)

EC-19, "Electric Throttle Control Actuator"

EVAP canister purge volume control solenoid valve

EC-27, "EVAP Canister Purge Volume Control Solenoid
Valve"

Intake manifold runner control valve actuator

EC-24, "Intake Manifold Runner Control Valve"

Refrigerant pressure sensor

EC-28, "Refrigerant Pressure Sensor"

EVAP service port

When perform the EVAP leak check, positive pressure is
delivered to the EVAP system through the EVAP service
port.
Refer to

EC-499, "Inspection"

.

COMPONENT PARTS

EC-15

< SYSTEM DESCRIPTION >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

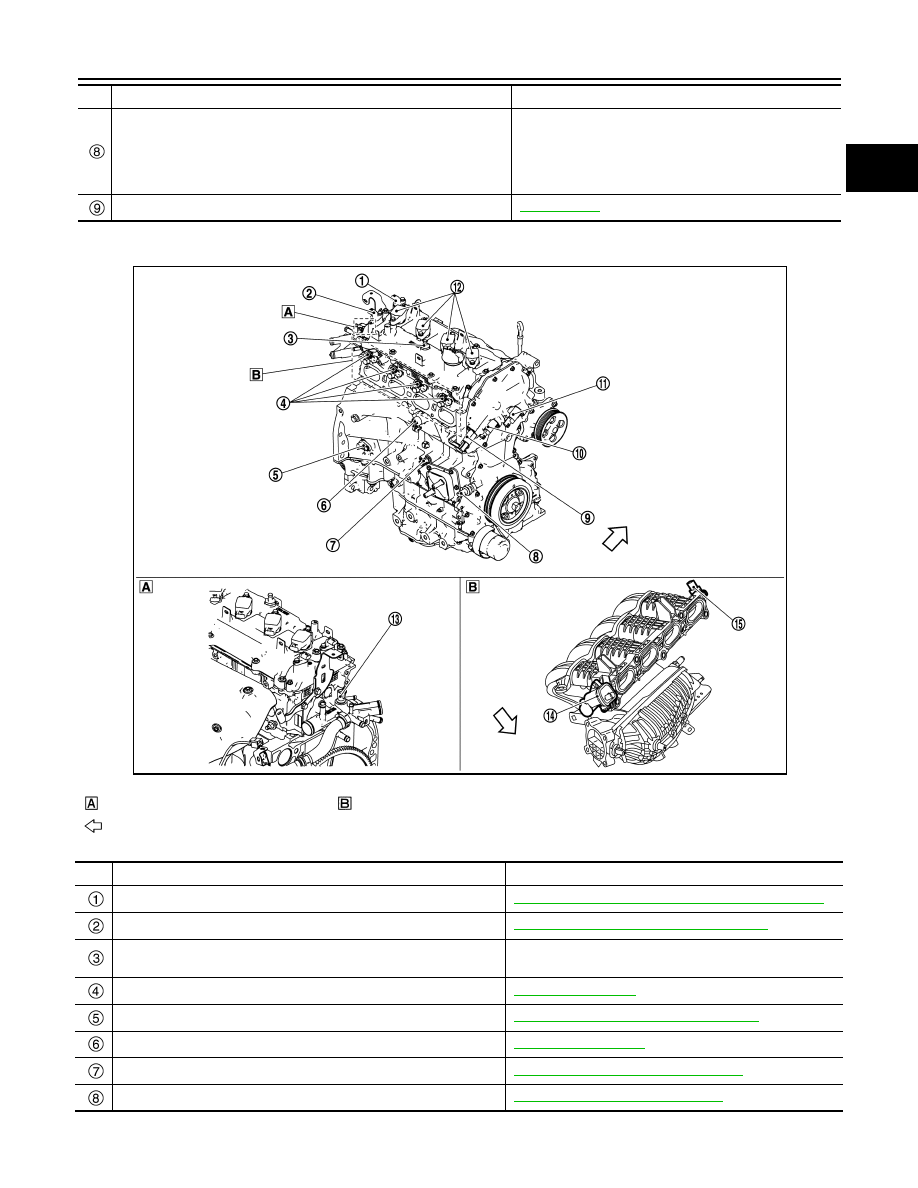

ENGINE COMPARTMENT

Transmission range switch

• The transmission range switch is installed to upper part

of transaxle case.

• ECM detects the selector lever position because the

continuity of the transmission range switch line (the
ON) exists.

ECM

EC-18, "ECM"

No.

Component

Function

JSBIA4548ZZ

Engine rear side

Intake side

: Vehicle front

No.

Component

Function

Exhaust valve timing control position sensor

EC-23, "Exhaust Valve Timing Control Position Sensor"

Camshaft position sensor (PHASE)

EC-22, "Camshaft Position Sensor (PHASE)"

PCV valve

The positive crankcase ventilation (PCV) valve is provided
to conduct crankcase blow-by gas to the intake manifold.

Fuel injector

EC-20, "Fuel Injector"

Crankshaft position sensor (POS)

EC-22, "Crankshaft Position Sensor (POS)"

Knock sensor

EC-25, "Knock Sensor"

Engine oil temperature sensor

EC-26, "Engine Oil Temperature Sensor"

Engine oil pressure sensor

EC-26, "Engine Oil Pressure Sensor"
