ELECTRIC CONTROLLED COUPLING

7. Remove wave spring (1).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• When replacing electric controlled coupling, perform writing unit characteristic. Refer to

DLN-35,

"Work Procedure"

.

• Do not reuse hose clamp and breather connector.

• Make sure there are no pinched or restricted areas on the breather hose caused by bending or wind-

ing when installing it.

• Install the hose clamp at the final drive side, with the paint mark facing to the vehicle front.

• Install the hose clamp at the suspension member side, with the tab facing downward.

• Use Genuine Silicone RTV or an equivalent. Refer to

GI-22, "Recommended Chemical Products and

Sealants"

.

• Remove the old sealant from mating surfaces using a suitable tool before installing.

• Apply liquid gasket (1) to mating surface of coupling cover.

Use Genuine Silicone RTV or equivalent. Refer to

GI-22, "Recom-

mended Chemical Products and Sealants"

.

CAUTION:

• The width of sealant bend is approximately 3 mm (0.012 in).

• Installation should be done within 5 minutes after applying

liquid gasket.

• Do not fill the engine within engine oil for at least 30 minutes

after the components are installed to allow the sealant to

cure.

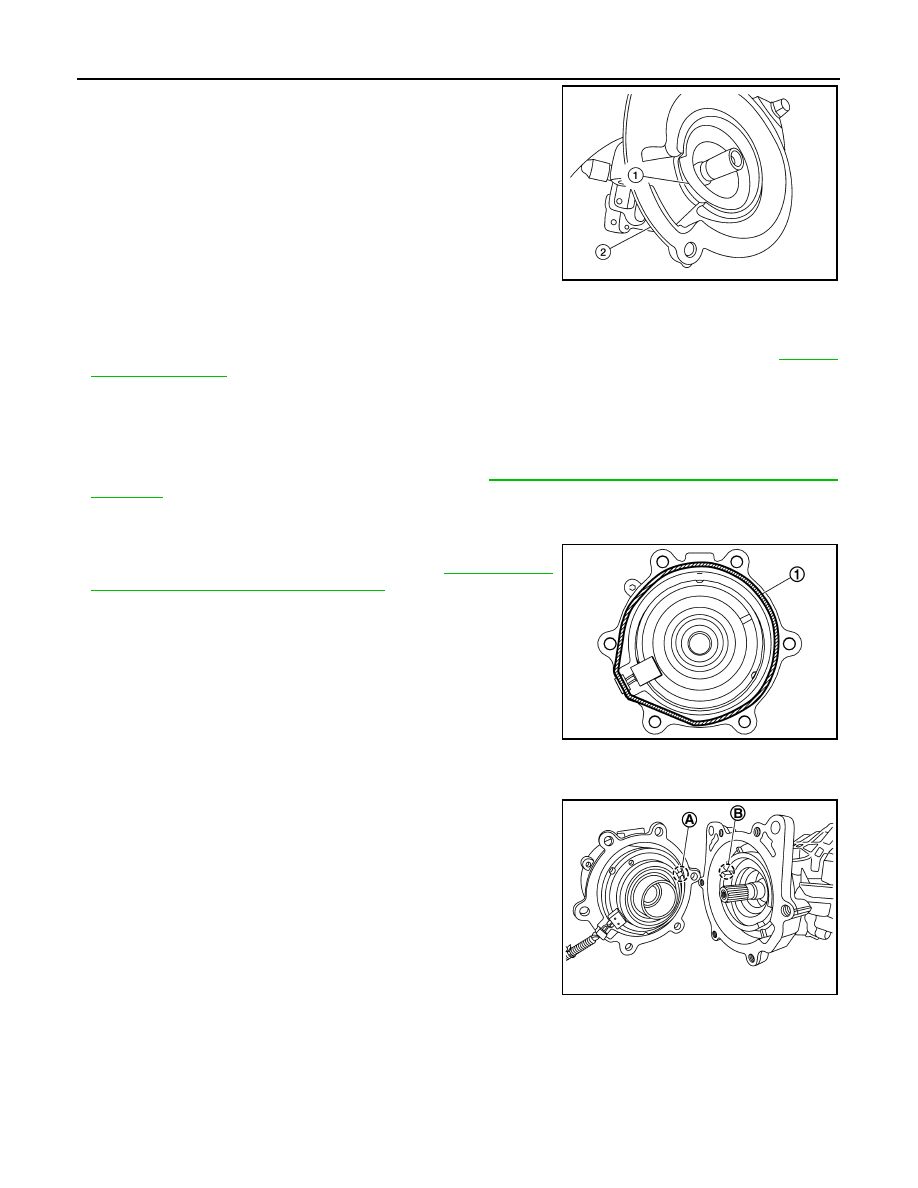

• Install electric controlled coupling to spline of drive pinion inside final drive assembly.

CAUTION:

• Align the pin (A) on electric controlled coupling with the

groove (B) of final drive assembly.

• Be careful not to damage center oil seal.

(2) : Rear final drive assembly

ALDIA0517ZZ

JSDIA3059ZZ

JSDIA3060ZZ

ELECTRIC CONTROLLED COUPLING

DLN-117

< REMOVAL AND INSTALLATION >

[REAR FINAL DRIVE: R145]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

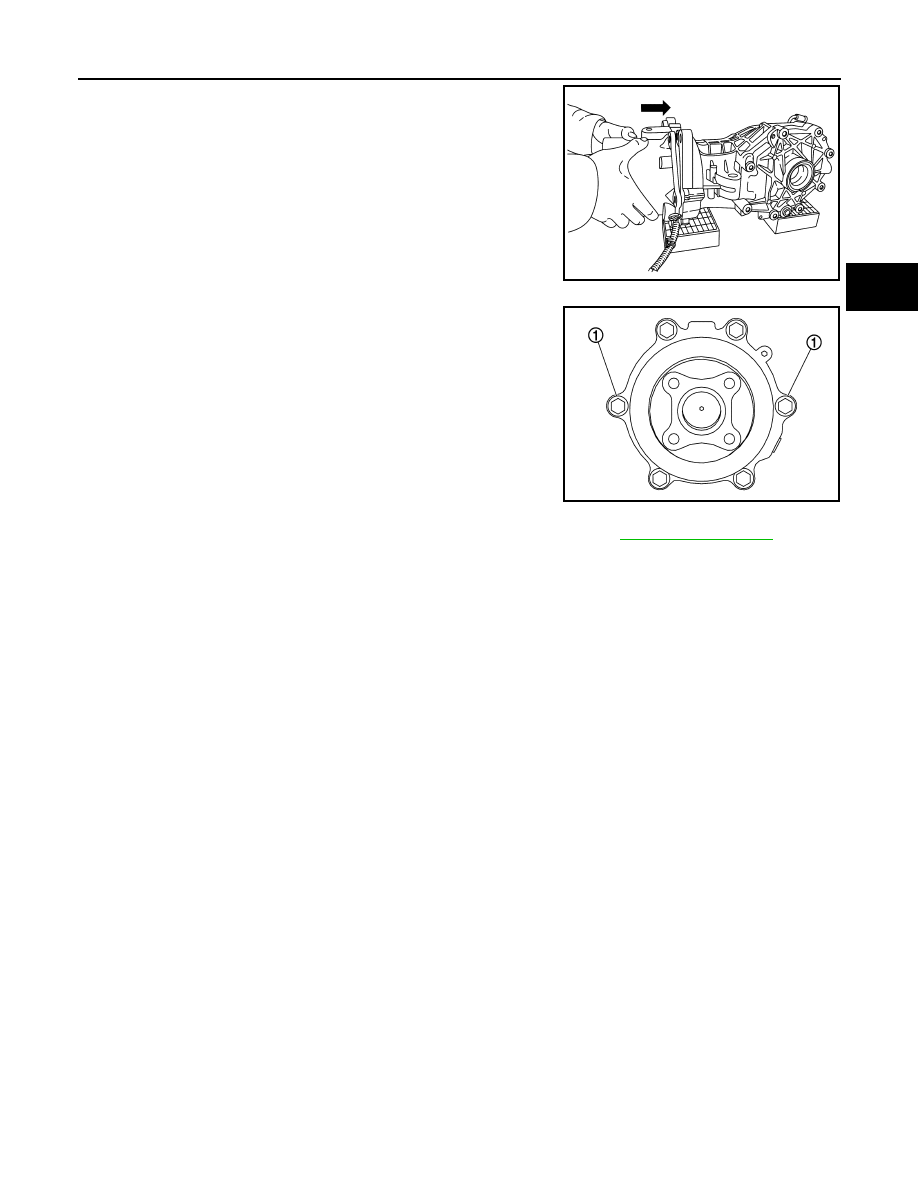

• Press the electric controlled coupling pin to check that it is posi-

tioned in the groove of the final drive assembly as shown.

NOTE:

If the pin is properly positioned in the groove, then the electric con-

trolled coupling can be pressed into position by the same amount

of flection of the wave spring.

• Temporarily tighten reamer bolts (1) to the positions shown.

CAUTION:

• Do not use tools. Always tighten by hand.

• If reamer bolts cannot be tightened all the way by hand, the

electric controlled coupling pin may not be positioned in the

groove of the final drive assembly. In this case, remove elec-

tric controlled coupling and reinstall it.

• If reamer bolts can be tightened all the way by hand torque them to

the specified value.

• When oil leaks while removing, check oil level after the installation. Refer to

DLN-112, "Inspection"

.

JSDIA3068ZZ

JSDIA3061ZZ

DLN-118

< REMOVAL AND INSTALLATION >

[REAR FINAL DRIVE: R145]

AIR BREATHER

AIR BREATHER

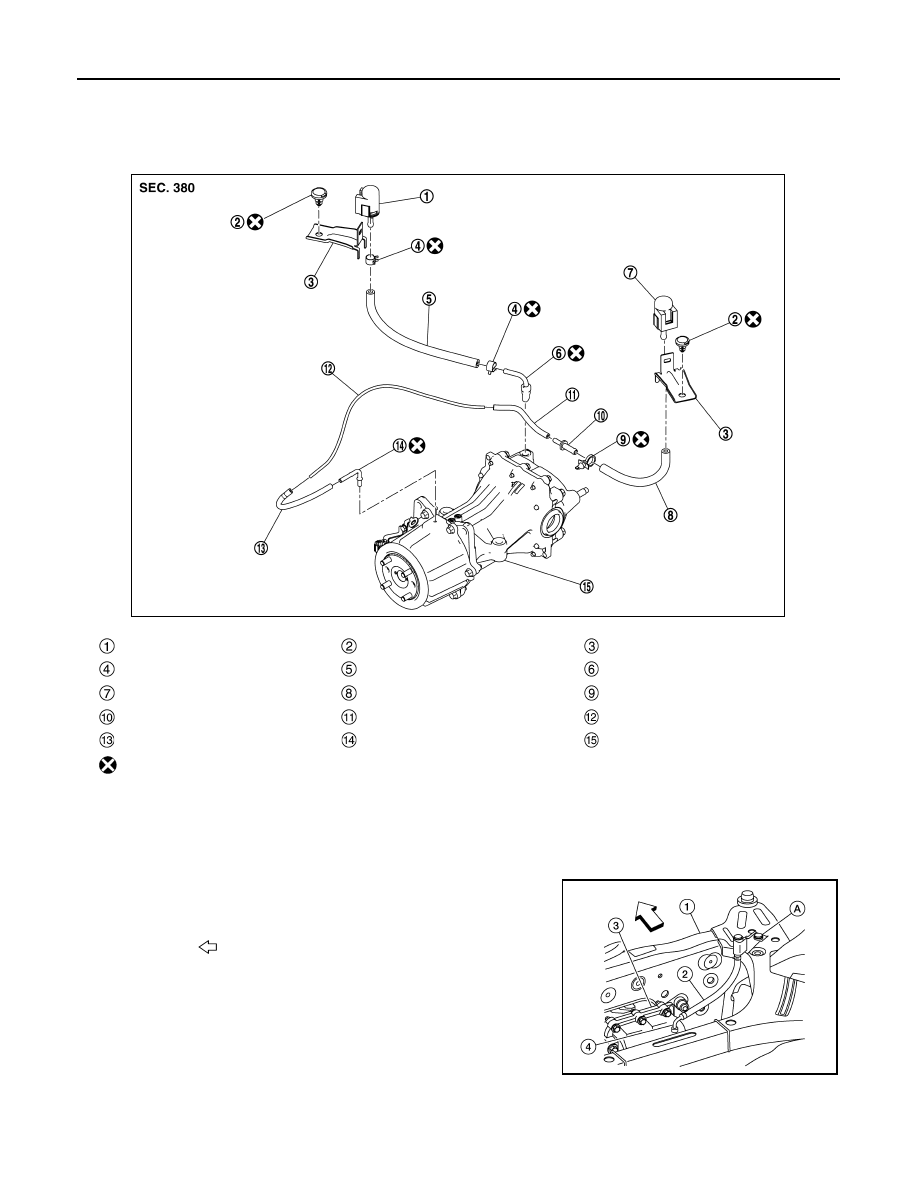

Exploded View

INFOID:0000000011278414

*: These parts are  adhered to each other. Therefore they are assembled parts.

Removal and Installation

INFOID:0000000011278415

REMOVAL

1. Remove clip (A) from rear suspension member (1).

2. Remove air breather hose (2) and breather tube (4) together.
3. Loosen hose clamp and remove breather tube (4) from air

breather hose (2).

Breather connector (resin)

Trim clip

Bracket

Hose clamp

Air breather hose

Breather connector (metal)

Breather connector (resin)

Air breather hose

Clip

Hose connector

Air breather hose*

Air breather tube*

Air breather hose*

Breather connector (metal)

Rear final drive assembly

: Always replace after every disassembly.

JSDIA5188GB

(3) : Rear final drive assembly

: Front

ALDIA0512ZZ

AIR BREATHER

DLN-119

< REMOVAL AND INSTALLATION >

[REAR FINAL DRIVE: R145]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

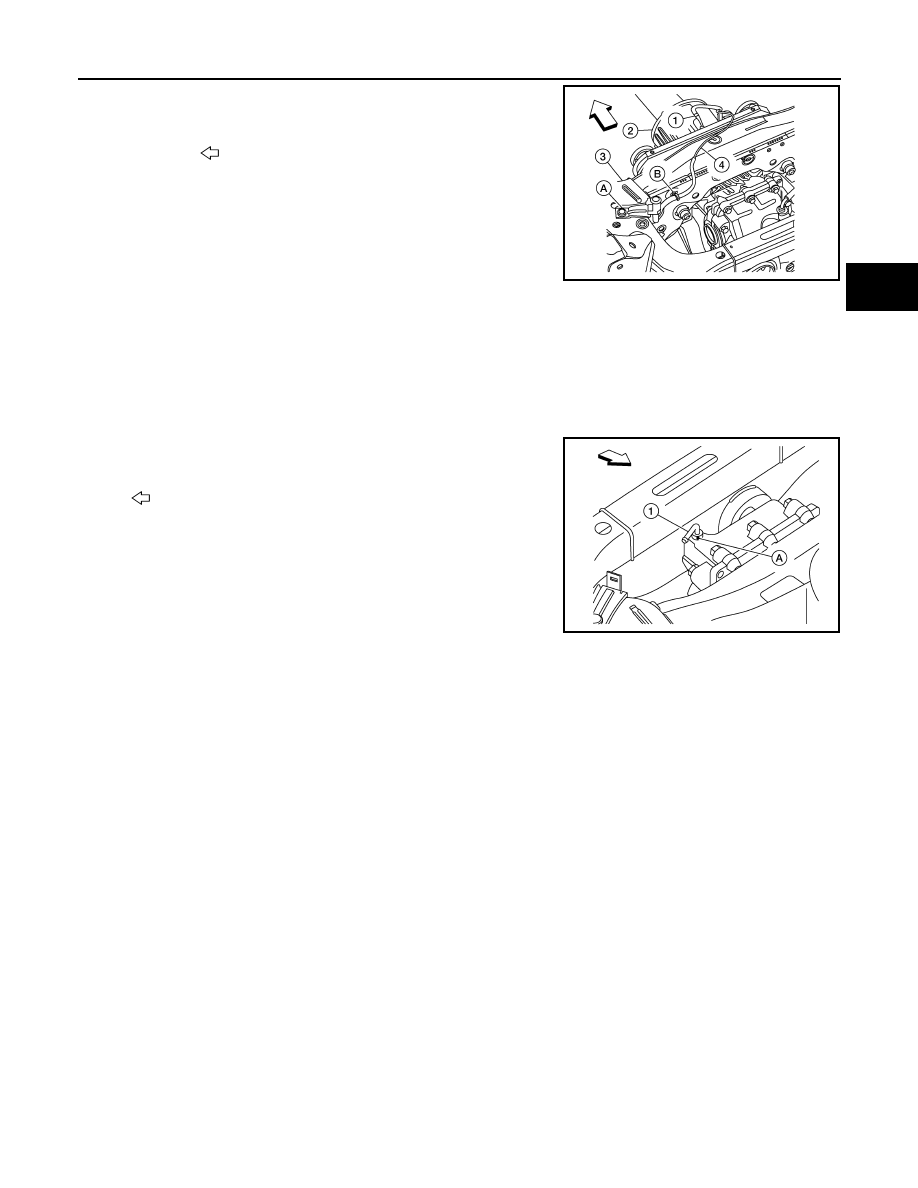

4. Remove clips (A) from rear suspension member (3).

5. Remove hose clamp (1) and clip (B) from air breather hose (4).
6. Remove air breather hose (4).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse hose clamps.

• Do not reuse trim clips.

• Do not reuse breather connectors (metal).

• Do not reuse clips.

• Set breather connector (1) to rear final drive with the paint mark (A)

facing front as shown.

• When installing air breather hose, make sure there are no pinched

or restricted areas on air breather hose caused by bending or

winding.

(2) : Electric controlled coupling

: Front

ALDIA0513ZZ

: Front

AWDIA1155ZZ
