REAR DIFFERENTIAL GEAR OIL

PERIODIC MAINTENANCE

REAR DIFFERENTIAL GEAR OIL

Inspection

INFOID:0000000011278405

OIL LEAKS

Make sure that oil is not leaking from final drive assembly or around it.

OIL LEVEL

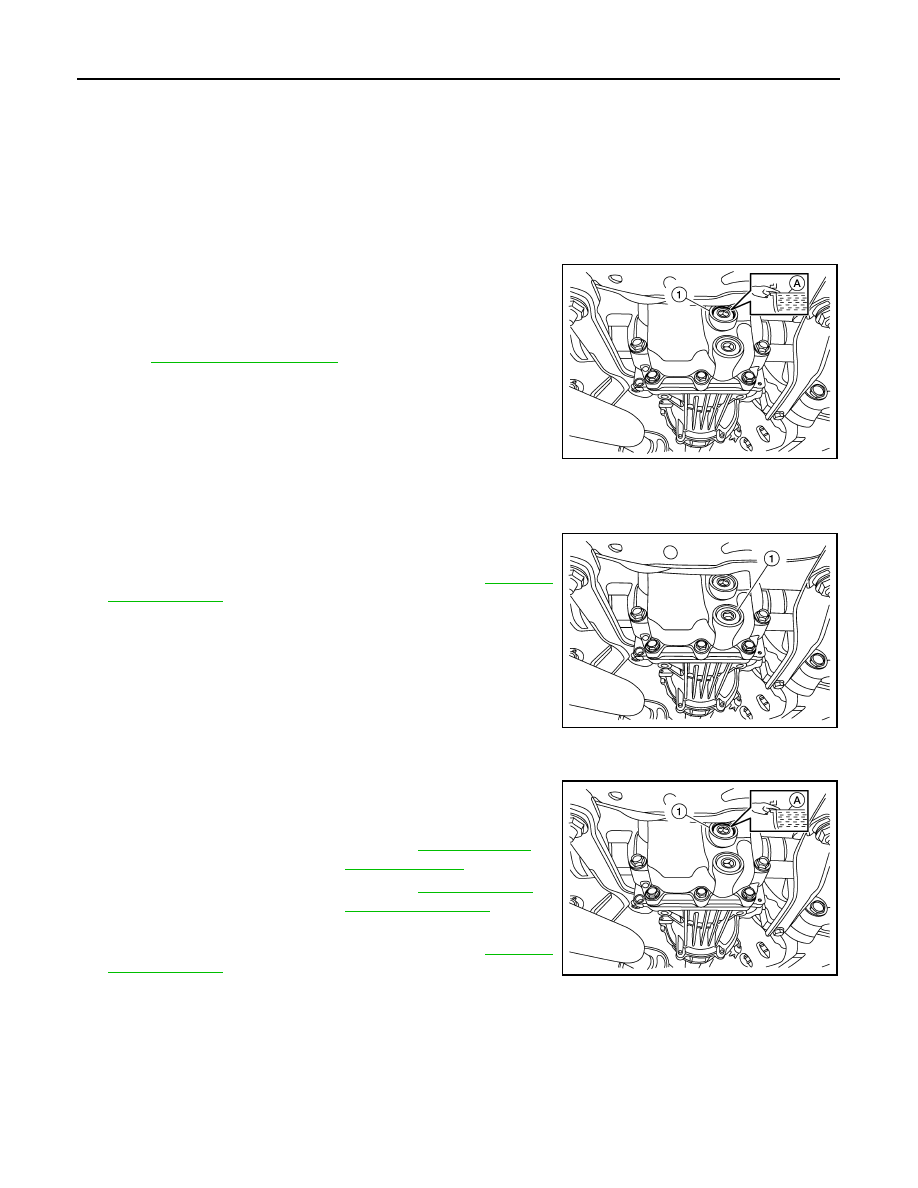

• Remove filler plug (1) and check oil level (A) from filler plug mount-

ing hole as shown.

CAUTION:

Do not start engine while checking oil level.

• Set a new gasket on filler plug and install it on final drive assembly.

Refer to

DLN-125, "Exploded View"

.

CAUTION:

Do not reuse gasket.

Draining

INFOID:0000000011278406

1. Stop engine.
2. Remove drain plug (1) and drain gear oil.
3. Set a new gasket on drain plug and install it to final drive assem-

bly and tighten to the specified torque. Refer to

DLN-125,

"Exploded View"

.

CAUTION:

Do not reuse gasket.

Refilling

INFOID:0000000011278407

1. Remove filler plug (1). Fill with new gear oil until oil level (A)

reaches the specified level near filler plug hole.

2. After refilling oil, check oil level. Set a new gasket to filler plug,

then install it to final drive assembly. Refer to

DLN-125,

"Exploded View"

.

CAUTION:

Do not reuse gasket.

ALDIA0509ZZ

ALDIA0510ZZ

Oil grade and viscosity

: Refer to

MA-11, "Fluids

and Lubricants"

.

Oil capacity

: Refer to

DLN-142, "Gen-

eral Specifications"

.

ALDIA0509ZZ

DRIVE PINION OIL SEAL

DLN-113

< REMOVAL AND INSTALLATION >

[REAR FINAL DRIVE: R145]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

REMOVAL AND INSTALLATION

DRIVE PINION OIL SEAL

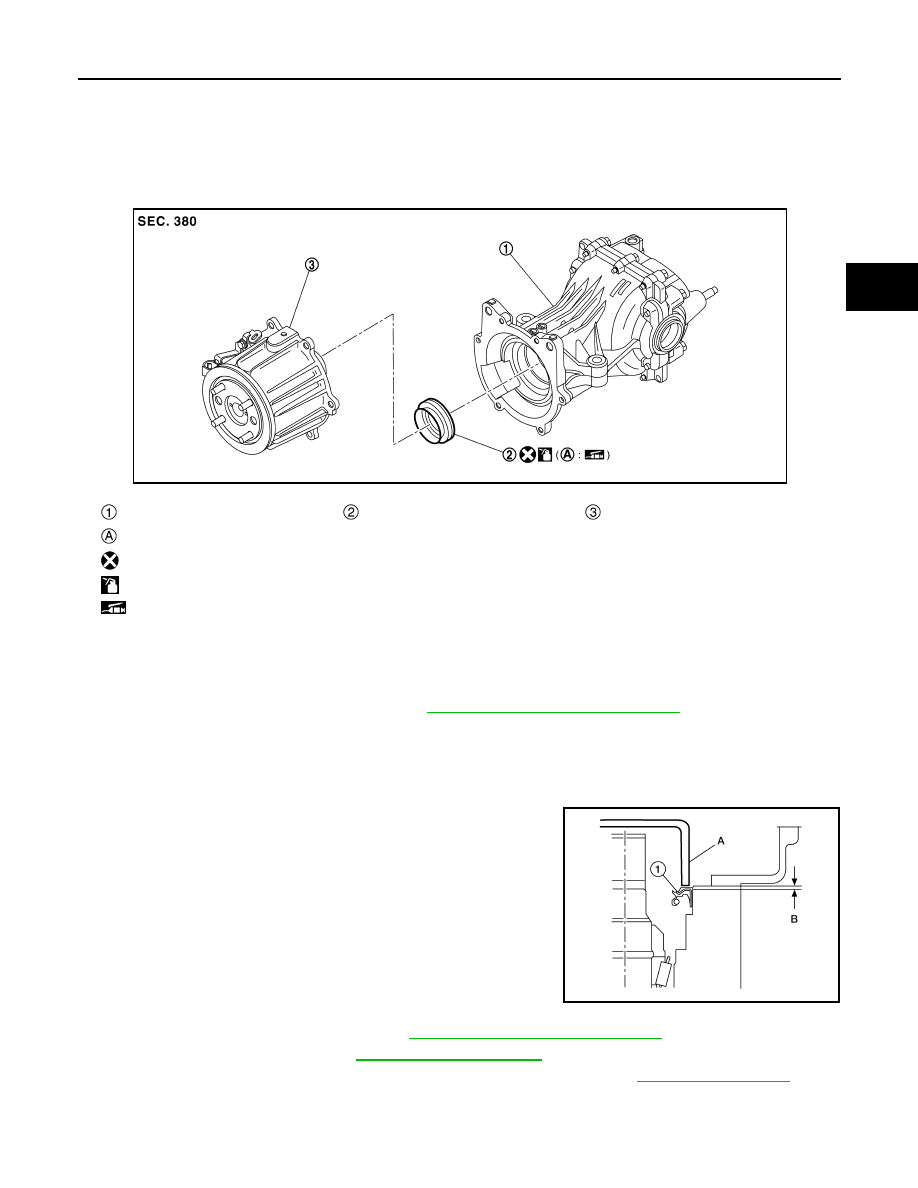

Exploded View

INFOID:0000000011278408

Removal and Installation

INFOID:0000000011278409

REMOVAL

1. Remove electric controlled coupling. Refer to

DLN-115, "Removal and Installation"

.

2. Using a suitable tool remove drive pinion oil seal.

CAUTION:

Do not damage rear final drive assembly.

INSTALLATION

1. Install drive pinon oil seal (1) using Tool (A).

CAUTION:

• Do not reuse oil seal.

• When installing, do not incline oil seal.

• Apply multi-purpose grease onto oil seal lips, and gear oil

onto the circumference of oil seal.

2. Install electric controlled coupling. Refer to

DLN-115, "Removal and Installation"

.

3. Install rear propeller shaft. Refer to

DLN-100, "Exploded View"

.

4. When oil leaks while removing, check oil level after the installation. Refer to

DLN-112, "Inspection"

.

Rear final drive assembly

Drive pinion oil seal

Electric controlled coupling assembly

Oil seal lip

: Always replace after every disassembly.

: Apply gear oil.

: Apply multi-purpose grease.

JSDIA5261ZZ

Oil seal installation
length (B)

: 0.8 - 1.2 mm (0.031 - 0.047 in)

Tool number

: KV38100200 (J-26233)
: ST27861000 (

—

)

ALDIA0522ZZ

DLN-114

< REMOVAL AND INSTALLATION >

[REAR FINAL DRIVE: R145]

SIDE OIL SEAL

SIDE OIL SEAL

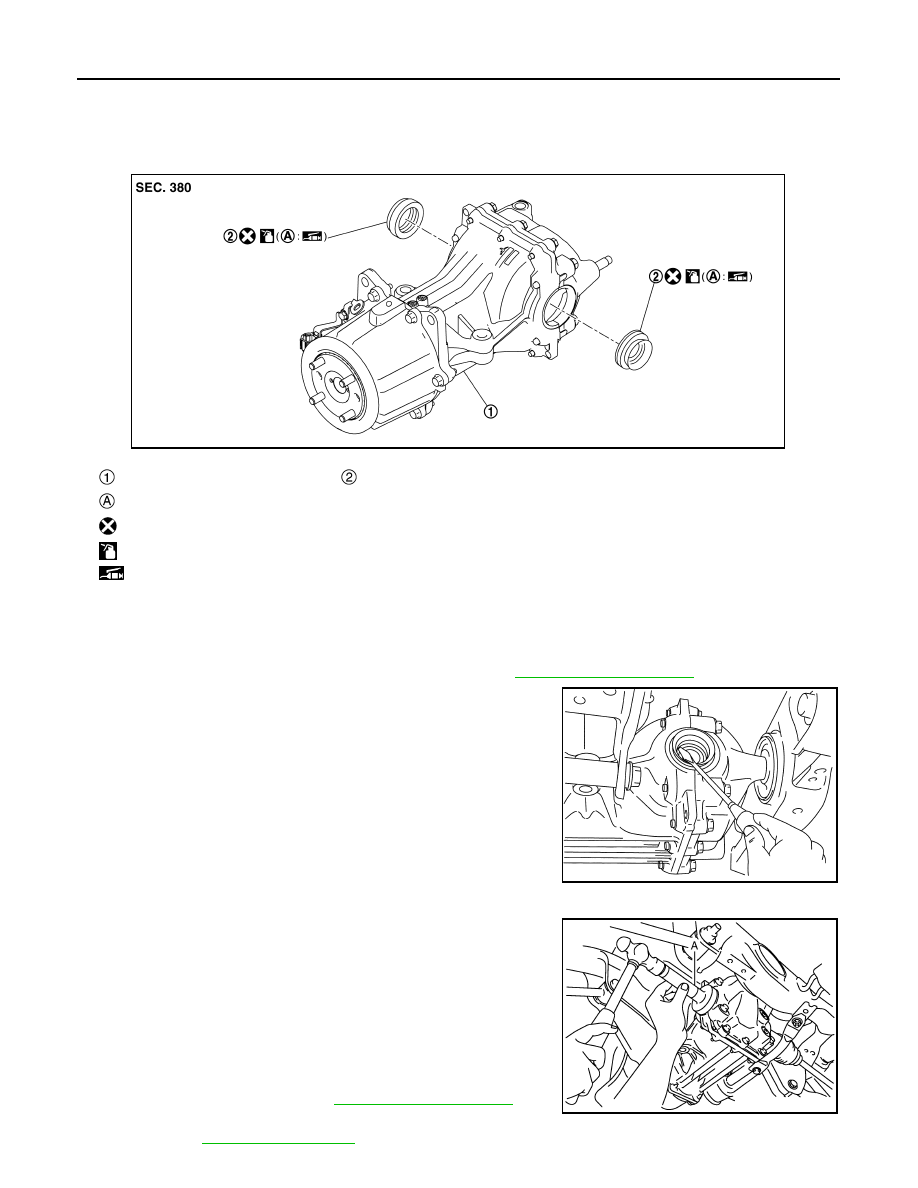

Exploded View

INFOID:0000000011278410

Removal and Installation

INFOID:0000000011278411

REMOVAL

1. Remove rear drive shaft (LH/RH) with power tool. Refer to

RAX-19, "Exploded View"

.

2. Remove side oil seal (LH/RH), using a suitable tool.

CAUTION:

Do not damage gear carrier and rear cover.

INSTALLATION

1. Install side oil seals until it becomes flush with the carrier end,

using Tool (A).

CAUTION:

• Do not reuse oil seals.

• When installing, do not incline oil seals.

• Apply multi-purpose grease onto oil seal lips, and gear oil

onto the circumference of oil seal.

2. Install rear drive shafts. Refer to

RAX-19, "Exploded View"

.

3. When oil leaks while removing, check oil level after the installa-

tion. Refer to

DLN-112, "Inspection"

.

Rear final drive assembly

Side oil seal

Oil seal lip

: Always replace after every disassembly.

: Apply gear oil.

: Apply multi-purpose grease.

JSDIA5269ZZ

PDIA0431E

Tool number  : KV38100200 (J-26233)

JSDIA0201ZZ

ELECTRIC CONTROLLED COUPLING

DLN-115

< REMOVAL AND INSTALLATION >

[REAR FINAL DRIVE: R145]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

ELECTRIC CONTROLLED COUPLING

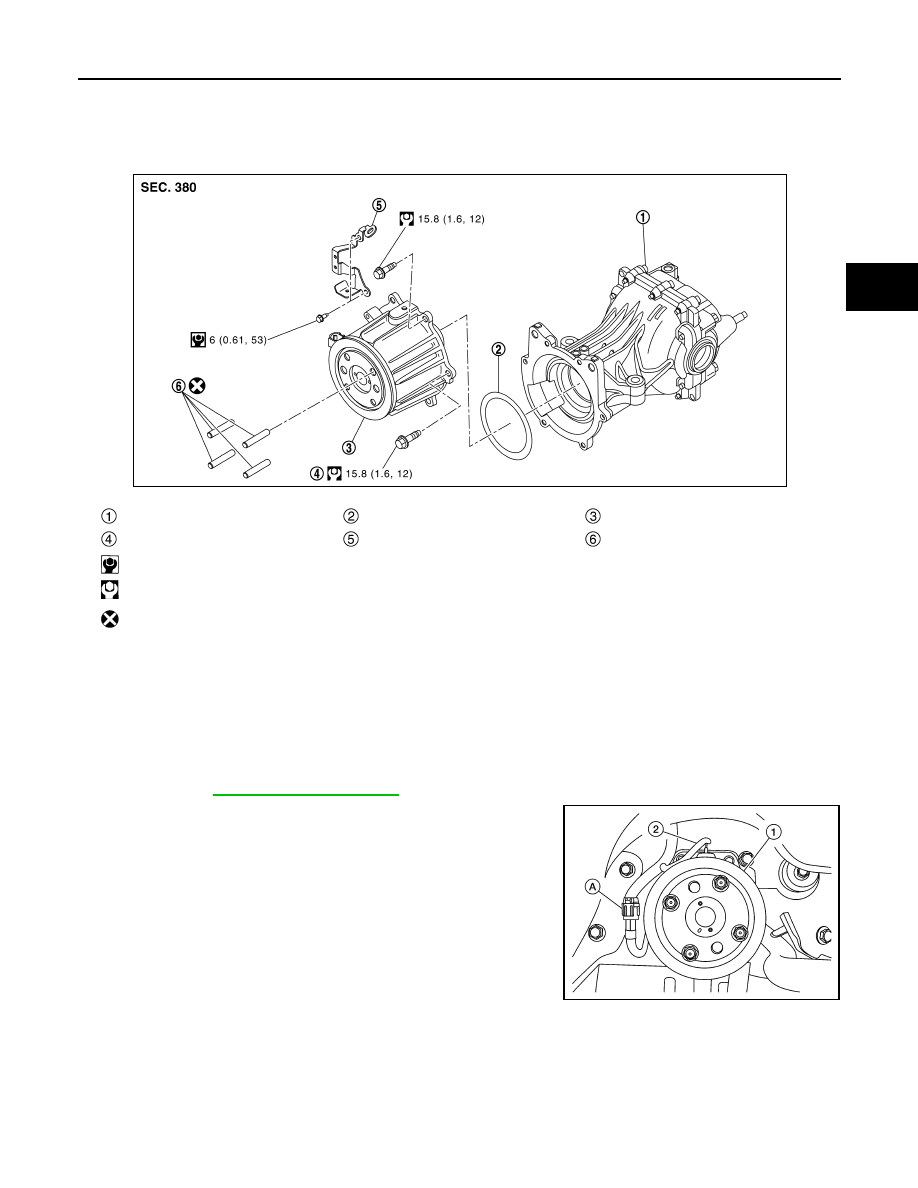

Exploded View

INFOID:0000000011278412

Removal and Installation

INFOID:0000000011278413

NOTE:

When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-

ing.

REMOVAL

1. Remove rear propeller shaft from the electric controlled coupling, and support the end of the propeller

shaft. Refer to

DLN-100, "Exploded View"

.

2. Remove electric controlled coupling breather hose (2) from elec-

tric controlled coupling (1).

3. Disconnect the electric controlled coupling harness connector

(A).

4. Remove harness connector bracket.
5. Remove bolts from electric controlled coupling.
6. Remove the electric controlled coupling.

CAUTION:

Be careful that the wave spring does not fall out or get damaged when removing the electric con-

trolled coupling.

Rear final drive assembly

Wave spring

Electric controlled coupling assembly

Reamer bolt

Connector bracket

Stud bolt

: N·m (kg-m, in-lb)

: N·m (kg-m, ft-lb)

: Always replace after every disassembly.

JSDIA5440GB

ALDIA0516ZZ
