TRANSFER COVER

8. Install the transfer cover to the transfer case, and apply anti-cor-

rosive oil onto thread and seats on the mounting bolts. Then

tighten mounting bolts to the specified torque.

9. Using suitable tool drive the transfer cover oil seals.

CAUTION:

• When checking the total preload torque, measure it with-

out the oil seal, then install the oil seal.

• Do not reuse the oil seal.

• When installing, do not incline oil seal.

• Apply multi-purpose grease onto oil seal lips, and gear oil

onto the circumference of the oil seal.

10. Install gasket onto filler plug and install them to transfer cover.

CAUTION:

• Do not reuse gasket.

• Install filler plug after oil is filled.

Inspection

INFOID:0000000011278368

INSPECTION AFTER DISASSEMBLY

Check items below. If necessary, replace them with new ones.

Transfer cover

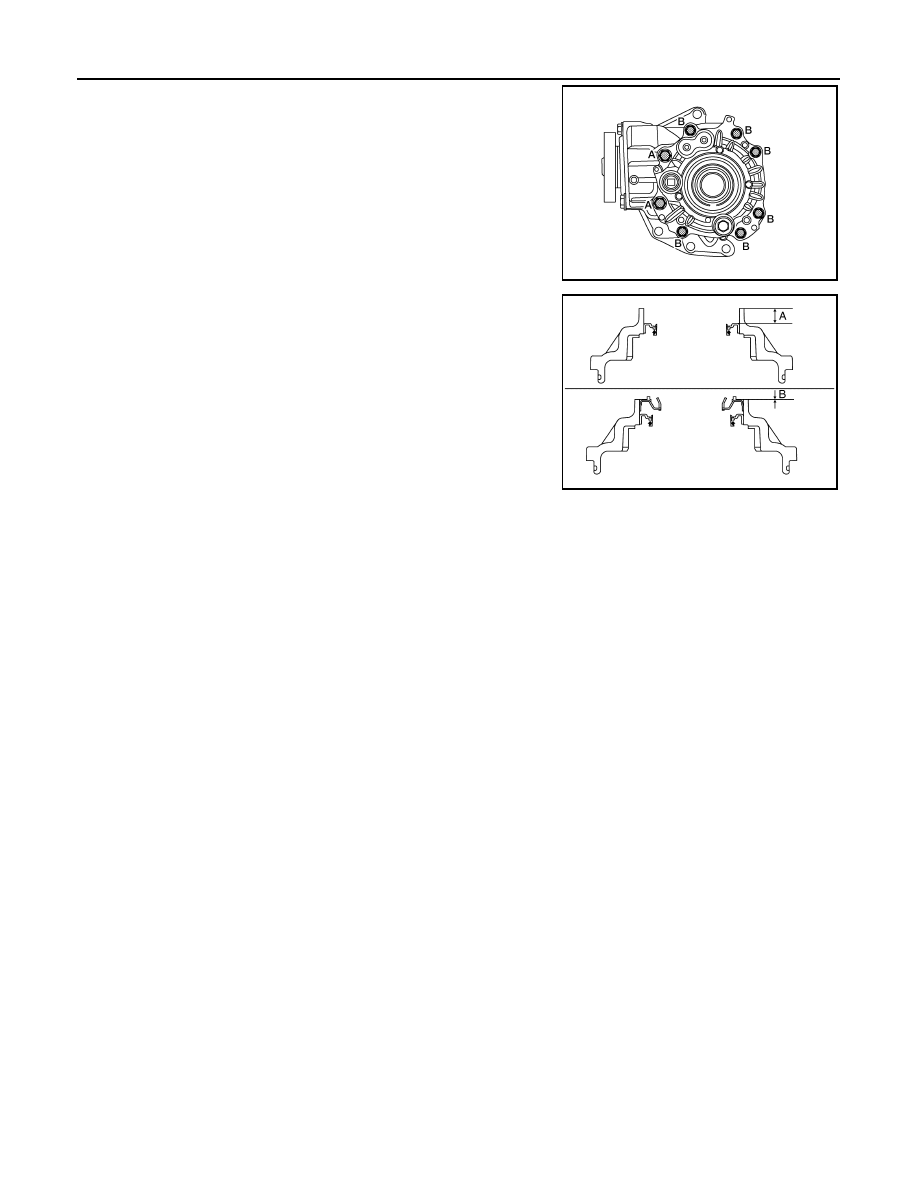

Check the bearing mounting surface for wear, cracks and damages.

(A)

: M10 bolt

(B)

: M8 bolt

AWDIA1140ZZ

(A)

: 10.3 +0.6/-0 mm (0.406 +0.024/-0 in)

(B)

: 0 +0.6/-0 mm (0 +0.024/-0 in)

JSDIA3993ZZ

RING GEAR SHAFT

DLN-77

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TY21C]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

RING GEAR SHAFT

Exploded View

INFOID:0000000011278369

1.

Filler plug

2.

Gasket

3.

Drain plug

4.

Oil seal

5.

Transfer cover

6.

Oil seal

AWDIA1138ZZ

DLN-78

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TY21C]

RING GEAR SHAFT

Disassembly

INFOID:0000000011278370

1. Remove transfer cover assembly. Refer to

DLN-74, "Disassembly"

.

2. Remove ring gear bearing outer race (transfer cover side) and ring gear bearing adjusting shim (transfer

cover side) from the transfer cover. Refer to

DLN-74, "Disassembly"

.

3. Remove ring gear shaft assembly from the transfer case.
4. Remove ring gear bearing outer race (transfer case side) and ring gear bearing adjusting shim (transfer

case side) from the transfer case. Refer to

DLN-91, "Disassembly"

.

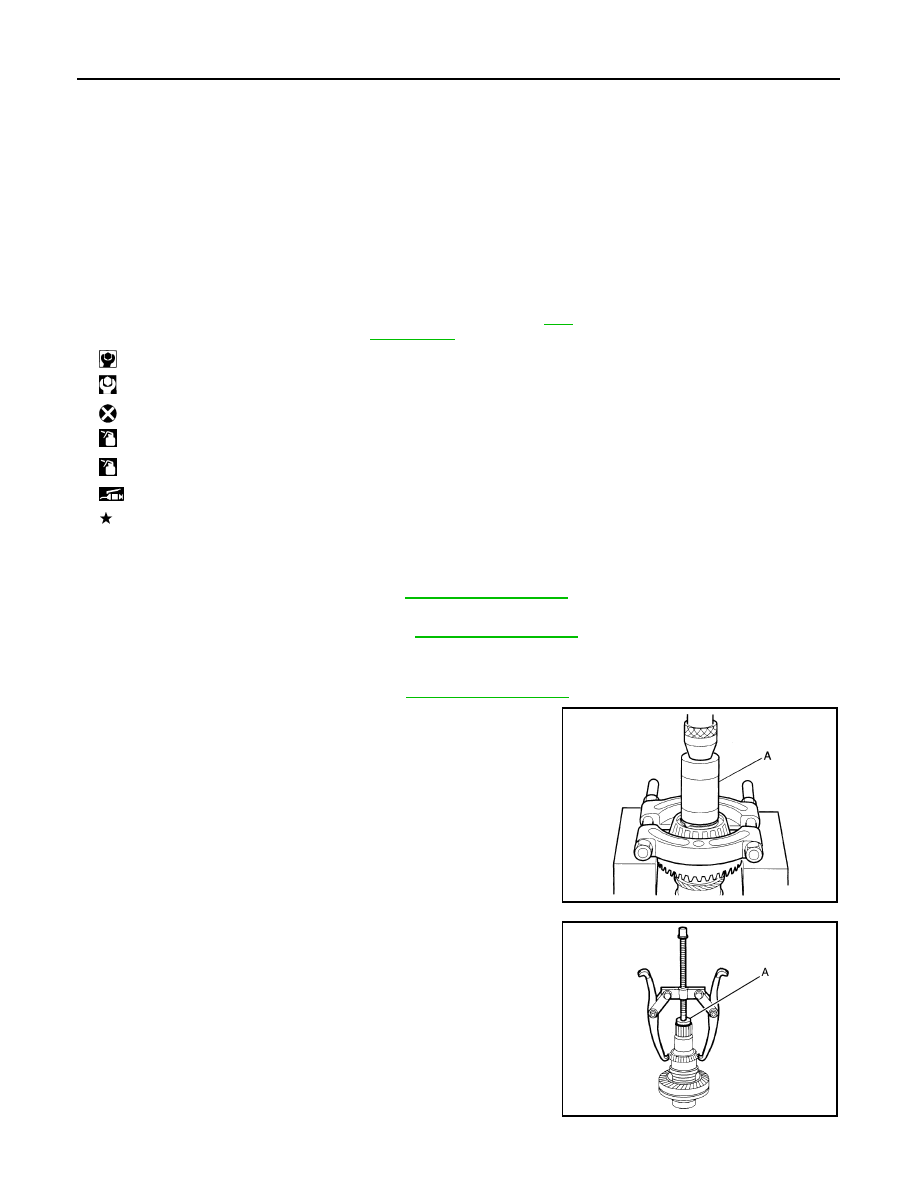

5. Remove ring gear bearing inner race (transfer cover side) from

ring gear shaft using suitable tool (A) and suitable tool.

6. Remove ring gear bearing inner race (transfer case side) from

ring gear shaft with suitable tool (A) and Tool.

7. Remove the ring gear mounting bolts.

7.

O-ring

8.

Ring gear bearing adjusting shim
(transfer cover side)

9.

Ring gear bearing (transfer cover
side)

10. Ring gear shaft oil seal

11. Ring gear shaft

12. Ring gear bearing (transfer case

side)

13. Ring gear bearing adjusting shim

(transfer case side)

14. Ring gear

15. Baffle plate

16. Transfer case

17. Plug

18. O-ring

19. Oil seal

20. Dowel pin

21. Drive pinion

22. Drive pinion adjusting shim

23. O-ring

24. Pinion bearing assembly

25. Oil seal

26. Dust cover

27. Companion flange

28. Pinion lock nut
A.  Oil seal lip

B.  Comply with the assembly proce-

dure when tightening. Refer to

DLN-

84, "Assembly"

.

: N·m (kg-m, in-lb)

: N·m (kg-m, ft-lb)

: Always replace after every disassembly.

: Apply gear oil.

*

: Apply anti-corrosive oil.

: Apply multi-purpose grease.

: Select with proper thickness.

JPDIE0030ZZ

Tool number

: (KV381054S0) J-34286

JPDIE0031ZZ

RING GEAR SHAFT

DLN-79

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TY21C]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

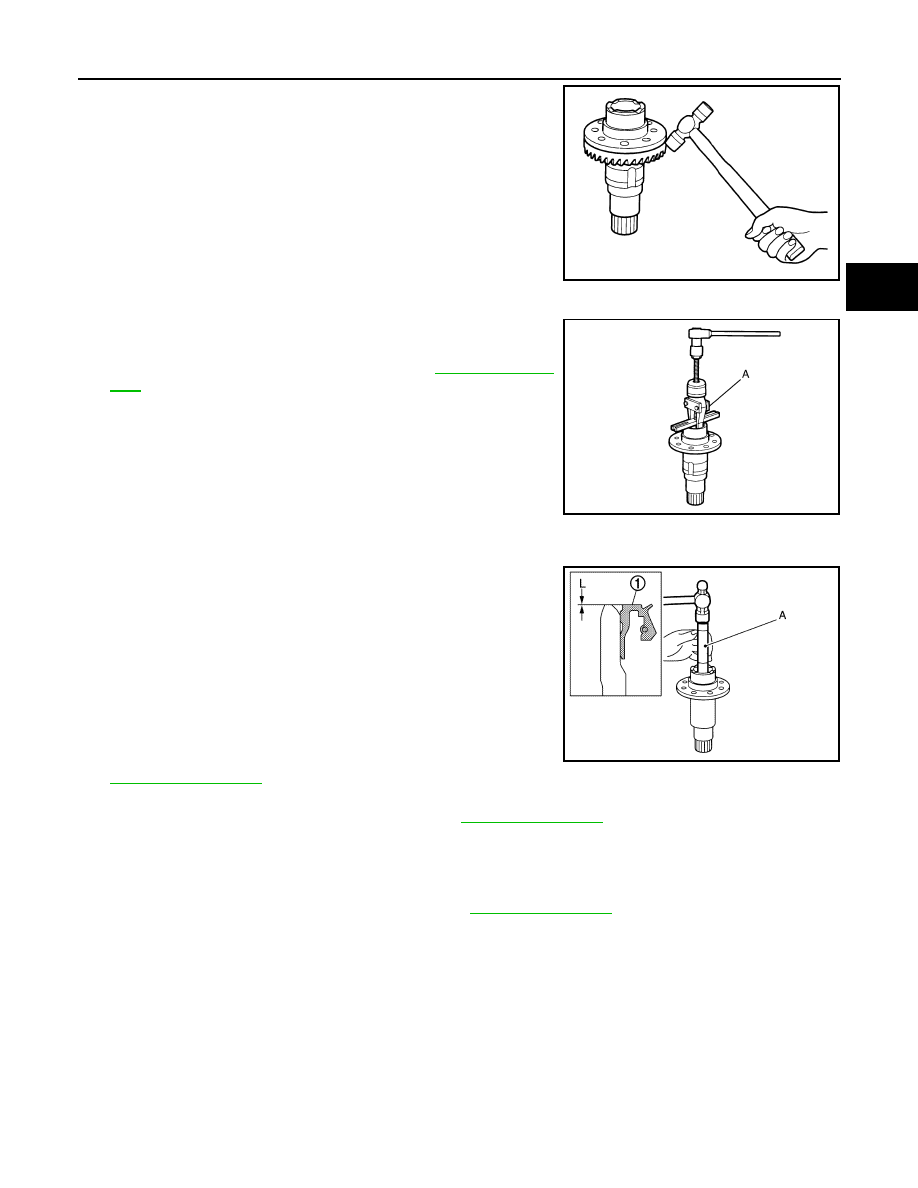

8. Lightly tap ring gear with a plastic hammer to remove ring gear

from the ring gear shaft.

9. Remove ring gear shaft oil seal from the ring gear shaft with the Tool (A).

10. Perform inspection after disassembly. Refer to

DLN-80, "Inspec-

tion"

.

Assembly

INFOID:0000000011278371

1. Using suitable tool  (A), install ring gear shaft oil seal (1) within

the dimension (L) shown as follows.

CAUTION:

• Do not reuse the oil seal.

• When installing, do not incline oil seal.

• Apply multi-purpose grease onto oil seal lips, and gear oil

onto the circumference of the oil seal.

2. Select ring gear bearing adjusting shim (transfer case side) and

ring gear bearing adjusting shim (transfer cover side). Refer to

DLN-85, "Adjustment"

.

3. Assemble the selected ring gear bearing adjusting shim (transfer case side) and ring gear bearing outer

race (transfer case side) to transfer case. Refer to

DLN-92, "Assembly"

.

CAUTION:

• Do not reuse ring gear bearing.

• Apply gear oil to the ring gear bearing.

4. Assemble the selected ring gear bearing adjusting shim (transfer cover side) and ring gear bearing outer

race (transfer cover side) to transfer cover. Refer to

DLN-75, "Assembly"

.

CAUTION:

• Do not reuse ring gear bearing.

• Apply gear oil to the ring gear bearing.

5. Install the ring gear to ring gear shaft, and tighten mounting bolts to the specified torque.

SDIA1807J

Tool number

: (KV381054S0) J-34286

JPDIE0032ZZ

(L)

: 2.0 +0.6/

−0 mm (0.079 +0.024/−0 in)

JSDIA2492ZZ
