Nissan Rogue. Manual - part 392





DLN-12

< SYSTEM DESCRIPTION >

[TRANSFER: TY21C]

STRUCTURE AND OPERATION

STRUCTURE AND OPERATION

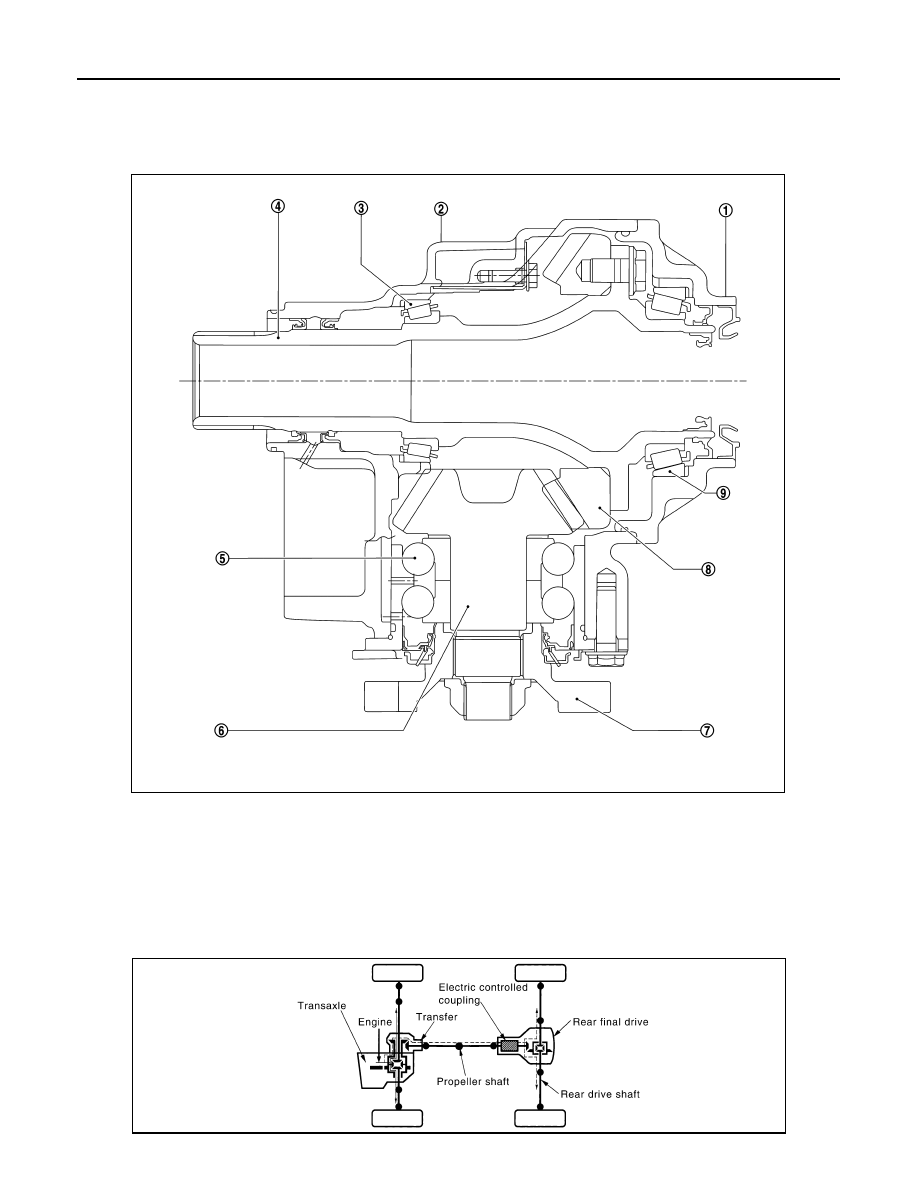

Sectional View

INFOID:0000000011278296

Operation Description

INFOID:0000000011278297

POWER TRANSFER DIAGRAM

1.

Transfer cover

2.

Transfer case

3.

Ring gear bearing (transfer case side)

4.

Ring gear shaft

5.

Pinion bearing

6.

Drive pinion

7.

Companion flange

8.

Ring gear

9.

Ring gear bearing (transfer cover
side)

JSDIA3966ZZ

SDIA1607E

STRUCTURE AND OPERATION

DLN-13

< SYSTEM DESCRIPTION >

[TRANSFER: TY21C]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

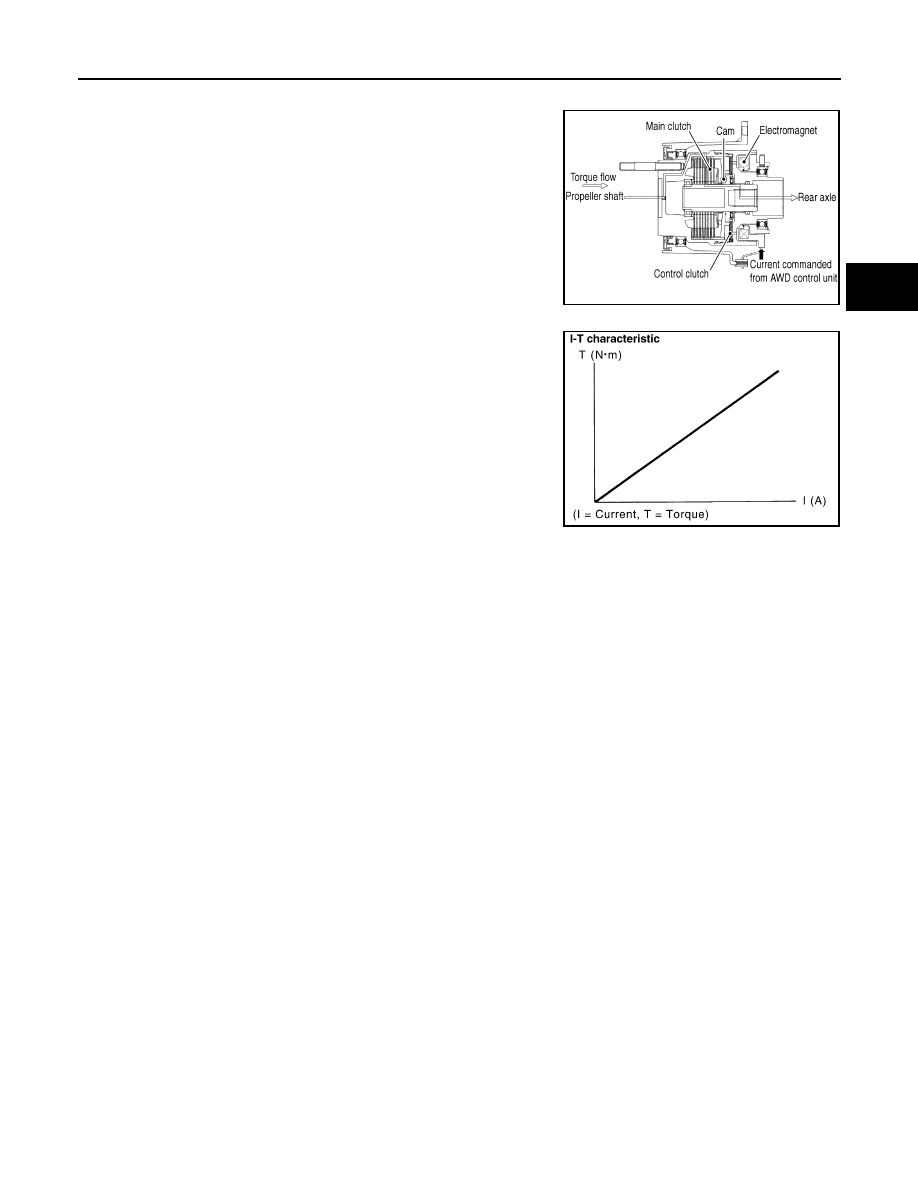

ELECTRIC CONTROLLED COUPLING

1. The AWD control unit supplies command current to electric con-

trolled coupling (AWD solenoid).

2. The control clutch is engaged by electromagnet and torque is

detected in control clutch.

3. The cam operates in response to control clutch torque and

applies pressure to main clutch.

4. The main clutch transmits torque to front wheels according to

pressing power.

• Transmission torque to the rear wheels is determined accord-

ing to command current.

JSDIA3026GB

SDIA1844E

DLN-14

< SYSTEM DESCRIPTION >

[TRANSFER: TY21C]

SYSTEM

SYSTEM

AWD SYSTEM
AWD SYSTEM : System Description

INFOID:0000000011278298

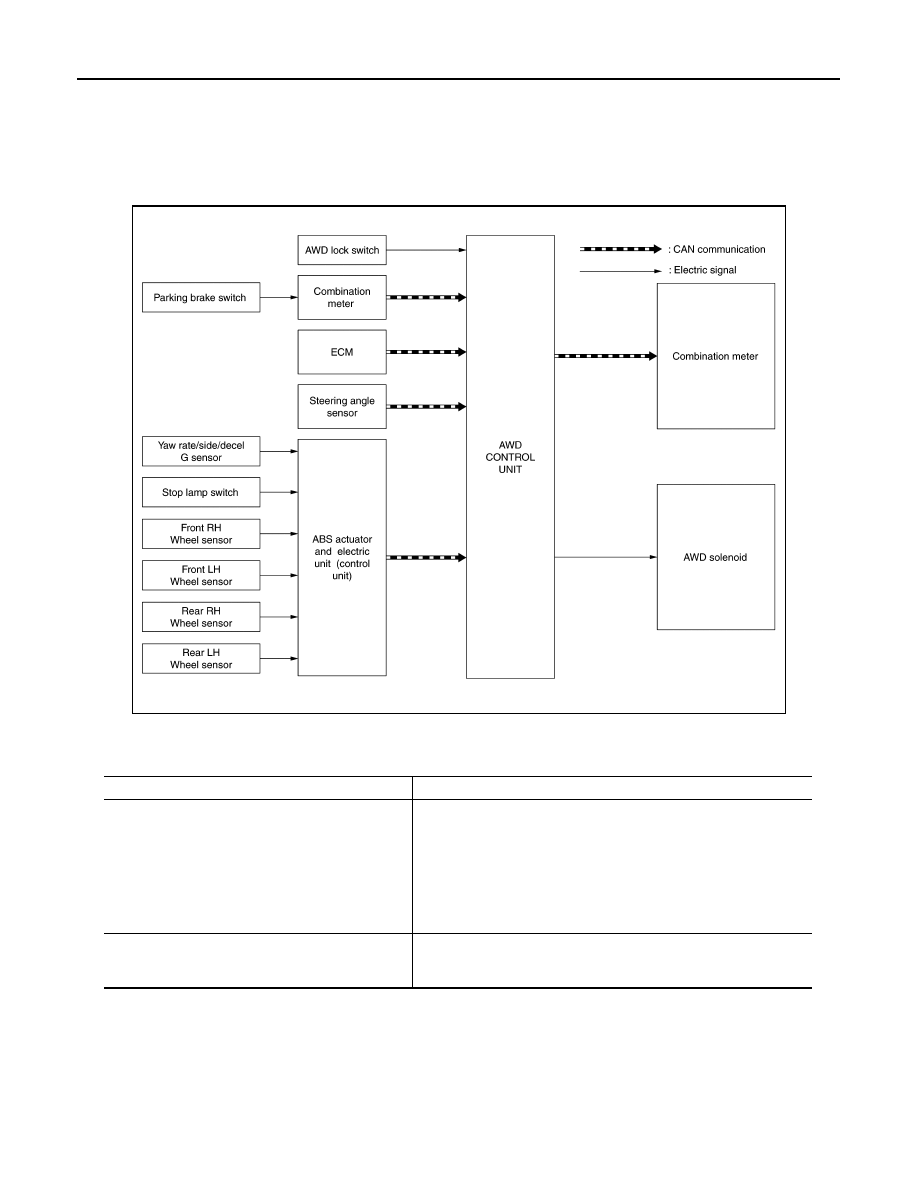

SYSTEM DIAGRAM

Signal with Communication Line

Major signal transmission between each unit via CAN communication lines are shown in the following table.

JSDIA5372GB

Component parts

Signal item

Combination meter

Mainly transmits the following signal to AWD control unit via CAN com-
munication:
• Parking brake switch signal
Mainly receives the following signals from AWD control unit via CAN
communication:
• AWD warning lamp signal
• AWD LOCK indicator lamp signal
• Torque distribution indicator signal

Steering angle sensor

Mainly transmits the following signal to AWD control unit via CAN com-
munication:
• Steering angle sensor signal

SYSTEM

DLN-15

< SYSTEM DESCRIPTION >

[TRANSFER: TY21C]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

DESCRIPTION

• AWD controls distribution of drive power between front-wheel drive (100:0) and 4-wheel drive (50:50) condi-

tions according to signals from sensors.

• By receiving the steering angle sensor signal, yaw rate sensor signal, side G sensor signal and decel G sen-

sor signal, vehicle with VDC corrects a torque distribution for front and rear wheels according to a driving

operation and a behavior of the vehicle during cornering and improves drivability and safety on a slippery

road surface.

• Electronic control allows optimal distribution of torque to front/rear wheels to match road conditions.

• AWD mode makes possible stable driving possible with no wheel spin, on snowy roads or other slippery sur-

faces.

• On roads which do not require 4-wheel drive, it contributes to improved fuel economy by driving in conditions

close to front-wheel drive.

• Sensor inputs determine the vehicle's turning condition, and tight cornering/braking are controlled by distrib-

uting optimum torque to rear wheels.

NOTE:

Light tight-corner braking symptom may occur depending on driving condition. This is not malfunction.

AWD SYSTEM : Fail-Safe

INFOID:0000000011278299

If any malfunction occurs in AWD electrical system, and control unit detects the malfunction, AWD warning on

information display (combination meter) is displayed to indicate system malfunction. And then AWD control

unit controls becomes the fail-safe mode depending on DTC.

AWD SYSTEM : Protection Function

INFOID:0000000011278300

AWD system activates its protection function (shuts down AWD system temporarily) if AWD system detects

high load continuously or the front wheel tire size differs from the rear tire size. (AWD system is automatically

restored if AWD system no longer detects any overload or the tire size difference is eliminated.)

ABS actuator and electric unit (control unit)

Mainly transmits the following signals to AWD control unit via CAN
communication:
• Each wheel speed signal
• Stop lamp switch signal (brake signal)
• Yaw rate sensor signal
• Side G sensor signal
• Decel G sensor signal

ECM

Mainly transmits the following signals to AWD control unit via CAN
communication:
• Accelerator pedal position signal
• Engine speed signal

Component parts

Signal item

DTC

Vehicle condition

•C1201
•C1204
•C1209
•P1804
•P1809

•P1811

•P181F

AWD control changes to front-wheel drive immediately, then AWD control stops, and the vehicle
becomes front-wheel drive.

•C1203
•C1210
•P1808

•P181D

•U1000
•U1010

AWD control changes to front-wheel drive gradually (rear-wheels still have some driving torque),
then AWD control stops, and the vehicle becomes front-wheel drive.

•P181B

No impact to vehicle behavior.
