DLN-8

< PREPARATION >

[TRANSFER: TY21C]

PREPARATION

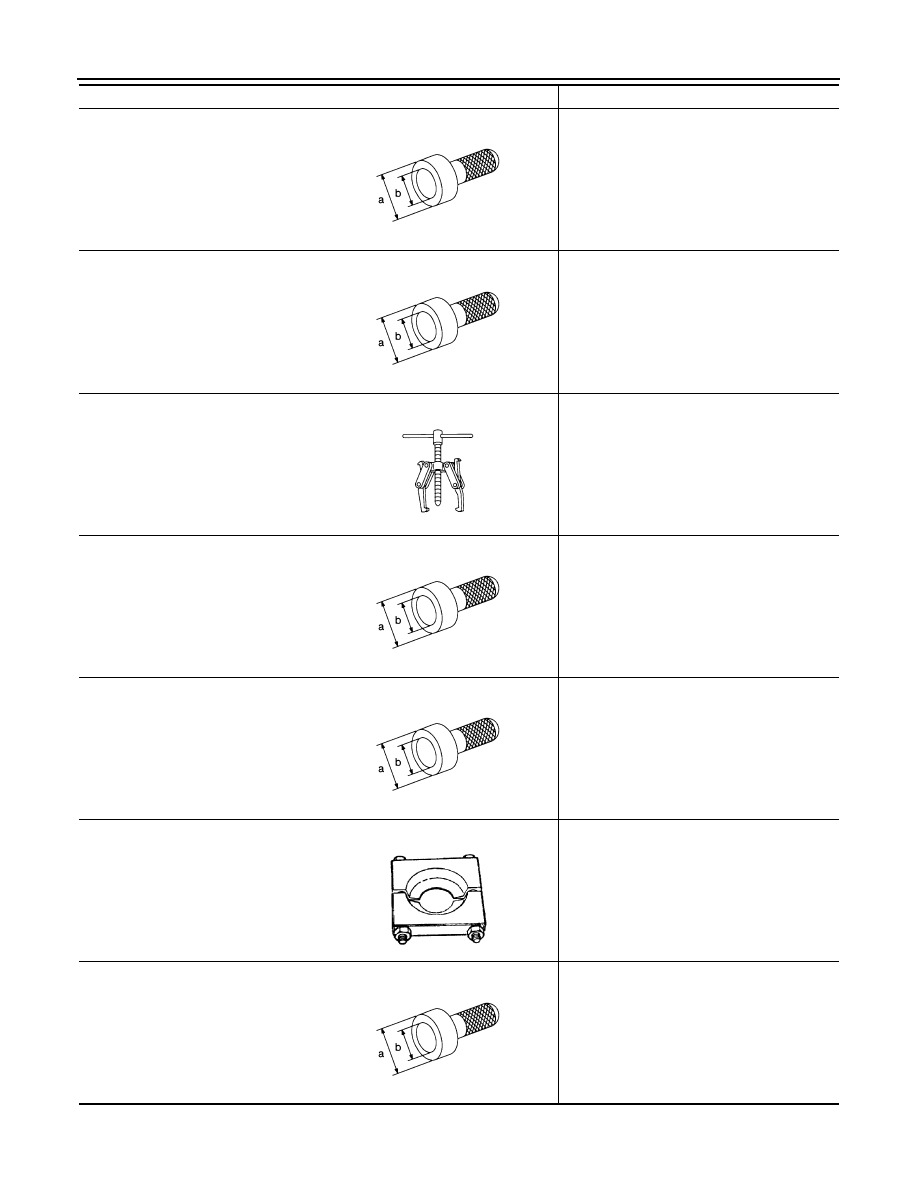

Drift
a: 56.5 mm (2.224 in) dia.
b: 48 mm (1.89 in) dia.

Installing side oil seal (installing transfer case
oil seal)

Drift
a: 44 mm (1.73 in) dia.
b: 33 mm (1.3 in) dia.

Installing ring gear shaft oil seal

Puller

Removing ring gear bearing (left) inner race
(transfer case side)

Drift
a: 70 mm (2.76 in) dia.
b: 60 mm (2.36 in) dia.

Installing oil seal (installing pinion bearing
seal)

Drift
a: 78 mm (3.07 in) dia.
b: 68 mm (2.68 in) dia.

Installing side oil seal (installing transfer cover
oil seal)

Replacer

• Removing drive pinion
• Removing ring gear bearing (left) inner race

(transfer cover side)

Drift
a: 58 mm (2.28 in) dia.
b: 55 mm (2.17 in) dia.

Installing ring gear bearing (left) inner race
(transfer case side)

Tool name

Description

NT115

NT115

NT077

NT115

NT115

ZZA0700D

NT115

PREPARATION

DLN-9

< PREPARATION >

[TRANSFER: TY21C]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

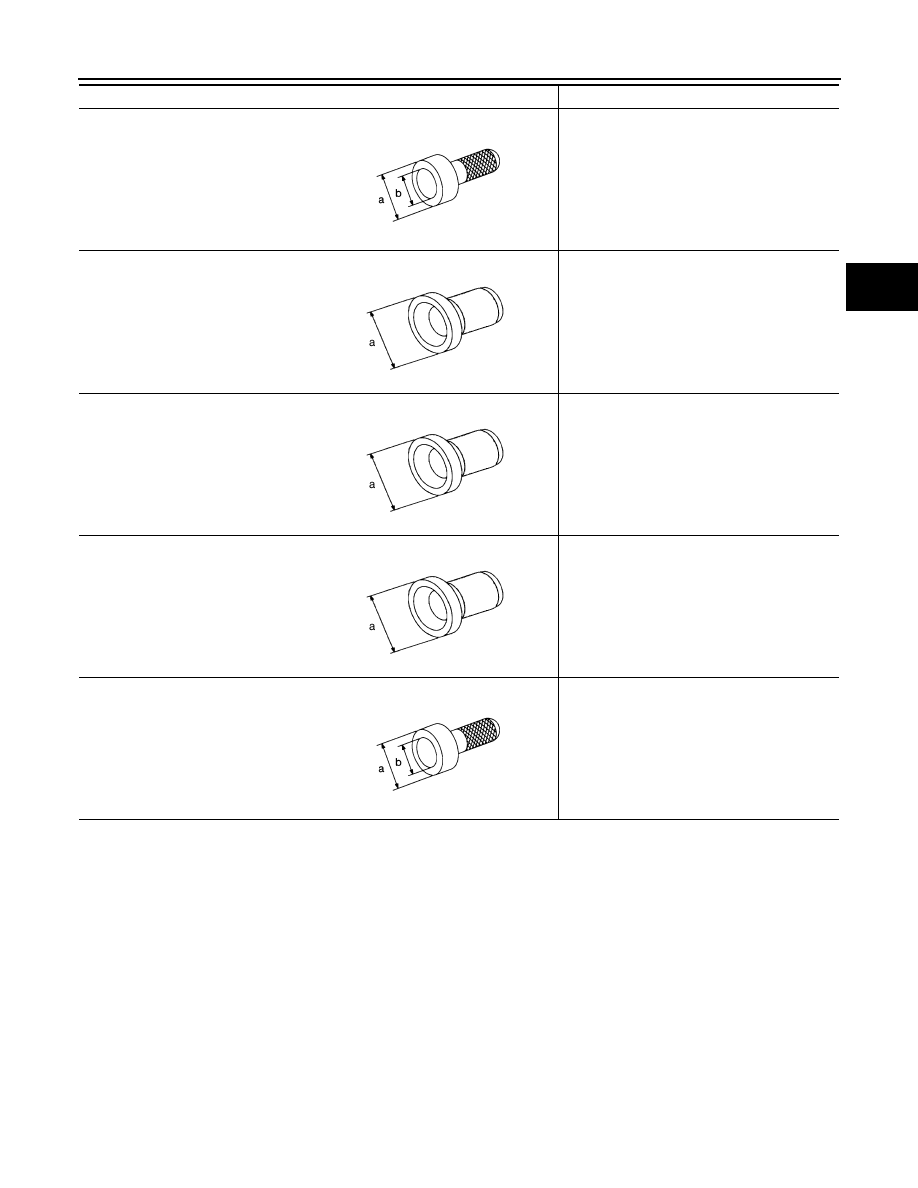

Drift
a: 62 mm (2.44 in) dia.
b: 58 mm (2.28 in) dia.

Installing ring gear bearing (right) inner race
(transfer cover side)

Drift
a: 73.5 mm (2.894 in) dia.

Installing ring gear bearing (left) outer race
(transfer case side)

Drift
a: 87 mm (3.43 in) dia.

Installing ring gear bearing (right) outer race
(transfer cover side)

Drift
a: 20 mm (0.79 in) dia.

Removing drive pinion

Drift
a: 40 mm (1.57 in) dia.
b: 25 mm (0.98 in) dia.

Installing companion flange

Tool name

Description

NT115

SCIA5338E

SCIA5338E

SCIA5338E

NT115

DLN-10

< SYSTEM DESCRIPTION >

[TRANSFER: TY21C]

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

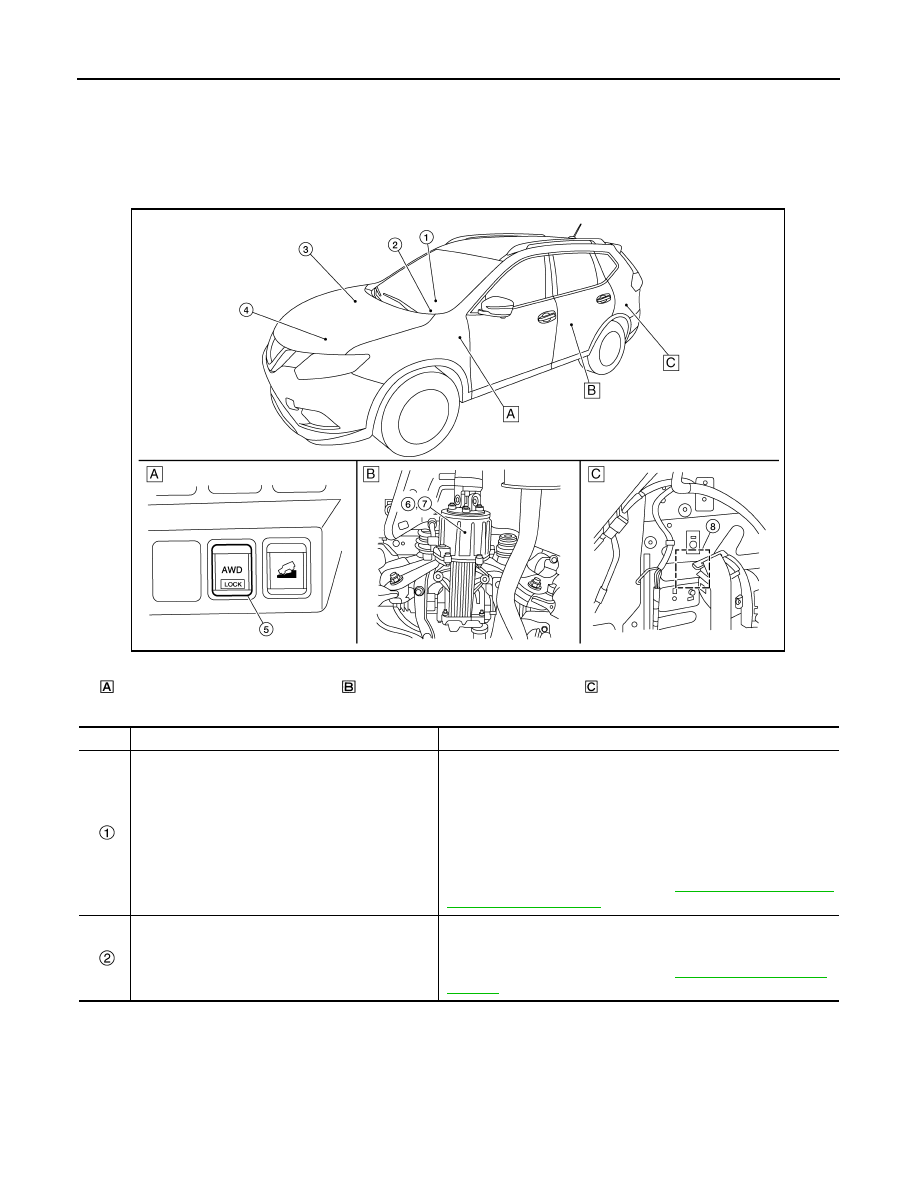

Component Parts Location

INFOID:0000000011278291

Instrument lower panel LH

Rear final drive assembly

Rear wheel house outer panel in lug-
gage room of left side

ALDIA0553ZZ

No.

Component

Function

Combination meter

Mainly transmits the following signal to AWD control unit via CAN com-
munication:
• Parking brake switch signal
Mainly receives the following signals from AWD control unit via CAN
communication:
• AWD warning lamp signal
• AWD LOCK indicator lamp signal
• Torque distribution indicator signal
For detailed installation location, refer to

MWI-6, "METER SYSTEM :

Component Parts Location"

.

Steering angle sensor

Mainly transmits the following signal to AWD control unit via CAN com-
munication:
• Steering angle sensor signal
For detailed installation location, refer to

BRC-7, "Component Parts

Location"

.

COMPONENT PARTS

DLN-11

< SYSTEM DESCRIPTION >

[TRANSFER: TY21C]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

AWD Control Unit

INFOID:0000000011278292

• Controls driving force distribution by signals from each sensor from front wheel driving mode (100:0) to 4-

wheel driving mode (50:50).

• Front wheel driving conditions is available by fail-safe function if malfunction is detected in AWD system.

• AWD actuator relay is integrated with AWD control unit, and supplies AWD solenoid with voltage.

Electric Controlled Coupling

INFOID:0000000011278293

Electric controlled coupling is integrated with rear final drive and transmits driving force to rear final drive. For

operation, refer to

DLN-12, "Operation Description"

.

AWD Solenoid

INFOID:0000000011278294

Controls electric controlled coupling by command current from AWD control unit.

AWD Lock Switch

INFOID:0000000011278295

Every time AWD lock switch is pressed, AUTO mode and LOCK mode switch each other.

ABS actuator and electric unit (control unit)

Mainly transmits the following signals to AWD control unit via CAN
communication:
• Each wheel speed signal
• Stop lamp switch signal (brake signal)
• Yaw rate sensor signal
• Side G sensor signal
• Decel G sensor signal
For detailed installation location, refer to

BRC-7, "Component Parts

Location"

.

ECM

Mainly transmits the following signals to AWD control unit via CAN
communication:
• Accelerator pedal position signal
• Engine speed signal
For detailed installation location, refer to

EC-14,

"Component Parts Location"

.

AWD lock switch

Refer to

DLN-11, "AWD Lock Switch"

.

Electric controlled coupling

Refer to

DLN-11, "Electric Controlled Coupling"

.

AWD solenoid

Refer to

DLN-11, "AWD Solenoid"

.

AWD control unit
• AWD actuator relay

Refer to

DLN-11, "AWD Control Unit"

.

No.

Component

Function
