DOOR LOCK ACTUATOR

NO

>> GO TO 2.

2.

CHECK DOOR LOCK ACTUATOR CIRCUIT

1. Disconnect BCM, all door lock actuator connectors.

2. Check continuity between BCM harness connector and rear door lock actuator LH harness connector.

3. Check continuity between BCM harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness.

3.

CHECK BCM OUTPUT SIGNAL

1. Connect BCM connector.

2. Check voltage between BCM harness connector and ground.

Is the inspection result normal?

YES

>> Replace rear door lock actuator LH. Refer to

DLK-388, "DOOR LOCK : Removal and Installation"

.

NO

>> Replace BCM. Refer to

BCS-135, "Removal and Installation"

.

REAR RH
REAR RH : Component Function Check

INFOID:0000000011279115

1.

CHECK FUNCTION

1. Select “DOOR LOCK” of “BCM” using CONSULT.

2. Select “DOOR LOCK” in “Active Test”.

3. Touch “ALL LOCK” or “ALL UNLK” to check that it works normally.
Is the inspection result normal?

YES

>> Door lock actuator is OK.

NO

>> Refer to

DLK-342, "REAR RH : Diagnosis Procedure"

.

REAR RH : Diagnosis Procedure

INFOID:0000000011279116

Regarding Wiring Diagram information, refer to

DLK-299, "Wiring Diagram"

.

1.

CHECK DOOR LOCK ACTUATOR INPUT SIGNAL

1. Turn ignition switch OFF.

2. Disconnect rear door lock actuator RH connector.

BCM

Rear door lock actuator LH

Continuity

Connector

Terminal

Connector

Terminal

B23

148

D206

2

Yes

149

1

BCM

Ground

Continuity

Connector

Terminal

B23

148

No

149

(+)

(–)

Condition

Voltage

(Approx.)

BCM

Connector

Terminal

B23

148

Ground

Door lock and unlock switch

Unlock

Battery voltage

149

Lock

2015 Rogue NAM

DOOR LOCK ACTUATOR

DLK-343

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

3. Check voltage between rear door lock actuator RH harness connector and ground.

Is the inspection result normal?

YES

>> Replace rear door lock actuator RH. Refer to

DLK-388, "DOOR LOCK : Removal and Installation"

.

NO

>> GO TO 2.

2.

CHECK DOOR LOCK ACTUATOR CIRCUIT

1. Disconnect BCM, all door lock actuator connectors.

2. Check continuity between BCM harness connector and rear door lock actuator RH harness connector.

3. Check continuity between BCM harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness.

3.

CHECK BCM OUTPUT SIGNAL

1. Connect BCM connector.

2. Check voltage between BCM harness connector and ground.

Is the inspection result normal?

YES

>> Replace rear door lock actuator RH. Refer to

DLK-388, "DOOR LOCK : Removal and Installation"

.

NO

>> Replace BCM. Refer to

BCS-135, "Removal and Installation"

.

(+)

(–)

Condition

Voltage

(Approx.)

Rear door lock actuator RH

Connector

Terminal

D306

5

Ground

Door lock and unlock switch

Unlock

Battery voltage

6

Lock

BCM

Rear door lock actuator RH

Continuity

Connector

Terminal

Connector

Terminal

B23

148

D306

6

Yes

149

5

BCM

Ground

Continuity

Connector

Terminal

B23

148

No

149

(+)

(–)

Condition

Voltage

(Approx.)

BCM

Connector

Terminal

B23

148

Ground

Door lock and unlock switch

Unlock

Battery voltage

149

Lock

2015 Rogue NAM

DLK-344

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

KEYFOB BATTERY AND FUNCTION

KEYFOB BATTERY AND FUNCTION

Description

INFOID:0000000011279117

The following functions are available when having and carrying the keyfob:

• Door lock/unlock

• Panic mode (horn and head-lamp operation)

Remote control entry function and panic alarm function are available when operating the remote buttons.

Component Function Check

INFOID:0000000011279118

NOTE:

The Signal Tech II Tool [– (J-50190)] can be used to perform the following functions: Refer to the Signal Tech

II User Guide for additional information.

• Check keyfob relative signal strength

• Confirm vehicle antenna signal strength

1.

CHECK FUNCTION

 With CONSULT

Check remote keyless entry receiver “KEYLESS LOCK”, “KEYLESS UNLOCK”, and “KEYLESS PANIC” in

“Data Monitor”.

Is the inspection result normal?

YES

>> Keyfob is OK.

NO

>> Refer to

DLK-344, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000011279119

NOTE:

The Signal Tech II Tool [- (J-50190)] can be used to perform the following functions: Refer to the Signal Tech II

User Guide for additional information.

• Check keyfob relative signal strength

• Confirm vehicle antenna signal strength

1.

CHECK KEYFOB FUNCTION

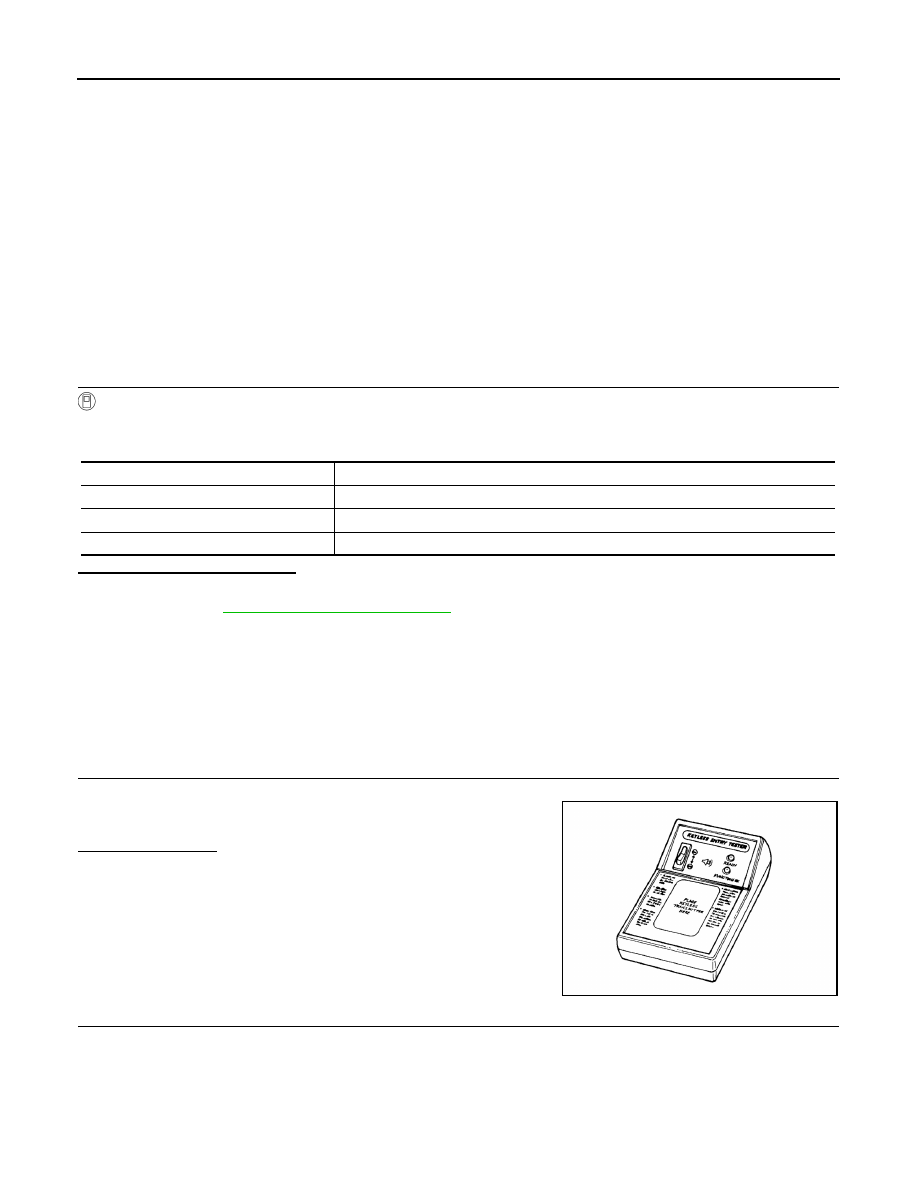

Check keyfob function using Signal Tech II Tool [– (J-50190)] or

Remote Keyless Entry Tester [– (J-43241)] (shown).
Does the test pass?

YES

>> Keyfob is OK.

NO

>> GO TO 2.

2.

CHECK KEYFOB BATTERY

Monitor item

Condition

KEYLESS LOCK

Checks whether value changes from “Off” to “On” when operating keyfob lock button.

KEYLESS UNLOCK

Checks whether value changes from “Off” to “On” when operating keyfob unlock button.

KEYLESS PANIC

Checks whether value changes from “Off” to “On” when operating keyfob panic button.

ALKIA2300ZZ

2015 Rogue NAM

KEYFOB BATTERY AND FUNCTION

DLK-345

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Check by connecting a resistance (approximately 300

Ω) so that the

current value becomes about 10 mA.

Is the measurement value within specification?

YES

>> Keyfob battery is OK.

NO

>> GO TO 3.

3.

 REPLACE KEYFOB BATTERY

1. Replace the keyfob battery with a new one (CR2032 or equivalent).

CAUTION:

• When replacing battery, keep dirt, grease, and other foreign materials off the electrode contact

area.

• Make sure that the + side faces the bottom of the case.

2. Align the tips of the upper and lower parts, and then push them together until it is securely closed.

3. After replacing the battery, check that all keyfob functions work properly.
Is the inspection result normal?

YES

>> Keyfob is OK.

NO

>> Check BCM.

Standard

: Approx. 2.5 - 3.0V

OCC0607D
