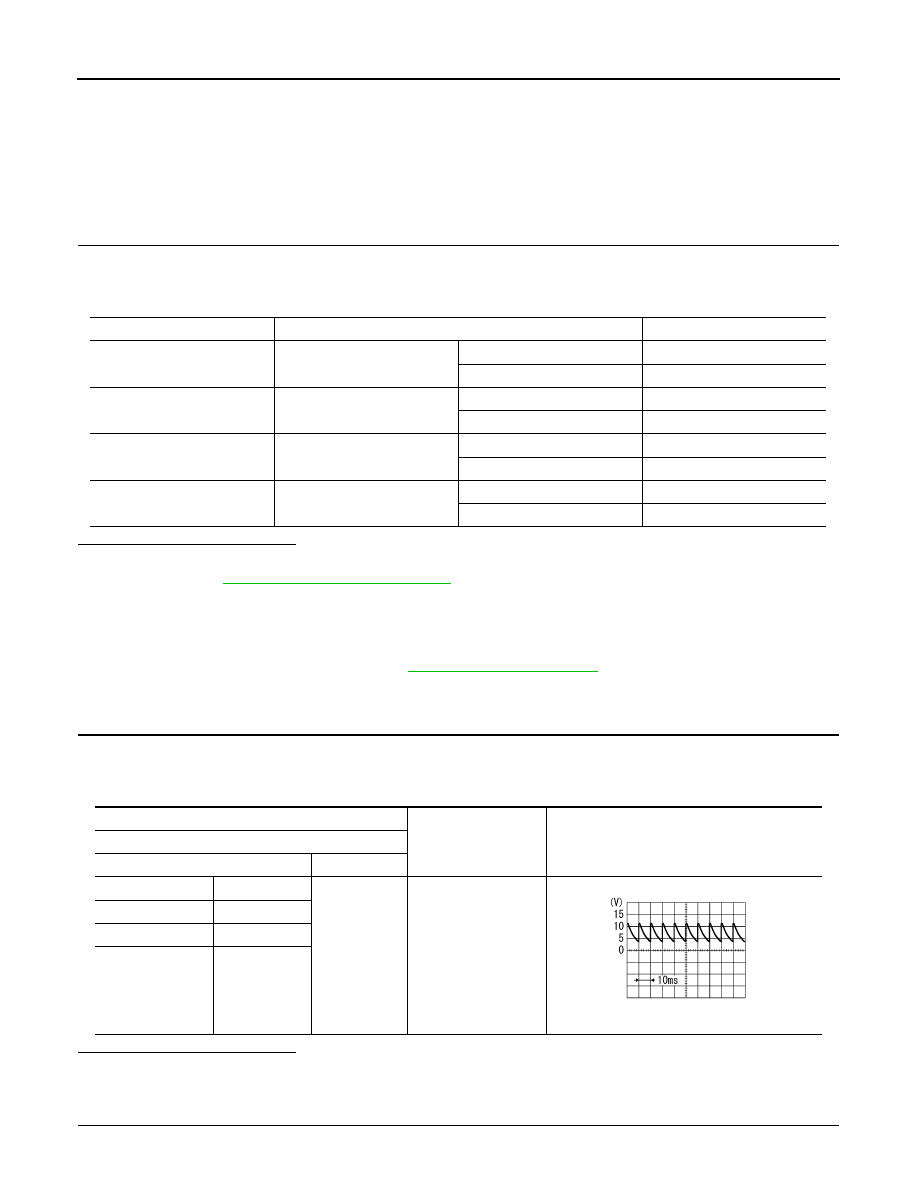

DLK-330

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

DOOR SWITCH

DOOR SWITCH

Description

INFOID:0000000011279094

Detects door open/close condition.

Component Function Check

INFOID:0000000011279095

1.

CHECK FUNCTION

1. Select “DOOR LOCK” of “BCM” using CONSULT.

2. Select “DOOR SW-DR”, “DOOR SW-AS”, “DOOR SW-RL”, “DOOR SW-RR”, in “Data Monitor”.

3. Check that the function operates normally according to the following conditions:

Is the inspection result normal?

YES

>> Door switch is OK.

NO

>> Refer to

DLK-330, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000011279096

Regarding Wiring Diagram information, refer to

DLK-299, "Wiring Diagram"

.

1.

CHECK DOOR SWITCH INPUT SIGNAL

1. Turn ignition switch OFF.

2. Disconnect malfunctioning door switch connector.

3. Check signal between malfunctioning door switch harness connector and ground using oscilloscope.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

CHECK DOOR SWITCH CIRCUIT

1. Disconnect BCM connector.

Monitor item

Condition

Status

DOOR SW-DR

Front door LH

Open

On

Closed

Off

DOOR SW-AS

Front door RH

Open

On

Closed

Off

DOOR SW-RL

Rear door LH

Open

On

Closed

Off

DOOR SW-RR

Rear door RH

Open

On

Closed

Off

(+)

(–)

Signal

(Reference value)

Door switch

Connector

Terminal

Front LH

B71

3

Ground

7.0 - 8.0 V

Front RH

B141

Rear LH

B70

Rear RH

B142

PKIB4960J

2015 Rogue NAM

DOOR SWITCH

DLK-331

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

2. Check continuity between door switch harness connector and BCM harness connector.

3. Check continuity between door switch harness connector and ground.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-135, "Removal and Installation"

.

NO

>> Repair or replace harness.

3.

CHECK DOOR SWITCH

Refer to

DLK-157, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Replace malfunctioning door switch. Refer to

DLK-396, "Removal and Installation"

.

4.

CHECK INTERMITTENT INCIDENT

Refer to

GI-44, "Intermittent Incident"

.

>> Inspection End.

Component Inspection

INFOID:0000000011279097

1.

CHECK DOOR SWITCH

1. Turn ignition switch OFF.

2. Disconnect door switch connector.

3. Check door switch.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Replace malfunctioning door switch. Refer to

DLK-396, "Removal and Installation"

.

Door switch

BCM

Continuity

Connector

Terminal

Connector

Terminal

Front LH

B71

3

B16

57

Yes

Front RH

B141

53

Rear LH

B70

52

Rear RH

B142

50

Door switch

Ground

Continuity

Connector

Terminal

Front LH

B71

3

No

Front RH

B141

Rear LH

B70

Rear RH

B142

Terminal

Door switch condition

Continuity

Door switch

3

Ground part of

door switch

Pressed

No

Released

Yes

2015 Rogue NAM

DLK-332

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

DOOR LOCK AND UNLOCK SWITCH

DOOR LOCK AND UNLOCK SWITCH

DRIVER SIDE
DRIVER SIDE : Description

INFOID:0000000011279098

Transmits door lock/unlock operation to BCM.

DRIVER SIDE : Component Function Check

INFOID:0000000011279099

1.

CHECK FUNCTION

With CONSULT

Check “CDL LOCK SW”, “CDL UNLOCK SW” in “Data Monitor”.

Is the inspection result normal?

YES

>> Door lock and unlock switch is OK.

NO

>> Refer to

DLK-332, "DRIVER SIDE : Diagnosis Procedure"

.

DRIVER SIDE : Diagnosis Procedure

INFOID:0000000011279100

Regarding Wiring Diagram information, refer to

DLK-299, "Wiring Diagram"

.

1.

CHECK POWER WINDOW SWITCH OUTPUT SIGNAL

1. Turn ignition switch ON.

2. Check voltage at the main power window and door lock/unlock switch connector when the switch is turned

to “LOCK” or “UNLOCK”.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> GO TO 2.

2.

CHECK POWER WINDOW SWITCH GROUND

1. Turn ignition switch OFF.

2. Disconnect main power window and door lock/unlock switch connector.

3. Check continuity between main power window and door lock/unlock switch connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness.

3.

CHECK POWER WINDOW SWITCH

Monitor item

Condition

CDL LOCK SW

LOCK

: ON

UNLOCK

: OFF

CDL UNLOCK SW

LOCK

: OFF

UNLOCK

: ON

Connector

Main power window and door lock/unlock

switch state

Terminal

Voltage

(Approx.)

D6

Neutral

→ Unlock

15

Ground

Battery voltage

→ 0

Neutral

→ Lock

3

Main power window and door lock/unlock switch

connector

Terminal

Continuity

D6

1

Ground

Yes

2015 Rogue NAM

DOOR LOCK AND UNLOCK SWITCH

DLK-333

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Check continuity between main power window and door lock/unlock switch terminals.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Replace main power window and door lock/unlock switch. Refer to

PWC-65, "Removal and Instal-

lation"

.

4.

CHECK POWER WINDOW SWITCH CIRCUITS

1. Disconnect BCM connector.

2. Check continuity between BCM connector and main power window and door lock/unlock switch connec-

tor.

3. Check continuity between BCM connector and ground.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair or replace harness.

5.

CHECK INTERMITTENT INCIDENT

Refer to

GI-44, "Intermittent Incident"

.

>> Inspection End.

PASSENGER SIDE
PASSENGER SIDE : Description

INFOID:0000000011279101

Transmits door lock/unlock operation to BCM.

PASSENGER SIDE : Component Function Check

INFOID:0000000011279102

1.

CHECK FUNCTION

With CONSULT

Check “CDL LOCK SW”, “CDL UNLOCK SW” in “Data Monitor”.

Main power window and door lock/unlock switch state

Terminals

Continuity

Unlock

1 - 3

Yes

Lock

1 - 15

Neutral/Unlock

1 - 15

No

Neutral/Lock

1 - 3

BCM connector

Terminal

Main power window and door lock/unlock

switch connector

Terminal

Continuity

 M18

40

D6

15

Yes

10

3

BCM connector

Terminal

Continuity

M18

40

Ground

No

10

Monitor item

Condition

CDL LOCK SW

LOCK

: ON

UNLOCK

: OFF

2015 Rogue NAM
