Nissan Rogue. Manual - part 359





DLK-278

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

INSIDE KEY ANTENNA

INSIDE KEY ANTENNA

INSTRUMENT CENTER
INSTRUMENT CENTER : Removal and Installation

INFOID:0000000011279053

REMOVAL

1. Remove front air control or A/C switch assembly. Refer to

HAC-182, "Removal and Installation"

 (MANUAL

AIR CONDITIONING) or

HAC-102, "Removal and Installation"

 (AUTOMATIC AIR CONDITONING).

2. Disconnect the harness connector from the inside key antenna (instrument center).
3. Release pawls and remove inside key antenna (instrument center).

INSTALLATION

Installation is in the reverse order of removal.

CONSOLE
CONSOLE : Removal and Installation

INFOID:0000000011279054

REMOVAL

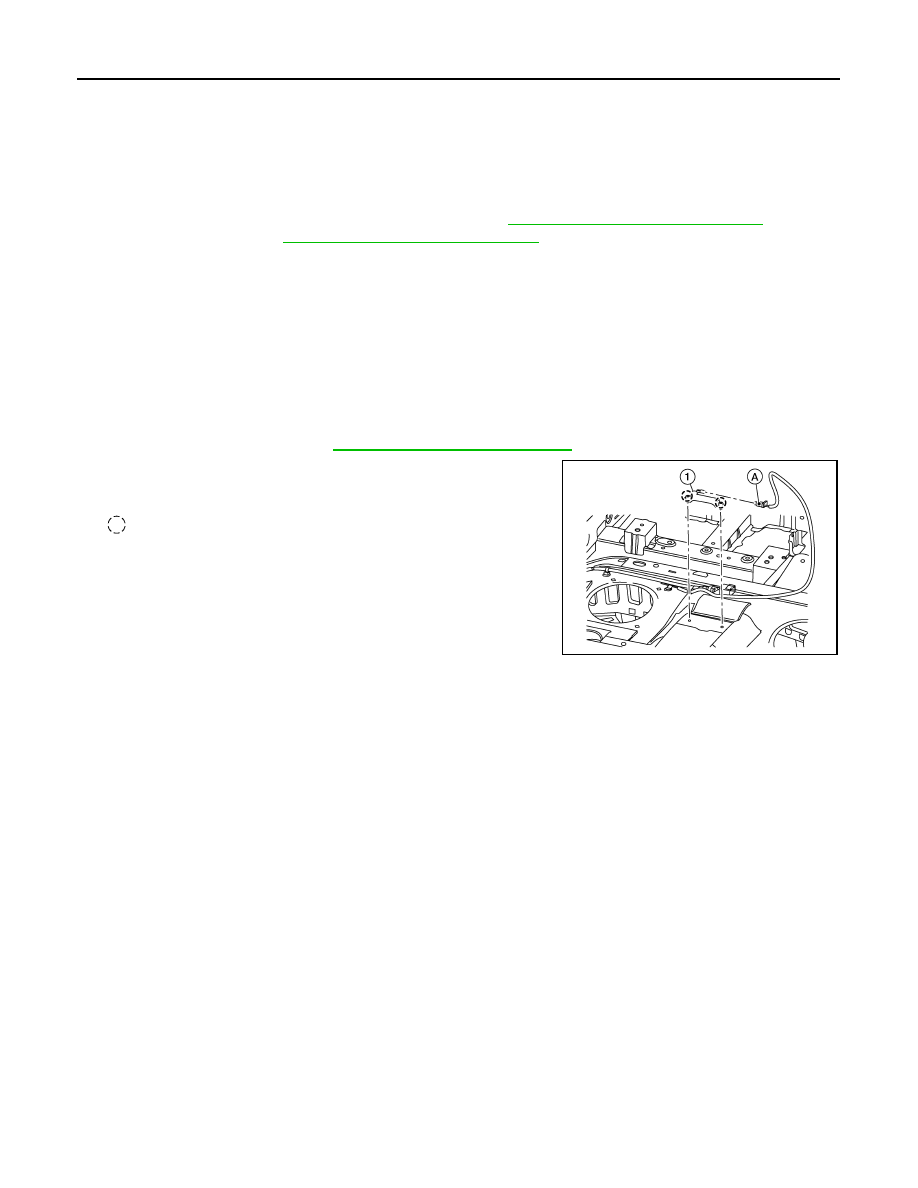

1. Remove rear floor trim. Refer to

INT-26, "Removal and Installation"

.

2. Disconnect the harness connector (A) from the inside key

antenna (console) (1).

3. Release pawls and remove inside key antenna (console).

: Pawl

INSTALLATION

Installation is in the reverse order of removal.

ALKIA3423ZZ

2015 Rogue NAM

OUTSIDE KEY ANTENNA

DLK-279

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

OUTSIDE KEY ANTENNA

DRIVER SIDE
DRIVER SIDE : Removal and Installation

INFOID:0000000011279055

The driver side outside key antenna and driver side outside handle are serviced as an assembly. Refer to

DLK-264, "OUTSIDE HANDLE : Removal and Installation"

.

PASSENGER SIDE
PASSENGER SIDE : Removal and Installation

INFOID:0000000011279056

The passenger side outside key antenna and passenger side outside handle are serviced as an assembly.

Refer to

DLK-264, "OUTSIDE HANDLE : Removal and Installation"

.

REAR BUMPER
REAR BUMPER : Removal and Installation

INFOID:0000000011279057

REMOVAL

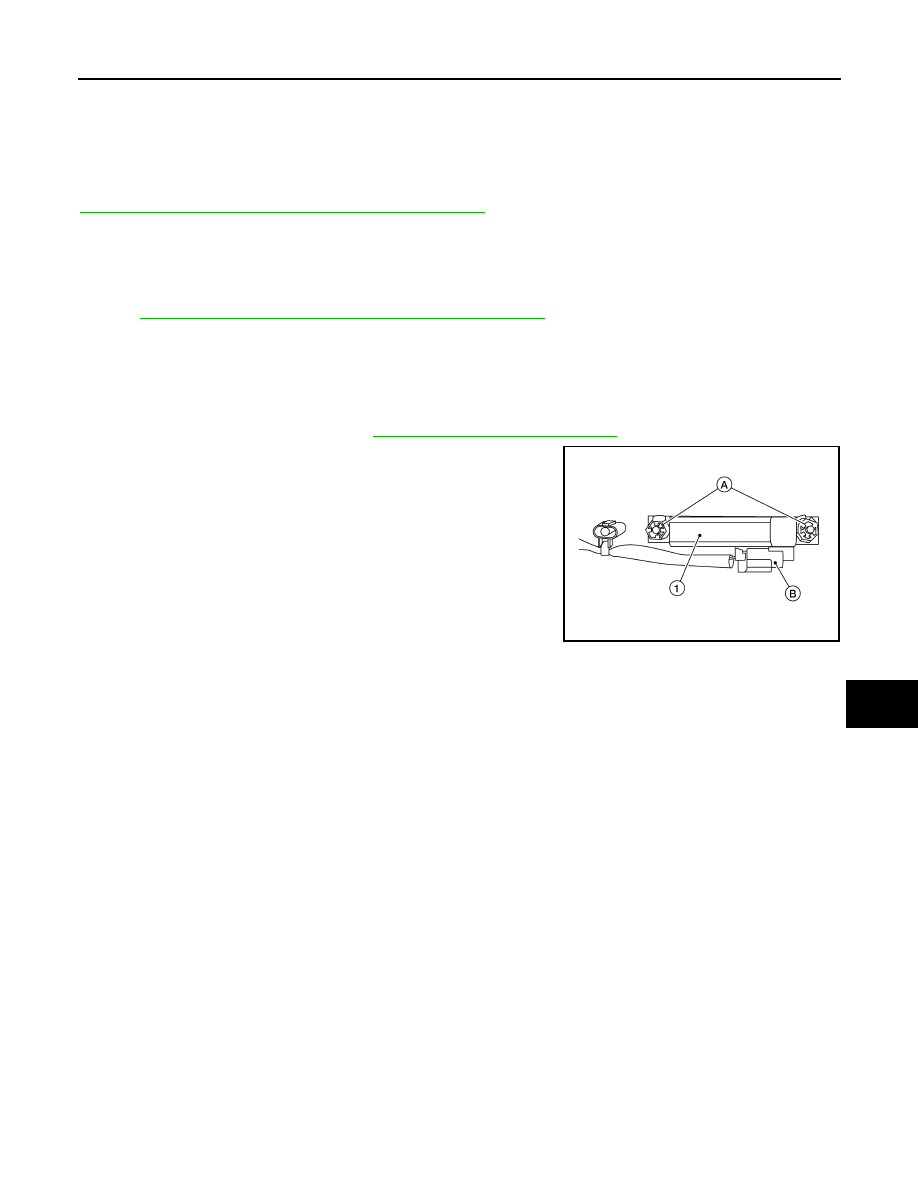

1. Remove rear bumper fascia. Refer to

EXT-20, "Removal and Installation"

.

2. Disconnect the harness connector (B) from the outside key

antenna (rear bumper).

3. Release clips (A) and remove outside key antenna (1).

INSTALLATION

Installation is in the reverse order of removal.

AWKIA2923ZZ

2015 Rogue NAM

DLK-280

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

INTELLIGENT KEY WARNING BUZZER

INTELLIGENT KEY WARNING BUZZER

Removal and Installation

INFOID:0000000011279058

REMOVAL

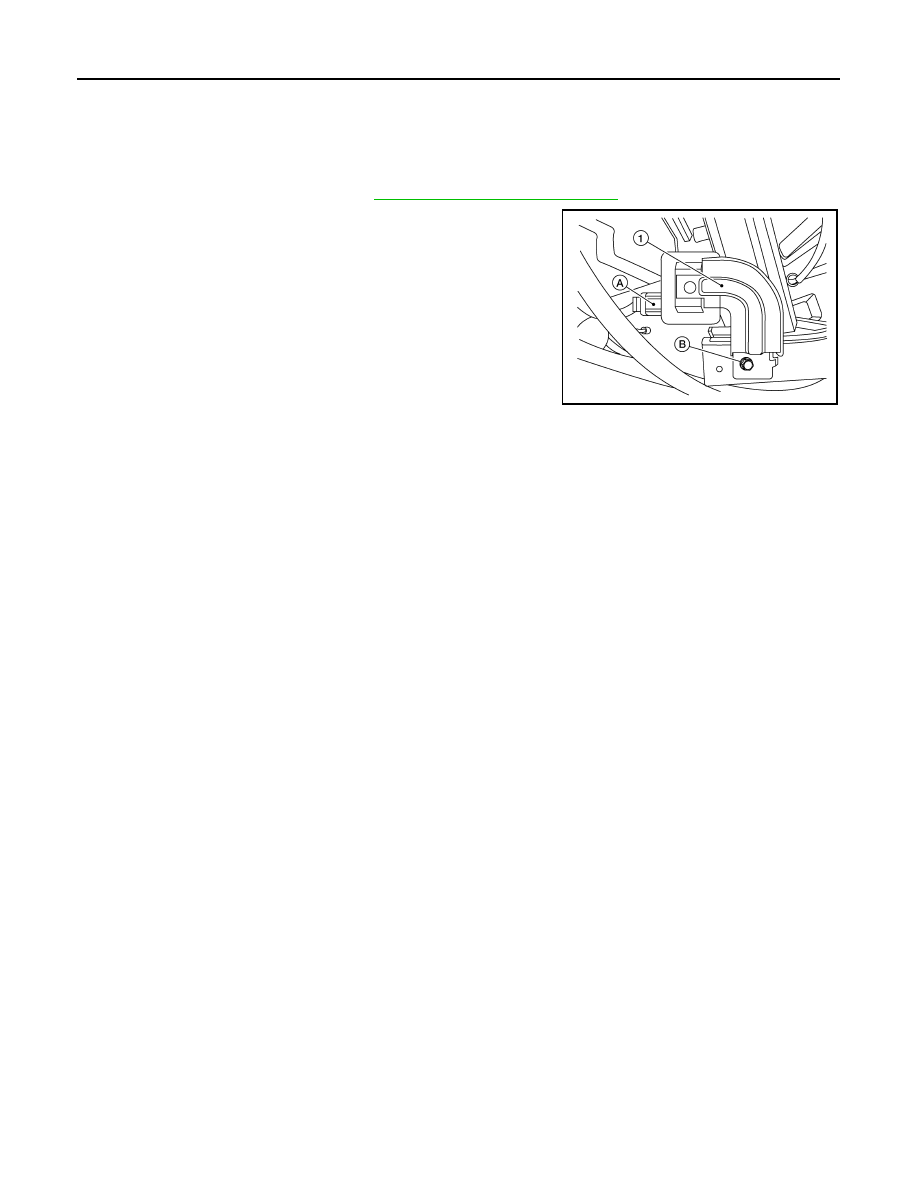

1. Remove front bumper fascia. Refer to

EXT-17, "Removal and Installation"

.

2. Disconnect the harness connector (A) from the Intelligent Key

warning buzzer (1).

3. Remove bolt (B) and Intelligent Key warning buzzer.

INSTALLATION

Installation is in the reverse order of removal.

ALKIA3391ZZ

2015 Rogue NAM

BACK DOOR WARNING CHIME

DLK-281

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

BACK DOOR WARNING CHIME

Removal and Installation

INFOID:0000000011279059

REMOVAL

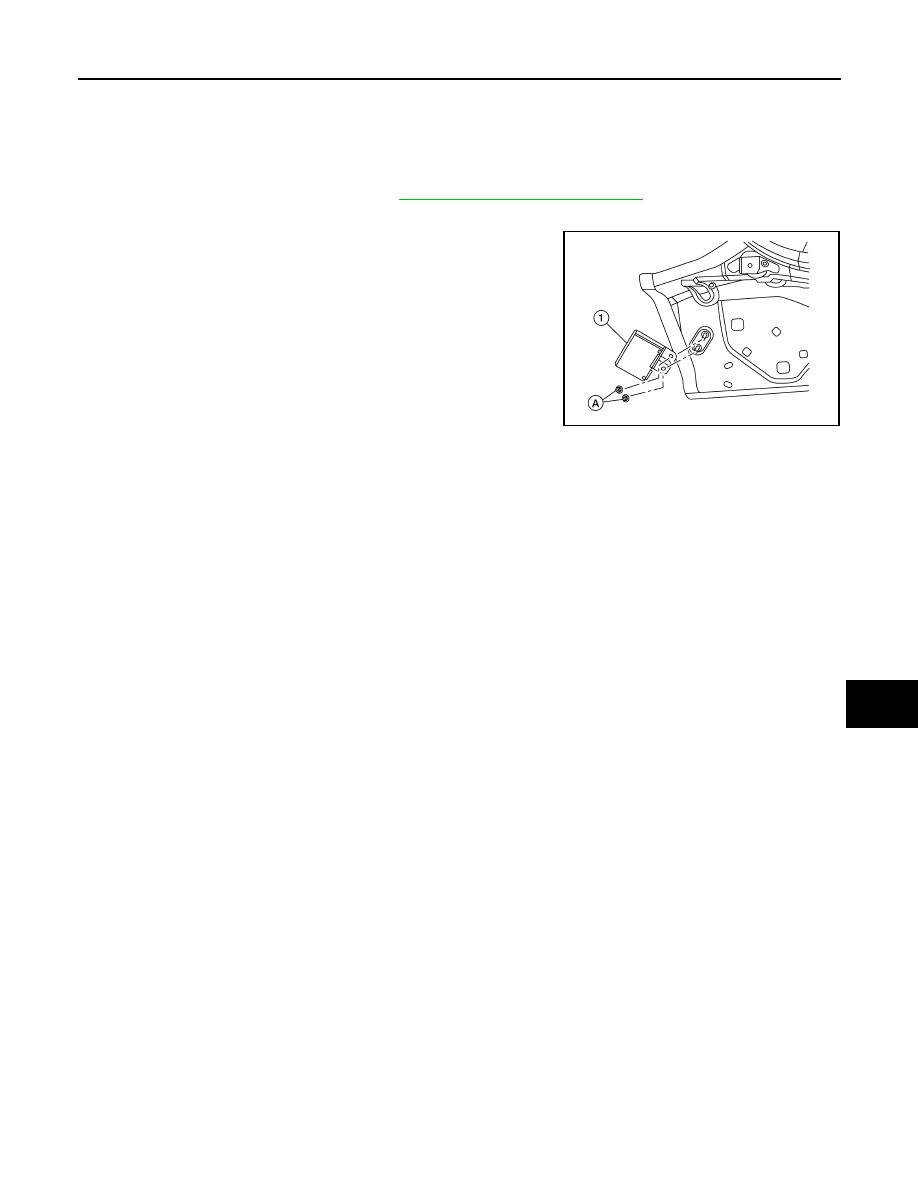

1. Remove the rear bumper fascia. Refer to

EXT-20, "Removal and Installation"

.

2. Disconnect the harness connector from the back door warning chime.
3. Remove nuts (A) and back door warning chime (1).

INSTALLATION

Installation is in the reverse order of removal.

ALKIA3348ZZ

2015 Rogue NAM
