DLK-270

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

BACK DOOR LOCK

BACK DOOR LOCK

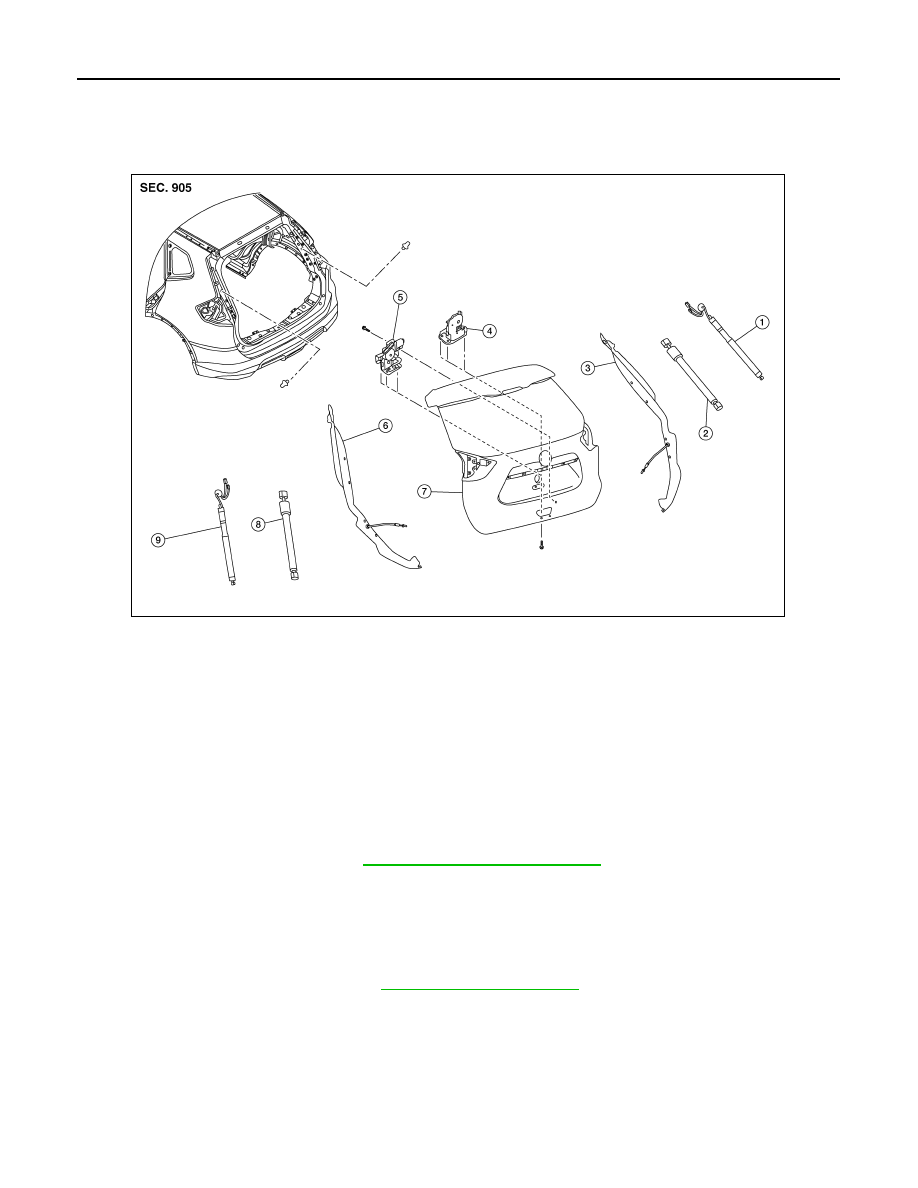

Exploded View

INFOID:0000000011279038

DOOR LOCK
DOOR LOCK : Removal and Installation

INFOID:0000000011279039

REMOVAL

1. Remove back door finisher. Refer to

INT-38, "Removal and Installation"

.

2. Disconnect the harness connector from the back door lock.
3. Remove bolts and back door lock.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Tighten bolts to specification. Refer to

DLK-270, "Exploded View"

.

• After installation, check back door open/close and lock/unlock operation.

SPINDLE UNIT
SPINDLE UNIT : Removal and Installation

INFOID:0000000011279040

REMOVAL

1. Support back door using a suitable tool.

1.

Spindle unit (RH) (with automatic
back door)

2.

Back door stay (RH)

3.

Back door touch sensor (RH) (with
automatic back door)

4.

Back door lock

5.

Back door lock (with automatic back
door)

6.

Back door touch sensor (LH) (with
automatic back door)

7.

Back door

8.

Back door stay (LH)

9.

Spindle unit (LH) (with automatic
back door)

AWKIA2931ZZ

2015 Rogue NAM

BACK DOOR LOCK

DLK-271

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

WARNING:

Bodily injury may occur if the back door is not supported properly when removing the back door

spindle unit.

2. Partially remove headlining (rear edge). Refer to

INT-29, "Exploded View"

.

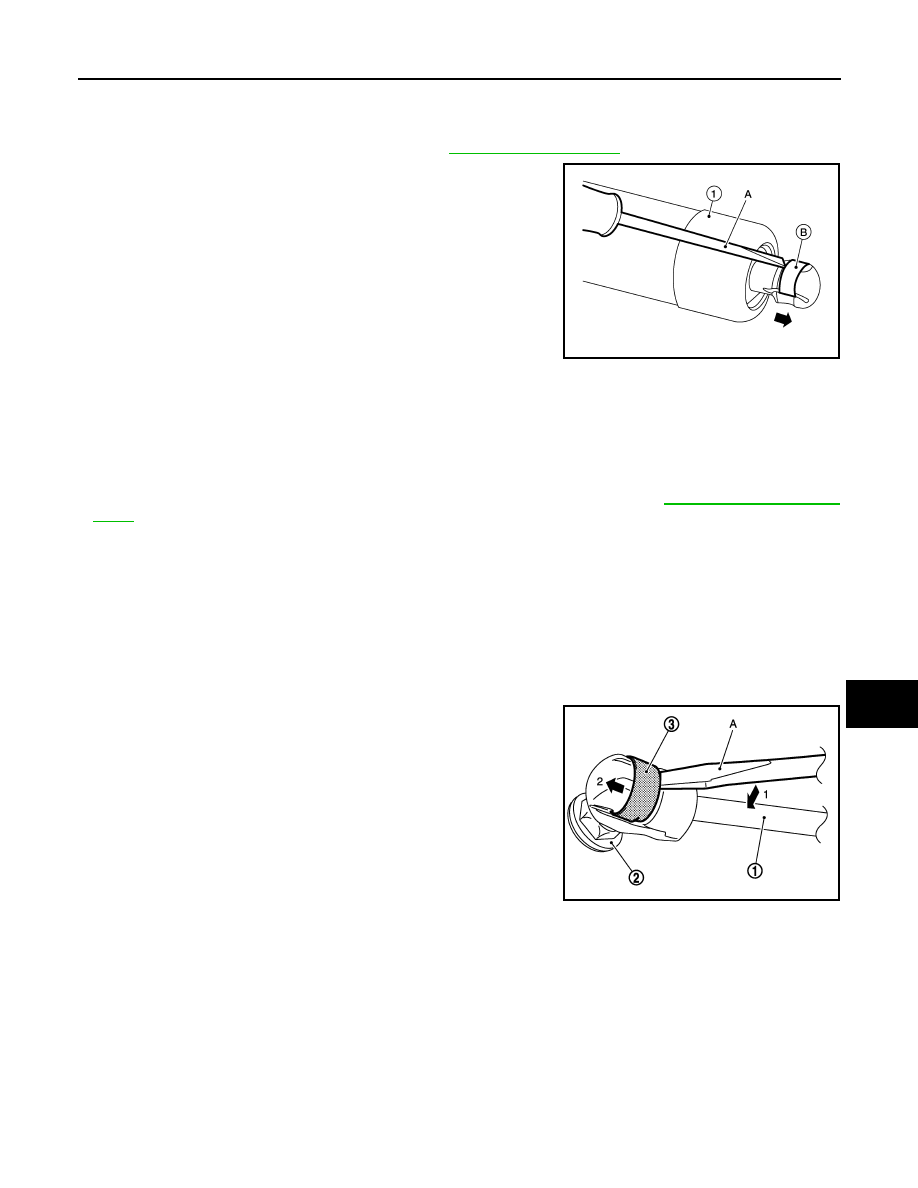

3. Remove ball socket spring (B) from spindle unit (1) using a suit-

able tool (A).

4. Disconnect the harness connector from the spindle unit and remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• When reusing stud ball, always apply locking sealant before installing stud ball to back door.

• After installation, check back door open/close, lock/unlock operation.

• Perform calibration of automatic back door position information. Refer to

DLK-110, "Work Proce-

dure"

.

BACK DOOR STAY
BACK DOOR STAY : Removal and Installation

INFOID:0000000011279041

REMOVAL

1. Support the back door using a suitable tool.

WARNING:

Body injury may occur if no supporting rod is holding the back door open when removing the

back door stay.

2. Release the metal clip (3) located on the connection between

the back door stay (1) and the stud ball (2) (back door side)

using a suitable tool (A).

3. Remove the back door stay (back door side).

4. Repeat procedure for removing back door stay from body side.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

After installation, check the back door open/close operation.

TOUCH SENSOR
TOUCH SENSOR : Removal and Installation

INFOID:0000000011279042

CAUTION:

Use care not to bend touch sensor.

ALKIA3426ZZ

JMKIA2255ZZ

2015 Rogue NAM

DLK-272

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

BACK DOOR LOCK

REMOVAL

1. Release the spindle unit from the stud ball (with power back door).
2. Release the back door stay from the stud ball (without power back door).
3. Release touch sensor clips using a suitable tool.
4. Disconnect the harness connector from the touch sensor and remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

After installation, check back door open/close and lock/unlock operation.

EMERGENCY LEVER
EMERGENCY LEVER : Unlock procedures

INFOID:0000000011279043

UNLOCK PROCEDURES

NOTE:

If back door lock cannot be unlocked due to a malfunction or battery discharge, perform the following proce-

dures to unlock back door assembly.

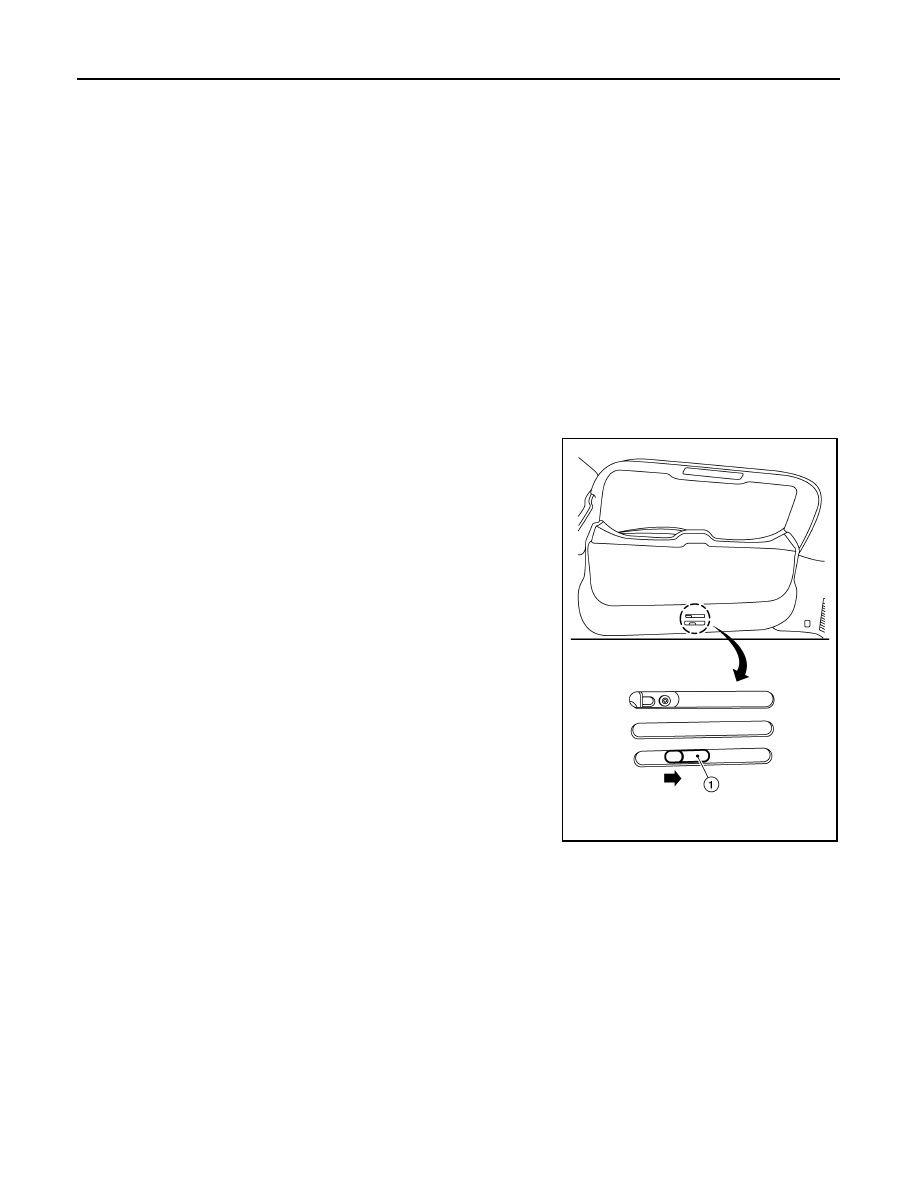

1. From inside the vehicle, rotate emergency lever (1) in the direc-

tion shown to unlock.

AWKIA2921ZZ

2015 Rogue NAM

FUEL FILLER LID OPENER

DLK-273

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

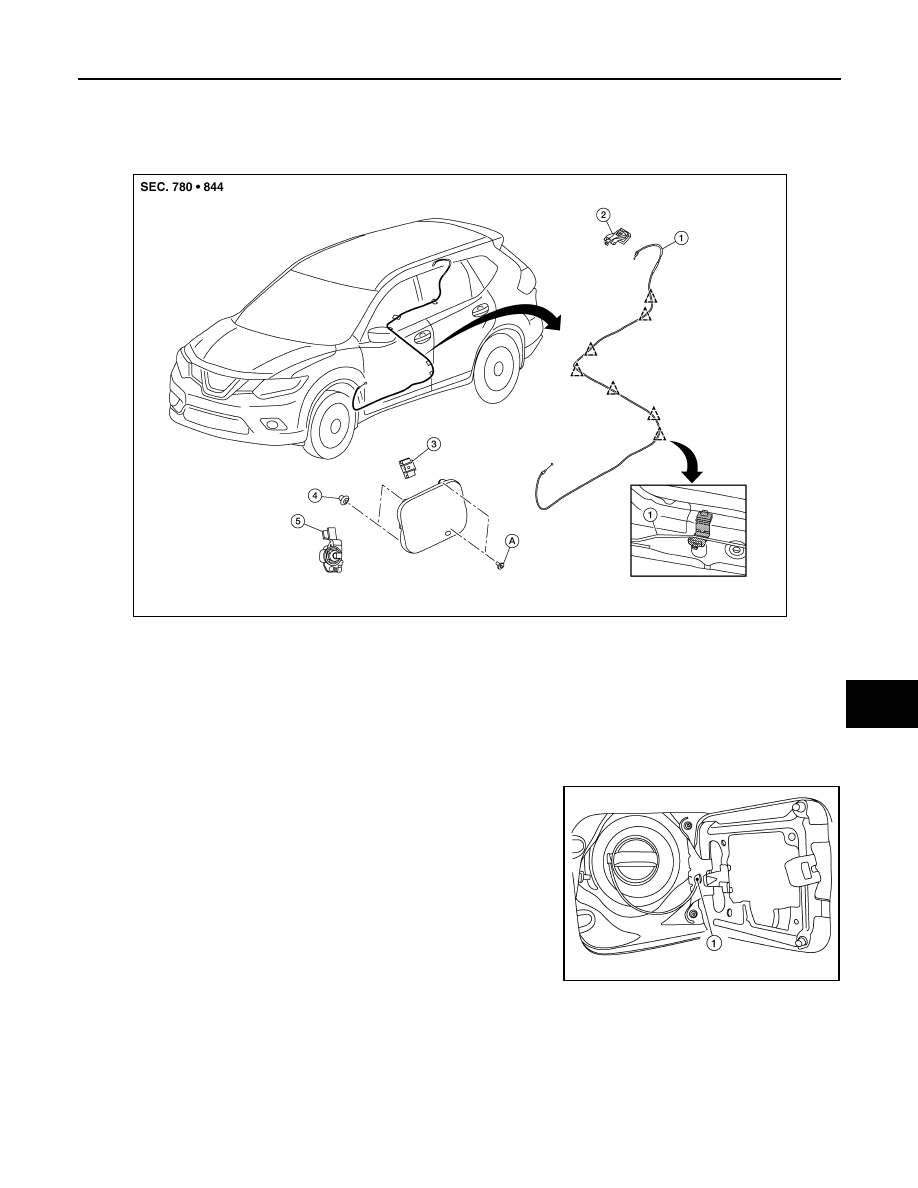

FUEL FILLER LID OPENER

Exploded View

INFOID:0000000011279044

FUEL FILLER LID
FUEL FILLER LID : Removal and Installation

INFOID:0000000011279045

REMOVAL

1. Remove fuel cap pin (1).

1.

Fuel filler lid release cable

2.

Fuel filler lid release handle

3.

Spring

4.

Bumper rubber

5.

Fuel filler lid lock

A.

Screw

AWKIA2922ZZ

ALKIA3416ZZ
