FUEL FILLER LID OPENER

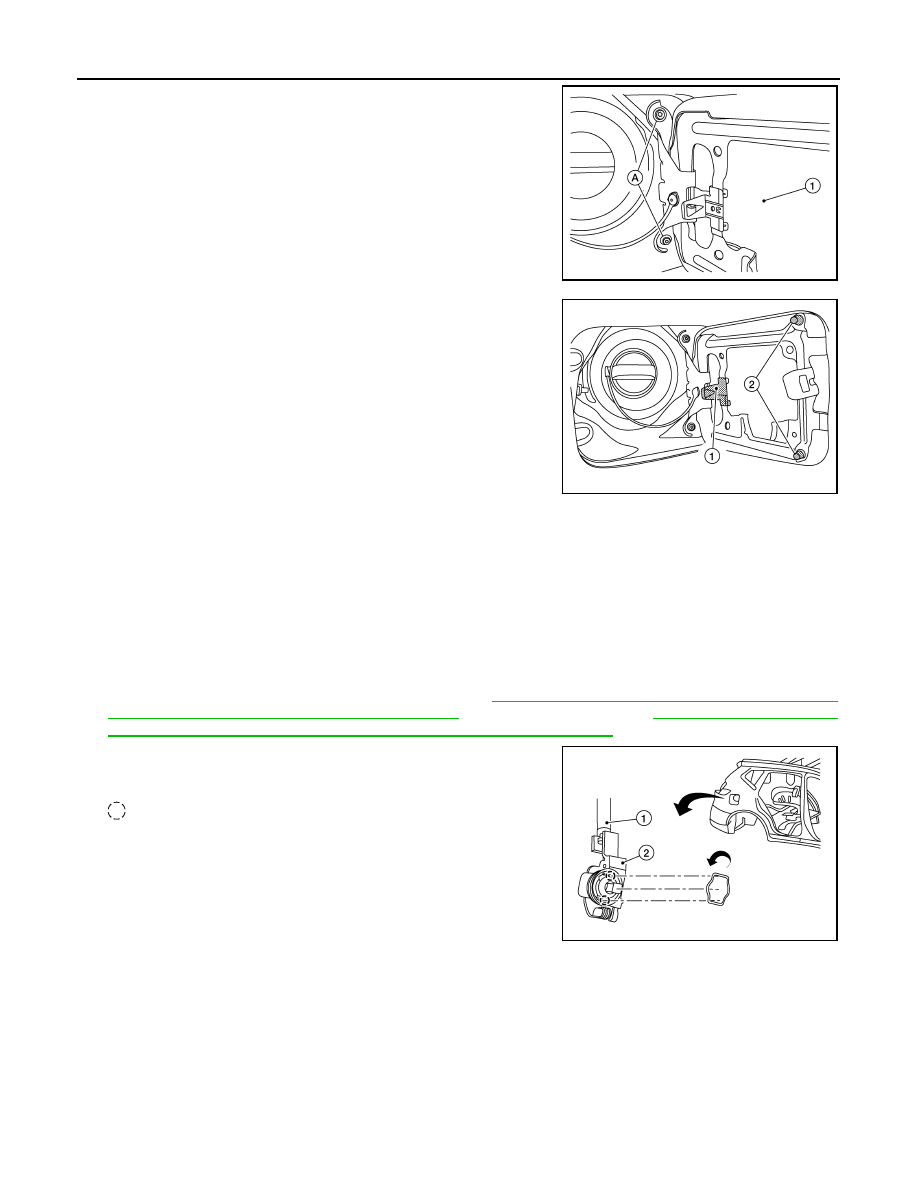

2. Remove screws (2) and fuel filler lid (1).

3. Remove fuel filler lid spring (1) and bumper rubber (2) from fuel

filler lid (if necessary).

INSTALLATION

 Installation is in the reverse order of removal.

CAUTION:

After installation, check fuel filler lid open/close, lock/unlock operation.

FUEL FILLER LID LOCK
FUEL FILLER LID LOCK : Removal and Installation

INFOID:0000000011279046

REMOVAL

1. Remove luggage side lower finisher (RH). Refer to

INT-34, "LUGGAGE SIDE LOWER FINISHER :

Removal and Installation - With Third Row Seat"

 (With Third Row Seat) or

INT-35, "LUGGAGE SIDE

LOWER FINISHER : Removal and Installation - Without Third Row Seat"

 (Without Third Row Seat).

2. Disconnect the fuel filler lid release cable (1) from the fuel filler

lid lock (2).

3. Rotate fuel filler lid lock to release pawls and remove.

: Pawl

INSTALLATION

 Installation is in the reverse order of removal.

CAUTION:

After installation, check fuel filler lid open/close, lock/unlock operation.

FUEL FILLER LID RELEASE CABLE
FUEL FILLER LID RELEASE CABLE : Removal and Installation

INFOID:0000000011279047

REMOVAL

ALKIA3417ZZ

ALKIA3418ZZ

ALKIA3419ZZ

2015 Rogue NAM

FUEL FILLER LID OPENER

DLK-275

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

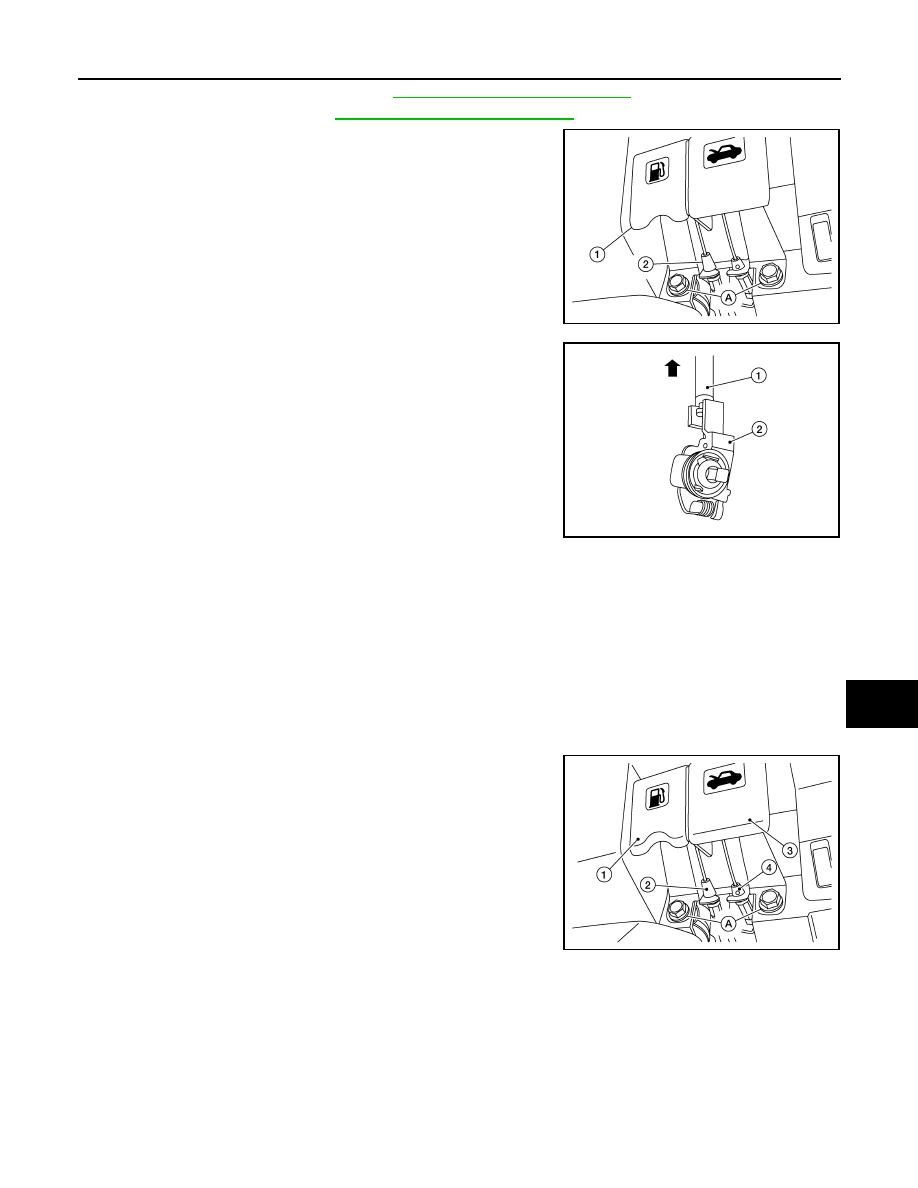

1. Partially remove front floor trim. Refer to

INT-26, "Removal and Installation"

.

2. Remove rear floor trim. Refer to

INT-26, "Removal and Installation"

.

3. Remove the fuel filler lid/hood lock release handle bolts (A)
4. Disconnect the fuel filler lid release cable (2) from fuel filler lid

release handle (1).

5. Disconnect the fuel filler lid release cable (1) from fuel filler lid

lock (2).

6. Release the clips and remove fuel filler lid release cable.

INSTALLATION

 Installation is in the reverse order of removal.

CAUTION:

After installation, check fuel filler lid open/close, lock/unlock operation.

FUEL FILLER LID RELEASE HANDLE
FUEL FILLER LID RELEASE HANDLE : Removal and Installation

INFOID:0000000011279048

REMOVAL

1. Remove fuel filler lid/hood lock release handle bolts (A).
2. Disconnect fuel filler lid release cable (2) from fuel filler lid

release handle (1).

3. Disconnect hood lock release cable (4) from hood lock release

handle (3).

4. Remove fuel filler lid release handle.

INSTALLATION

Installation is in the reverse order of removal.

ALKIA3421ZZ

ALKIA3420ZZ

ALKIA3422ZZ

2015 Rogue NAM

DLK-276

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

DOOR SWITCH

DOOR SWITCH

Removal and Installation

INFOID:0000000011279049

REMOVAL

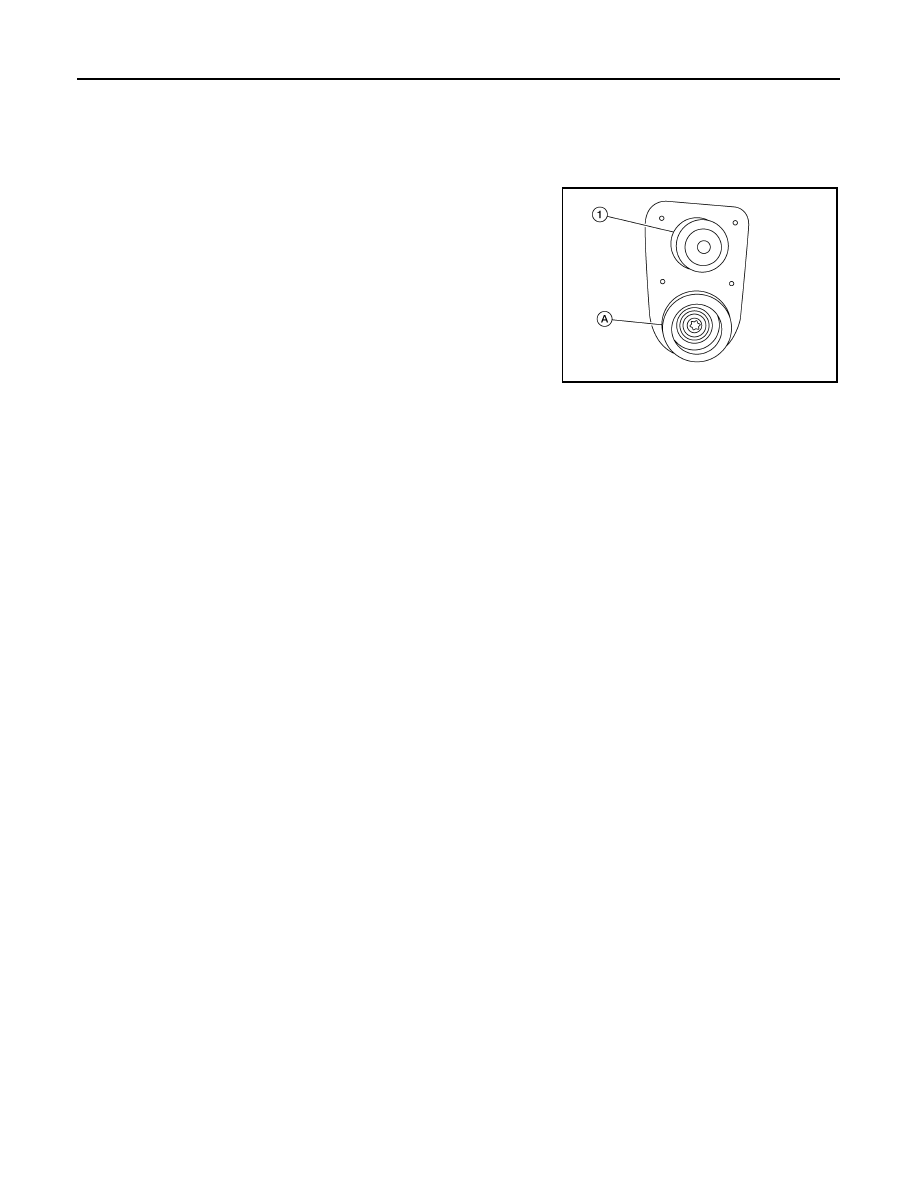

1. Remove the door switch bolt (A).
2. Disconnect the harness connector from the door switch (1) and

remove.

INSTALLATION

Installation is in the reverse order of removal.

ALKIA3351ZZ

2015 Rogue NAM

DOOR REQUEST SWITCH

DLK-277

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

DOOR REQUEST SWITCH

DRIVER SIDE
DRIVER SIDE : Removal and Installation

INFOID:0000000011279050

The driver side door request switch and driver side outside handle are serviced as an assembly. Refer to

DLK-

264, "OUTSIDE HANDLE : Removal and Installation"

.

PASSENGER SIDE
PASSENGER SIDE : Removal and Installation

INFOID:0000000011279051

The passenger side door request switch and passenger side outside handle are serviced as an assembly.

Refer to

DLK-264, "OUTSIDE HANDLE : Removal and Installation"

.

BACK DOOR
BACK DOOR : Removal and Installation

INFOID:0000000011279052

REMOVAL

1. Remove back door finisher. Refer to

INT-38, "Removal and Installation"

.

2. Disconnect the harness connector from the back door request switch.
3. Release pawls and remove back door request switch.

INSTALLATION

Installation is in the reverse order of removal.
