Nissan Rogue. Manual - part 329





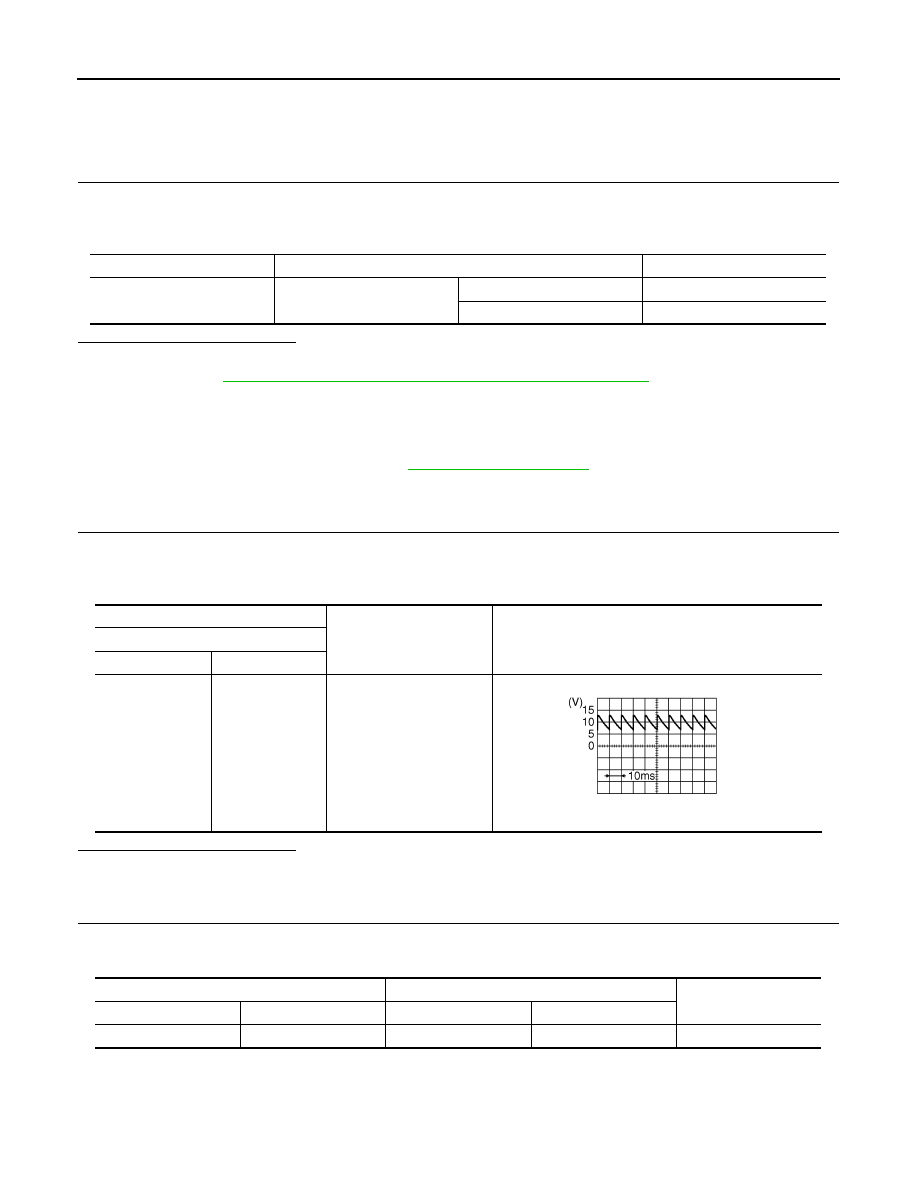

DLK-158

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

BACK DOOR SWITCH

BACK DOOR SWITCH

Component Function Check

INFOID:0000000011278868

1.

CHECK FUNCTION

1. Select “DOOR LOCK” of “BCM” using CONSULT.

2. Select “DOOR SW-BK” in “Data Monitor”.

3. Check that the function operates normally according to the following conditions:

Is the inspection result normal?

YES

>> Door switch is OK.

NO

>> Refer to

DLK-158, "Diagnosis Procedure (With Automatic Back Door)"

.

Diagnosis Procedure (With Automatic Back Door)

INFOID:0000000011278869

Regarding Wiring Diagram information, refer to

DLK-90, "Wiring Diagram"

.

1.

CHECK BACK DOOR SWITCH INPUT SIGNAL

1. Turn ignition switch OFF.

2. Disconnect back door lock assembly connector.

3. Check signal between back door lock assembly harness connector and ground using oscilloscope.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

CHECK BACK DOOR SWITCH CIRCUIT

1. Disconnect BCM connector.

2. Check continuity between back door lock assembly harness connector and BCM harness connector.

3. Check continuity between back door lock assembly harness connector and ground.

Monitor item

Condition

Status

DOOR SW-BK

Back door

Open

On

Closed

Off

(+)

(–)

Signal

(Reference value)

Back door lock assembly

Connector

Terminal

D512

7

Ground

9.0 - 10.0 V

JPMIA0593GB

Back door lock assembly

BCM

Continuity

Connector

Terminal

Connector

Terminal

D512

7

B16

51

Yes

2015 Rogue NAM

BACK DOOR SWITCH

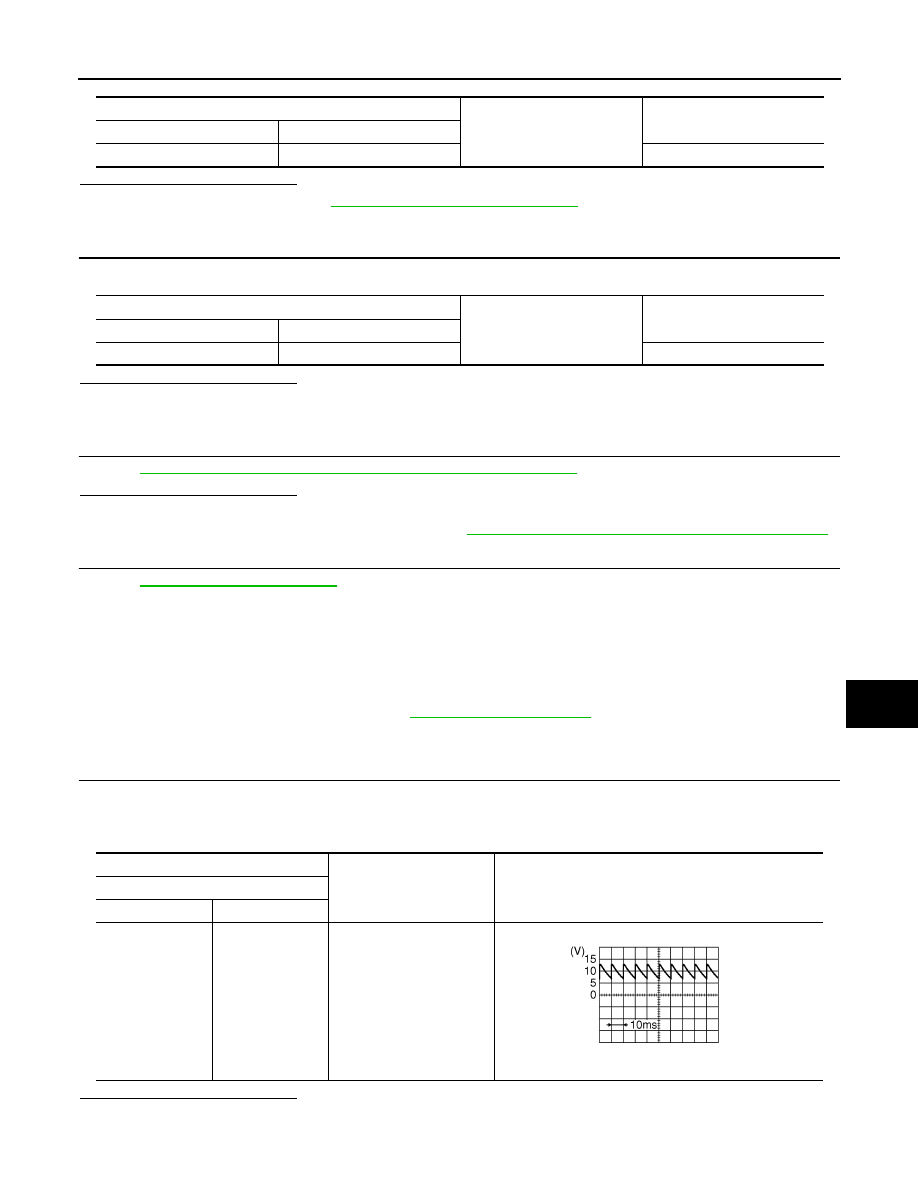

DLK-159

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-75, "Removal and Installation"

.

NO

>> Repair or replace harness.

3.

CHECK BACK DOOR SWITCH GROUND CIRCUIT

Check continuity between back door lock assembly harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace harness.

4.

CHECK BACK DOOR SWITCH

Refer to

DLK-160, "Component Inspection (With Automatic Back Door)"

.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Replace back door lock assembly. Refer to

DLK-270, "DOOR LOCK : Removal and Installation"

.

5.

CHECK INTERMITTENT INCIDENT

Refer to

GI-44, "Intermittent Incident"

.

>> Inspection End.

Diagnosis Procedure (Without Automatic Back Door)

INFOID:0000000011278870

Regarding Wiring Diagram information, refer to

DLK-73, "Wiring Diagram"

.

1.

CHECK BACK DOOR SWITCH INPUT SIGNAL

1. Turn ignition switch OFF.

2. Disconnect back door lock assembly connector.

3. Check signal between back door lock assembly harness connector and ground using oscilloscope.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

Back door lock assembly

Ground

Continuity

Connector

Terminal

D512

7

No

Back door lock assembly

Ground

Continuity

Connector

Terminal

D512

8

Yes

(+)

(–)

Signal

(Reference value)

Back door lock assembly

Connector

Terminal

D508

3

Ground

9.0 - 10.0 V

JPMIA0593GB

2015 Rogue NAM

DLK-160

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

BACK DOOR SWITCH

2.

CHECK BACK DOOR SWITCH CIRCUIT

1. Disconnect BCM connector.

2. Check continuity between back door lock assembly harness connector and BCM harness connector.

3. Check continuity between back door lock assembly harness connector and ground.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-75, "Removal and Installation"

.

NO

>> Repair or replace harness.

3.

CHECK BACK DOOR SWITCH GROUND CIRCUIT

Check continuity between back door lock assembly harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace harness.

4.

CHECK BACK DOOR SWITCH

Refer to

DLK-161, "Component Inspection (Without Automatic Back Door)"

.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Replace back door lock assembly. Refer to

DLK-270, "DOOR LOCK : Removal and Installation"

.

5.

CHECK INTERMITTENT INCIDENT

Refer to

GI-44, "Intermittent Incident"

.

>> Inspection End.

Component Inspection (With Automatic Back Door)

INFOID:0000000011278871

1.

CHECK BACK DOOR SWITCH

1. Turn ignition switch OFF.

2. Disconnect back door lock assembly connector.

3. Check continuity between back door lock assembly terminals.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Replace back door lock assembly. Refer to

DLK-270, "DOOR LOCK : Removal and Installation"

.

Back door lock assembly

BCM

Continuity

Connector

Terminal

Connector

Terminal

D508

3

B16

51

Yes

Back door lock assembly

Ground

Continuity

Connector

Terminal

D508

3

No

Back door lock assembly

Ground

Continuity

Connector

Terminal

D508

4

Yes

Back door lock assembly

Condition

Continuity

Terminal

7

8

Door switch

Pressed

No

Released

Yes

2015 Rogue NAM

BACK DOOR SWITCH

DLK-161

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Component Inspection (Without Automatic Back Door)

INFOID:0000000011278872

1.

CHECK BACK DOOR SWITCH

1. Turn ignition switch OFF.

2. Disconnect back door lock assembly connector.

3. Check continuity between back door lock assembly terminals.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Replace back door lock assembly. Refer to

DLK-270, "DOOR LOCK : Removal and Installation"

.

Back door lock assembly

Condition

Continuity

Terminal

3

4

Door switch

Pressed

No

Released

Yes

2015 Rogue NAM
