OUTSIDE KEY ANTENNA (PASSENGER SIDE)

OUTSIDE KEY ANTENNA (PASSENGER SIDE)

Component Function Check

INFOID:0000000011278859

1.

CHECK OUTSIDE KEY ANTENNA (RH)

1. Place the Intelligent Key into the detection area of the outside key antenna (RH).

2. Press the door request switch (RH).
Does the door unlock?

YES

>> Inspection End.

NO

>> Refer to

DLK-150, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000011278860

Regarding Wiring Diagram information, refer to

DLK-73, "Wiring Diagram"

.

1.

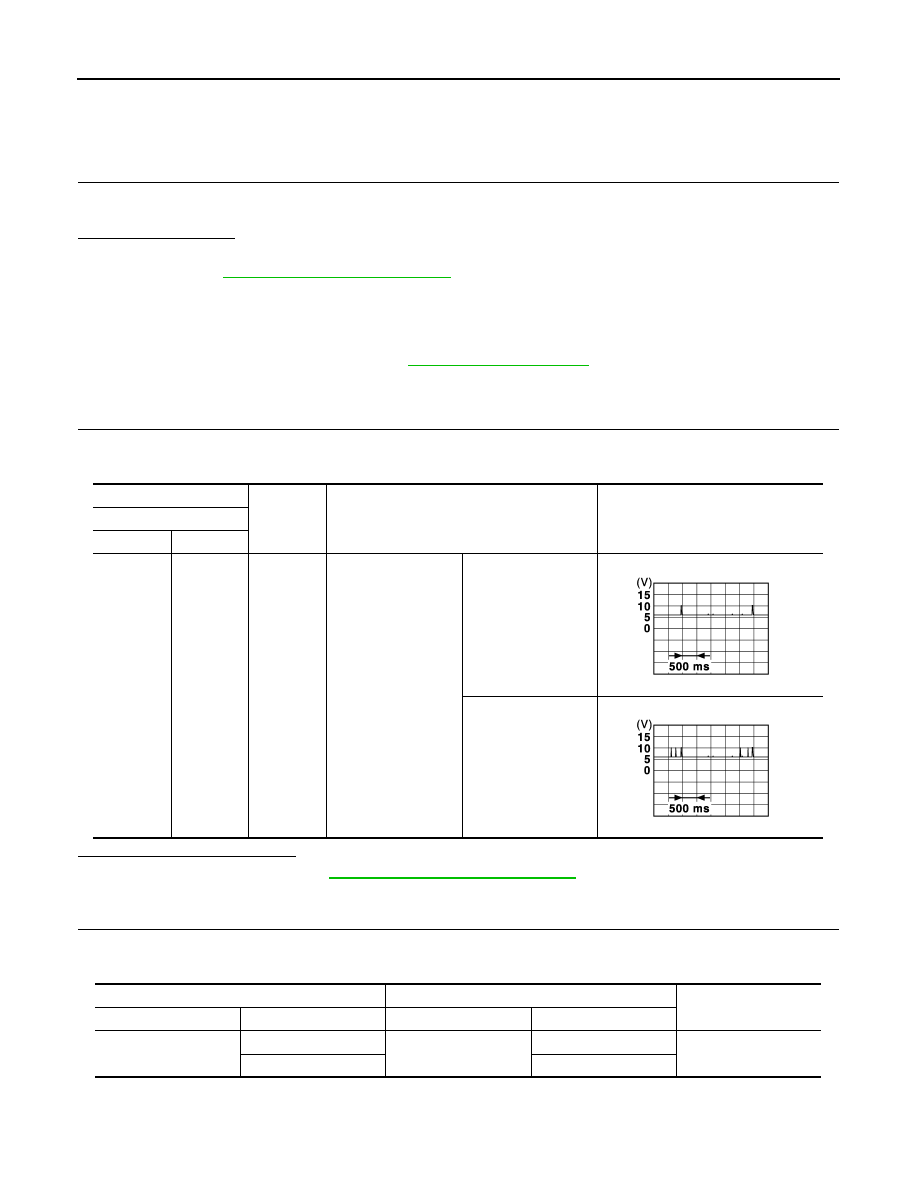

CHECK OUTSIDE KEY ANTENNA INPUT SIGNAL 1

1. Turn ignition switch OFF.

2. Check signal between BCM harness connector and ground using oscilloscope.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-75, "Removal and Installation"

.

NO

>> GO TO 2.

2.

CHECK OUTSIDE KEY ANTENNA CIRCUIT

1. Disconnect BCM connector and outside key antenna (RH) connector.

2. Check continuity between BCM harness connector and outside key antenna (RH) harness connector.

3. Check continuity between BCM harness connector and ground.

(+)

(–)

Condition

Signal

(Reference value)

BCM

Connector

Terminal

M19

118, 119

Ground

When the driver door
request switch is op-
erated with ignition
switch OFF.

When Intelligent Key
is in the antenna de-
tection area. (The dis-
tance between
Intelligent Key and
antenna: 80 cm or
less.)

When Intelligent Key
is not in the antenna
detection area. (The
distance between In-
telligent Key and an-
tenna: Approx. 2 m.)

JMKIA5955GB

JMKIA5954GB

BCM

Outside key antenna (RH)

Continuity

Connector

Terminal

Connector

Terminal

M19

119

D126

1

Yes

118

2

2015 Rogue NAM

OUTSIDE KEY ANTENNA (PASSENGER SIDE)

DLK-151

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness.

3.

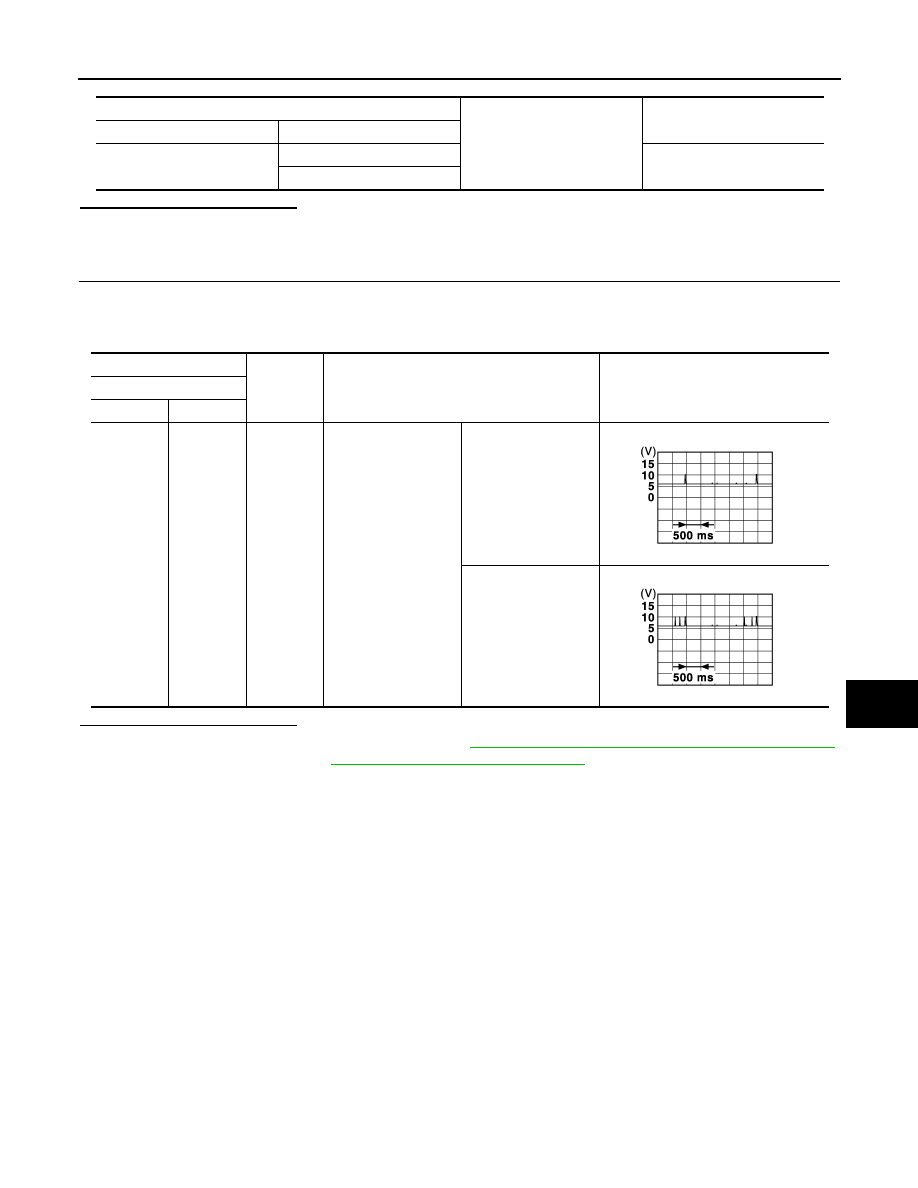

CHECK OUTSIDE KEY ANTENNA INPUT SIGNAL 2

1. Replace outside key antenna (RH). (New antenna or other antenna)

2. Connect BCM connector and outside key antenna (RH) connector.

3. Check signal between BCM harness connector and ground using oscilloscope.

Is the inspection result normal?

YES

>> Replace outside key antenna (RH). Refer to

DLK-279, "PASSENGER SIDE : Removal and Instal-

lation"

.

NO

>> Replace BCM. Refer to

BCS-75, "Removal and Installation"

.

BCM

Ground

Continuity

Connector

Terminal

M19

119

No

118

(+)

(–)

Condition

Signal

(Reference value)

BCM

Connector

Terminal

M19

118, 119

Ground

When the driver door
request switch is op-
erated with ignition
switch OFF.

When Intelligent Key
is in the antenna de-
tection area. (The dis-
tance between
Intelligent Key and
antenna: 80 cm or
less.)

When Intelligent Key
is not in the antenna
detection area. (The
distance between In-
telligent Key and an-
tenna: Approx. 2 m.)

JMKIA5955GB

JMKIA5954GB

2015 Rogue NAM

DLK-152

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

OUTSIDE KEY ANTENNA (DRIVER SIDE)

OUTSIDE KEY ANTENNA (DRIVER SIDE)

Component Function Check

INFOID:0000000011278861

1.

CHECK OUTSIDE KEY ANTENNA (LH)

1. Place the Intelligent Key into the detection area of the outside key antenna (LH).

2. Press the door request switch (LH).
Does the door unlock?

YES

>> Inspection End.

NO

>> Refer to

DLK-152, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000011278862

Regarding Wiring Diagram information, refer to

DLK-73, "Wiring Diagram"

.

1.

CHECK OUTSIDE KEY ANTENNA INPUT SIGNAL 1

1. Turn ignition switch OFF.

2. Check signal between BCM harness connector and ground using oscilloscope.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

DLK-283, "Removal and Installation"

.

NO

>> GO TO 2.

2.

CHECK OUTSIDE KEY ANTENNA CIRCUIT

1. Disconnect BCM connector and outside key antenna (LH) connector.

2. Check continuity between BCM harness connector and outside key antenna (LH) harness connector.

3. Check continuity between BCM harness connector and ground.

(+)

(–)

Condition

Signal

(Reference value)

BCM

Connector

Terminal

M19

100, 120

Ground

When the driver door
request switch is oper-
ated with ignition
switch OFF.

When Intelligent Key
is in the antenna de-
tection area. (The dis-
tance between
Intelligent Key and an-
tenna: 80 cm or less.)

When Intelligent Key
is not in the antenna
detection area. (The
distance between In-
telligent Key and an-
tenna: Approx. 2 m.)

JMKIA5955GB

JMKIA5954GB

BCM

Outside key antenna (LH)

Continuity

Connector

Terminal

Connector

Terminal

M19

100

D11

1

Yes

120

2

2015 Rogue NAM

OUTSIDE KEY ANTENNA (DRIVER SIDE)

DLK-153

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness.

3.

CHECK OUTSIDE KEY ANTENNA INPUT SIGNAL 2

1. Replace outside key antenna (LH). (New antenna or other antenna)

2. Connect BCM connector and outside key antenna (LH) connector.

3. Check signal between BCM harness connector and ground using oscilloscope.

Is the inspection result normal?

YES

>> Replace outside key antenna (LH). Refer to

DLK-279, "DRIVER SIDE : Removal and Installation"

.

NO

>> Replace BCM. Refer to

DLK-283, "Removal and Installation"

.

BCM

Ground

Continuity

Connector

Terminal

M19

100

No

120

(+)

(–)

Condition

Signal

(Reference value)

BCM

Connector

Terminal

M19

100, 120

Ground

When the driver door
request switch is oper-
ated with ignition
switch OFF.

When Intelligent Key
is in the antenna de-
tection area. (The dis-
tance between
Intelligent Key and an-
tenna: 80 cm or less.)

When Intelligent Key
is not in the antenna
detection area. (The
distance between In-
telligent Key and an-
tenna: Approx. 2 m.)

JMKIA5955GB

JMKIA5954GB
