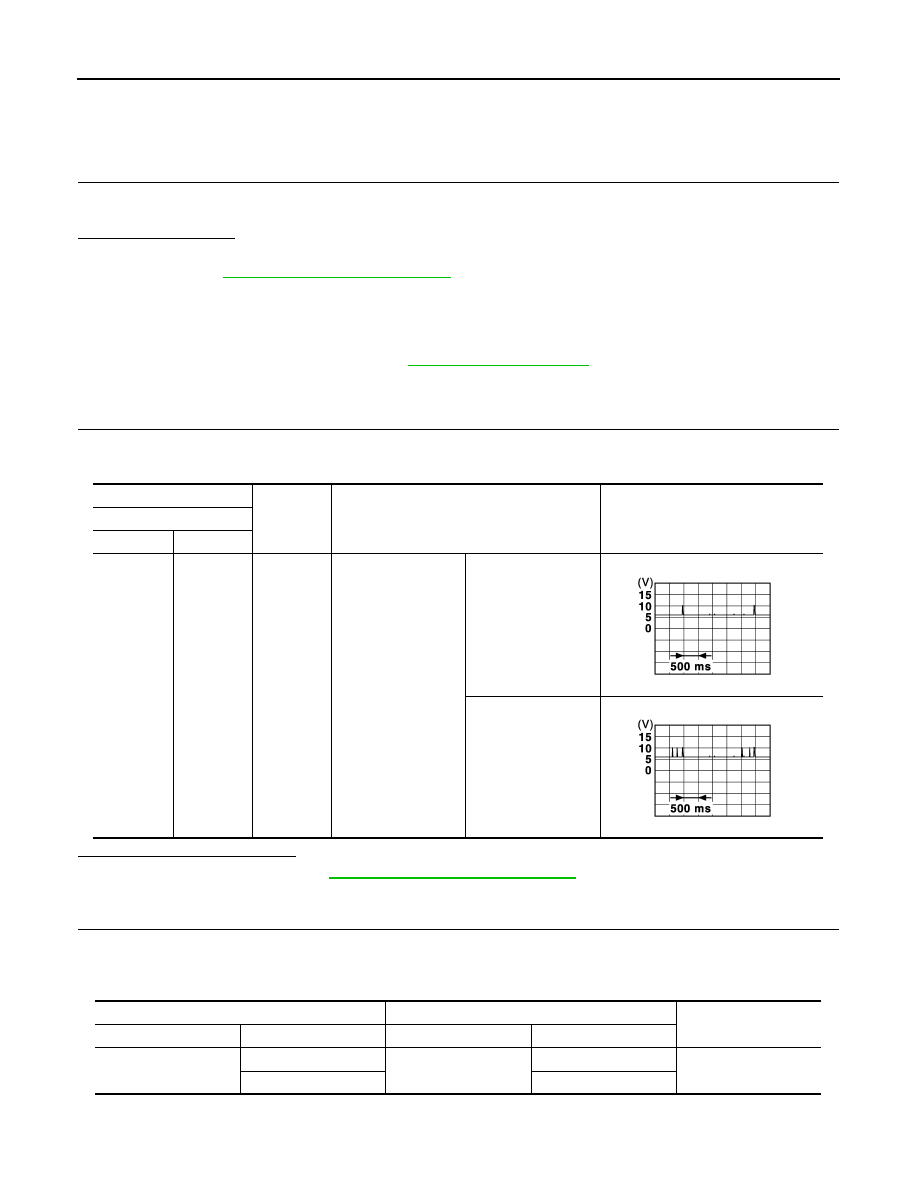

DLK-154

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

OUTSIDE KEY ANTENNA (REAR BUMPER)

OUTSIDE KEY ANTENNA (REAR BUMPER)

Component Function Check

INFOID:0000000011278863

1.

CHECK OUTSIDE KEY ANTENNA (REAR BUMPER)

1. Place the Intelligent Key into the detection area of the outside key antenna (rear bumper).

2. Press the door request switch (back door).
Does the door unlock?

YES

>> Inspection End.

NO

>> Refer to

DLK-154, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000011278864

Regarding Wiring Diagram information, refer to

DLK-73, "Wiring Diagram"

.

1.

CHECK OUTSIDE KEY ANTENNA INPUT SIGNAL 1

1. Turn ignition switch OFF.

2. Check signal between BCM harness connector and ground using oscilloscope.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-75, "Removal and Installation"

.

NO

>> GO TO 2.

2.

CHECK OUTSIDE KEY ANTENNA CIRCUIT

1. Disconnect BCM connector and outside key antenna (rear bumper) connector.

2. Check continuity between BCM harness connector and outside key antenna (rear bumper) harness con-

nector.

3. Check continuity between BCM harness connector and ground.

(+)

(–)

Condition

Signal

(Reference value)

BCM

Connector

Terminal

B16

61, 64

Ground

When the driver door
request switch is op-
erated with ignition
switch OFF.

When Intelligent Key
is in the antenna de-
tection area. (The dis-
tance between
Intelligent Key and
antenna: 80 cm or
less.)

When Intelligent Key
is not in the antenna
detection area. (The
distance between In-
telligent Key and an-
tenna: Approx. 2 m.)

JMKIA5955GB

JMKIA5954GB

BCM

Outside key antenna (rear bumper)

Continuity

Connector

Terminal

Connector

Terminal

B16

64

B76

1

Yes

61

2

2015 Rogue NAM

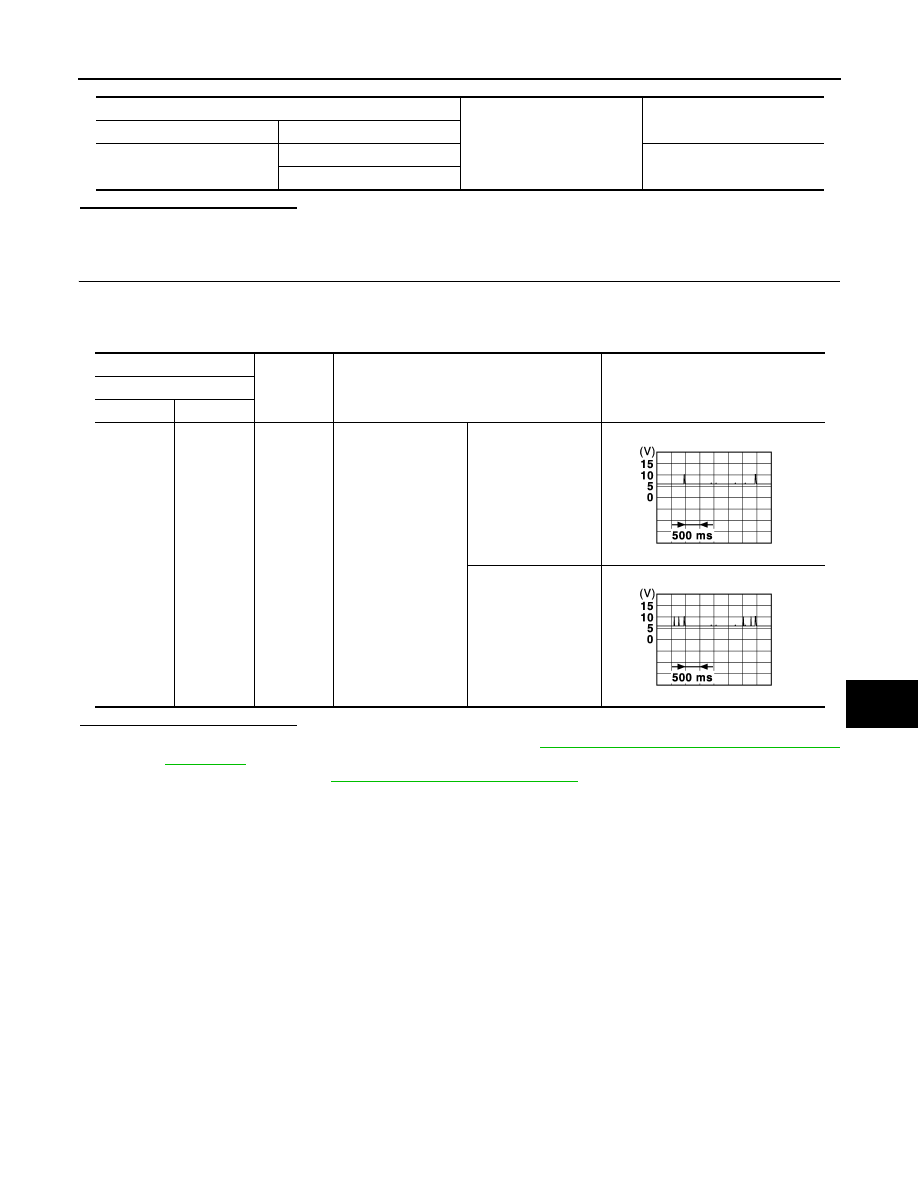

OUTSIDE KEY ANTENNA (REAR BUMPER)

DLK-155

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness.

3.

CHECK OUTSIDE KEY ANTENNA INPUT SIGNAL 2

1. Replace outside key antenna (rear bumper). (New antenna or other antenna)

2. Connect BCM and outside key antenna (rear bumper) connector.

3. Check signal between BCM harness connector and ground using oscilloscope.

Is the inspection result normal?

YES

>> Replace outside key antenna (rear bumper). Refer to

DLK-279, "REAR BUMPER : Removal and

Installation"

.

NO

>> Replace BCM. Refer to

BCS-75, "Removal and Installation"

.

BCM

Ground

Continuity

Connector

Terminal

B16

64

No

61

(+)

(–)

Condition

Signal

(Reference value)

BCM

Connector

Terminal

B16

61, 64

Ground

When the driver door
request switch is op-
erated with ignition
switch OFF.

When Intelligent Key
is in the antenna de-
tection area. (The dis-
tance between
Intelligent Key and
antenna: 80 cm or
less.)

When Intelligent Key
is not in the antenna
detection area. (The
distance between In-
telligent Key and an-
tenna: Approx. 2 m.)

JMKIA5955GB

JMKIA5954GB

2015 Rogue NAM

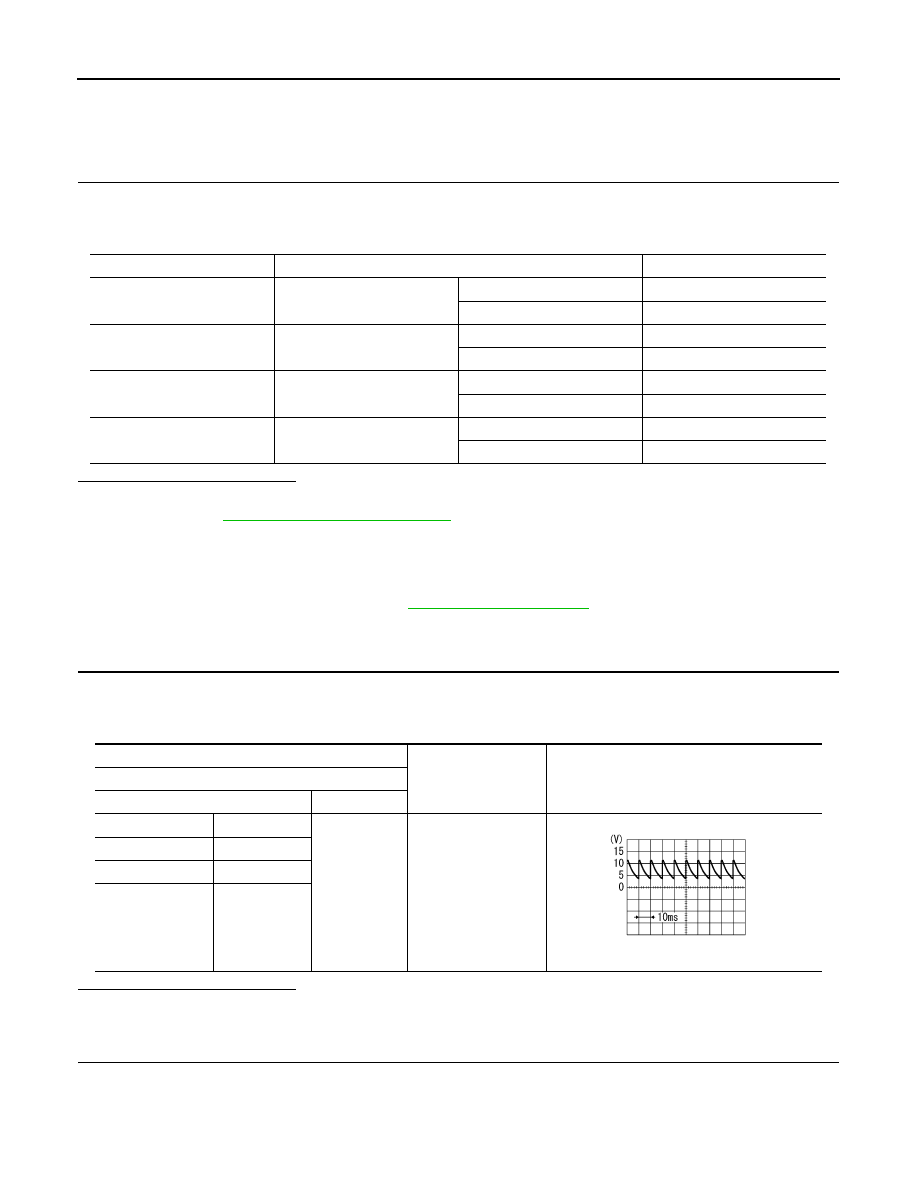

DLK-156

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

DOOR SWITCH

DOOR SWITCH

Component Function Check

INFOID:0000000011278865

1.

CHECK FUNCTION

1. Select “DOOR LOCK” of “BCM” using CONSULT.

2. Select “DOOR SW-DR”, “DOOR SW-AS”, “DOOR SW-RL”, “DOOR SW-RR”, in “Data Monitor”.

3. Check that the function operates normally according to the following conditions:

Is the inspection result normal?

YES

>> Door switch is OK.

NO

>> Refer to

DLK-156, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000011278866

Regarding Wiring Diagram information, refer to

DLK-73, "Wiring Diagram"

.

1.

CHECK DOOR SWITCH INPUT SIGNAL

1. Turn ignition switch OFF.

2. Disconnect malfunctioning door switch connector.

3. Check signal between malfunctioning door switch harness connector and ground using oscilloscope.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

CHECK DOOR SWITCH CIRCUIT

1. Disconnect BCM connector.

2. Check continuity between door switch harness connector and BCM harness connector.

Monitor item

Condition

Status

DOOR SW-DR

Front door LH

Open

On

Closed

Off

DOOR SW-AS

Front door RH

Open

On

Closed

Off

DOOR SW-RL

Rear door LH

Open

On

Closed

Off

DOOR SW-RR

Rear door RH

Open

On

Closed

Off

(+)

(–)

Signal

(Reference value)

Door switch

Connector

Terminal

Front LH

B71

3

Ground

7.0 - 8.0 V

Front RH

B141

Rear LH

B70

Rear RH

B142

PKIB4960J

2015 Rogue NAM

DOOR SWITCH

DLK-157

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

3. Check continuity between door switch harness connector and ground.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-75, "Removal and Installation"

.

NO

>> Repair or replace harness.

3.

CHECK DOOR SWITCH

Refer to

DLK-157, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Replace malfunctioning door switch. Refer to

DLK-276, "Removal and Installation"

.

4.

CHECK INTERMITTENT INCIDENT

Refer to

GI-44, "Intermittent Incident"

.

>> Inspection End.

Component Inspection

INFOID:0000000011278867

1.

CHECK DOOR SWITCH

1. Turn ignition switch OFF.

2. Disconnect malfunctioning door switch connector.

3. Check continuity between door switch terminals.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Replace malfunctioning door switch. Refer to

DLK-276, "Removal and Installation"

.

Door switch

BCM

Continuity

Connector

Terminal

Connector

Terminal

Front LH

B71

3

B16

57

Yes

Front RH

B141

53

Rear LH

B70

52

Rear RH

B142

50

Door switch

Ground

Continuity

Connector

Terminal

Front LH

B71

3

No

Front RH

B141

Rear LH

B70

Rear RH

B142

Door switch

Condition

Continuity

Terminal

3

Ground contact is part of the

switch.

Door switch

Pressed

No

Released

Yes

2015 Rogue NAM
