Nissan Rogue. Manual - part 253

DAS

COMPONENT PARTS

DAS-183

< SYSTEM DESCRIPTION >

[CHASSIS CONTROL]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

SYSTEM DESCRIPTION

COMPONENT PARTS

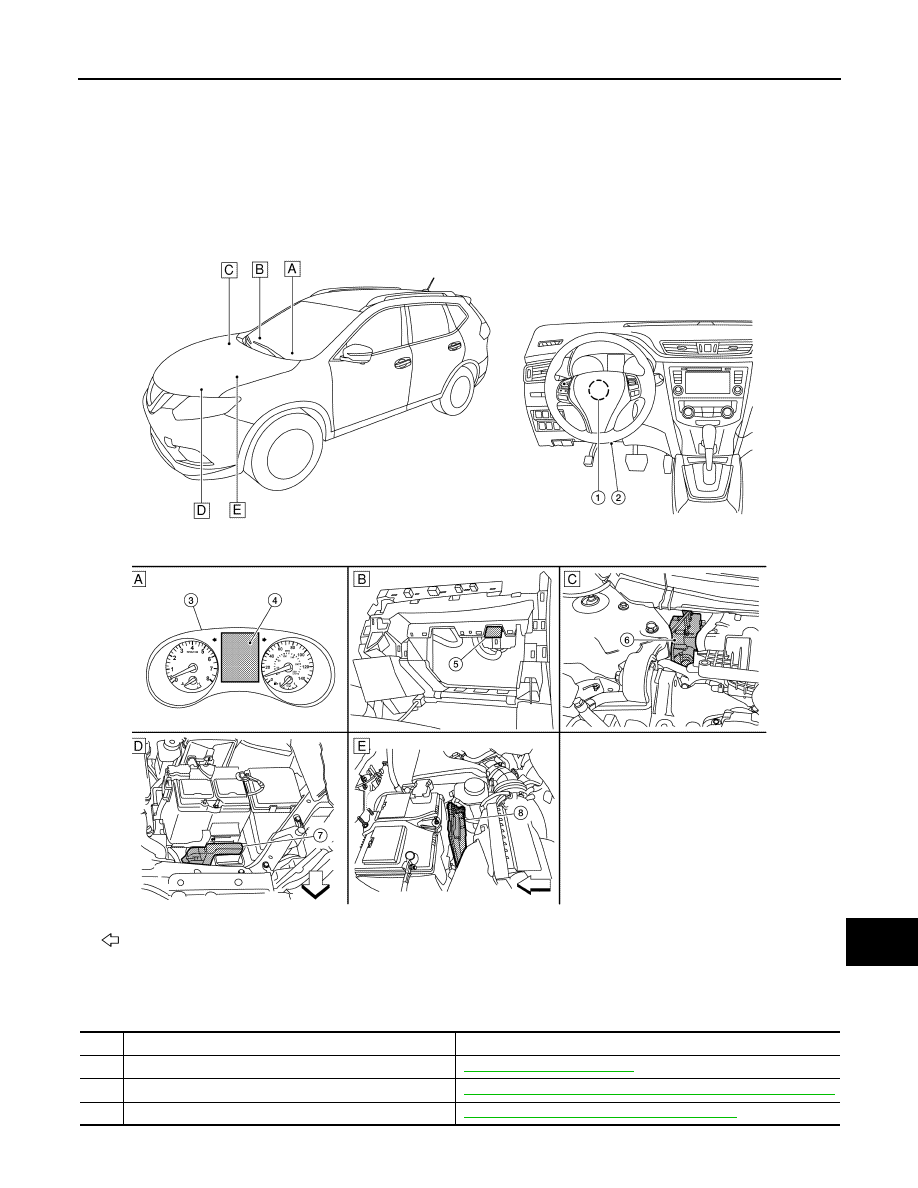

Component Parts Location

INFOID:0000000011277355

ALOIA0234ZZ

Front of vehicle

A

Instrument panel LH

B

View with glove box assembly re-
moved

C

Rear of engine compartment RH

D

Front of engine compartment LH

E

Rear of battery

No.

Component parts

Function

1.

Steering angle sensor

BRC-12, "System Description"

2.

Data link connector

LAN-26, "CAN COMMUNICATION SYSTEM : System Description"

3.

Combination meter

MWI-8, "METER SYSTEM : System Description"

DAS-184

< SYSTEM DESCRIPTION >

[CHASSIS CONTROL]

COMPONENT PARTS

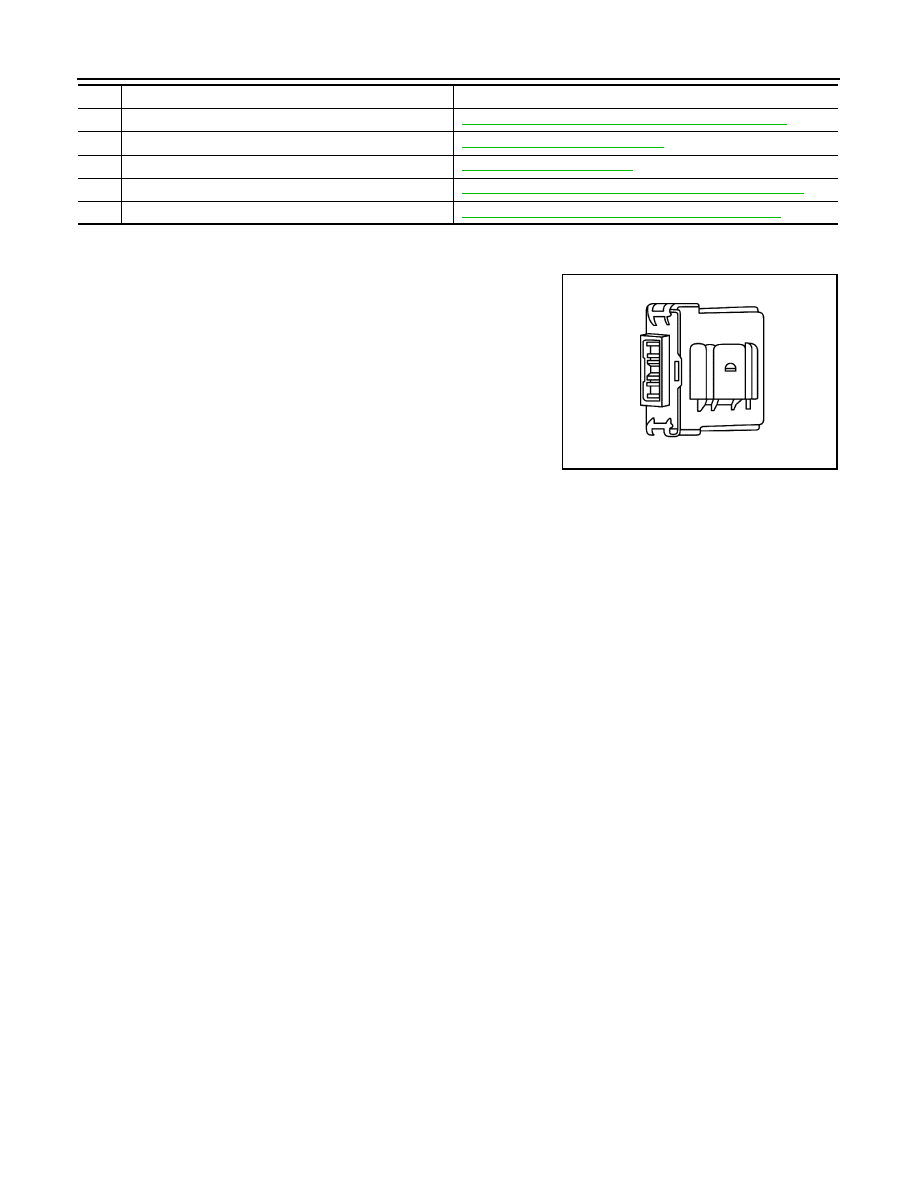

Chassis Control Module

INFOID:0000000011277356

Chassis control module controls the following systems based on the

signals from each sensor, switch, and control unit:

• Active engine brake

• Active ride control

• Active trace control

4.

Vehicle information display

MWI-15, "INFORMATION DISPLAY : System Description"

5.

Chassis control module

DAS-184, "Chassis Control Module"

6.

ABS actuator and electric unit (control unit)

BRC-12, "System Description"

7.

Engine control module

EC-31, "ENGINE CONTROL SYSTEM : System Description"

8.

Transmission control module

TM-31, "CVT CONTROL SYSTEM : System Description"

No.

Component parts

Function

ALOIA0206ZZ

DAS

SYSTEM

DAS-185

< SYSTEM DESCRIPTION >

[CHASSIS CONTROL]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

SYSTEM

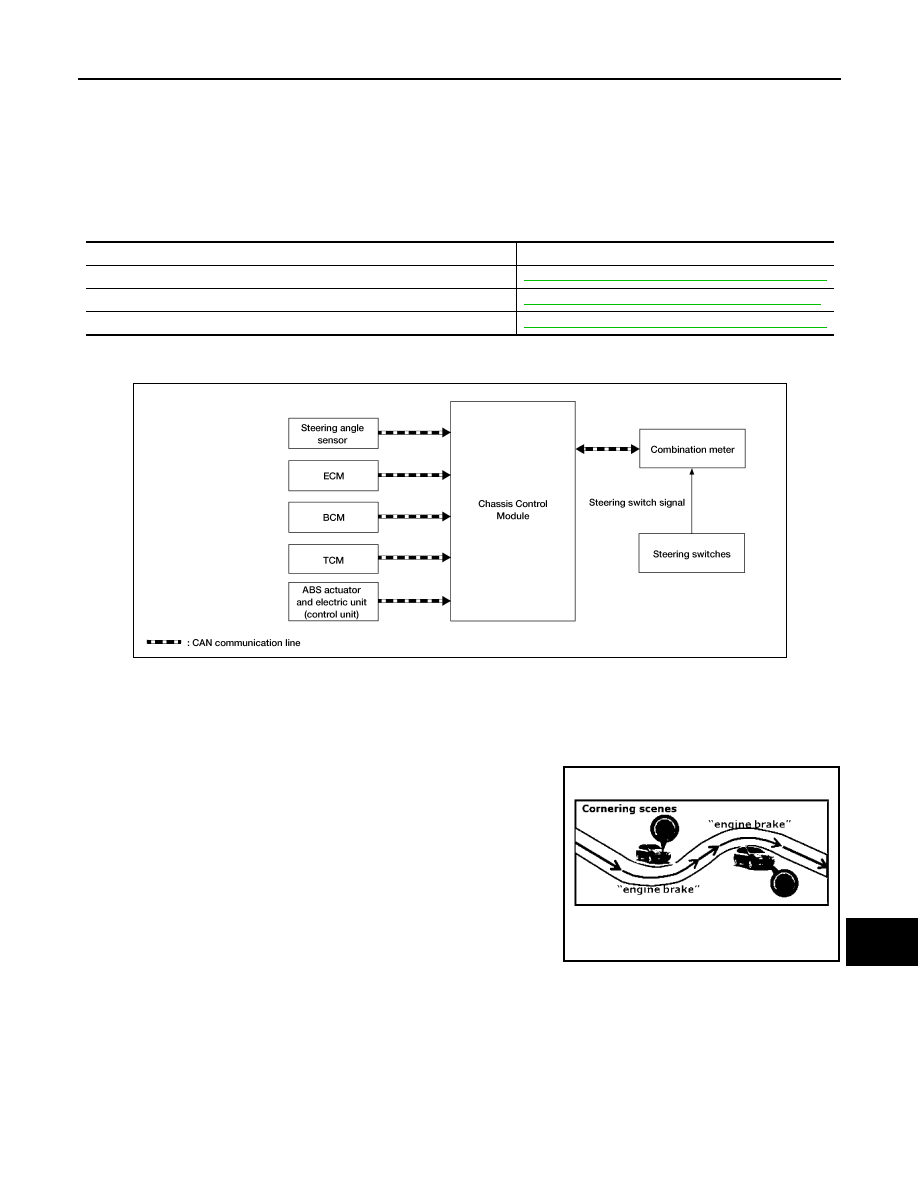

System Description - Chassis Control

INFOID:0000000011277357

• Chassis control to integrally control the driving system was adopted.

• Chassis control module inputs the necessary information for control from CAN communication and each

switch and integrally controls each system. Refer to the following table for systems controlled and input/out-

put signals.

SYSTEM DIAGRAM

System Description - Active Engine Brake

INFOID:0000000011277358

Active Engine Brake function can be switched ON/OFF through the "Chassis Control" settings on the vehicle

information display.

• Assist at corners - to lessen the workload of adjusting speed with

brake pedal operations at corners. Active Engine Brake function

adds small amount of deceleration by controlling the CVT gear

ratio depending on the steering input and various sensors. This

benefits to easier traceability at corners.

System

Reference page

Active Engine Brake

DAS-185, "System Description - Active Engine Brake"

Active Ride Control

DAS-186, "System Description - Active Ride Control"

Active Trace Control

DAS-186, "System Description - Active Trace Control"

ALOIA0207GB

ALOIA0208GB

DAS-186

< SYSTEM DESCRIPTION >

[CHASSIS CONTROL]

SYSTEM

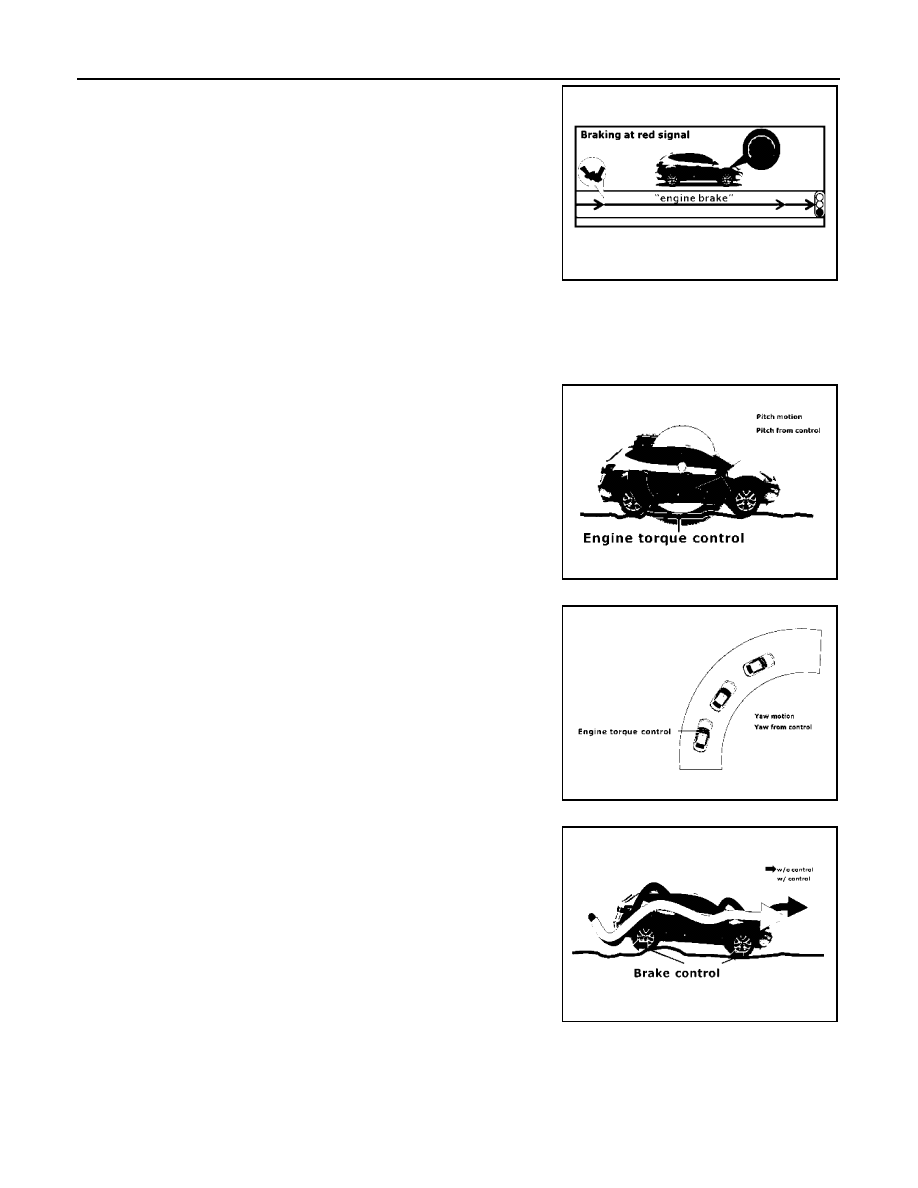

• Assist at breaking - To enhance braking feel, Active Engine Brake

adds deceleration by shifting the CVT gear ratio to lower side

depending on the driver’s brake pedal operation.

System Description - Active Ride Control

INFOID:0000000011277359

The Active Ride Control function can be turned ON/OFF by turning the VDC OFF switch ON/OFF.

• Engine control - Enhances ride comfort by adding/subtracting

engine torque in an effort to control the front and rear wheel load

balance.

• Engine control - Enhances handling by adding/subtracting engine

torque in an effort to control the front and rear wheel load balance.

• Brake control - Enhances ride comfort by restraining upper body

movement with small amount of brake control when driving on

bumpy roads.

System Description - Active Trace Control

INFOID:0000000011277360

Active Trace Control function controls the braking utilizing the ABS actuator and electric unit (control unit),

depending on cornering condition calculated from driver’s steering input and plural sensors. Active Trace Con-

trol function is aimed to enhance traceability at corners and smooth the vehicle movement to provide confident

driving.

ALOIA0209GB

ALOIA0210GB

ALOIA0211GB

ALOIA0212GB
