Nissan Rogue. Manual - part 228

DAS

ACTION TEST

DAS-83

< BASIC INSPECTION >

[DRIVER ASSISTANCE SYSTEM]

- System description for LDW: Refer to

DAS-15, "LDW : System Description"

- System description for BSW: Refer to

DAS-19, "BSW : System Description"

- System description for MOD: Refer to

DAS-25, "MOD : System Description"

- System description for FCW: Refer to

DAS-28, "FCW : System Description"

- Handling precaution: Refer to

DAS-35, "Precautions for Forward Collision Warning"

FCW : Inspection Procedure

INFOID:0000000011505729

WARNING:

Be careful of traffic conditions and safety around the vehicle when performing road test.

CAUTION:

• Fully understand the following items well before the road test;

- Precautions: Refer to

DAS-9, "Precautions for Driver Assistance Systems"

- System description for LDW: Refer to

DAS-15, "LDW : System Description"

- System description for BSW: Refer to

DAS-19, "BSW : System Description"

- System description for MOD: Refer to

DAS-25, "MOD : System Description"

- System description for FCW: Refer to

DAS-28, "FCW : System Description"

- Handling precaution: Refer to

DAS-35, "Precautions for Forward Collision Warning"

CHECK FCW SYSTEM SETTING

1. Start the engine.

2. Check that the FCW system setting can be enabled/disabled on the vehicle information display.

3. Turn OFF the ignition switch and wait for 30 seconds or more.

4. Check that the previous setting is saved when the engine starts again.

>> GO TO 2.

ACTION TEST FOR FCW

1. Enable the setting of the FCW system on the vehicle information display.

2. Turn warning systems switch ON (warning systems ON indicator is ON).

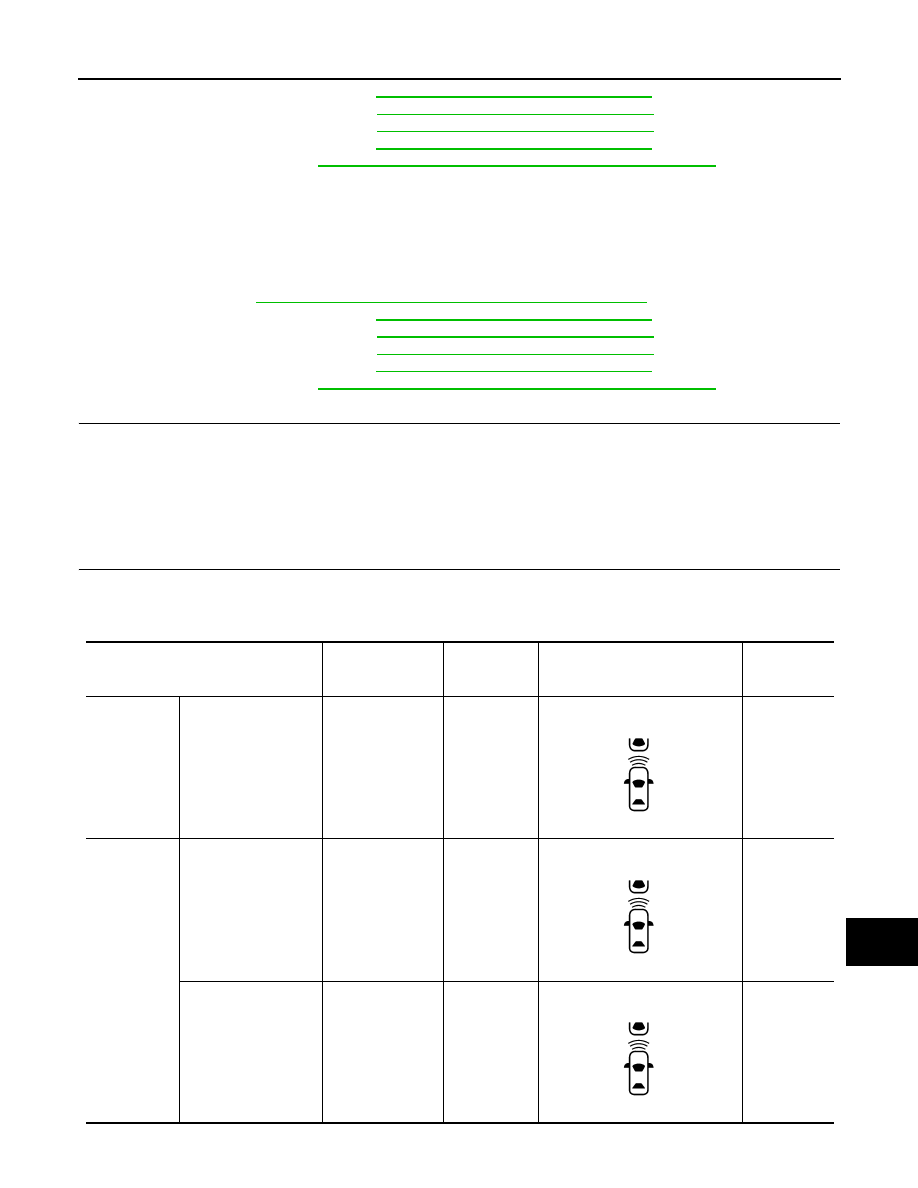

3. Check the FCW operation according to the following table:

NOTE:

Vehicle condition/ Driver's operation

Action

Warning sys-

tems ON indi-

cator

Indication on the combination

meter

Buzzer

Less than Ap-
prox. 10 MPH

(15 km/h)

—

No action

FCW indicator (white) ON steady

—

Approx. 10

MPH (15 km/h

or more

Vehicle is not detected

No action

FCW indicator (white) ON steady

OFF

Vehicle is detected

• Warning buzzer

sounds

• Warning lamp

blinks

FCW indicator (white) ON blinks

Short continu-

ous beeps

AWOIA0096ZZ

DAS-84

< BASIC INSPECTION >

[DRIVER ASSISTANCE SYSTEM]

ACTION TEST

If the vehicle speed exceeds approximately 10 MPH (15 km/h), FCW function operates until the vehicle speed

becomes lower than approximately 10 MPH (15 km/h).

>> Inspection End.

DAS

ADDITIONAL SERVICE WHEN REPLACING AROUND VIEW MONITOR CON-

TROL UNIT

DAS-85

< BASIC INSPECTION >

[DRIVER ASSISTANCE SYSTEM]

ADDITIONAL SERVICE WHEN REPLACING AROUND VIEW MONITOR
CONTROL UNIT

Description

INFOID:0000000011444769

BEFORE REPLACEMENT

When replacing around view monitor control unit, save or print current vehicle specification with CONSULT

configuration before replacement.

NOTE:

If “Before Replace ECU” cannot be used, use the “After Replace ECU” or “Manual Configuration” after replac-

ing around view monitor control unit.

AFTER REPLACEMENT

CAUTION:

When replacing around view monitor control unit, you must perform “After Replace ECU” with CON-

SULT.

• Complete the procedure of “After Replace ECU” in order.

• If you set incorrect “After Replace ECU”, incidents might occur.

• Configuration is different for each vehicle model. Confirm configuration of each vehicle model.

Work Procedure

INFOID:0000000011444770

SAVING VEHICLE SPECIFICATION

-CONSULT

Enter “Re/Programming, Configuration” and perform “Before Replace ECU” to save or print current vehicle

specification.

NOTE:

If “Before Replace ECU” cannot be used, use the “After Replace ECU” or “Manual Configuration” after replac-

ing around view monitor control unit.

>> GO TO 2.

REPLACE AROUND VIEW MONITOR CONTROL UNIT

Replace around view monitor control unit. Refer to

AV-380, "Removal and Installation"

>> GO TO 3.

WRITING VEHICLE SPECIFICATION

CONSULT

1. Enter "Re/Programming, Configuration".

2. If “Before Replace ECU” operation was performed, automatically an "Operation Log Selection" screen will

be displayed. Select the applicable file from the "Saved Data List" and press “Confirm” to write vehicle

specification. Refer to

DAS-86, "Work Procedure"

3. If “Before Replace ECU” operation was not performed, select "After Replace ECU" or "Manual Configura-

tion" to write vehicle specification. Refer to

DAS-86, "Work Procedure"

>> GO TO 4.

OPERATION CHECK

Check that the operation of the around view monitor control unit and camera images (fixed guide lines and

predictive course lines) are normal.

>> Work End.

DAS-86

< BASIC INSPECTION >

[DRIVER ASSISTANCE SYSTEM]

CONFIGURATION (AROUND VIEW MONITOR CONTROL UNIT)

CONFIGURATION (AROUND VIEW MONITOR CONTROL UNIT)

Description

INFOID:0000000011444771

Vehicle specification needs to be written with CONSULT because it is not written after replacing around view

monitor control unit.

Configuration has three functions as follows:

CAUTION:

• When replacing around view monitor control unit, you must perform “Select Saved Data List” or

"After Replace ECU" with CONSULT.

• Complete the procedure of “Select Saved Data List” or "After Replace ECU" in order.

• If you set incorrect “Select Saved Data List” or "After Replace ECU", incidents might occur.

• Configuration is different for each vehicle model. Confirm configuration of each vehicle model.

• Never perform “Select Saved Data List” or "After Replace ECU" except for new around view monitor

control unit.

Work Procedure

INFOID:0000000011444772

WRITING MODE SELECTION

CONSULT

Select “Reprogramming, Configuration” of around view monitor control unit.

When writing saved data>>GO TO 2.

When writing manually>>GO TO 3.

PERFORM “SAVED DATA LIST”

CONSULT

Automatically “Operation Log Selection” window will display if “Before Replace ECU” was performed. Select

applicable file from the “Save Data List” and press “Confirm”.

>> Work End.

PERFORM “AFTER REPLACE ECU” OR “MANUAL CONFIGURATION”

CONSULT

1. Select “After Replace ECU” or “Manual Configuration”.

2. Identify the correct model and configuration list. Refer to

DAS-87, "Configuration List"

3. Confirm and/or change setting value for each item.

CAUTION:

Thoroughly read and understand the vehicle specification. ECU control may not operate normally

if the setting is not correct.

4. Select “Next”.

CAUTION:

Make sure to select “Next”, confirm each setting value and press “OK” even if the indicated con-

figuration of brand new around view monitor control unit is same as the desirable configuration. If

not, configuration which is set automatically by selecting vehicle model can not be memorized.

5. When "Completed", select "End".

>> GO TO 4.

OPERATION CHECK

Function

Description

"Before Replace ECU"

• Reads the vehicle configuration of current around view monitor control unit.
• Saves the read vehicle configuration.

"After Replace ECU"

Writes the vehicle configuration with manual selection.

"Select Saved Data List"

Writes the vehicle configuration with saved data.
