Distance Sensor Initial Vertical Alignment

INFOID:0000000011277209

NOTE:

The Distance sensor initial vertical alignment procedure must be performed anytime the Distance sensor is

removed and reinstalled.

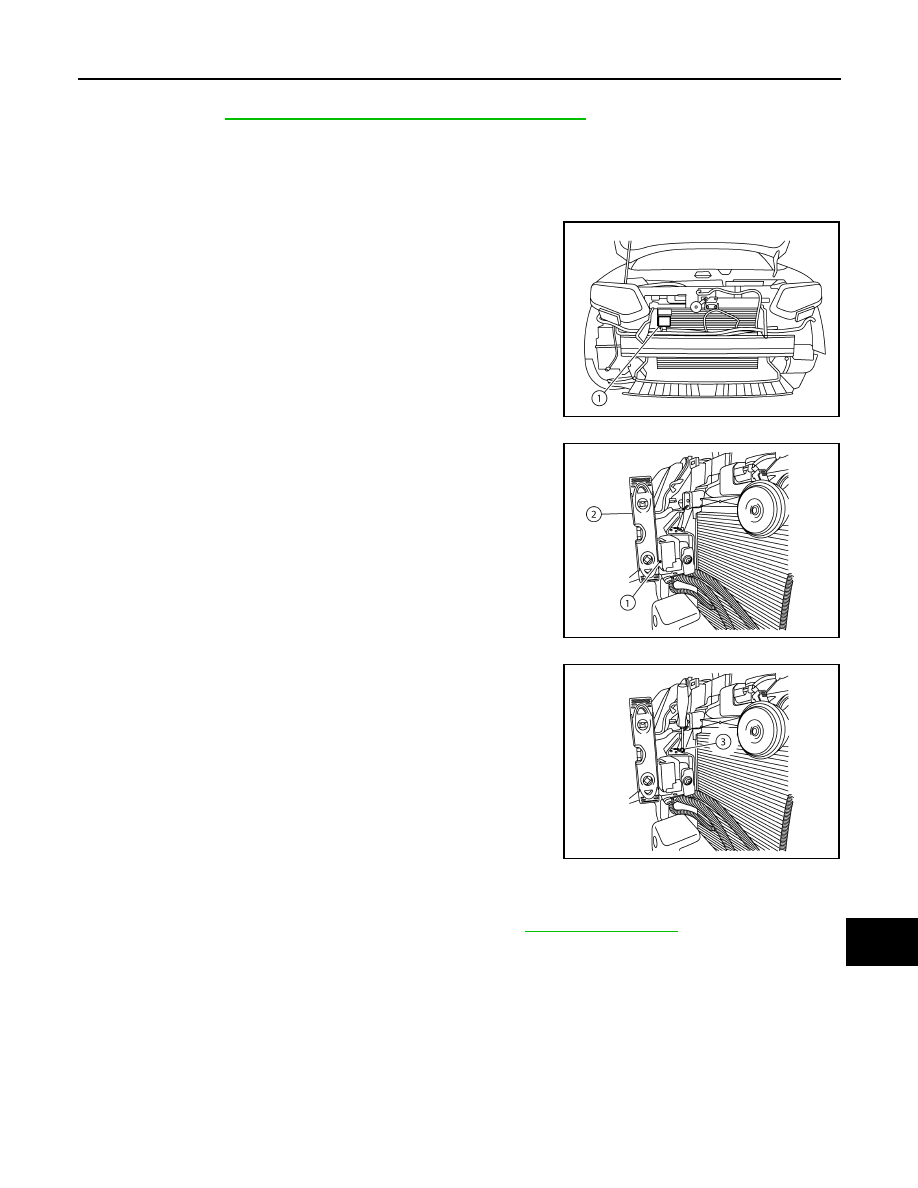

1. The Distance sensor (1) is located near the right front head lamp

behind the front bumper fascia.

2. Place the carpenters level (2) against the face of the Distance

sensor (1).

3. Turn the Distance sensor adjustment screw (3) to level the sen-

sor.

4. Ensure the Distance sensor electrical connector located on the bottom of the sensor is connected.

5. Reinstall the front bumper fascia.

6. Perform the Distance sensor alignment procedure. Refer to

DAS-72, "Description"

.

AWOIA0049ZZ

AWOIA0050ZZ

AWOIA0051ZZ

DAS-72

< BASIC INSPECTION >

[DRIVER ASSISTANCE SYSTEM]

DISTANCE SENSOR ALIGNMENT

DISTANCE SENSOR ALIGNMENT

Description

INFOID:0000000011277210

WARNING:

Radio waves could adversely affect electric medical equipment. Those who use a pacemaker should

contact the electric medical equipment manufacturer for the possible influences before use.

OUTLINE OF RADAR ALIGNMENT PROCEDURE

• A 4-wheel vehicle alignment must be performed before proceeding with radar alignment procedure.

• Always perform the radar alignment after removing and installing or replacing the Distance sensor.

• If the Distance sensor was removed and installed or replaced, first perform Distance Sensor Initial Vertical

Alignment, refer to

DAS-70, "Description"

.

CAUTION:

The system does not operate normally unless the Distance sensor is aligned properly.
1. Required tools, refer to

DAS-72, "Required Tools"

.

2. Preparation, refer to

DAS-73, "Preparation"

.

3. Vehicle set up, refer to

DAS-74, "Vehicle Set Up"

.

4. Setting the Distance sensor target board, refer to

DAS-76, "Setting The Distance Sensor Target Board"

.

5. Distance sensor adjustment, refer to

DAS-77, "Distance Sensor Adjustment"

.

CAUTIONARY POINT FOR RADAR ALIGNMENT PROCEDURE

CAUTION:

• For radar alignment procedure, choose a level location with a few feet of working space in front and

surrounding the vehicle.

• Vehicle must be stationary and unoccupied during the whole alignment procedure.

• Any slight vibration during the alignment procedure can cause the test to fail. If this happens, you

will have to restart the alignment process.

• The ignition switch must be in the ON position.

• The battery voltage must not fall below 12 volts during the whole alignment procedure. Failure to

maintain adequate battery voltage will cause the test to fail. If this happens, you will have to restart

the alignment process.

• The Distance sensor target board must be set in front of the vehicle facing the sensor.

• Adjust the radar alignment with CONSULT. (The radar alignment procedure cannot be adjusted with-

out CONSULT.)

• Never enter the vehicle during radar alignment.

• Never block the area between the radar and the Distance sensor target board at any time during the

alignment process.

• Never break the laser beam between the laser assembly and front Distance sensor target board or

rear reflector at any time during alignment.

• Accurate steering wheel setting is crucial. Once set, do not disturb the steering wheel for the

remainder of the alignment procedure.

• To avoid physical damage, the Distance sensor adjustment screw must not be forced to either clock-

wise or counter-clockwise limit. For proper adjustment procedure, follow the directions of the CON-

SULT exactly as instructed.

• For proper system operation and adjustment, all vehicle wheels must be of the same size.

Required Tools

INFOID:0000000011277211

• Distance sensor alignment kit 1-20-2851-1 in addition to one of the following:

a) Hunter self-centering wheel adapter (Hunter wheel alignment tool)

b) Special Service Tool kit 1-20-2722-1 (kit SCA W/Tire Clamp-ICC Aiming)

The following Distance sensor alignment kit (1-20-2851-1) is necessary to perform the Distance sensor align-

ment:

DAS

DISTANCE SENSOR ALIGNMENT

DAS-73

< BASIC INSPECTION >

[DRIVER ASSISTANCE SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

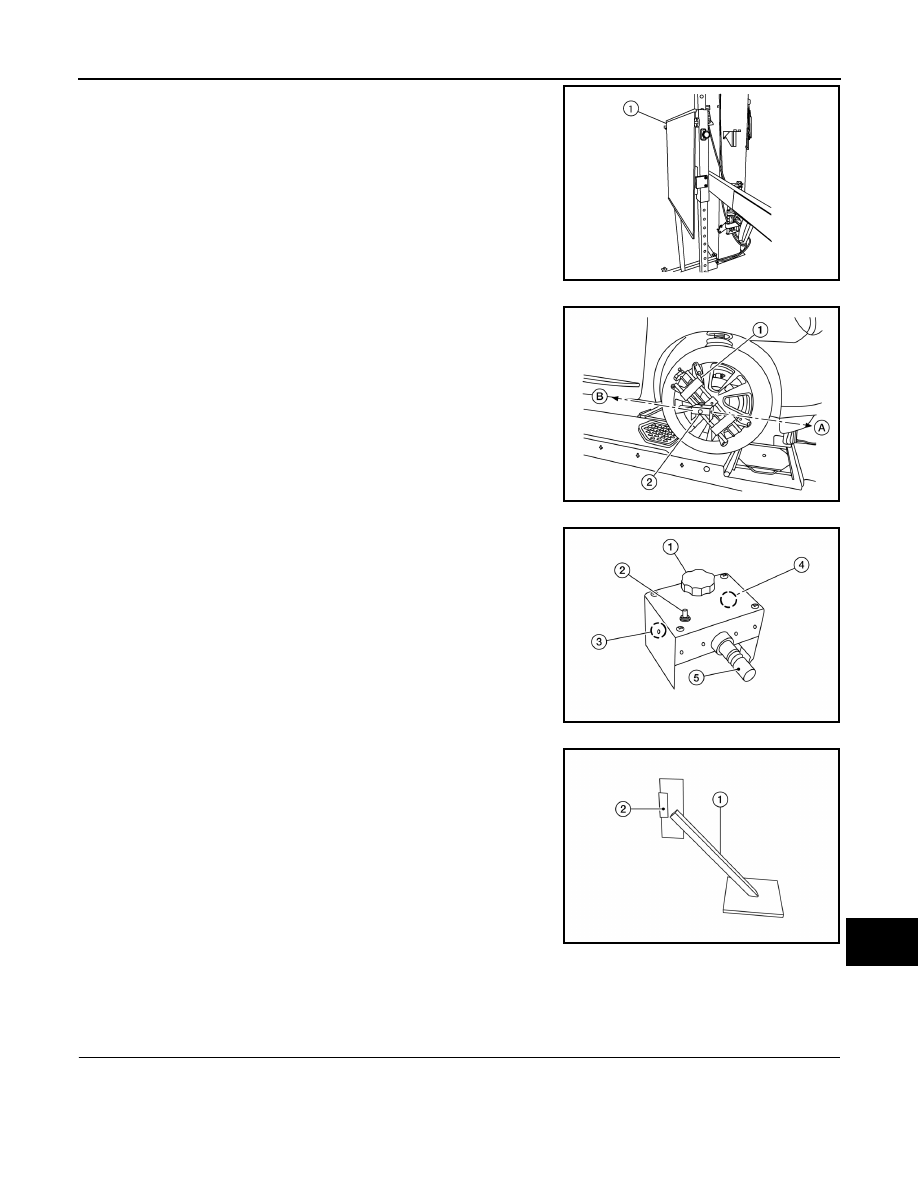

• Distance sensor target board (1).

• Hunter self-centering wheel adapter (1) [shown with laser assem-

bly (2) installed] (Hunter alignment rack head may be substituted).

NOTE:

Dealers that are not equipped with a Hunter self-centering wheel

adapter will require the following kit:

Part No. 1-20-2722-1-IF (kit SCA W/Tire Clamp-Distance Sensor

Aiming)

• Laser assembly (with bi-directional laser beam) as shown in the

illustration.

- Tightening knob (1)

- Power ON/OFF button (2)

- Front laser beam opening (3)

- Rear laser beam opening (4)

- Attaching shaft (5)

• Stationary target as shown in the illustration.

- Stationary target (1)

- Laser signal reception plate (2)

• Distance chain (not shown).

Preparation

INFOID:0000000011277212

1.

ADVANCE PREPARATION FOR RADAR ALIGNMENT PROCEDURE

1. Adjust all tire pressures to the specified value.

2. Empty the vehicle. (Remove any luggage from the passenger compartment, luggage room, etc.)

3. Shift the selector lever to “P” position, and release the parking brake.

4. Fully fill the fuel tank, and then check that the coolant and oils are filled up to correct level.

5. Clean off the right front side of the fascia in front of the Distance sensor.

AWOIA0052ZZ

ALOIA0118ZZ

ALOIA0116ZZ

ALOIA0117ZZ

DAS-74

< BASIC INSPECTION >

[DRIVER ASSISTANCE SYSTEM]

DISTANCE SENSOR ALIGNMENT

NOTE:

The Distance sensor is located behind the fascia and it is not

exposed to the elements. Therefore it should not require any

cleaning.

>> Refer to

DAS-74, "Vehicle Set Up"

.

Vehicle Set Up

INFOID:0000000011277213

DESCRIPTION

Accurate adjustment of the radar alignment requires that the Distance sensor target board, wheel adapter,

laser assembly, and stationary target be properly positioned.

CAUTION:

If the radar alignment is adjusted with the Distance sensor target board, wheel adapter, laser assem-

bly, or stationary target in the incorrect position, the Distance system will not function properly or the

alignment procedure may not be completed successfully.

1.

PREPOSITION TARGET BOARD

NOTE:

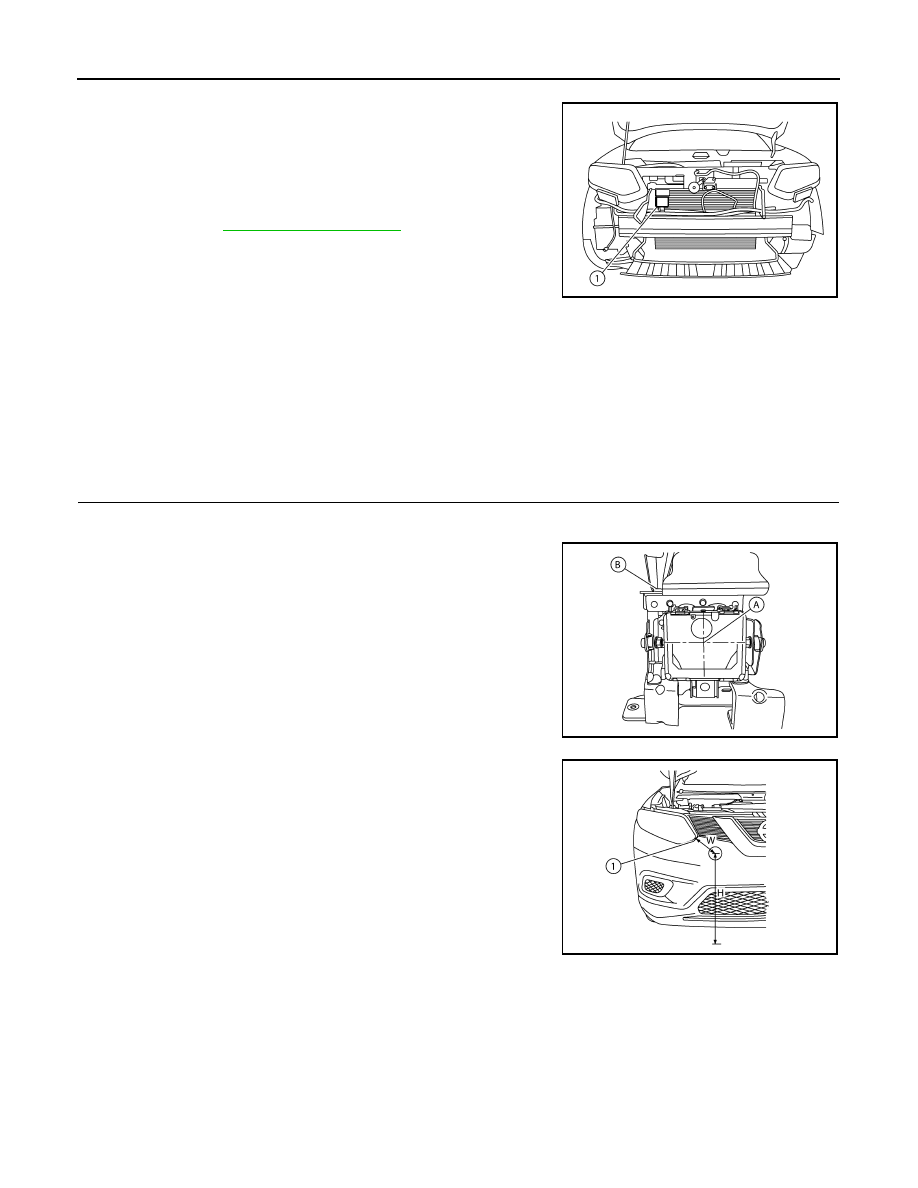

• The center of the distance sensor (A).

• To locate the center of the distance sensor (A) easily, on a flat level

surface measure 27 in (685 mm) (H) up from the floor, and 7 in

(178 mm) (W) to the right from the point of the right front head

lamp (1) when viewed from the front of the vehicle.

• Initial distance sensor target board setting must be in the center position.

1

: Distance sensor

AWOIA0049ZZ

B : Up-down direction adjusting screw

AWOIA0053ZZ

AWOIA0054ZZ
