DIAGNOSIS AND REPAIR WORK FLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

INFOID:0000000011277201

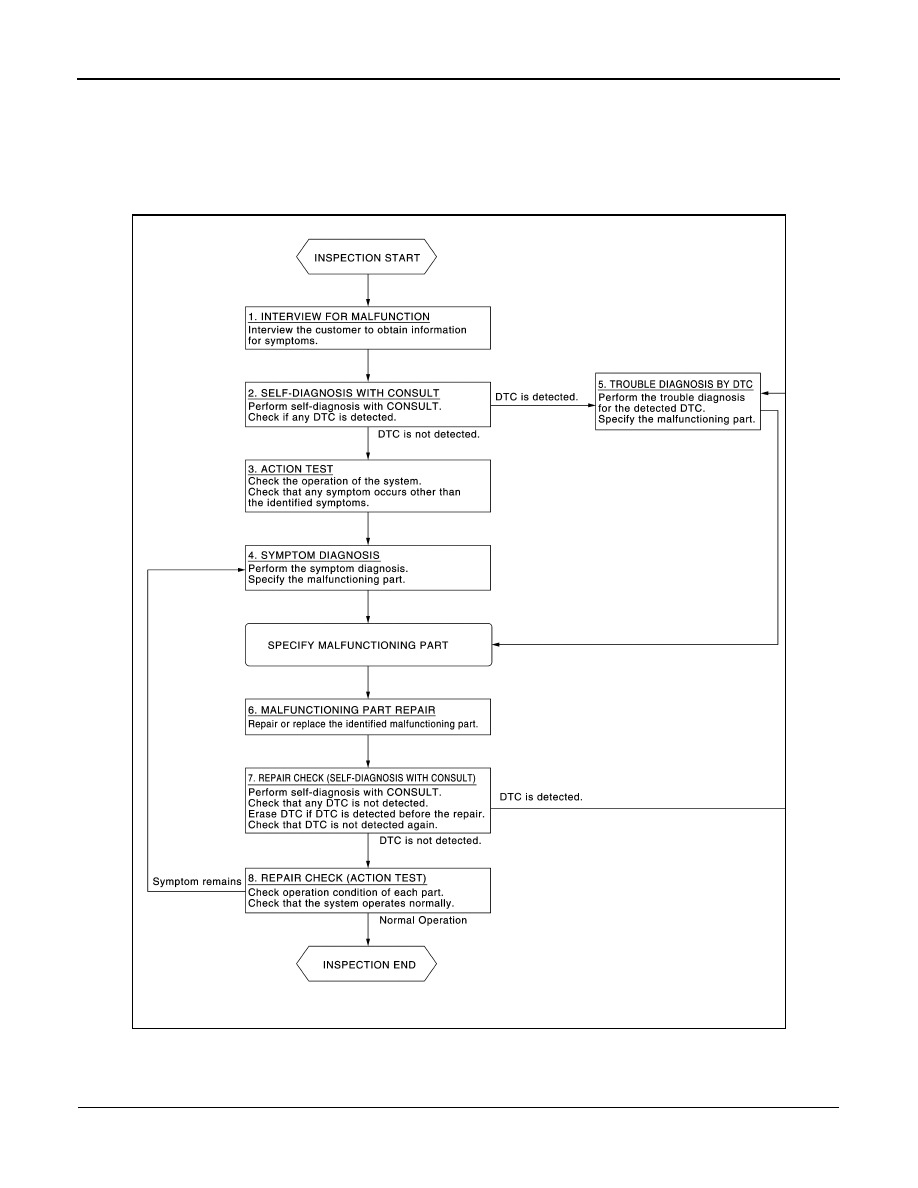

OVERALL SEQUENCE

DETAILED FLOW

1.

INTERVIEW FOR MALFUNCTION

It is also important to clarify the customer concerns before starting the inspection. Interview the customer

about the concerns carefully and understand the symptoms fully.

JSOIA0485GB

DAS

DIAGNOSIS AND REPAIR WORK FLOW

DAS-65

< BASIC INSPECTION >

[DRIVER ASSISTANCE SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

NOTE:

The customers are not professionals. Never assume that “maybe the customer means···” or “maybe the cus-

tomer mentioned this symptom”.

>> GO TO 2.

2.

SELF-DIAGNOSIS WITH CONSULT

1. Perform “All DTC Reading”.

2. Check for DTC detected in “Self Diagnostic Result” of the following:

-

“DISTANCE SENSOR”

-

“AROUND VIEW MONITOR”

Is any DTC detected?

YES

>> GO TO 5.

NO

>> GO TO 3.

3.

ACTION TEST

Perform the following system action test to check the system operation:

• LDW refer to

DAS-79, "LDW : Description"

.

• BSW refer to

DAS-80, "BSW : Description"

.

• MOD refer to

DAS-81, "MOD : Description"

.

Check if any other malfunctions occur.

>> GO TO 4.

4.

SYMPTOM DIAGNOSIS

Perform the applicable diagnosis according to the diagnosis chart by symptom. Refer to

DAS-162, "Symptom

Table"

.

>> GO TO 6.

5.

TROUBLE DIAGNOSIS BY DTC

Perform trouble diagnosis for detected DTC of the following:

• “DISTANCE SENSOR”: Refer to

DAS-48, "DTC Index"

.

• “AROUND VIEW MONITOR”: Refer to

AV-252, "WITH DRIVER ASSISTANCE SYSTEM : DTC Index"

.

>> GO TO 6.

6.

MALFUNCTIONING PART REPAIR

Repair or replace the identified malfunctioning parts.

>> GO TO 7.

7.

REPAIR CHECK (SELF-DIAGNOSIS WITH CONSULT)

1. Erase “Self Diagnostic Result”.

2. Perform “All DTC Reading” again after repairing or replacing the specific items.

3. Check if any DTC is detected in “Self Diagnostic Result” of the following:

-

“DISTANCE SENSOR”

-

“AROUND VIEW MONITOR”

Is any DTC detected?

YES

>> GO TO 5.

NO

>> GO TO 8.

8.

REPAIR CHECK (ACTION TEST)

Perform the following system action test. Check that the malfunction symptom is solved or no other symptoms

occur.
Is there a malfunction symptom?

YES

>> GO TO 4.

DAS-66

< BASIC INSPECTION >

[DRIVER ASSISTANCE SYSTEM]

DIAGNOSIS AND REPAIR WORK FLOW

NO

>> Inspection End.
