PRE-INSPECTION FOR DIAGNOSIS

Inspection Procedure

INFOID:0000000011277202

1.

CHECK REAR VIEW CAMERA LENS

Is the rear view camera lens contaminated with foreign materials?

YES

>> Clean rear view camera lens.

NO

>> GO TO 2.

2.

CHECK REAR VIEW CAMERA INSTALLATION CONDITION

Check rear view camera installation condition (e.g. position, looseness, bent in back door).
Is it properly installed?

YES

>> Inspection End.

NO

>> Install rear view camera properly, and perform rear view camera calibration. Refer to

DAS-95,

"Description"

.

DAS-68

< BASIC INSPECTION >

[DRIVER ASSISTANCE SYSTEM]

REAR VIEW CAMERA WASHER/AIR BLOWER FUNCTION INSPECTION

REAR VIEW CAMERA WASHER/AIR BLOWER FUNCTION INSPECTION

Inspection Procedure

INFOID:0000000011277203

1.

CHECK REAR VIEW CAMERA WASHER/AIR BLOWER FUNCTION

1. Start the engine.

2. Select the “Active Test” item “AIR&WASH ACTIVE” of “AVM” using CONSULT.

NOTE:

Before function check, perform the following items:

• Fill with washer fluid.

• Perform “Active Test” item “WASH ACTIVE” of “AVM” using CONSULT for 4 seconds.

3. While operating the test item, check the operation.
Is it properly operated?

Washer fluid ejects 4 - 6 times. (Normal function)>>Inspection End.

Washer fluid ejects 7 times or more.>>Properly install or replace air tube.

Washer fluid ejects only once>> Properly install or replace air tube.

Washer fluid does not eject>>Properly install washer tube or replace washer tube and check valve.

DAS

ADDITIONAL SERVICE WHEN REPLACING DISTANCE SENSOR

DAS-69

< BASIC INSPECTION >

[DRIVER ASSISTANCE SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

ADDITIONAL SERVICE WHEN REPLACING DISTANCE SENSOR

Description

INFOID:0000000011277204

Always perform the following after removing and installing or replacing the Distance sensor:

• Distance sensor initial vertical alignment

• Distance sensor alignment

CAUTION:

The system does not operate normally unless the Distance sensor is aligned properly.

Work Procedure

INFOID:0000000011277205

1.

DISTANCE SENSOR INITIAL VERTICAL ALIGNMENT

Perform the distance sensor initial vertical alignment. Refer to

DAS-70, "Description"

>> GO TO 2.

2.

DISTANCE SENSOR ALIGNMENT

Perform the distance sensor alignment. Refer to

DAS-72, "Description"

>> Work End.

DAS-70

< BASIC INSPECTION >

[DRIVER ASSISTANCE SYSTEM]

DISTANCE SENSOR INITIAL VERTICAL ALIGNMENT

DISTANCE SENSOR INITIAL VERTICAL ALIGNMENT

Description

INFOID:0000000011277206

WARNING:

Radio waves could adversely affect electric medical equipment. Those who use a pacemaker should

contact the electric medical equipment manufacturer for the possible influences before use.

OUTLINE OF DISTANCE SENSOR INITIAL ALIGNMENT PROCEDURE

• Always perform the Distance sensor initial vertical alignment after removing and installing or replacing the

Distance sensor.

CAUTION:

The system does not operate normally unless the Distance sensor is aligned properly.
1. Required tools, refer to

DAS-70, "Required Tools"

.

2. Preparation, refer to

DAS-70, "Preparation"

3. Distance sensor initial vertical alignment, refer to

DAS-71, "Distance Sensor Initial Vertical Alignment"

.

CAUTIONARY POINT FOR DISTANCE SENSOR ALIGNMENT PROCEDURE

CAUTION:

• For Distance sensor alignment procedure, choose a level location with a few feet of working space in

front and surrounding the vehicle.

• Vehicle must be stationary and unoccupied during the whole alignment procedure.

• Never enter the vehicle during distance sensor alignment.

• For proper system operation and adjustment, all vehicle wheels must be the original factory size.

The Distance sensor requires alignment whenever the Distance sensor is removed and reinstalled and when-

ever front end structural repairs are performed. Distance sensor alignment consists of performing the mechan-

ical vertical alignment (Distance sensor initial vertical alignment) described in the following procedure,

followed by the electronic horizontal alignment (Distance sensor alignment) that is performed using CONSULT

and the appropriate special service tools.

Required Tools

INFOID:0000000011277207

The following tool is necessary to perform the Distance sensor initial vertical alignment:

• Carpenters level.

Preparation

INFOID:0000000011277208

1.

PREPARATION FOR DISTANCE SENSOR INITIAL VERTICAL ALIGNMENT PROCEDURE

1. Verify correct vehicle suspension height. Refer to

WT-73, "Wheel"

.

2. Repair or replace any damaged body components.

3. Verify proper tire inflation pressures. Refer to

WT-73, "Tire Air Pressure"

.

4. Remove any accumulations of mud, snow or ice from the vehicle underbody.

5. Verify that there is no load in the vehicle (cargo or passenger).

6. Place the vehicle on a known level horizontal surface such as a wheel or frame alignment rack to achieve

satisfactory sensor vertical alignment results.

7. Remove front fascia. Refer to

EXT-17, "Removal and Installation"

.

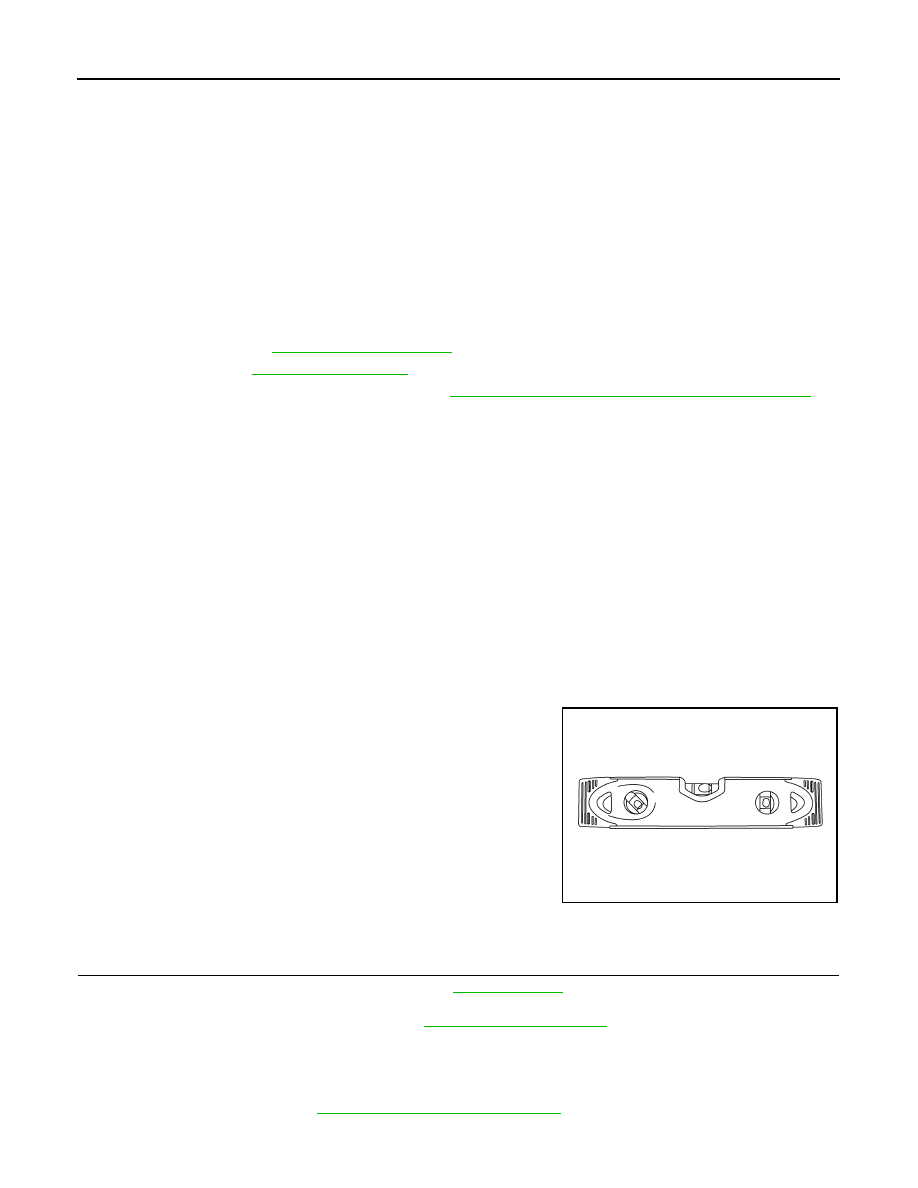

AWOIA0048ZZ
