DISTANCE SENSOR
Reference Value
INFOID:0000000011277195
VALUES ON THE DIAGNOSIS TOOL
NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

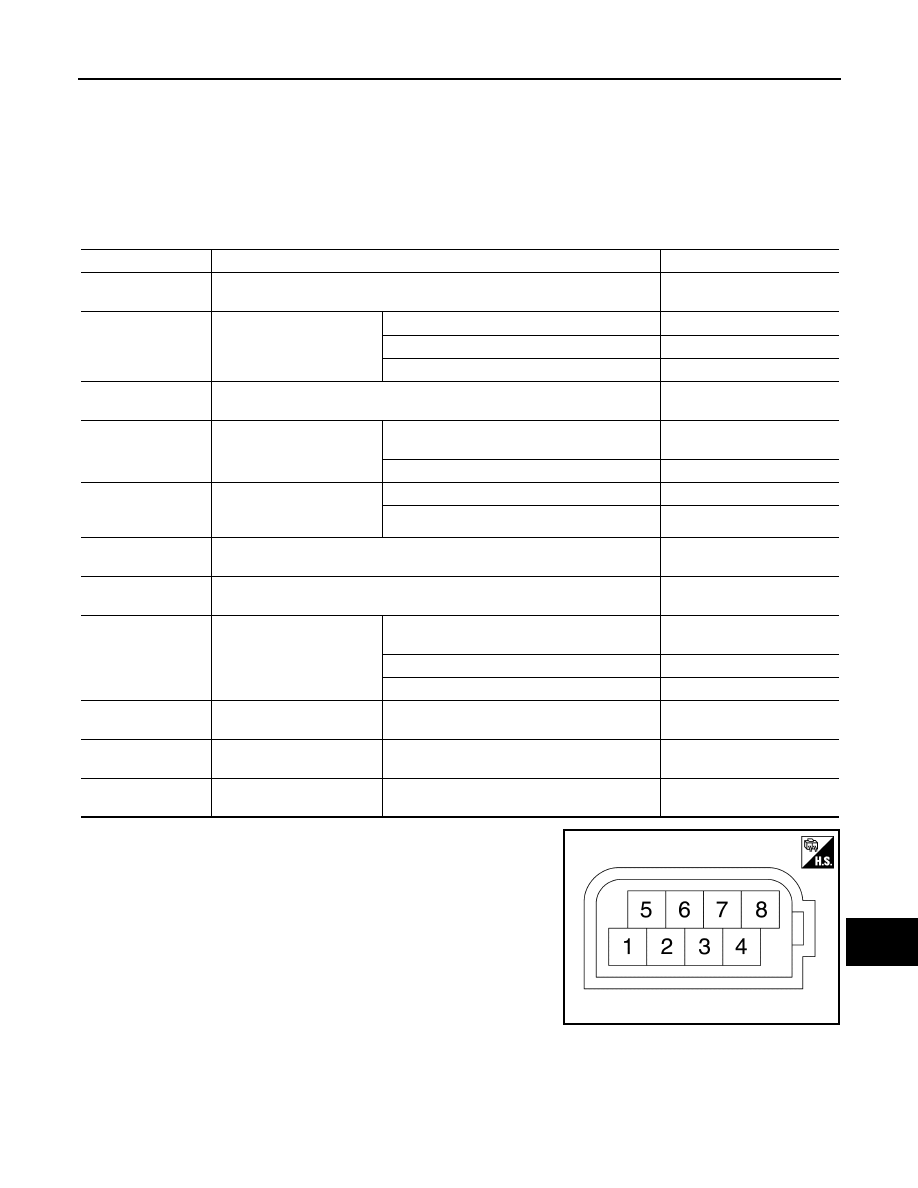

TERMINAL LAYOUT
PHYSICAL VALUES
Monitor item
Condition
Value/Status
VHCL SPEED SE
While driving
Value of vehicle speed signal
(wheel speed).
YAW RATE
While driving
Vehicle stopped.
0.0
Vehicle turning right.
Positive value
Vehicle turning left.
Negative value
PWR SUP MONI
Ignition switch ON
Power supply voltage value of
Distance sensor.
DISTANCE
Drive the vehicle and acti-
vate the vehicle-to-vehicle
distance control mode.
When a vehicle ahead is detected.
Displays the distance from the
preceding vehicle.
When a vehicle ahead is not detected.
0.0
RELATIVE SPD
Drive the vehicle and acti-
vate the vehicle-to-vehicle
distance control mode.
When a vehicle ahead is detected.
Displays the relative speed.
When a vehicle ahead is not detected.
0.0
RADAR OFFSET
NOTE:
The item is indicated, but not used.
—
RADAR HEIGHT
NOTE:
The item is indicated, but not used.
—
STEERING ANGLE
Ignition switch ON
When setting the steering wheel in straight-
ahead position.
0.0
When turning the steering wheel 90
° rightward.
+90
When turning the steering wheel 90
° leftward.
-90
STRG ANGLE
SPEED
Ignition switch ON
At the time of turning the steering wheel.
Steering wheel turning speed
is displayed.
L/R ADJUST
Ignition switch ON
At the completion of radar alignment adjust-
ment.
Horizontal correction value is
displayed.
U/D ADJUST
Ignition switch ON
At the completion of radar alignment adjust-
ment.
Vertical correction value is
displayed.
JSOIA0570ZZ
