Nissan Rogue. Manual - part 213





DAS

SYSTEM

DAS-23

< SYSTEM DESCRIPTION >

[DRIVER ASSISTANCE SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

REAR VIEW CAMERA WASHER OPERATION

• When judging that the rear view camera has water droplets, the around view monitor control unit transmits a

rear view camera washer activation signal or rear view camera air blow signal to the rear view camera

washer control unit via serial communication.

• When receiving a rear view camera washer signal, the rear view camera washer control unit simultaneously

activates the rear view camera washer motor to clean the rear view camera by spraying washer fluid from

the nozzle installed to the rear view camera bracket.

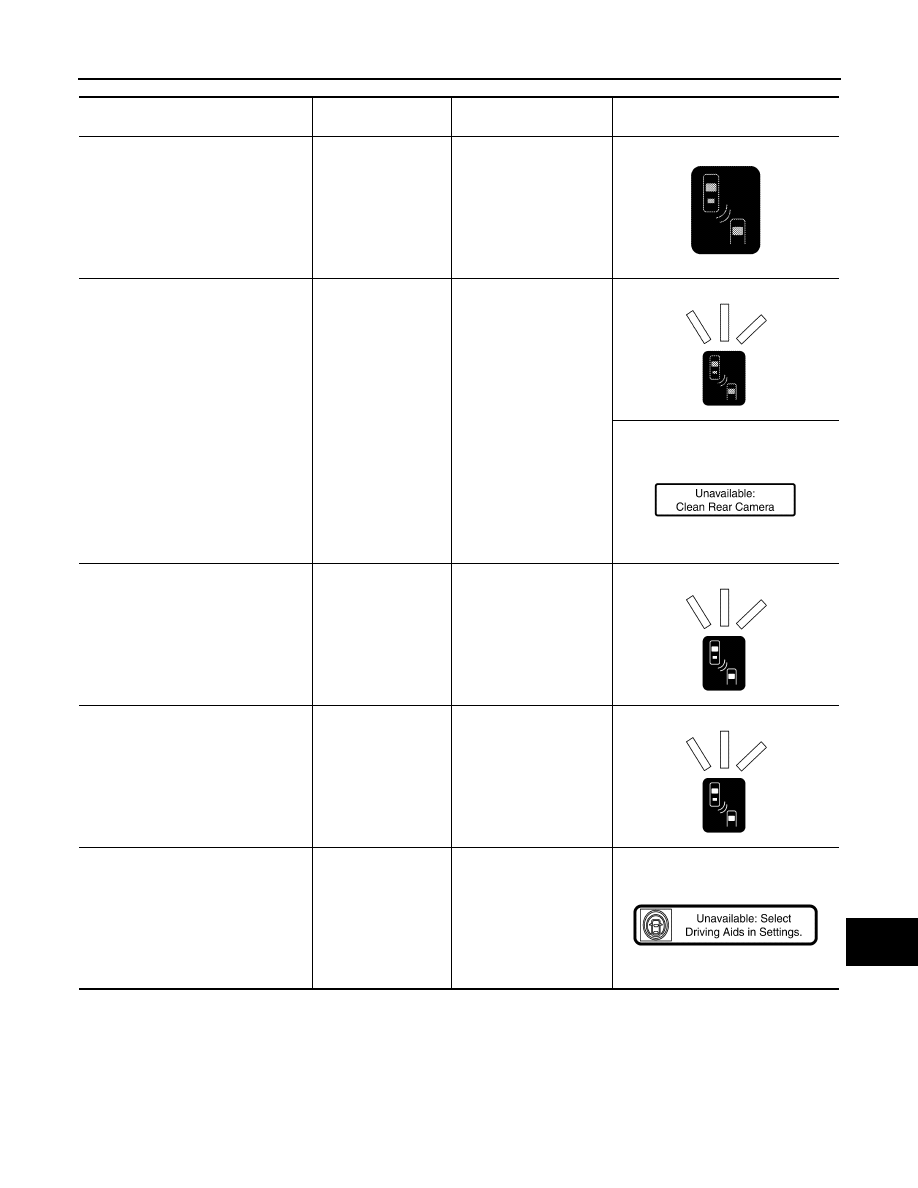

Vehicle condition/Driver

′s operation

BSW indicator

Warning systems

ON indicator

Indication on the combination meter.

When DTC is detected.

OFF

ON

When vehicles cannot be detected due
to dirt on the rear view camera.

OFF

ON

When the washer fluid level is low
(Low washer warning ON).

OFF

ON

Blinks at intervals of two seconds.

When the back door is open
(Back door open warning ON).

OFF

ON

Blinks at intervals of two seconds.

Blinks when the setting of LDW and
BSW are “OFF” and the warning sys-
tems switch is pressed.

OFF

OFF

JSOIA0749ZZ

JSOIA0750ZZ

JSOIA0738ZZ

JSOIA0751ZZ

JSOIA0751ZZ

JSOIA0780ZZ

DAS-24

< SYSTEM DESCRIPTION >

[DRIVER ASSISTANCE SYSTEM]

SYSTEM

• When receiving a rear view camera air blow signal, the rear view camera washer control unit activates the

rear view camera air pump motor to clean the rear view camera by blowing air from the nozzle installed to

the rear view camera bracket.

OPERATION CONDITION

• Approximately 20 MPH (30 km/h) or more.

• When the around view monitor control unit judges that the rear view camera has water droplets.

• When the low washer fluid warning is OFF.

NOTE:

The camera is cleaned intermittently by spraying washer fluid and blowing air. When the around view monitor

control unit judges that dirt on the camera cannot be removed even after approximately 5 minutes from the

first detection of dirt, the activation of BSW is canceled.

MOD

DAS

SYSTEM

DAS-25

< SYSTEM DESCRIPTION >

[DRIVER ASSISTANCE SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

MOD : System Description

INFOID:0000000011277178

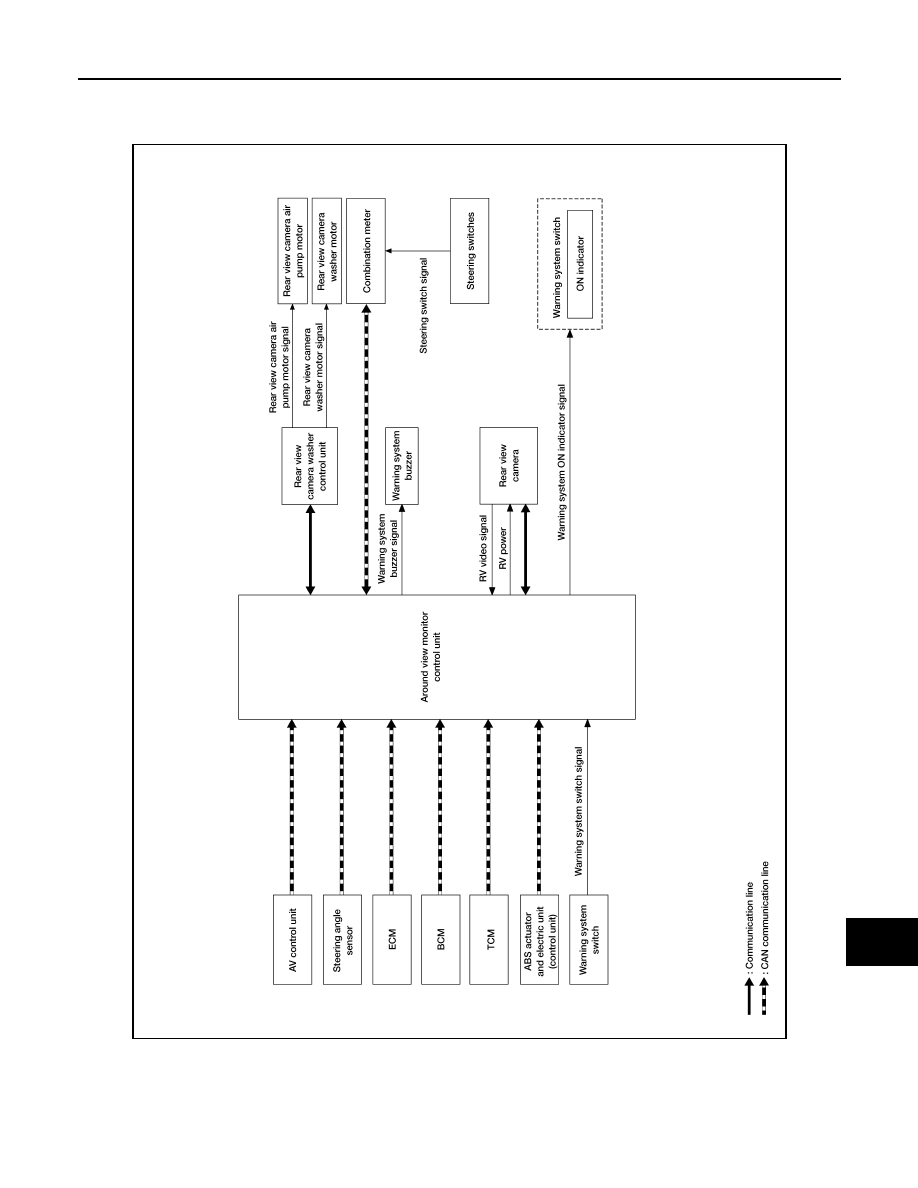

SYSTEM DIAGRAM

AROUND VIEW MONITOR CONTROL UNIT INPUT/OUTPUT SIGNAL ITEM

Input Signal Item

AWOIA0069GB

DAS-26

< SYSTEM DESCRIPTION >

[DRIVER ASSISTANCE SYSTEM]

SYSTEM

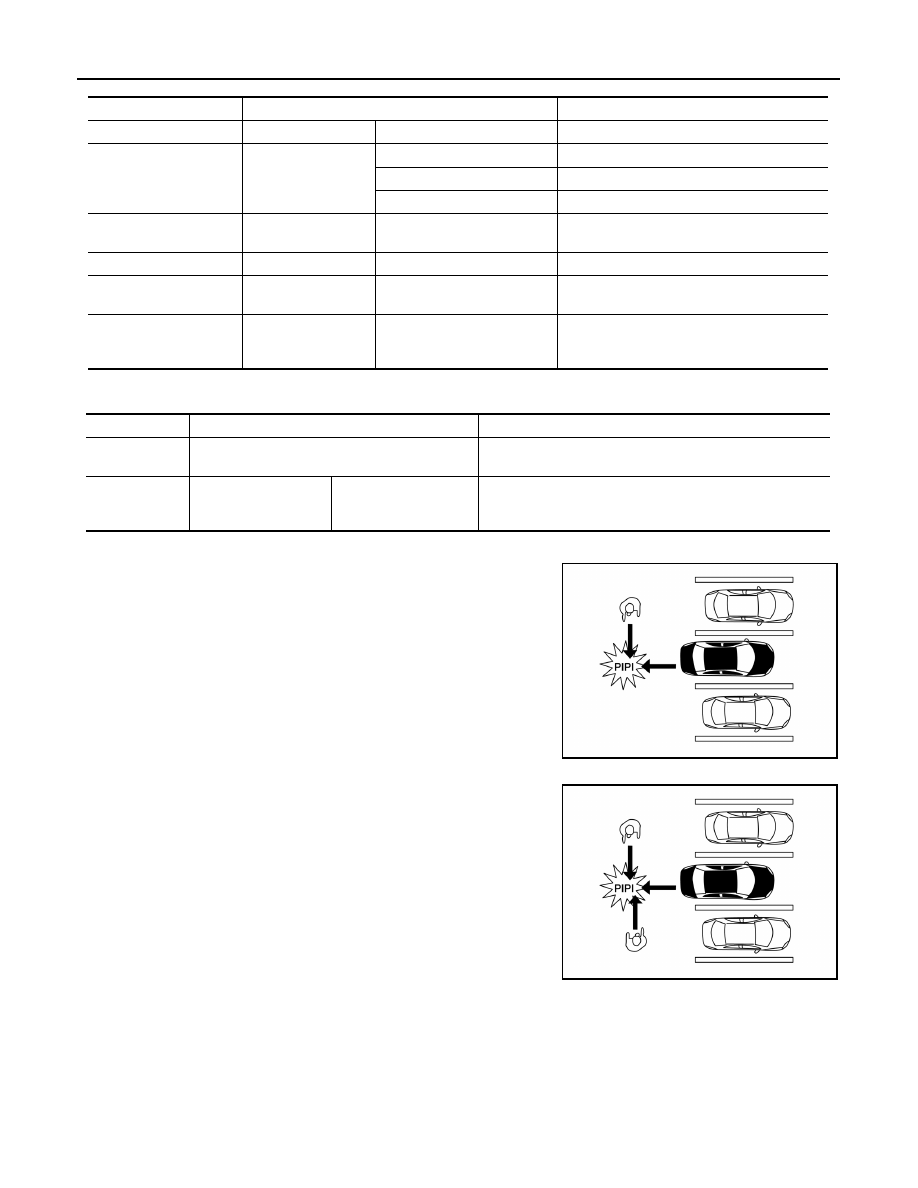

Output Signal Item

FUNCTION DESCRIPTION

• The Moving Object Detection (MOD) system can help alert the

driver of approaching vehicles or objects when the driver is back-

ing out of a parking space.

• The MOD system comprises of the rear view camera as the main

detection system, which is located on the back door as illustrated.

• The MOD system operates at speeds below 5 MPH (8 km/h)

whenever the vehicle is in R (reverse).

• The MOD system uses the rear view camera to detect approach-

ing objects from either side.

Transmit unit

Signal name

Description

ECM

CAN communication

Engine speed signal

Receives engine status.

BCM

CAN communication

Back door open status signal

Receives back door open status.

Light status signal

Receives light status.

Turn signal

Receives turn signal status.

ABS actuator and electric
unit (control unit)

CAN communication

Wheel speed signal

Receives wheel speed.

TCM

CAN communication

Shift selector position signal

Receives shift selector position.

Combination meter

CAN communication

Moving Object Detection ON/
OFF signal

Receives the ON/OFF status for Moving Ob-
ject Detection function.

Rear view camera

Communication line

Video signal

Receives the Rear View Camera image from
camera for Moving Object Detection function in
around view monitor control unit.

Reception unit

Signal name

Description

Warning system
buzzer

Warning buzzer signal

Activates the warning buzzer.

AV control unit
display

CAN communication

Visual signal request

Transmits a visual signal request from the around view mon-
itor control unit to display Rear View while the shift selector is
in R (reverse).

ALOIA0162ZZ

ALOIA0163ZZ
