Nissan Rogue. Manual - part 211

DAS

SYSTEM

DAS-15

< SYSTEM DESCRIPTION >

[DRIVER ASSISTANCE SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

SYSTEM

LDW
LDW : System Description

INFOID:0000000011277176

SYSTEM DIAGRAM

AROUND VIEW MONITOR CONTROL UNIT INPUT/OUTPUT SIGNAL ITEM

AWOIA0066GB

DAS-16

< SYSTEM DESCRIPTION >

[DRIVER ASSISTANCE SYSTEM]

SYSTEM

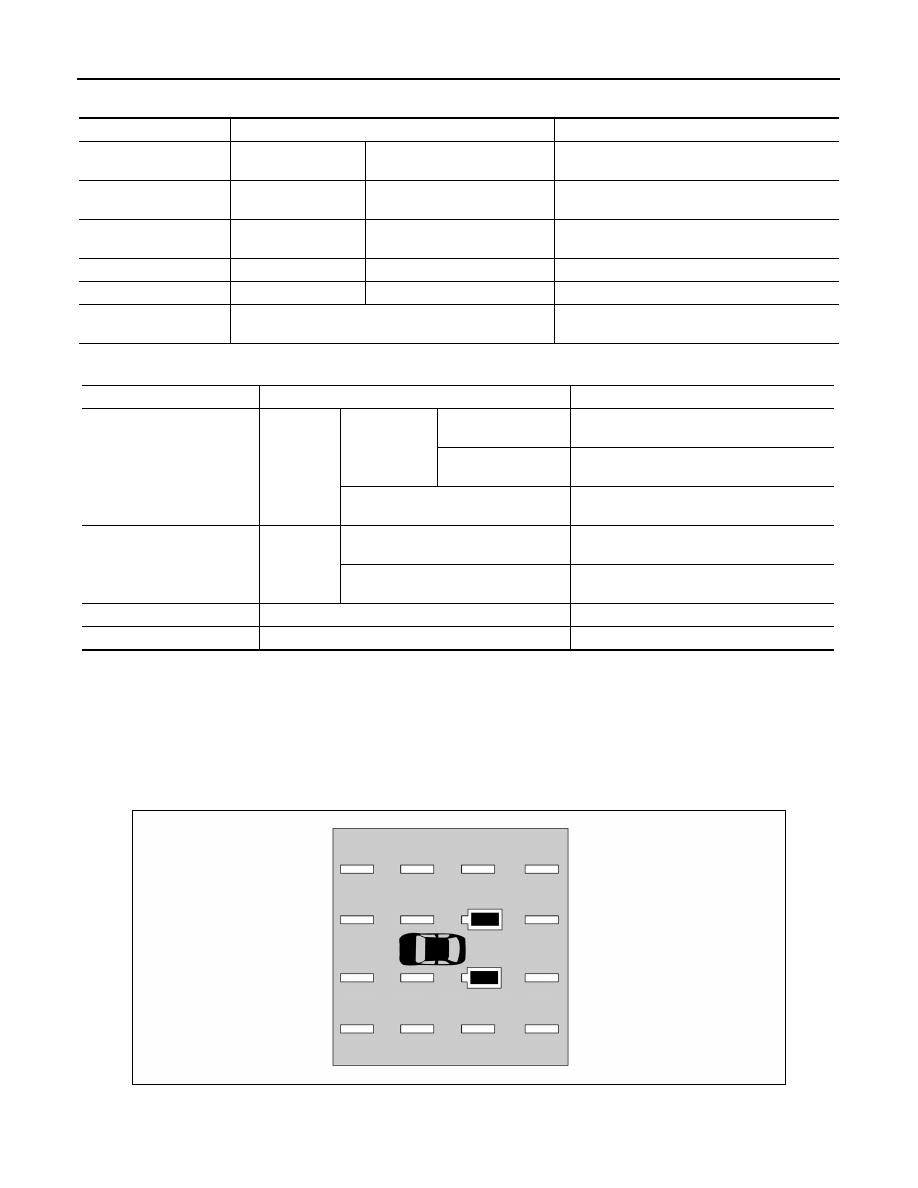

Input Signal Item

Output Signal Item

FUNCTION DESCRIPTION

• Lane Departure Warning (LDW) system provides a lane departure warning function when the vehicle is

driven at speeds of approximately 45 MPH (70 km/h) or more.

• When the vehicle approaches either the left or the right side of the traveling lane, a warning will sound and

the lane departure warning lamp (orange) on the combination meter will blink to alert the driver.

• The warning does not occur during turn signal operation (Lane change side).

• The warning function will stop when the vehicle returns inside of the lane markers.

EXAMPLE

When the vehicle approaches the right lane marker, the driver is alerted by the buzzer and the blinking of lane

departure warning lamp (orange).

OPERATION DESCRIPTION

Transmit unit

Signal name

Description

BCM

CAN communication

Turn indicator signal

Receives an operational state of the turn signal
lamp and the hazard lamp.

Combination meter

CAN communication

System selection signal

Receives a selection state of each item in “Driver
assistance” selected with the information display.

Steering angle sensor

CAN communication

Steering angle sensor signal

Receives the number of revolutions, turning di-
rection of the steering wheel.

ECM

CAN communication

Engine status signal

Receives the engine status.

Rear view camera

Communication line

Detected lane condition signal

Receives detection results of lane marker.

Warning system switch

Warning system switch signal

Receives an ON/OFF state of the warning sys-
tem switch.

Reception unit

Signal name

Description

Combination meter

CAN com-
munication

Meter display
signal

LDW warning signal

Transmits a meter display signal to turn ON
the LDW warning.

LDW ON indicator
signal

Transmits a meter display signal to turn ON
the LDW ON indicator.

Buzzer output signal

Transmits a buzzer output signal to activates
the warning buzzer.

Rear view camera washer
control unit

Communi-
cation line

Rear view camera washer signal

Transmits a rear view camera washer signal
to activate the washer motor.

Rear view camera air blow signal

Transmits a rear view camera air blow signal
to activate the air pump.

Warning buzzer

Warning buzzer signal

Activates the warning buzzer.

Warning system ON indicator Warning systems ON indicator signal

Turns ON the warning systems ON indicator.

ALOIA0182ZZ

DAS

SYSTEM

DAS-17

< SYSTEM DESCRIPTION >

[DRIVER ASSISTANCE SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

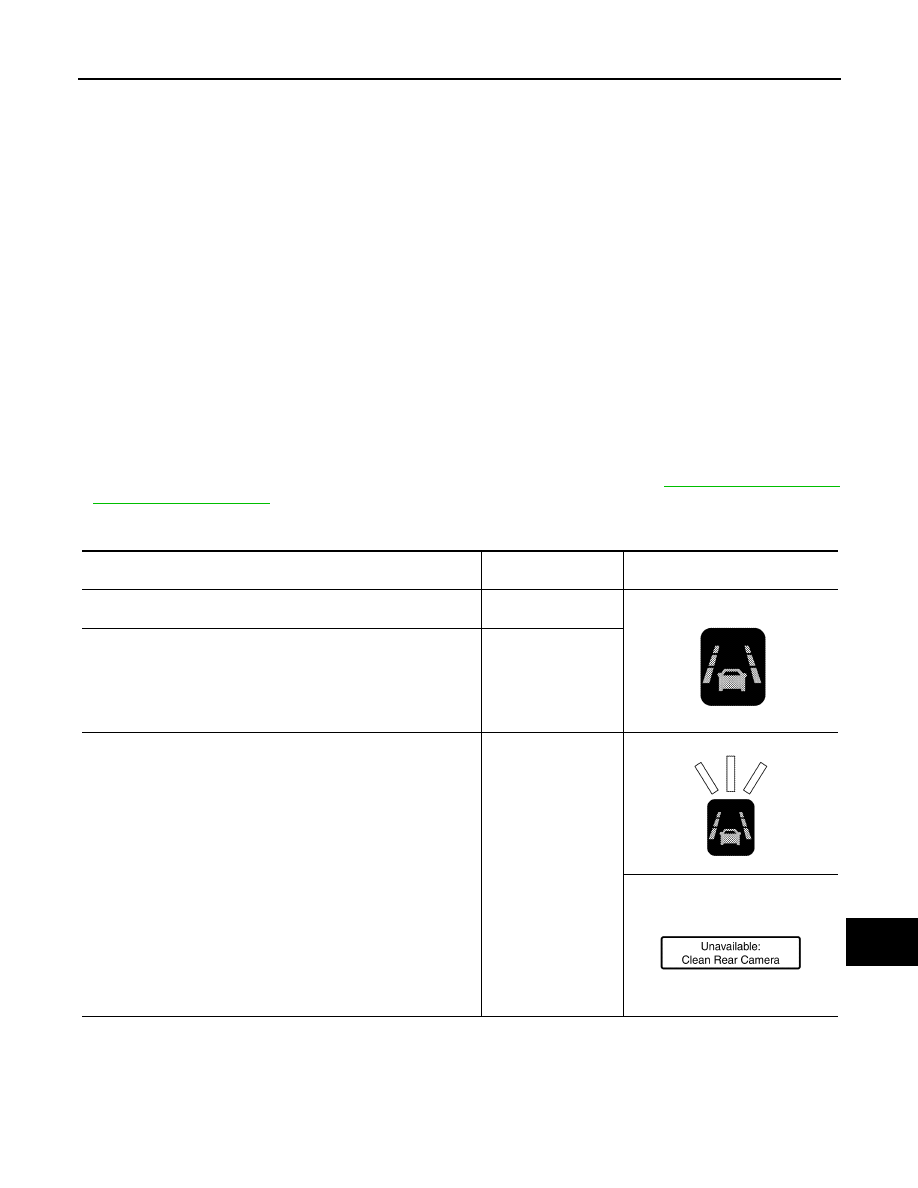

• The around view monitor control unit enables LDW system.

• When the system is turned ON, the around view monitor control unit transmits a LDW system display signal

to combination meter via CAN communication.

• Rear view camera monitors the traveling lane. It transmits the camera image signal to around view monitor

control unit.

• When judging from a camera image signal that the vehicle is approaching the lane marker, the around view

monitor control unit controls the following item to alert the driver.

- Activates the warning system buzzer.

- Around view monitor control unit transmits a LDW system signal to combination meter via CAN communica-

tion and blinks the LDW system indicator (“icon”).

Operating Condition

• LDW indicator: ON

• Warning systems indicator: ON

• Vehicle speed: approximately 45 MPH (70 km/h) or more.

• Turn indicator signal: After 2 seconds or more from turned OFF.

• Back door: Close

• Low washer fluid warning: OFF

NOTE:

• When the LDW system setting on the combination meter is ON.

• LDW system ON/OFF can be set on the combination meter.

• After the operating conditions of warning are satisfied, the warning continues until the vehicle speed reaches

approximately 40 MPH (60 km/h).

• The LDW system may not function properly, depending on the situation. Refer to

DAS-35, "Precautions for

Lane Departure Warning"

.

Fail-safe Indication

Vehicle condition/Driver's operation

Warning systems ON

indicator

Indication on the combination meter.

When DTC is detected (Except “U1308”).

ON

Camera calibration is not completed (“U1308” is detected).
NOTE:
This is detected while driving the vehicle and the indication remains
ON until the ignition switch is turned OFF.

ON

When lane markers cannot be detected due to dirt on the camera.

ON

JSOIA0736ZZ

JSOIA0737ZZ

JSOIA0738ZZ

DAS-18

< SYSTEM DESCRIPTION >

[DRIVER ASSISTANCE SYSTEM]

SYSTEM

REAR VIEW CAMERA WASHER OPERATION

• When judging that the rear view camera has water droplets, the around view monitor control unit transmits a

rear view camera washer activation signal or rear view camera air blow signal to the rear view camera

washer control unit via serial communication.

• When receiving a rear view camera washer signal, the rear view camera washer control unit simultaneously

activates the rear view camera washer motor to clean the rear view camera by spraying washer fluid from

the nozzle installed to the rear view camera bracket.

• When receiving a rear view camera air blow signal, the rear view camera washer control unit activates the

rear view camera air pump motor to clean the rear view camera by blowing air from the nozzle installed to

the rear view camera bracket.

OPERATION CONDITION

• Approximately 20 MPH (30 km/h) or more.

• When the around view monitor control unit judges that the rear view camera has water droplets.

• When the low washer fluid warning is OFF.

NOTE:

The camera is cleaned intermittently by spraying washer fluid and blowing air. When the around view monitor

control unit judges that dirt on the camera cannot be removed even after approximately 5 minutes from the

first detection of dirt, the activation of LDW is canceled.

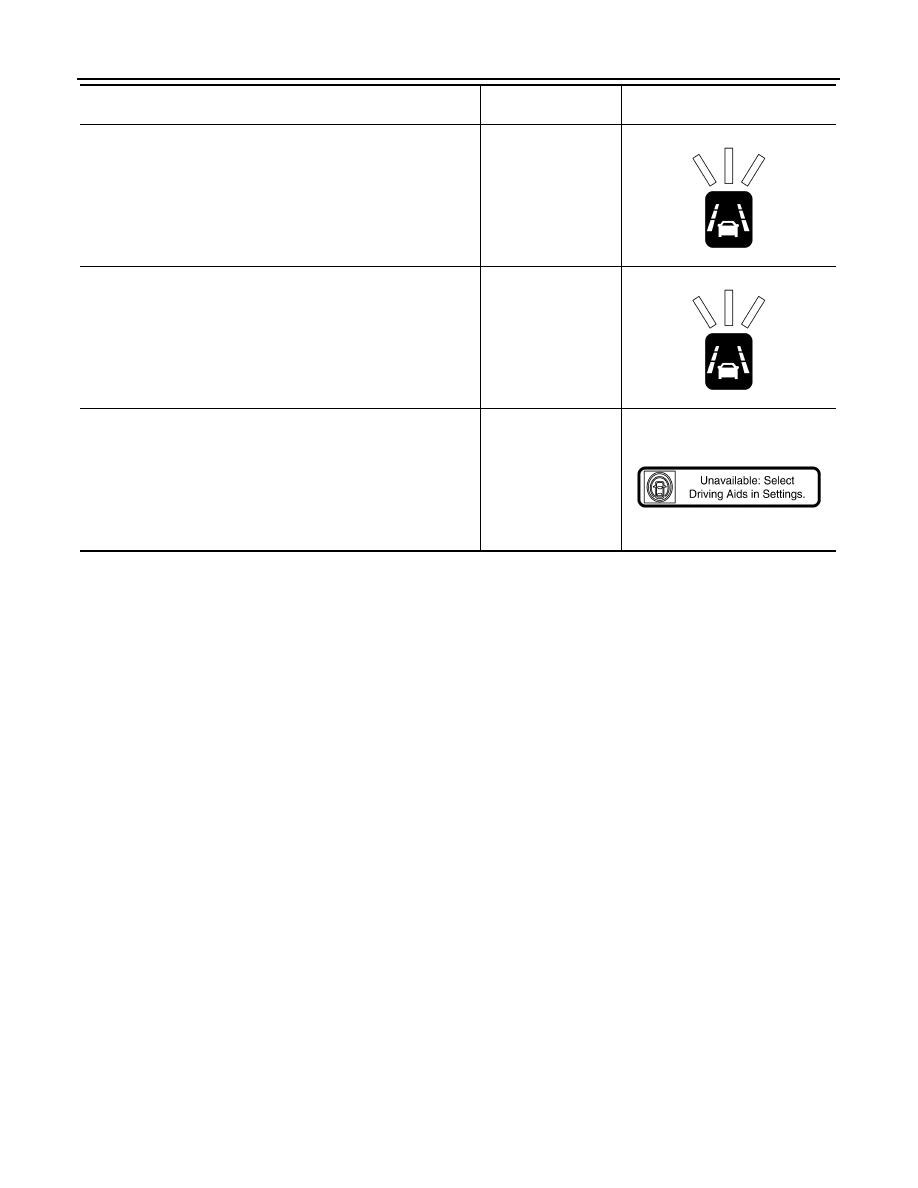

BSW

When the washer fluid level is low (Low washer fluid warning ON).

ON

Blinks at intervals of two seconds.

When the back door is open (Back door open warning ON).

ON

Blinks at intervals of two seconds.

Blinks when the setting of LDW and BSW are “OFF” and the warning
systems switch is pressed.

OFF

Vehicle condition/Driver's operation

Warning systems ON

indicator

Indication on the combination meter.

JSOIA0739ZZ

JSOIA0739ZZ

JSOIA0780ZZ
